Energy Box with Real-Time Power Monitoring - Aten I-CASE EC-1000

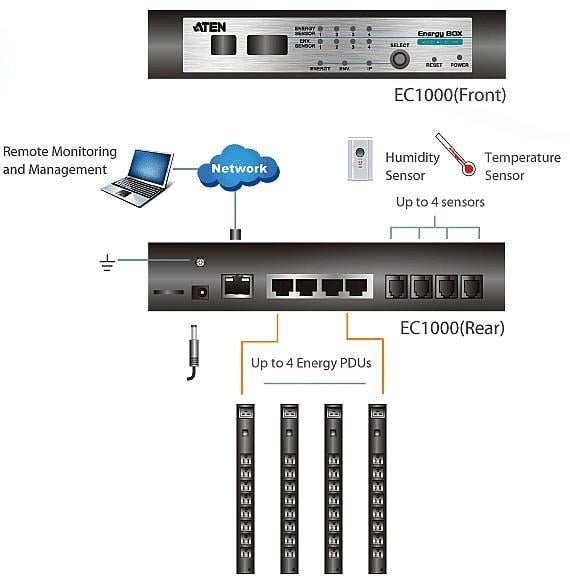

The EC1000 Energy Box is the latest evolution of NRGence™, ATEN's intelligent energy solutions. It is an intelligent and economical solution for monitoring PDU Energy and ensuring safe and effective energy saving management. It features four Energy Sensor ports to connect PDU Energy modules and four ports for external environmental sensors to monitor environmental conditions. Each environmental sensor is capable of providing measurements on temperature, humidity, and differential pressure from different areas of the server room, thus offering a wide range of monitoring and protection.

I-CASE EC-1000 allows you to monitor environmental and power data and display them on the rack or remotely, for easier viewing and maintenance. The Energy Box is a standalone unit with Over IP monitoring controlled by web interface or ATEN eco Sensors software. It offers real-time status, system log, alarm thresholds, and event notifications. The EC1000 records environmental and power conditions based on customizable minimum/maximum thresholds for electric current, temperature, humidity, and differential pressure.

Remote monitoring offers secure access with 128-bit SSL encryption and customizable account policies for user management. Remote authentication supports RADIUS and additional management interfaces such as HTTP, HTTPS, and SNMP v1 & v2 & v3 (read, write, trap). It is possible to monitor event notifications via Syslog/SMTP/SNMP trap and audible alarms for local and remote real-time alerts.

When used together with ATEN PDU Energy and eco Sensors management software, the EC1000 allows you to conveniently add management features to make the server room more ecological quickly and economically.



Operation

• Space-saving design for 1U rack mounting with both front and rear mounting


• 4 RJ-45 Energy Sensor ports to monitor the current of four PDU Energy (from 0 to 32A per port)


• 4 RJ-11 ports for environmental sensors to monitor temperature, humidity, and differential pressure*


• Maximum monitorable amperage 32A from 100V to 240V (Energy Box)

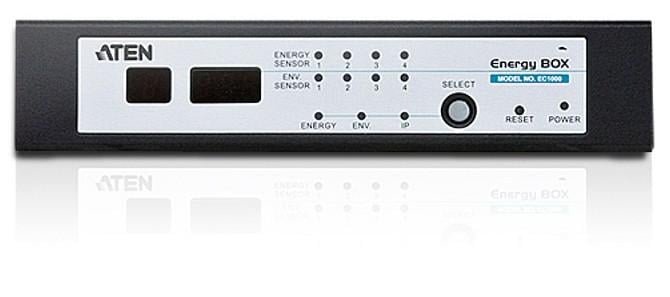

• The 3-digit, 7-segment LEDs on the front panel show sensor, current, and IP address information


• Threshold monitoring for:



1 current

2 temperature*

3 humidity*

4 differential pressure*

• Threshold exceeded alerts via:



1. Local: audible alarm and LED indicators

2. Remote: SMTP/SNMP trap/Syslog



Management

• The front panel LED indicators provide the Energy Box with information on current, temperature*, humidity*, differential pressure*, and IP address


• Real-time remote monitoring and management of current, temperature*, humidity*, and differential pressure*


• Management via eco Sensors energy management software or third-party SNMP Manager software


• Supports naming for individual Energy PDUs


• Event logging: log of 128 lines


• Syslog support


• Upgradable firmware



Remote access

• Remote management via TCP/IP and an integrated 10/100Mbps Ethernet port


• Management via integrated browser interface


• Network interfaces: TCP/IP, UDP, HTTP, HTTPS, SSL, SMTP, DHCP, NTP, DNS, 10Base-T/100Base-TX, auto-detection, Ping


• SNMP Manager V1, V2 and V3 support



Security

• Robust security features such as password protection and advanced encryption technologies: SSL at 128 bit


• RADIUS authorization and authentication



* Requires external sensors



Technical specifications

• PDU (Power Distribution Unit) power connections: 4


• Port selection: button

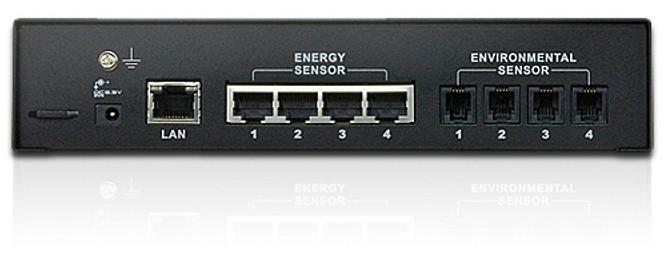

• Connectors:



- Energy sensor port: 4 x RJ-45 female

- Environment sensor ports: 4 x RJ-11 female

- Power: 1 x DC connector

- LAN ports: 1 x RJ-45 female

• Switches:



- Reset: 1 x Semi-recessed button

- Selection: 1 x Selection button

• LED



- PDU status  4 (orange)

- Environment sensor status  4 (green)

- Selected  1 digit 7 segments (orange)

- Power supply  1 (blue)

- Connection  1 (orange/green)

1 (green)

• Monitoring range: 



- 100-240 V, 50/60 Hz, 0 A to 32 A (per port)

- LED Display resolution: 0,1 A

- Accuracy: ±0.1 A at 0 - 1 A, ±1% >1 A

• Consumption: 5,3 V DC



Environmental features

• Operating temperature 0-50°C


• Storage temperature -20-60°C


• Humidity: 0 - 80% relative humidity, non-condensing



Dimensions

• Width: 20.00 cm


• Depth: 7.59 cm


• Height: 4.40 cm


• Weight: 0.59 kg



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 Energy Box EC1000


• 1 Power Supply 0AD8-8605-24EG


• 1 Mounting kit


• 4 RJ-45 cables


• 1 CD ROM (manual, eco Sensors software)


• 1 User guide
