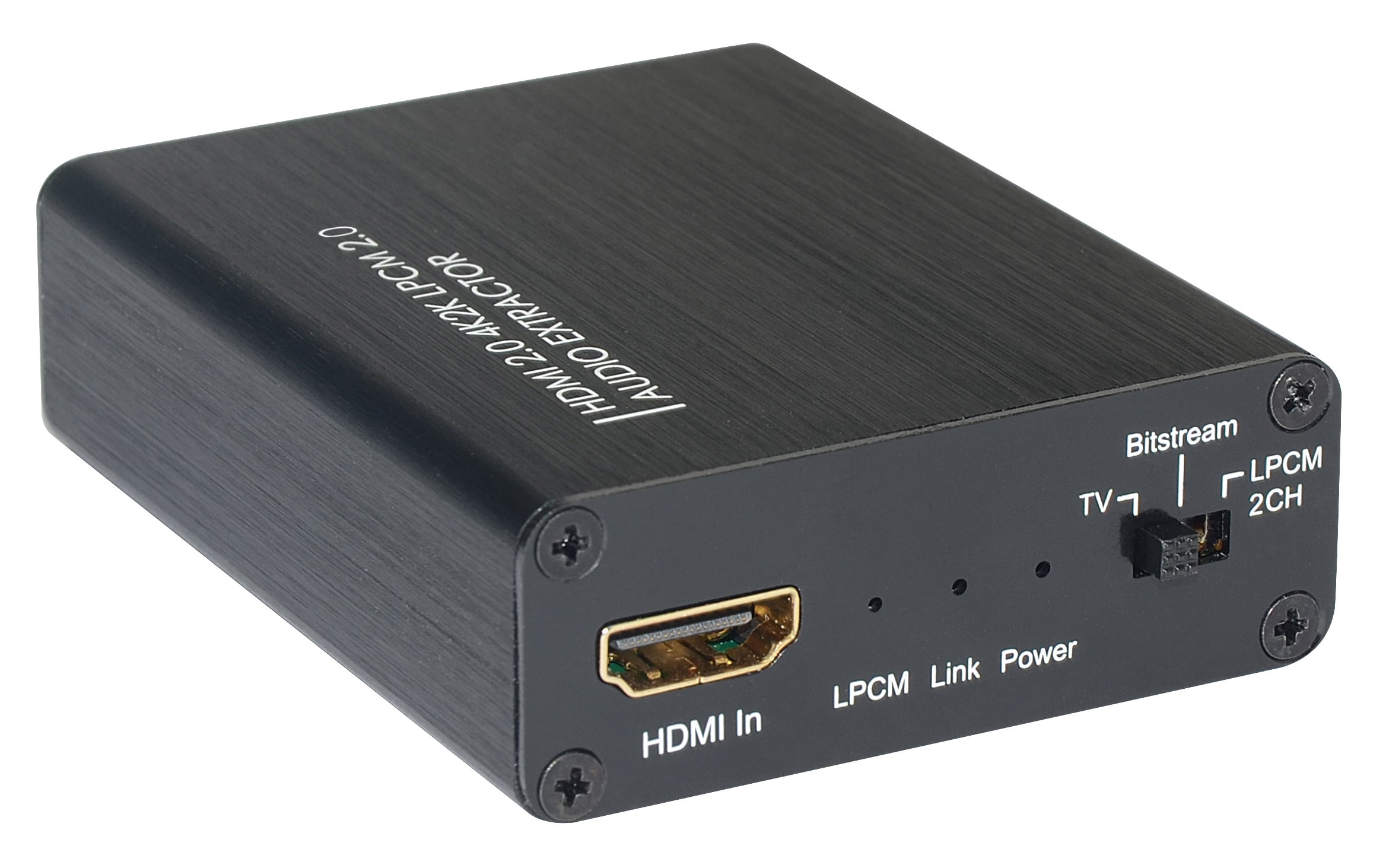

Audio Extractor LPCM 2 CH from HDMI 4 K 60 Hz YUV 4 : 4 : 4 - Techly IDATA HDMI-EA 4 K

IDATA HDMI-EA 4 K allows you to extract the audio signal from the HDMI source and convert it to multi-channel optical or analog digital audio.

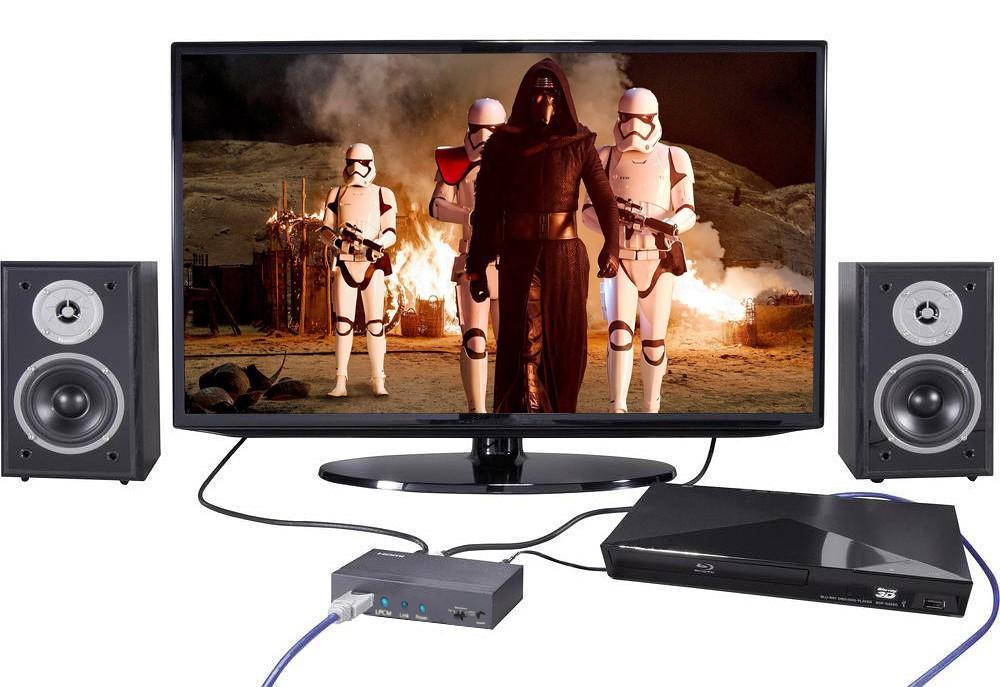

It allows you to easily send the HDMI video signal to a TV, projector or monitor and send the HDMI audio signal to external speakers.



Features

• Extract audio signal from an HDMI source


• Supports HDMI video resolution up to 4 K 2 K @ 50 / 60 Hz (YUV 4 : 4 : 4 ), 4 K@ 30 Hz, 1080 P@ 120 Hz and 1080 P 3 D@ 60 Hz


• Supports video bandwidth of 18 Gbps


• Supports HDMI audio formats (pass-through): LPCM 2 / 5.1 / 7.1 CH, Dolby Digital 2 ~ 5.1 CH, DTS 2 ~ 5.1 CH, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio


• Supports optical audio formats: LPCM 2 CH, Dolby Digital 2 ~ 5.1 CH and DTS 2 ~ 5.1 CH


• Supports L/R audio formats: 2 CH analog stereo


• HDCP 2.2, 1.4 and CEC bypass are supported


• Supports audio sampling frequency up to 192 kHz


• Supports HDR 10 bits pass through


• No HDMI connections required to receive audio on analog and optical outputs


• Color: black



Technical specifications

• Video bandwidth: 18 Gbps


• Input doors: 1 x HDMI


• Output doors: 1 x HDMI, 1 x Optics, 1 x L/R (female 3.5)


• HDMI Audio sampling frequency: up to 192 kHz


• Sample rate SPDIF Optical Audio: up to 192 kHz



LPCM 2 / 5.1 / 7.1 CH, Dolby Digital 2 ~ 5.1 CH, DTS 2 ~ 5.1 CH, Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio

• Supports optical audio formats: LPCM 2 CH, Dolby Digital 2 ~ 5.1 CH and DTS 2 ~ 5.1 CH


• Supports L/R audio formats: 2 CH analog stereo


• Colour space: RGB, YCbCr 4 : 4 : 4 , YCbCr 4 : 2 : 2



Depthà color: 10 -bit, 12 -bit

• Power supply included 5 V 2 A



Environmental features

• Operating temperature: from 0 °C to 40 °C


• Storage temperature: from - 20 to 60



Dimensions

• Width: 64 mm


• Depth: 77 mm


• Height: 23 mm



Certifications

• CE


• RAEE



Package contents

• Audio extractor IDATA HDMI-EA 4 K


• 5 V 2 A power supply


• Instructions Manual
