Switch KVMP 4 K DisplayPort to 2 USB ports 3.0 , CS 1922 - Aten IDATA CS- 1922

The KVMP™ 4 K DisplayPort Aten CS 1922 to 2 -Port USB 3.0 offers the most recent innovations in desktop KVM switch technology to meet the growing demand for high quality videos and high speed transfer to modern computers. The CS 1922 from ATEN offers unprecedented performance thanks to a 4 K resolution, next generation 3.1 USB hub Gen 1 with speed ` SuperSpeed 5 Gbps data transfer and improved simplified operations.

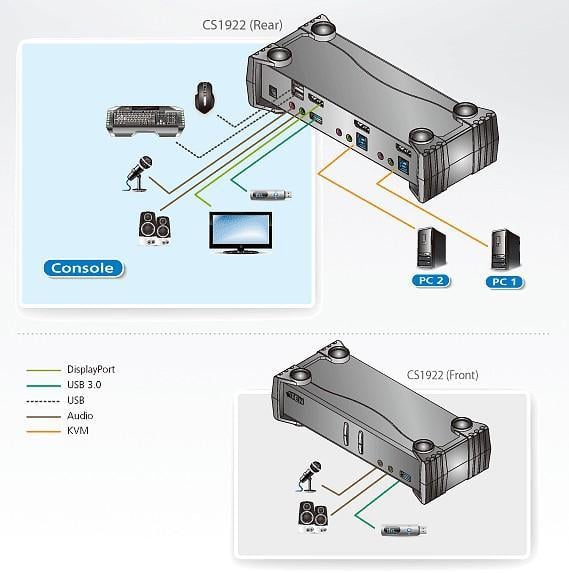

As a KVM switch, the CS 1922 allows users to access two DisplayPort computers from a single USB keyboard, USB mouse and monitor console. In this way Aten CS 1922 provides three convenient exchange methods, via push buttons on the front panel, mouse or shortcut keys for flexible access to any computer connected for installation.



The independent exchange function allows the KVM control to focus on a computer while the USB device focuses on another computer. This eliminates the need to purchase a separate USB hub or a standalone unit, such as a printing server, splitter modem, etc.



Thanks to the many functions, the CS 1922 è designed to improve all requirements for graphic design, animation and video editing applications. For example CAD/CAM (design/assisted production).

Aten CS 1922 allows you to share audio from each connected computer. The HD audio transmitted from DisplayPort offers a different experience.



Features

• Switch KVMP™ DisplayPort to 2 ports with USB hub 3.1 Gen 1 and surround audio 2.1


• A USB console to control 2 computers and 2 USB peripherals


• Selecting your computer using push buttons on the front panel, shortcut keys and mouse*


• Independent switch of KVM, USB and audio


• Superior video quality – 4 K UHD (3840 x 2160 at 60 Hz) and 4 K DCI (4096 x 2160 at 60 Hz)


• Hub USB 3.1 Gen 1 to 2 ports with speed à SuperSpeed 5 Gbps data transfer


• DisplayPort 1.2 and HDCP Conforms


• Supports HD audio via DisplayPort**


• Complete bass response for surround audio systems to 2.1 high quality channels;


• – ignition detection if a computer is switched off, Aten CS 1922 automatically switches to the next switched on computer


• Multi-Stream Transport (MST) allows the use of more ù monitor via a single DisplayPort connector***


• Modalità dual DisplayPort (DP++) technology supports HDMI and DVI signals via an adapter from DisplayPort and HDMI/DVI DP+ externally powered****


• Hot Connectable – add or remove computers without turning off the switch


• Keyboard emulation/bypass function that supports different keyboards for the game


• Mouse emulation/bypass function that supports different mouse drivers and multifuction mouse


• Multiplatform – Windows, Mac and Linux support


• Multilingual keyboard mapping, supports keyboards in English, Japanese, French and German


• Mac keyboard support and emulation*****


• Modelità Automatic search for monitoring all computers


• Updated Firmware



Note:

1 . The è mouse port exchange supported only in mode à mouse emulation with USB mouse to 3 buttons.

2. HD audio via DisplayPort cannot be exchanged independently.

3 . MST requires two compatible monitors for daisy connection DisplayPort 1.2 , or for the use of a hub DisplayPort MST powered. The PC source must be compliant with DisplayPort 1.2 . A displayPort display v 1.1 a può be the last screen in the DisplayPort v 1.2 chain.

4 . Modality technology à dual DisplayPort (DP++) does not require an active adapter for many of the individual screen settings. Active DisplayPort adapters are recommended if you are not è certain of the video source compatibilityà DP+++.

5 . PC keyboard combinations emulate Mac keyboards. Mac keyboards only work with your operating system.



Technical specifications

• Select Port: shortcut keys, push button, mouse

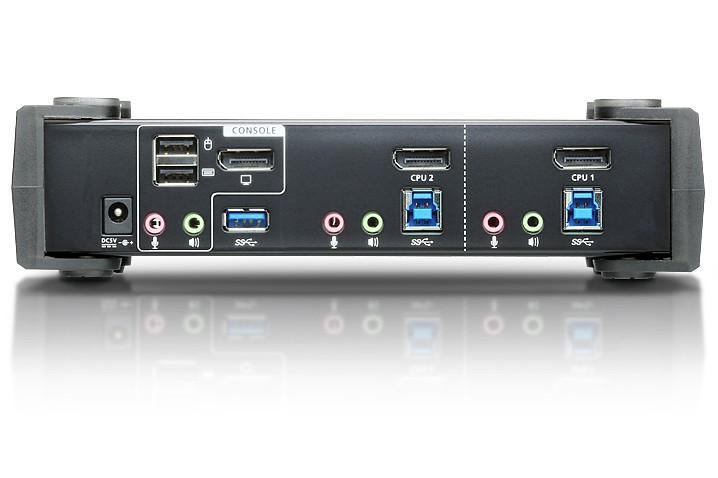

• Connectors



- Console doors:

2 USB type A female (Black)

1 DisplayPort female (Black)

2 mini stereo female jack (Green; 1 front, 1 rear)

2 mini stereo female jack (Rose; 1 front, 1 rear)

- Doors KVM (computer): 

2 USB 3.1 Gen 1 type B female (Blue)

2 DisplayPort female (Black)

2 mini stereo female jack (Green)

2 mini stereo female jack (Rosa)

- USB Hub: 2 USB 3.1 Gen 1 type A female (Blue; 1 on the front panel, 1 on the rear panel)

- Power supply: 1 x DC connector

• Video 4096 x 2160 at 60 Hz


• Consumption 5,0 V CC


• Computer connections: 2


• Keyboard Emulation / USB Mouse


• Scan interval: 1 - 99 seconds (default: 5 seconds)



Switches

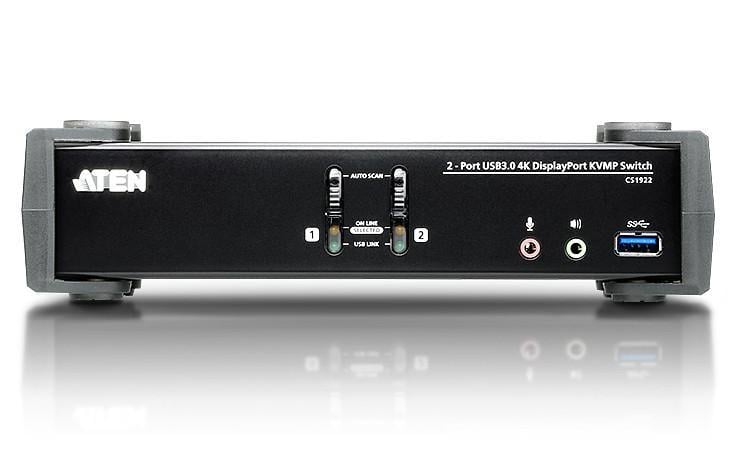

• Selected: 2 x Push button



LED

• Online / Selected 2 (Orange)


• 2 USB connection (Green)



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Dimensions

• Width: 21.00 cm


• Depthà: 8.80 cm


• Height: 5.55 cm



Package contents

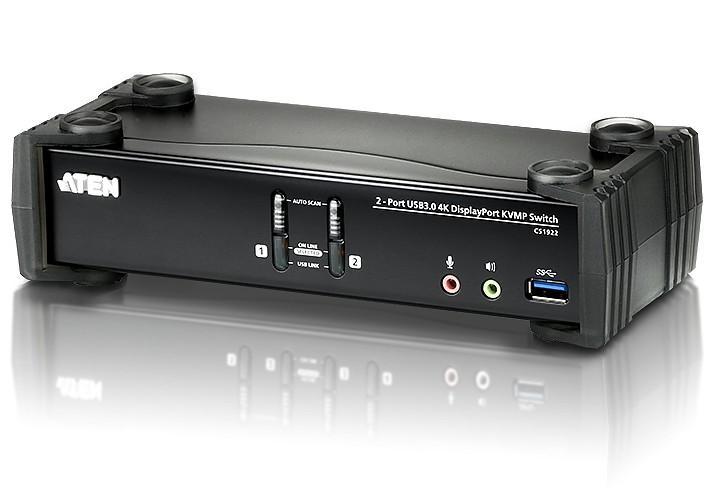

• 1 x Switch KVMP Aten CS 1922


• 2 x LIN 5 - 20 K 1 -K 13 G cables DisplayPort


• 2 x LIN 6 - 11 C 1 -E 12 G USB cables 3.0


• 2 x LIN 5 - 0205 - 21 CG audio cables


• 2 x LIN 5 - 0205 - 21 Audio Cable DG


• 1 x 0 AD 8 - 8005 - 40 MG power supply


• 1 x LIN 2 - 418 K-E 12 G power cord


• 1 x user instructions
