Switch KVM USB DVI Audio 8 ports 2560 x 1600 - Aten IDATA CS- 1788

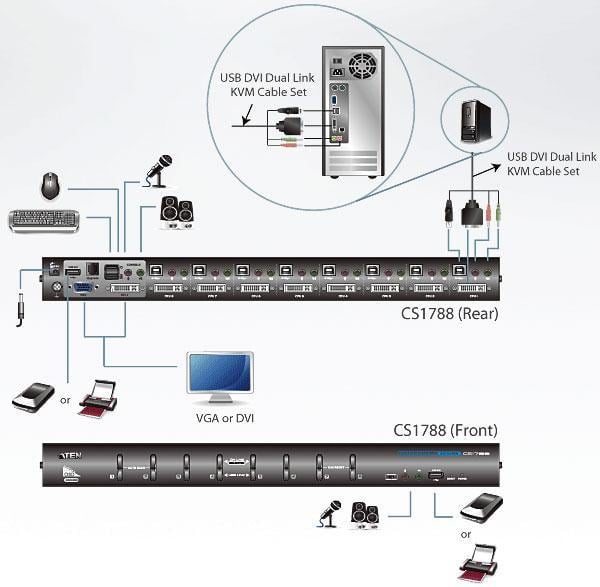

The Aten KVM USB DVI Dual Link switch to 8 ports CS 1788 è a multipurpose device that combines access and control up to 8 computers from a single console composed of USB keyboard, USB mouse and double monitor (DVI-I and VGA).

You can make three-level fno waterfall connections, for a maximum of 73 CS 1788 that control up to 512 computers, all from the same starting console; ideal for applications and IT management.

This switch also offers the Multi View functionality, which allows you to use standard USB cables to connect up to four quad view switches in multi-player installations where each è computer has more ù video cards. It allows with extreme facility à to combine, analyze and monitor video output, simplifying so ì the working environment.

In addition, CS 1788 has the OSD function of ATEN to access an installation computer and the ability to save and restore the configuration of the OSD and its settings.

The CS 1788 transmits audio and supports multimedia keyboards. Two microphones provide audio input to each computer, while for the è output, two sets of speakers can be used on each computer (in turn)



Features

• A USB console controls eight computers with dual link or VGA DVI interface and two other 2.0 USB devices


• Supports a digital (DVI) or analog (VGA) video output


• Possibility to cascade up to 3 levels to control up to 512 computers


• Multi View function: to stack up to four units à CS 1788 and display video of up to four monitors (dual view, triple view, quad view)


• Hub with 2 USB ports 2.0 included


• Fully compliant with USB 2.0 specifications

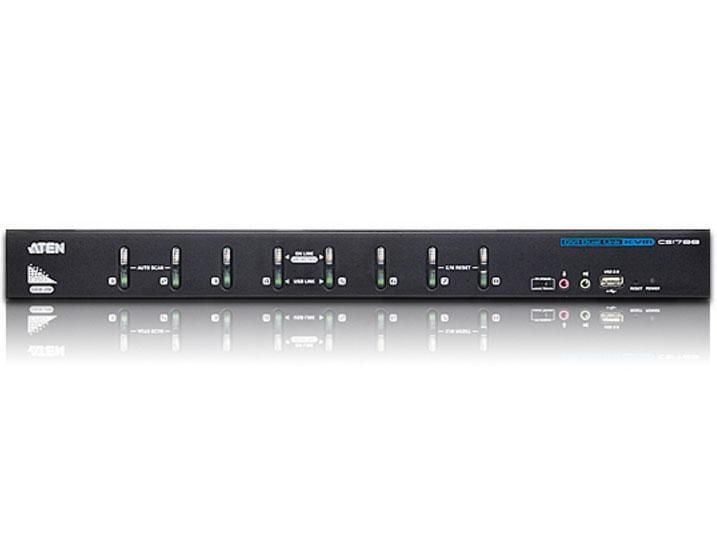

• Computer selection via front panel buttons, multilingual OSD and shortcut keys


• OSD backup/restore function: admins can back up the switch configuration and user profiles


• Two levels of password permission (administrator/user) for increased security


• Languages for OSD include English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian and French


• With audio transmission: the full bass range offers a wonderful experience with surround audio systems at 2.1 channels


• Console audio ports on the front panel for easy access


• Multiplatform support: Windows, Linux, Mac and Sun


• Support widescreen resolutions


• Quality & agrave; top video: 2560 x 1600 (DVI Dual Link); 2048 x 1536 (VGA); DDC 2 B


• Independent switching of KVM and USB control


• Support for digital and analog DVI monitors: fully compliant with DVI specifications


• HDCP compatible


• DynaSync™ Video, the exclusive ATEN technology that eliminates boot display problems and optimizes resolution when switching from port to port


• Console mouse port emulation/bypass function supports many multifunction mouse and mouse drivers


• Full keyboard emulation for error-free startup


• Mac/Sun keyboard support and emulation*


• Multilingual keyboard map: supports English (US), English (UK), French, German, Japanese, Korean, Traditional Chinese and Spanish


• Modelità automatic switching for monitoring all computers


• Modelità transmission: allows you to send commands from the console to all computers to perform simultaneous operations


• Updated Firmware



Note: Emulation of Sun/Mac keyboards via PC keyboard key combinations; Mac/Sun keyboards only work with their respective computers



Data sheet

Computer Links


- Directed 8

- Massimo 512 (via cascade)

Select Port: OSD, Quick-Shot Key, Button

Connectors


- Console doors:

2 x female type A USB (black)

1 x HDB- 15 female (blue) /

1 x DVI-I female (white)

2 x Mini female stereo connector

(green; 1 x front panel, 1 x rear panel)

2 x Mini female stereo connector

(pink; 1 x front panel, 1 x rear panel)

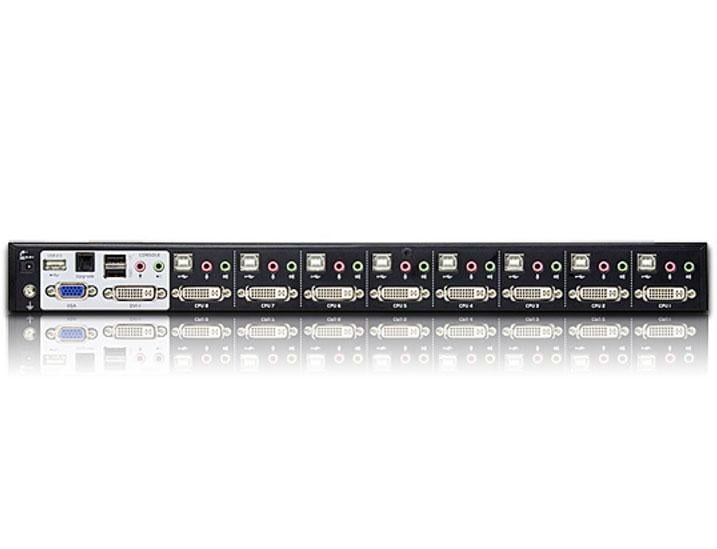

- Doors KVM:

8 x female type B USB (white)

8 x DVI-I female (white)

8 x Mini female stereo connector (green)

8 x mini male stereo connector (pink)

- Firmware update 1 x RJ- 11 female

- Power supply 1 x DC connector

- USB Hub: 2 x USB type A female

(white; 1 x front panel, 1 x rear panel)

Switches


- Select door: 8 x Button

- Restoration: 1 x Semi-collected button

- Firmware update: 1 x Scrolling switch

LED


- USB connection: 8 (green)

- Power supply: 1 (dark green)

- Online / selected: 8 (orange)

Emulation:


- Keyboard / Mouse: USB

Video:


- DVI Dual Link: 2560 x 1600;

2048 x 1536

Scan interval: 1 - 255 seconds (default: 5 seconds)

Consumption: 5,3 V CC, 6,47 W

Environment


- Operating temperature 0 - 50 °C

- Storage temperature - 20 - 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

Proprietà physical


- Metal structure

- Weight 2.80 kg

- Dimensions (L x P x A): 43.72 x 16.12 x 4.40 cm



Package contents

1 switch KVM USB DVI CS 1788 to 8 ports with kit for rack mounting

2 cable set KVM USB DVI-D Dual Link 2 L- 7 D 02 UD

1 LIN cable 5 - 04 A 2 -J 11 G for firmware upgrade

1 power supply 0 AD 6 - 1605 - 24 EG

1 set of feet (4 pcs)

1 user guide
