Switch KVM over IP 16 ports - ATEN IDATA KN- 2116 VA

ATEN's 4th generation of KVM Over IP switches exceeds all expectations. KN2116VA offers superior video quality (Full HD resolution of 1920 x 1200), FIPS 140-2 with level 1 security standards and Virtual Media transmissions at double speed. The KN series allows operators local console access and remote access via IP to monitor and access the entire data center over a network. It also offers out-of-band access with an external modem for BIOS-level troubleshooting in case of network absence.

New exclusive KN series:

• High quality protection à – supports FIPS 140 - 2 with 1 level protection standards


• High speed ` Virtual Media – fast à Virtual Media transmission 2 times faster ù


• Advanced FPGA – Graphic Processor with Full HD resolution 1920 x 1200



With dual integrated NICs and two power supplies, the KN è series has been designed to ensure reliability à and ensure the availability à 24 / 7 remote access to all servers.

The KN series devices can be integrated into the CC 2000 management software. The CC 2000 guarantees administrators complete control of remote data centers and branches, regardless of their location worldwide. Ciò allows IT administrators to remotely monitor and control all devices on the network, including blade servers and virtual machines.

To allow you to manage and control an entire data center, ATEN's KVM over IP switches support Blade servers and homes. Thanks to the new powerful functions such as power association, è can associate KVM ports with the ATEN PDU power sockets to manage server power directly from the KVM over IP switch interface.

Additional exclusive features of ATEN's KVM over IP switches include: a message board, the mode ` Panel Array™, Mouse DynaSync™ and Adapter ID.

With ATEN's KVM over IP switches, IT administrators can manage data centers from virtually anywhere, reducing transport costs and average repair time, thus ensuring maximum availability of data centers.



Features

• New exclusive KN series



- High quality protection à – supports FIPS 140 - 2 with 1 level protection standards

- High speed; Virtual Media – speed à Virtual Media 2 transmission times faster

- Advanced FPGA graphics processor – with Full HD resolution 1920 x 1200

- Simultaneous sharing of a local console and two independent links to connected servers

• Hardware



- Densità high door – RJ- 45 connectors and Cat 5 and/ 6 cable up to 16 ports in a 1 U housing

- USB Laptop Console (LUC) – A dedicated USB port connects directly to a laptop for easy console operation

- Two separate buses for KVM over IP access

- Two NIC 10 / 100 / 1000 Mbps for redundant LAN or two IP operations

- Blade server support

- Supports connectivityà PS/ 2 , USB, Sun Legacy (13 W 3) and serial (RS- 232)

- The local console provides support for keyboard and USB mouse

- Supports server environments to more ù platform: Serial devices based on Windows, Mac, Sun, Linux and VT 100

- Audio enabled

- Double power supply

- High video resolution - up to 1920 x 1200 @ 60 Hz with depthà 24 bit color in the local console of the switch and in the views of the remote sessions

- Monitoring and control up to a maximum of 16 computers on a single level or control up to a maximum of 256 computers in cascade*

- * KVM compatible cascade switches include the following: CS 9134 , CS 9138 , CS 88 A, KH 1508 , KH 1516 , KH 1508 A and KH 1516 A

• Management



- Up to 64 user account: up to 32 contemporary accesses with shared control

- IT econologi: the speed & agrave; of the fans varies depending on the temperature

- Support for Windows log servers and event recording

- Notification of critical system events via SMTP email, SNMP trap and Syslog support

- Customizable event notification

- Updated firmware

- Support Out-of-Band Access-Modem dial-in/dial out/dial back

- Adapter ID function: Storage of port information allows administrators to reassign servers to different ports without having to reconfigure adapters and switches

- The port sharing mode allows more ù users at the same time to gain access to the server

- Integration with the ATEN CC 2000 management software and the CCVSR video session recording software

- The connection of the power supply with the PDU ATEN allows to associate the KVM ports of the switch with the PDU sockets for remote power management

- Compatible IPv 6

• Easy-to-use interface



- Exclusive mode à Panel Array ATEN™ for simultaneous monitoring by local console operators and remote access users

- Local console interfaces, browser-based and AP-based interfaces offer a unified multilingual interface to reduce learning time and increase productivity;

- Multiplatform client support (Windows, Mac OS X, Linux, Sun)

- Multibrowser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape

- The browser-based interface allows administrators to perform their tasks without the need for pre-installed Java software packages

- Users can start various remote desktop sessions to control different servers with the same login

- Full screen virtual remote desktop or scalable and resizeable

- Keyboard/mouse transmission: possibility to replicate the input from mouse and keyboard on all connected servers

- Video synchronization with the local console: local console monitor EDID information is stored on KVM adapter cables to optimize video resolution

• Advanced protection



- Remote authentication support: RADIUS, LDAP, LDAPS and MS Active Directory

- Supports TLS 1.2 data encryption and RSA certificates to 2048 -bit for user access protection from browser

- Flexible encryption design allows users to choose any combination of DES to 56 bits, 3 DES to 168 bits, AES to 256 bits, RC 4 to 128 bits or random for independent encryption of keyboard, mouse, video and Virtual Media data

- IP/MAC filter support

- Configuration of user and group permissions for server access and control

- Utility for the creation of automatic CSR and authentication with third-party CA certificates

• Virtual support



- Virtual Media allows you to manage files, install SO patches or software and perform diagnostic tests

- Works with USB-enabled servers at BIOS and operating system level

- Support for driveà DVD/CD, USB mass storage, PC hard drives and ISO images

• Virtual remote desktop



- You can adjust the quality à and video tolerance to optimize the data transfer speed à depth à monochrome color setting and noise threshold for compressing data bandwidth in situations with reduced bandwidth

- Full screen display or scalable

- Wall for communication between remote users

- DynaSync mouse: automatically synchronizes local and remote mouse movements

- Macro output support

- On-screen keyboard with multilingual support

- BIOS level access support



Technical specifications

• Computer Links



- Maximum: 256 (via KVM waterfall switch)

- Direct: 16

• Console Links



- Remote: 2

- Local: 1

• Select Port: Buttons, shortcut keys, user interface

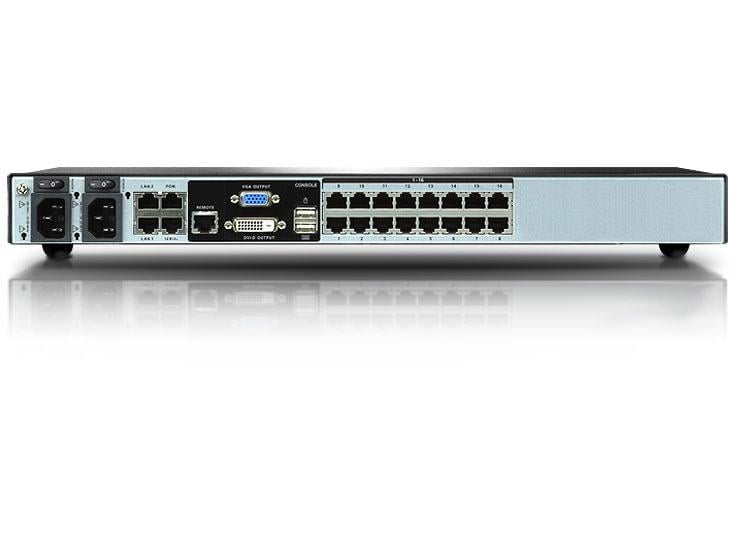

• Connectors



- Console doors: 2 x female USB (black)

1 x DVI-D female (white)

1 x VGA HDB- 15 (blue)

1 x RJ- 45 female (black)

- KVM doors: 16 x RJ- 45 female (black)

- USB port: 3 x female USB (black)

- Audio: 2 x Female audio connector (pink; green)

- Luc port (USB Laptop Console): 1 x Mini USB female (black)

- PON: 1 x RJ- 45 female (black)

- Serial: 1 x RJ- 45 female (black)

- LAN doors: 2 x RJ- 45 female (black)

- Power supply: 2 x IEC 60320 /C 14

• Switches



- Power supply: 2 x Swing switches

- Select door: 2 x Buttons

- Restoration: 1 x Semi-collected button

• LED



- Online / Selected: 16 (green/orange)

- Power supply: 2 (blue)

- Connection 10 / 100 / 1000 Mbps: 2 (red/orange/green)

• Emulation



- Keyboard / Mouse: PS/ 2 ; USB

• Video



- Local: 1920 x 1200 at 60 Hz

- Remote: 1920 x 1200 at 60 Hz

• Input power load: 100 – 240 V~; 50 - 60 Hz; 1 A


• Consumption



- Single power supply: 110 V/ 34,54 W; 220 V/ 34,76 W

- Double power supply: 110 V/ 17,67 W; 220 V/ 17,93 W (per input)

• Scan interval: 1 - 255 sec


• Environment



- Operating temperature: 0 - 40

- Storage temperature: - 20 - 60

• Humidità: 0 - 80% relative humidityà without condensation


• Proprietà physical



- Structure: Metal

- Weight: 5.56 kg

- Dimensions (L x P x A): 43.36 x 41.21 x 4.40 cm



Package contents

• 1 x KN 2116 VA switch KVM over IP


• 2 x SA 0142 serial adapters (from RJ 45 -F to DB 9 -M; from DTE to DCE)


• 2 x LIN 2 - 418 K-E 12 G power cables


• 1 x Mounting kit


• 2 x 0 X 12 - 0017 - 301 G Lok-U-Plug


• 1 x 0 X 12 - 0017 - 401 G installation tool Lok-U-Plug


• 1 x set of feet (4 pieces)


• 1x User instructions
