Switch KVM over IP Cat 5 8 ports with Daisy-Chain - ATEN IDATA KH- 1508 AI

The KVM over IP Cat 5 switch with high densityà Aten KH 1508 Ai offers 16 computer port configurations in a 1 U housing for rack installation. It allows local and remote operators to monitor and access the entire enterprise data center via the Internet using a web-based browser.

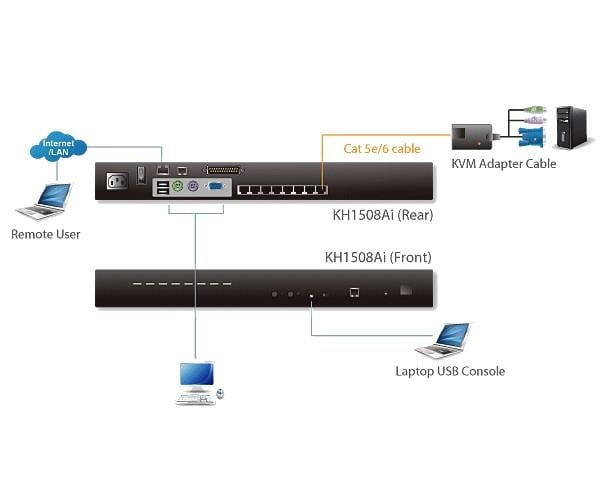

The KH 1508 Ai has RJ- 45 connectors and Cat 5 and/ 6 cable for connection with computers and multiplatform support. It guarantees that high quality & high signal transmission is over long distance, up to 50 m* without requiring KVM extenders. Using KVM adapter cables for the final connection, the KH 1508 Ai allows any combination of PC, Mac, Sun computers and serial devices to coexist in installation.



In addition to connectingà TCP/IP, Aten KH 1508 Ai offers console ports for a USB or PS/ 2 connected locally and a Net.

USB console laptop (LUC) – allows access and control from the data center as well as switches designed with powerful and unique functions that allow administrators to manage the entire server environment and devices of the data center devices in a simple and convenient way from any location in the world.



A special message board, which like an Internet chat program, allows unlimited remotely connected users to exchange information and communicate or collaborate in the installation management. Panel Array Mode™ allows you to monitor up to 8 servers at the same time. Other functions that contribute to enriching the powerful functionalityà switches are: Mouse DynaSync™, an adapter ID.



With KVM switches over IP ALTUSEN, IT administrators can manage server rooms and data centers from virtually anywhere, reducing travel costs and MTTR (average repair time) – and ensuring maximum availability of data center services.



* With KVM adapter cable from the KA 7000 series



Hardware

• High density of doors: RJ 45 connectors up to 8 ports for 1 U housing


• A dedicated USB port for direct connection to the laptop for simplified console management


• A bus for remote access KVM Over IP


• Support PS/ 2 , USB, Sun legacy (13 W 3) and serial links (RS- 232)


• The local console offers support for PS/ 2 and USB keyboards and mouse


• Multiplatform support: Windows, Linux, Mac and Sun


• Qualità higher video: up to 1600 x 1200 @ 60 Hz up to 40 meters and 1280 x 1024 @ 75 Hz up to 50 meters*


• Waterfall connection up to 15 unità additional to control 128 computer from one console



Management

• Up to 64 user account: up to 32 contemporary accesses with shared control


• Session End Function: Administrators can terminate current sessions


• Support for Windows log servers and event recording


• Local event registration


• Adapter ID: Storage of port information allows administrators to reassign servers to different ports without having to reconfigure adapters and switches


• The port sharing mode allows more ù users simultaneously to gain access to the server


• Integration with ALTUSEN CC 2000 management software


• Power Over the NET & trade integration; for remote power control


• Updated Firmware


• Compatible IPv 6



Easy-to-use interface

• Console, browser, and AP-based interfaces offer a unified multilingual interface to reduce learning time and increase productivityà


• Multiplatform client support (Windows, Mac OS X, Linux, Sun)


• Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)


• The browser-based interface allows administrators to perform their tasks without the need for pre-installed Java software packages


• Modelità Panel Array™


• Keyboard transmission: possibility to replicate the keyboard input on all connected servers



Advanced security

• Remote authentication support: RADIUS, LDAP, LDAPS and MS Active Directory


• Hardware


• High density of doors: RJ 45 connectors up to 8 ports for 1 U housing


• A dedicated USB port for direct connection to the laptop for simplified console management


• A bus for remote access KVM Over IP


• Support PS/ 2 , USB, Sun legacy (13 W 3) and serial links (RS- 232)


• The local console offers support for PS/ 2 and USB keyboards and mouse


• Multiplatform support: Windows, Linux, Mac and Sun


• Qualità higher video: up to 1600 x 1200 @ 60 Hz up to 40 meters and 1280 x 1024 @ 75 Hz up to 50 meters*


• Waterfall connection up to 15 unità additional to control 128 computer from one console



Management

• Up to 64 user account: up to 32 contemporary accesses with shared control


• Session End Function: Administrators can terminate current sessions


• Support for Windows log servers and event recording


• Local event registration


• Adapter ID: Storage of port information allows administrators to reassign servers to different ports without having to reconfigure adapters and switches


• The port sharing mode allows more ù users simultaneously to gain access to the server


• Integration with ALTUSEN CC 2000 management software


• Power Over the NET & trade integration; for remote power control


• Updated Firmware


• Compatible IPv 6



Easy-to-use interface

• Console, browser, and AP-based interfaces offer a unified multilingual interface to reduce learning time and increase productivityà


• Multiplatform client support (Windows, Mac OS X, Linux, Sun)


• Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)


• The browser-based interface allows administrators to perform their tasks without the need for pre-installed Java software packages


• Modelità Panel Array™


• Keyboard transmission: possibility to replicate the keyboard input on all connected servers



Advanced security

• Remote authentication support: RADIUS, LDAP, LDAPS and MS Active Directory


• Support for TLS 1.2 data encryption and 2048 bit RSA certificates for secure access to users via browser


• The flexible encryption design allows users to choose any combination of DES to 56 bits, 3 DES to 168 bits, AES to 256 bits, RC 4 to 128 bits or random for independent encryption of keyboard, mouse and video data


• IP/MAC filters for increased protection


• Configuration of user and group permissions for server access and control



Virtual remote desktop

• You can adjust the quality à and the video tolerance to optimize the data transfer speed à depth à monochrome color setting and noise threshold for compressing the data bandwidth in situations with reduced bandwidth.


• Full screen display or scalable


• Wall for communication between remote users


• Automatic Synchronization of DynaSync&trade Mouse; to synchronize local and remote mouse movements


• On-screen keyboard with multilingual support


• Macro output support


• BIOS level access


• The flexible encryption design allows users to choose any combination of DES to 56 bits, 3 DES to 168 bits, AES to 256 bits, RC 4 to 128 bits or random for independent encryption of keyboard, mouse and video data


• IP/MAC filters for increased protection


• Configuration of user and group permissions for server access and control



Virtual remote desktop

• You can adjust the quality à and the video tolerance to optimize the data transfer speed à depth à monochrome color setting and noise threshold for compressing the data bandwidth in situations with reduced bandwidth.


• Full screen display or scalable


• Wall for communication between remote users


• Automatic Synchronization of DynaSync&trade Mouse; to synchronize local and remote mouse movements


• On-screen keyboard with multilingual support


• Macro output support


• BIOS level access



Computer Links

• Direct: 8


• Maximum: 128 (via interconnection)



Select Port

• OSD; shortcut; Button



Connectors

• Console ports  



2 x USB type A female (white)

1 x Mini-DIN 6 pin female (purple)

1 x Mini-DIN 6 pin female (green)

1 x HDB- 15 female (blue)

• KVM & Ports



8 x RJ- 45 female

• Connecting ports  



1 x DB- 25 male (black)

• Feeding  



1 x IEC 60320 /C 14

• LAN & Ports



1 x RJ- 45 female

• Firmware   Update



1 x RJ- 11 female (black)

• PON 



1 x RJ- 45 female

• Luc port (USB Laptop Console) 



1 x USB mini type B female (black)



Switches

• Restore  



1 x Semi-collected button

• Feeding  



1 x Balancer

• Select port  



8 x Button



LED

• Online 8 (green)


• Selected 8 (orange)


• Power supply 1 (blue)


• 1 station ID x 2 digits, 7 segments (orange)


• 1 connection (orange)


• 10 / 100 Mbps 1 (orange / green)



Emulation

• Keyboard / Mouse PS/ 2 ; USB



Video

• Locale 



1600 x 1200 at 60 Hz (40 m) ;

1280 x 1024 at 75 Hz

(50 m with adapter cable KA 7 xx)

• Remote 



1600 x 1200 at 60 Hz



Scan interval 

1 - 255 seconds



Input power load 

100 - 240 V AC; 50 / 60 Hz; 1 A



Consumption 

120 V / 12,5 W; 230 V / 12,7 W



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 43.72 cm


• Depthà: 15.58 cm


• Height: 4.40 cm



Certifications

• RoHS


• RAEE



Package contents

• 1 Switch KVM Over IP Cat 5 high densityà KH 1508 Ai


• 1 cable for firmware upgrade


• 1 LIN 6 - 04 U 1 -M 18 G cable for USB console USB-A laptop to Micro USB-B


• 1 LIN 2 - 481 K-E 12 G power cord


• 1 rack mounting kit


• 1 set of feet (4 pcs)


• 1 user guide
