Switch KVM Cat 5 8 ports with Daisy-Chain - ATEN IDATA KH- 1508 A

The KVM Aten KH 1508 A switches are control units that allow IT administrators to access and control different computers from a single KVM PS/ 2 or USB console (keyboard, monitor and mouse). Operators can control up to 8 computer. By connecting to daisy additional 31 switch, è you can control 256 computer from the starting KVM console.



These switches have been designed with unique and powerful functions that allow administrators to manage all server and data center devices easily and conveniently.

For example, the Advanced Adapter ID features store adapter cable configuration information such as ID, port name, SO, keyboard language, etc. and allows administrators to reassign servers to different ports without having to reconfigure adapters. Other advanced functionality à includes the best quality à video, extending server distance to 50 meters* to a resolution of 1280 x 1024.



A KH 1508 A installation offers one of the best and most economical ATEN solutions for the SME market. There are no better ways to save time, space and money than a KVM Aten KH 1508 A switch.



* With KVM adapter cable KA series 7000.



Features

• A KVM console can ò directly control up to 8 computers connected


• Space saved thanks to RJ- 45 connectors and Cat 5 and/ 6 cables

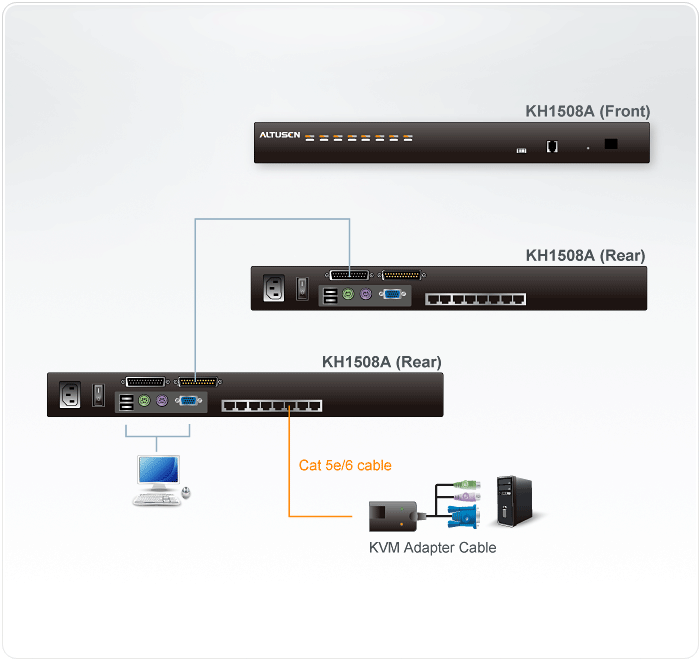

• By cascade connection of additional 31 switch KH 1508 A, è you can control 256 computer from the starting KVM console.


• Console conversion: è can control any type of computer with any type of KVM console; mixed combinations (PS/ 2 + USB) are supported on both the KVM and the computer console side


• Qualityà top video: supports video resolutions up to 1600 x 1200 @ 60 Hz to 40 meters and 1280 x 1024 @ 75 Hz to 50 meters*


• Configuration of user access rights to ports based on single port


• Three Port Selection methods: Manual (through front panel buttons), Quick-Select Key and Multilingual On Screen Display (OSD)


• Multiplatform support: PC, Mac, Sun and serial


• Multiple user accounts: Support up to 10 user account and 1 administrator


• Two-level password security: supports an administrator profile and ten user profiles. Password protection prevents unauthorized access to installation


• Modelità automatic switching for continuous monitoring of computers selected by the user


• The transmission mode à sends commands from the console to all computers, allowing you to run simultaneously on all computers operations such as software installation, updates, shutdowns etc.


• Adapter ID


• Updated Firmware



Computer Links

• Direct: 8


• Maximum: 256 (via interconnection)

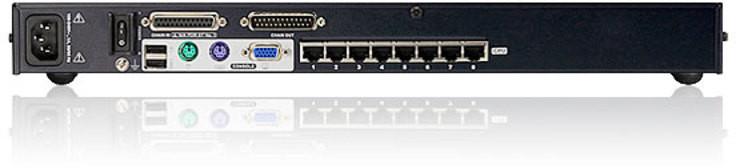

Connectors

• Console ports  



2 x USB type A female (white)

1 x Mini-DIN 6 pin female (purple)

1 x Mini-DIN 6 pin female (green)

1 x HDB- 15 female (blue)

• KVM & Ports



8 x RJ- 45 female

• Connecting ports  



1 x DB- 25 female (black)

1 x DB- 25 male (black)

• Firmware   Update



1 x RJ- 11 female (black)

• Feeding  



1 x IEC 60320 /C 14



Switches

• Select Port:



8 x Button

• Restore:



1 x Semi-collected button

• Firmware update:



1 x Scrolling

• Feeding:



1 x Balancer



LED

• Online: 8 (green)


• Selected: 8 (orange)


• Power supply: 1 (blue)


• Station ID: 1 x 2 digits, 7 segments (orange)



Environmental features

• Operating temperature 0 - 40 °C


• Storage temperature -20 - 60°C


• Humidità 0 - 80 % relative humidity, without condensation



Dimensions

• Width: 43.72 cm


• Depthà: 15.58 cm


• Height: 4.40 cm



Package contents

• 1 switch KVM Cat 5 high densityà 8 ports Aten KH 1508 A


• 1 cable for firmware upgrade


• 1 power cable LIN 2 - 481 K-E 12 G


• 1 rack mounting kit


• 1 set of feet (4 pcs)


• 1 user guide
