Switch KVM Cat 5 2 console 16 ports with Daisy-Chain - ATEN IDATA KH- 2516 A

The KVM Aten KH 2516 A è a control unit that allows IT administrators to access and control different computers from two KVM PS/ 2 or USB consoles (a bus). The operators of the two consoles can control independently and simultaneously up to 16 computer. By connecting additional 15 switch to daisy, è you can control 256 computers from the starting KVM consoles.

This è switch has been designed with unique and powerful features that allow administrators to manage all server and data center devices easily and conveniently.

For example, the Advanced Adapter ID feature stores adapter cable configuration information such as ID, port name, SO, keyboard language etc. and allows administrators to reassign servers to different ports without having to reconfigure adapters. Other advanced functionality à includes the best quality à video, extending server distance up to 50 meters to a resolution of 1280 x 1024. *With KVM adapter cable KA series 7000

A KH 2516 A installation offers one of the best and most economical ATEN solutions for the SME market. There are no better ways to save time, space and money than a KVM Aten KH 2516 A switch.



Features

• Two KVM consoles can control directly, independently and simultaneously up to 16 computers connected

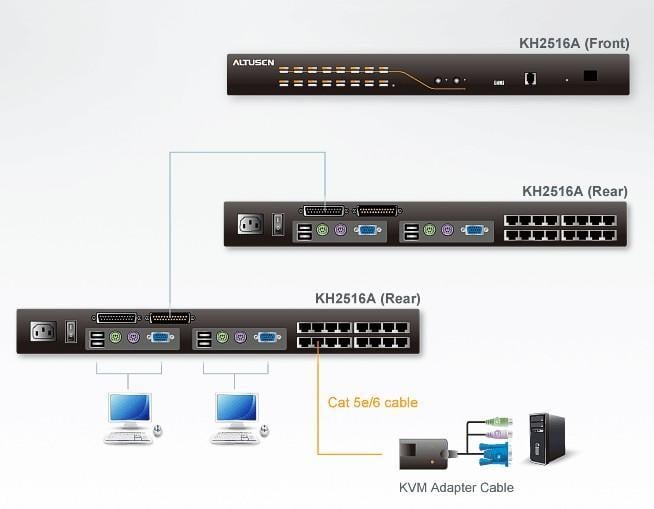

• By cascade connection of additional 15 switch KH 2516 A, è you can control 256 computer from the starting KVM console.


• Console conversion: è can control any type of computer with any type of KVM console; mixed combinations (PS/ 2 + USB) are supported on both the KVM and the computer console side


• Superior video quality à supports video resolutions up to 1600 x 1200 @ 60 Hz to 40 meters and 1280 x 1024 @ 75 Hz to 50 meters *With KVM adapter cable KA series 7000


• Configuration of user access rights to ports based on single port


• The diverse operation of the ports allows flexible management of the computers with the modes; Occupy, Exclusive and Share


• Three Port Selection methods: Manual (through front panel buttons), Quick-Select Key and Multilingual On Screen Display (OSD)


• Multiplatform support: PC, Mac, Sun and serial


• Multiple user accounts: Support up to 10 user account and 1 administrator


• Two-level password security: supports an administrator profile and ten user profiles. Password protection prevents unauthorized access to installation


• Modelità automatic switching for continuous monitoring of computers selected by the user


• The transmission mode à sends commands from the console to all computers selected by the administrator, allowing you to run simultaneously on all computers operations such as software installation, updates, shutdowns etc.


• Adapter ID


• Updated Firmware



Computer Links

• Direct: 16


• Maximum: 256 (via interconnection)


• Select port  OSD with shortcut or button

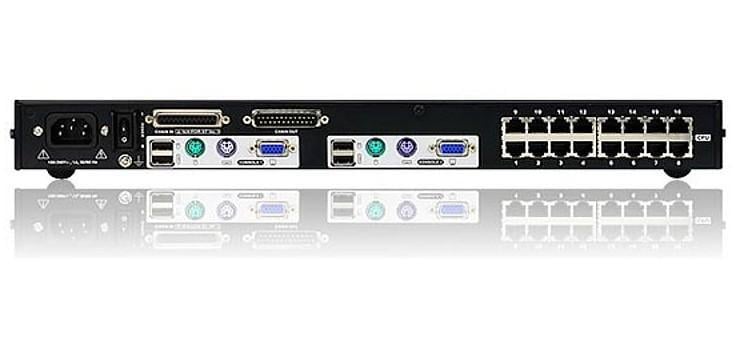

Connectors

• Console doors:



4 x USB type A female (white)

2 x Mini-DIN 6 pin female (purple)

2 x Mini-DIN 6 pin female (green)

2 x HDB- 15 female (blue)

• KVM Doors:



16 x RJ- 45 female

• Interconnecting doors:



1 x DB- 25 female (black)

1 x DB- 25 male (black)

• Firmware update:



1 x RJ- 11 female

• Feeding:



1 x IEC 60320 /C 14

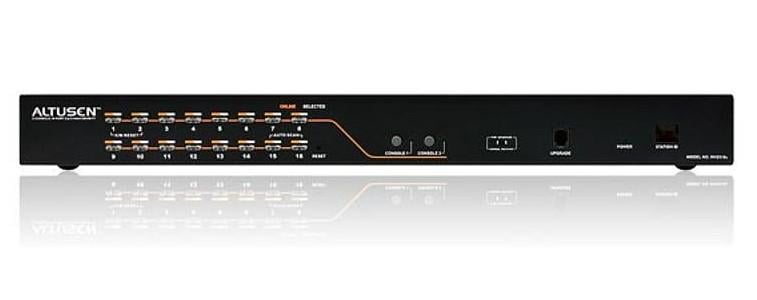

Switches

• Select Port: 16 x Button


• Console selection: 2 x Button


• Restoration: 1 x Semi-collected button


• Firmware update: 1 x Scrolling


• Power supply: 1 x Balancer



LED

• Online 16 (Green)


• Selected 16 (Orange)


• Console  2 (orange)


• Power supply 1 (blue)


• 1 station ID x LED display 7 segments (orange)



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 43.72 cm


• Depthà: 15.58 cm


• Height: 4.40 cm



Package contents

• 1 switch KVM Cat 5 high densityà KH 2516 A


• 1 cable for firmware upgrade


• 1 power cable LIN 2 - 481 K-E 12 G


• 1 rack mounting kit


• 1 set of feet (4 pcs)


• 1 user guide
