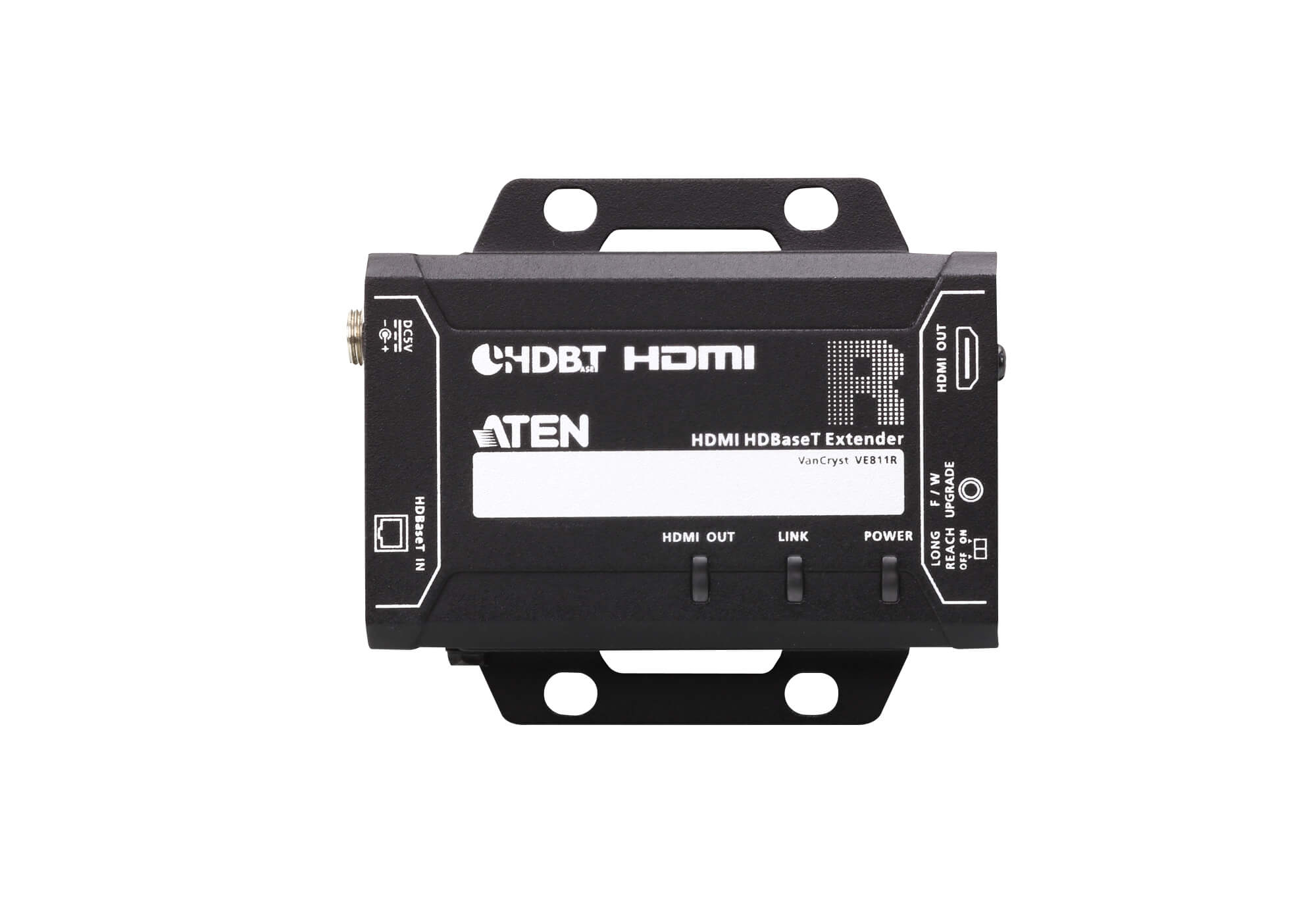

HDMI HDBaseT VE 811 R Receiver - Aten IDATA VE- 811 R

The HDBaseT HDMI VE 811 R Receiver provides optimal HDMI connection up to 100 m via a single Cat 5 and/ 6 / 6 a cable. The VE 811 R meets the HDMI specifications including 3 D, Deep Color audio formats, lossless HD and CEC pass-through. It supports Dolby Digital 5.1 audio and video signals, HD DTS at resolutions up to 4 K.

The compact design makes it easy to install in any location. Designed for today's digital trends, è ideal for meeting rooms, or any configuration requiring HDMI video extension to quality à high at long distances.



Features

• Connectivity à HDBaseT extends an HDMI connection to 100 m via a single Cat 5 and/ 6 / 6 a or ATEN 2 L- 2910 Cat 6


• HDMI compatible (3 D, Deep Color, 4 K); HDCP 2.2


• Supports resolutions up to Ultra HD 4 kx 2 k and 1080 p Full HD


• Supports screen format


• Plug and play – no software needed


• Integrated ESD protection 8 KV/15 KV


• Mountable on rack



Specifications

• Video output:



- Interface: 1 x HDMI type A female (black)

- Impedance: 100 Ohm

• Video:



- Max. frequency of data: 10,2 Gbps (3,4 Gbps per line)

- Pixel clock max.: 340 MHz

- Conformityà: HDMI (3 D, Deep Color, 4 K); HDCP Compatible; Consumer Electronics Control (CEC)

- Maximum resolution/distance: Up to 4 K to 70 m (Cat 5 and/ 6) / 100 m (Cat 6 a/ATEN 2 L- 2910 Cat 6 ); 1080 p a 100 m (Cat 5 e/ 6 / 6 a)

- * 4 K supported: 4096 x 2160 / 3840 x 2160 at 60 Hz (4: 2: 0 ); 4096 x 2160 / 3840 x 2160 at 30 Hz (4: 4: 4 )

• Audio:



- Output: 1 x HDMI type A female (black)

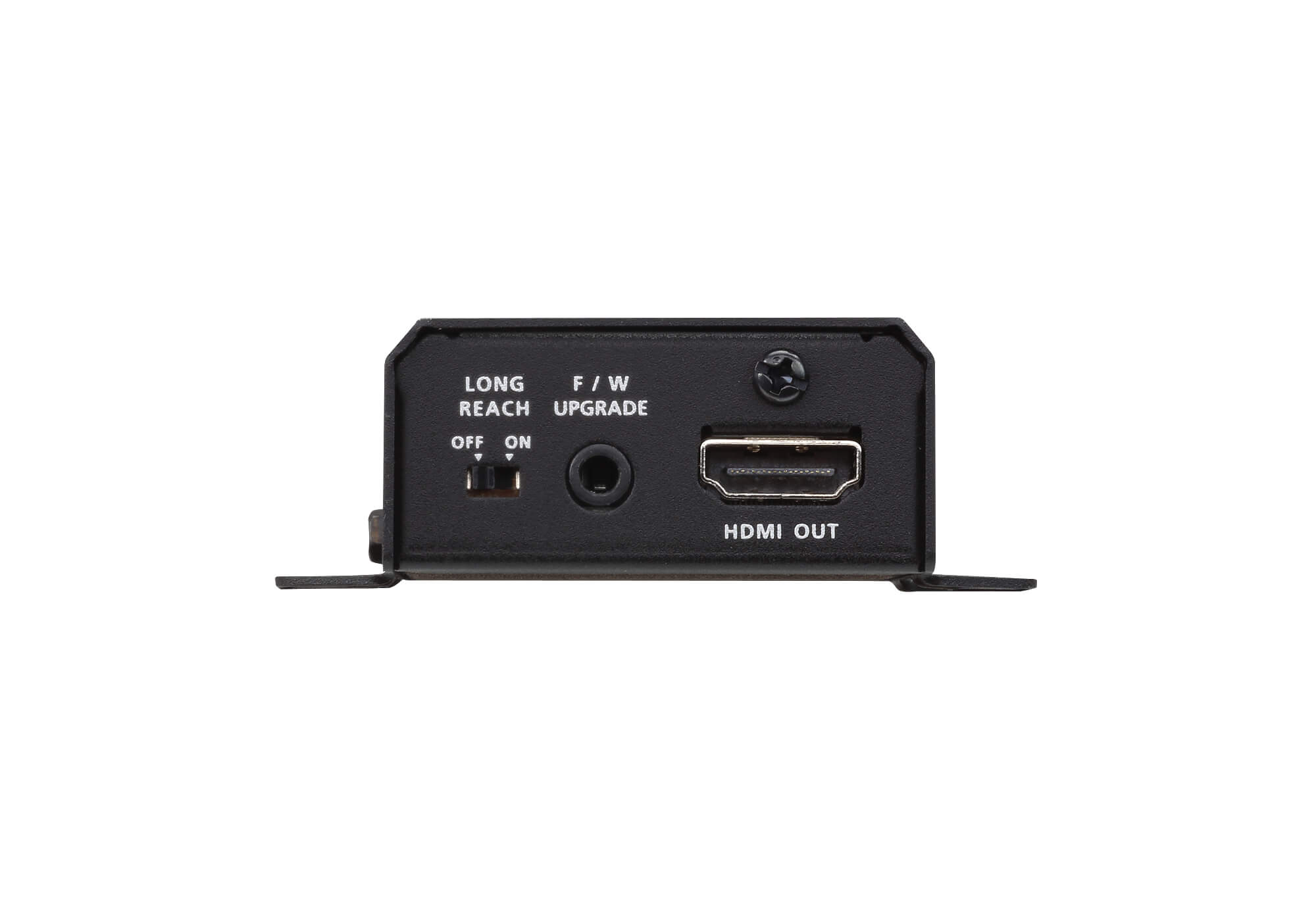

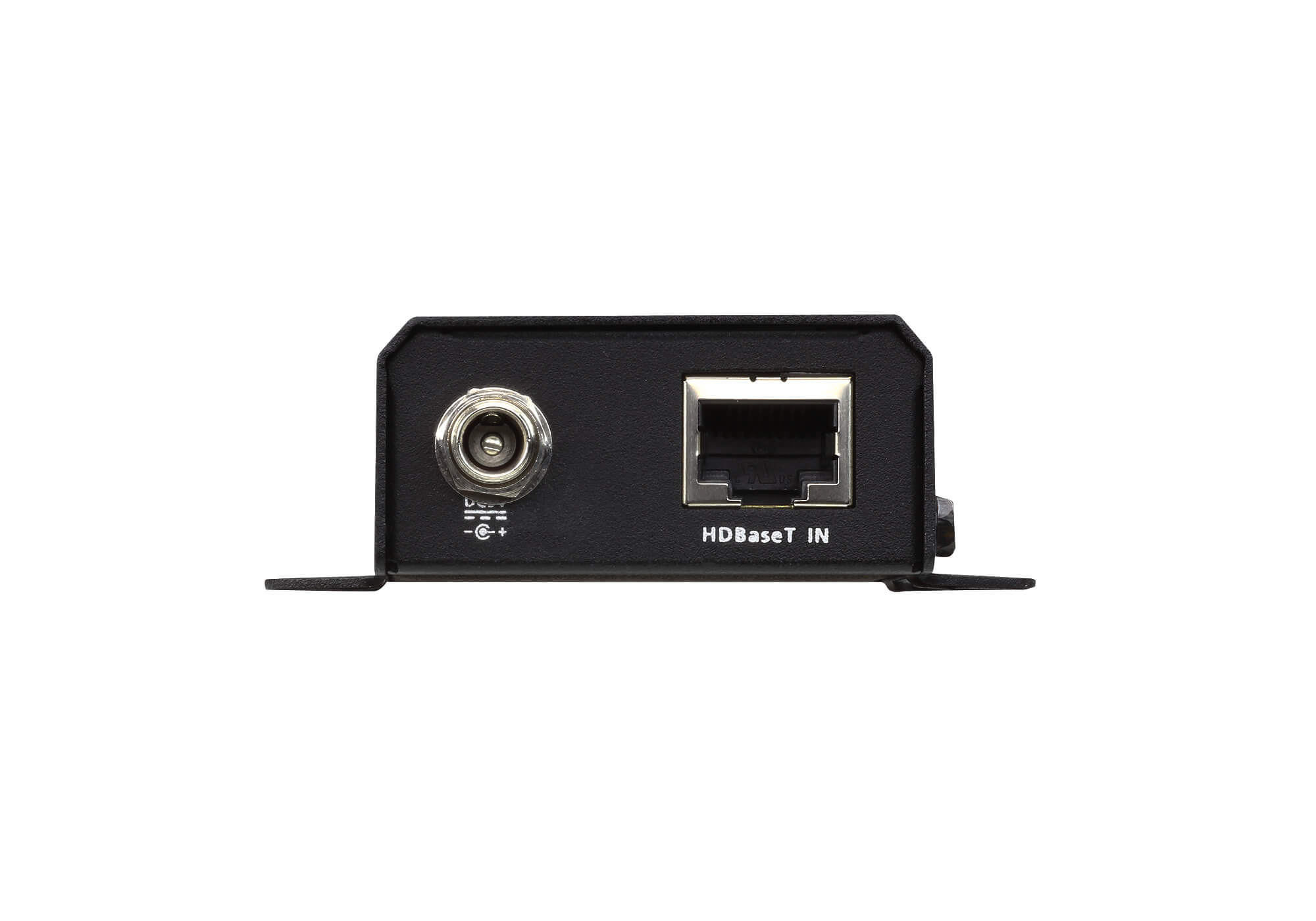

• Connectors:



- Unità a Unità: 1 x RJ- 45 female

- Firmware update: 1 x female mini stereo connector (black)

- Power supply: 1 x CC (Black) connector with lock

• Switches:



- Mode transition & agrave; long distance: 1 x Sliding support - ON/OFF

• Consumption: DC 5 V: 3.77 W: 18 BTU / DC 5 V: 3.84 W: 18 BTU


• Environment



- Operating temperature: 0 - 40 °C

- Storage temperature: - 20 - 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical:



- Structure: metal

- Weight: 0,16 kg

- Dimensions (L x L x A) with bracket: 8.64 x 7.30 x 2.47 cm

- Dimensions (L x L x A) without bracket: 8.20 x 5.20 x 2.37 cm

Note: For some rack mount products, the standard physical dimensions LxPxA are indicated using the LxLxA format.



Package contents

• 1 x HDBaseT HDMI VE 811 R receiver


• 1 x power adapter


• 1 x user instructions
