Switch KVM Cat 5 to 32 ports with Daisy-Chain - Aten KH 1532 A

The KVM KH 1532 A switches are control units that allow IT administrators to access and control more ù computers from a single console KVM PS/ 2 or USB (keyboard, monitor and mouse). Operators can control up to 32 (KH 1532 A) computer. The cascade connection up to 31 additional switches allows you to control up to 1024 computers from a central KVM console.



These switches have been designed with unique and powerful functions that allow administrators to manage the entire server environment and data center devices in a simple and convenient way.



ID, port name, operating system, keyboard language, and more. This feature allows administrators to relocate the server to different ports without having to reconfigure adapters. Another advantage of these è switches is the quality à Full HD – video extends the distance from servers to 30 m to a resolution of 1920 x 1200 *.



The installation of KH 1532 A offers the best and cheapest solutions that ATEN has to offer for the SME market. There is no better way to save time, space and data center money than using a KVM KH 1532 A switch.



Features

• A KVM console controls up to 32 computers connected directly


• RJ- 45 connectors saves space and wiring Cat 5 and/ 6

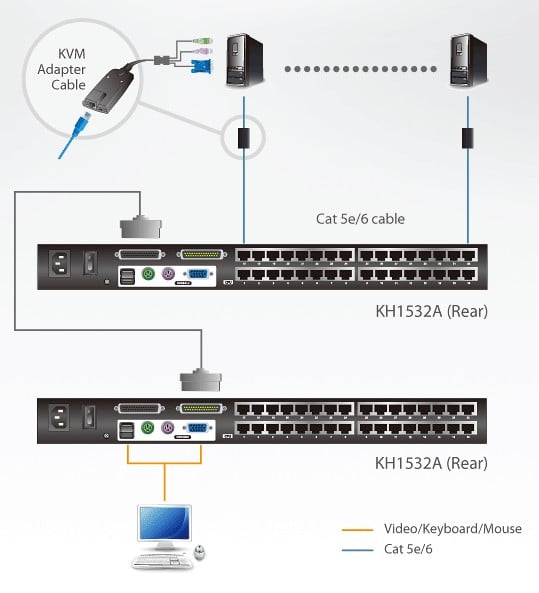

• The cascade connection up to 31 switch KH 1532 A additional allows you to control up to 1024 computer from an original KVM console.


• Convert – console any KVM console can ` control any type of computer; mixed combinations (PS/ 2 and USB) are supported on both the KVM and computer side


• Superior video quality – supports video resolutions up to 1920 x 1200 at 60 Hz up to 30 meters, 1600 x 1200 at 60 Hz up to 40 meters and 1280 x 1024 at 75 Hz up to 50 meters*


• Configuration of access rights for door-to-door users


• Three Port Selection Methods: Manual (by push buttons on front panel), Quick-Select Key and On Screen Display Multi-Languages


• Multiplatform – PC, Mac, Sun and serial support


• Multiple user accounts – supports up to 10 user accounts and 1 admin accounts


• Two security levels with password – supports an administrator profile and ten user profiles. Password protection avoids unauthorized access to installation


• Modelità automatic search for continuous monitoring of computer selected by user


• Modelità transmission sends commands from the console to all computers – allows you to perform operations (such as software installations, updates, shutdowns, etc.) simultaneously on all computers


• Adapter ID function


• Updated Firmware



* With KVM cable adapter of the KA 7000 series.



Technical specifications

• Computer Links



Direct: 32

Maximum: 1024 (via waterfall connection)

• Select Port: OSD, Quick-Shot Key, Push Button

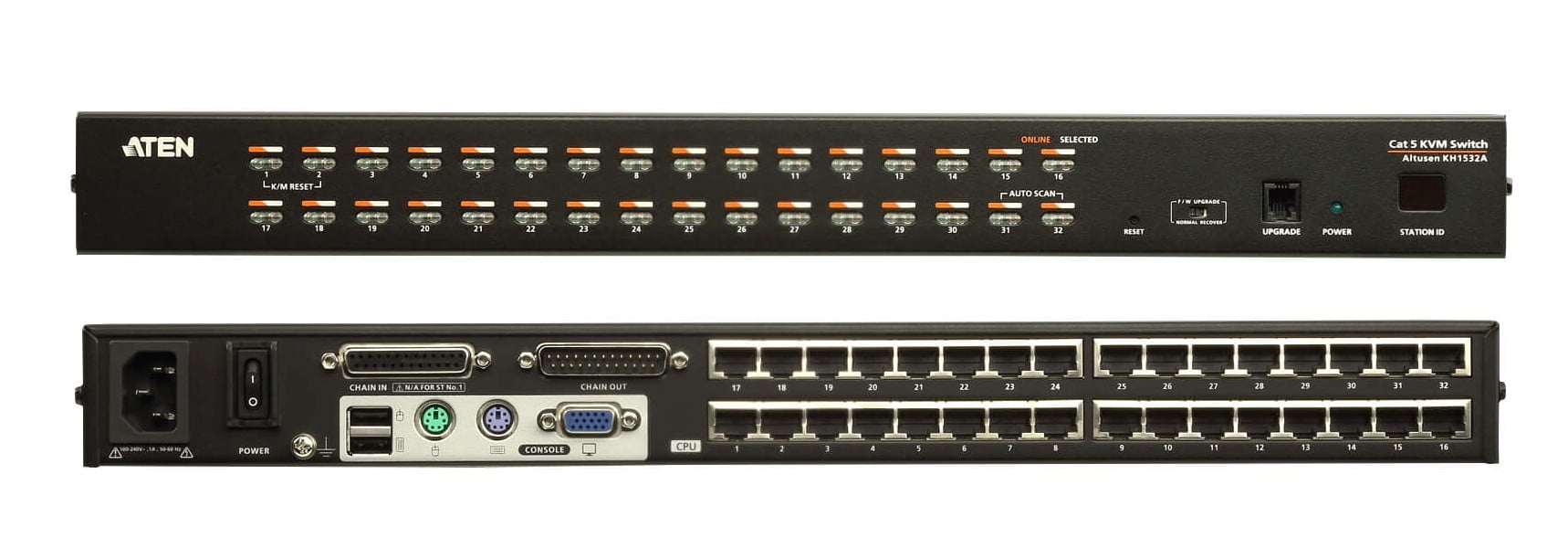

• Connectors



Console ports   2 x USB type A female

1 x Mini-DIN 6 pin female (purple)

1 x Mini-DIN 6 pin female (green)

1 x HDB- 15 female (blue)

KVM doors: 32 x RJ- 45 female

Interconnecting doors:

1 x DB- 25 female (black)

1 x DB- 25 male (black)

Firmware update  1 x RJ- 11 female

Power supply   1 x IEC 60320 /C 14

• Switches



Select Port: 32 x Push Button

Restoration: 1 x Semi-collected button

Firmware update: 1 x Scrolling

Power supply: 1 x Balancer

• LED



Online: 32 (green)

Selected: 32 (orange)

Power supply: 1 (blue)

Station ID: 1 x 2 digits, 7 segments (orange)

• Emulation



Keyboard / Mouse: PS 2 ; USB

• Scan interval   1 – 255 seconds


• Video 



1920 x 1200 at 60 Hz (30 m);

1600 x 1200 at 60 Hz (40 m);

1280 x 1024 at 75 Hz (50 m)

• Input power load: 100 – 240 V CA; 50 / 60 Hz; 1 A


• Consumption  



AC 110 V: 4.6 W: 30 BTU

AC 220 V: 4.8 W: 31 BTU



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 – 80 % relative humidity without condensation



Dimensions

• Width: 43.72 cm


• Depthà: 16.37 cm


• Height: 4.40 cm



Package contents

• 1 x KVM switch to densityà high KH 1532 A Cat 5


• 1 x LIN 5 - 04 A 2 -J 11 G cable for firmware update


• 1 x LIN 2 - 418 K-E 12 G power cord


• 1 x rack mounting kit


• 1 x bearing set (4 pieces)


• 1 x user instructions
