- Single keyboard and USB mouse for control of up to 4 computer

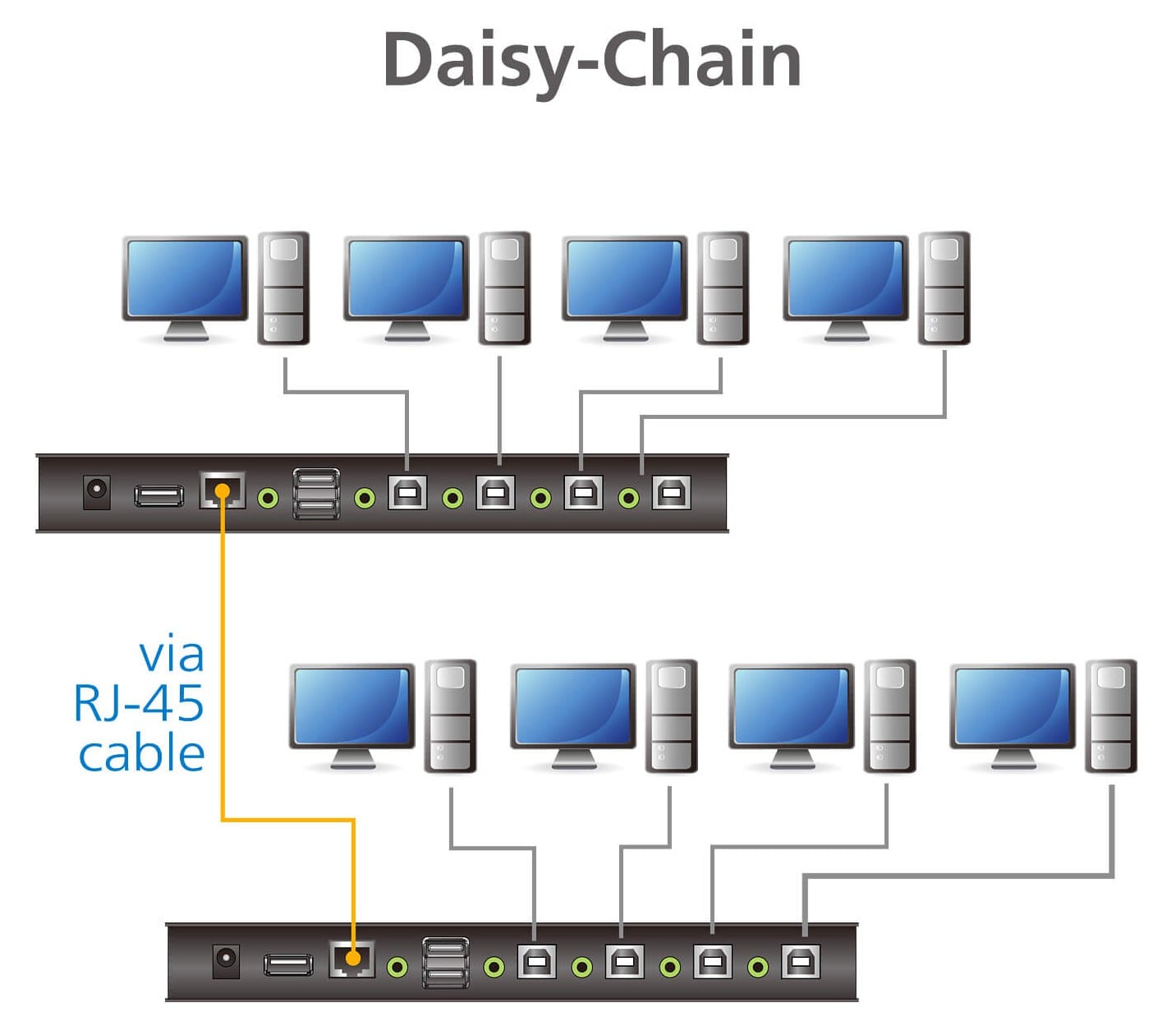

- Cascading connection of two units; CS 724 KM to control up to 8 computer with one keyboard and mouse

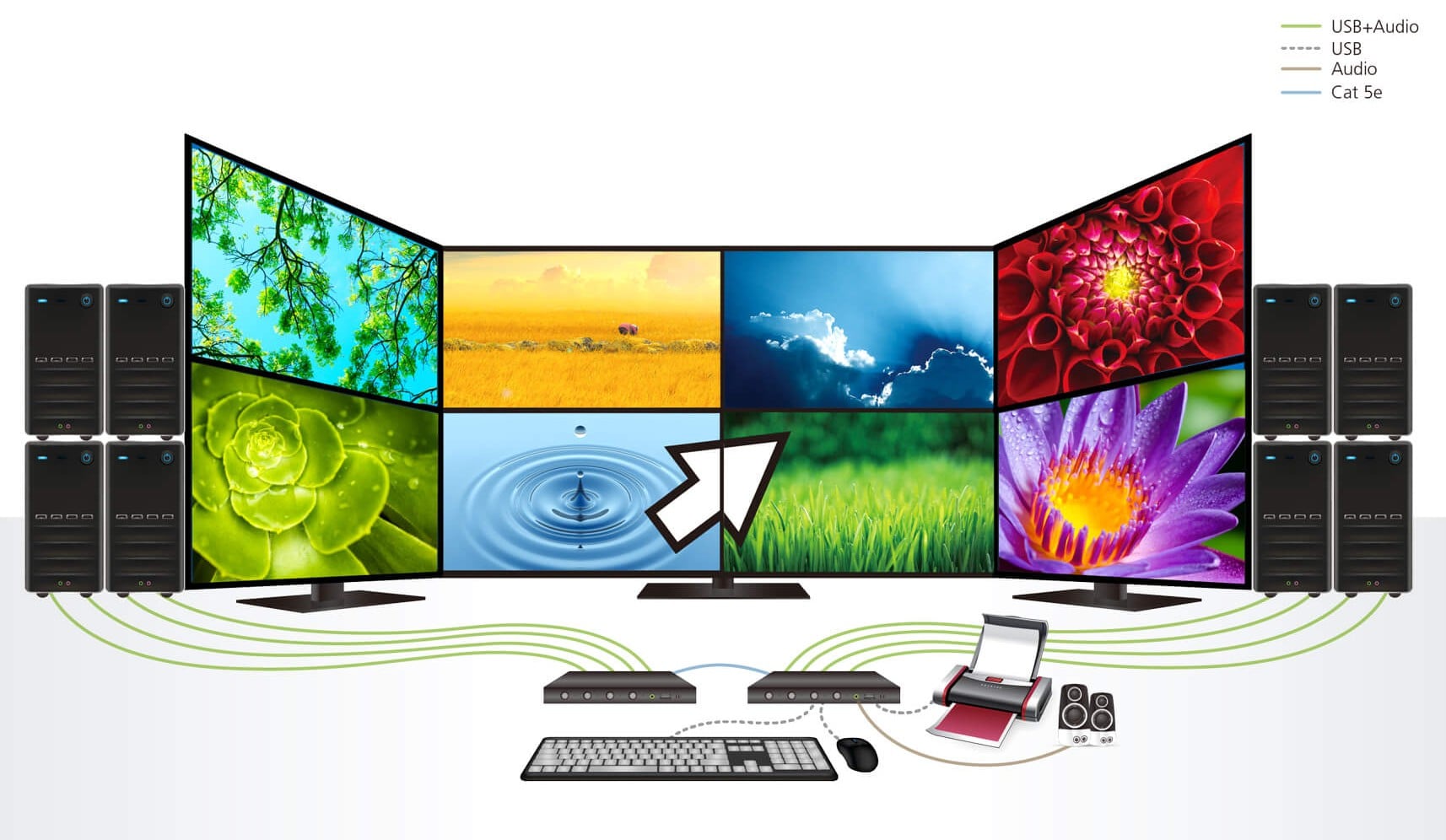

- Boundless Switching – è simply move the mouse cursor to the screen edge and corresponding screen of the target computer to pass keyboard/mouse operations from one computer to another.
- Boundless Switching* – Intuitive User Graphic Interface Tool that allows users to customize monitor layouts
- Selecting the door by means of a push button on the front panel, keyboard shortcut key, mouse cursor, mouse wheel and RS- 232 commands
- Independent keyboard/mouse transition, USB and audio devices via shortcut keys
- Supports RS- 232 serial commands
- Supports Windows operating systems
- No software needed
- Powered by bus – no external power supplies required
Features- Computer connections: 4
- Select port: shortcut, push button, mouse wheel, mouse cursor, RS- 232 commands

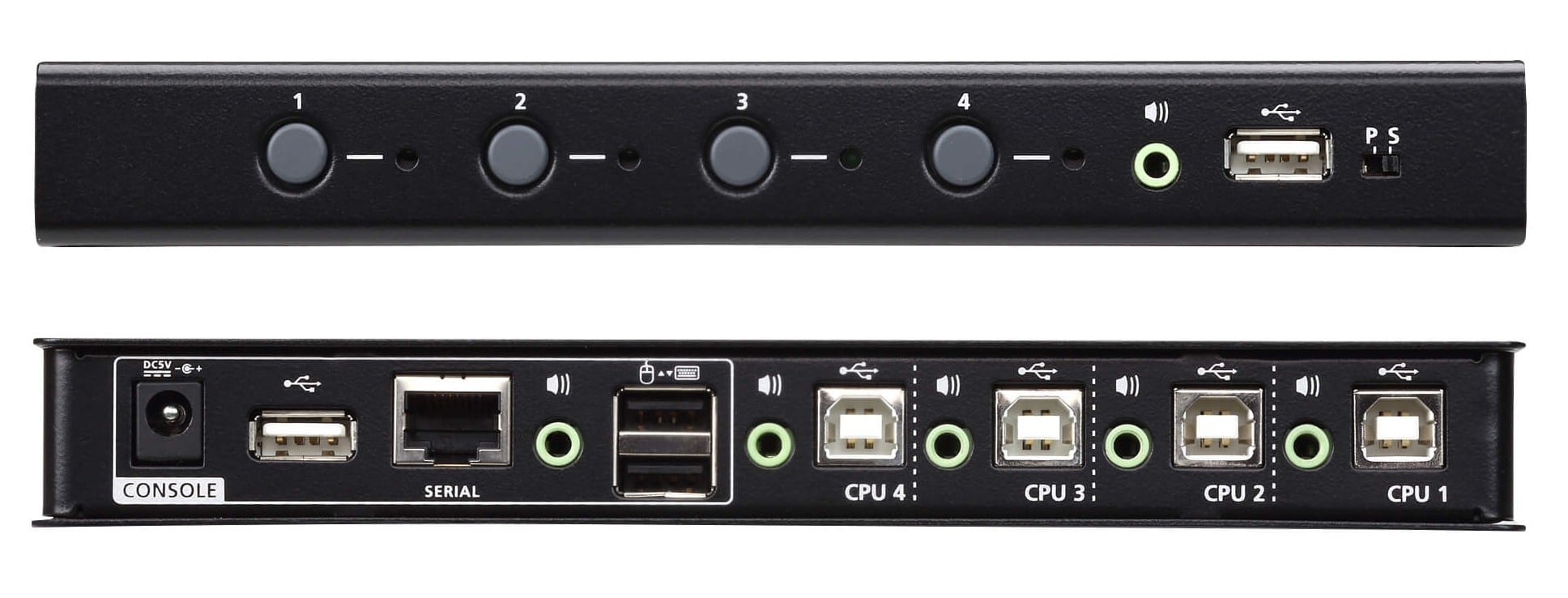

Connections- 2 x USB type A female
- 2 x 3,5 female audio connector (green; 1 x front, 1 x rear)
- 1 x RJ- 45
- 4 x female type B USB
- 4 x Female audio connector from 3,5 mm (green)
- Power supply: 1 x DC connector
- USB Hub:
- 2 x USB 2.0 type A female (1 x front panel; 1 x rear panel)
Switches- Select Port: 4 x Push Button
- Station selection: 1 x Sliding support
LEDEmulationScan interval - 1 - 99 seconds (default: 5 seconds)
Consumption Environment- Operating temperature: 0 - 50 °C
- Storage temperature: - 20 - 60 °C
- Humidità 0 - 80 % relative humidity, without condensation
Proprietà physical- Structure: metal and plastic
- Weight: 0,50 kg
- Dimensions (L x P x A): 20,00 x 8,06 x 2,50 cm

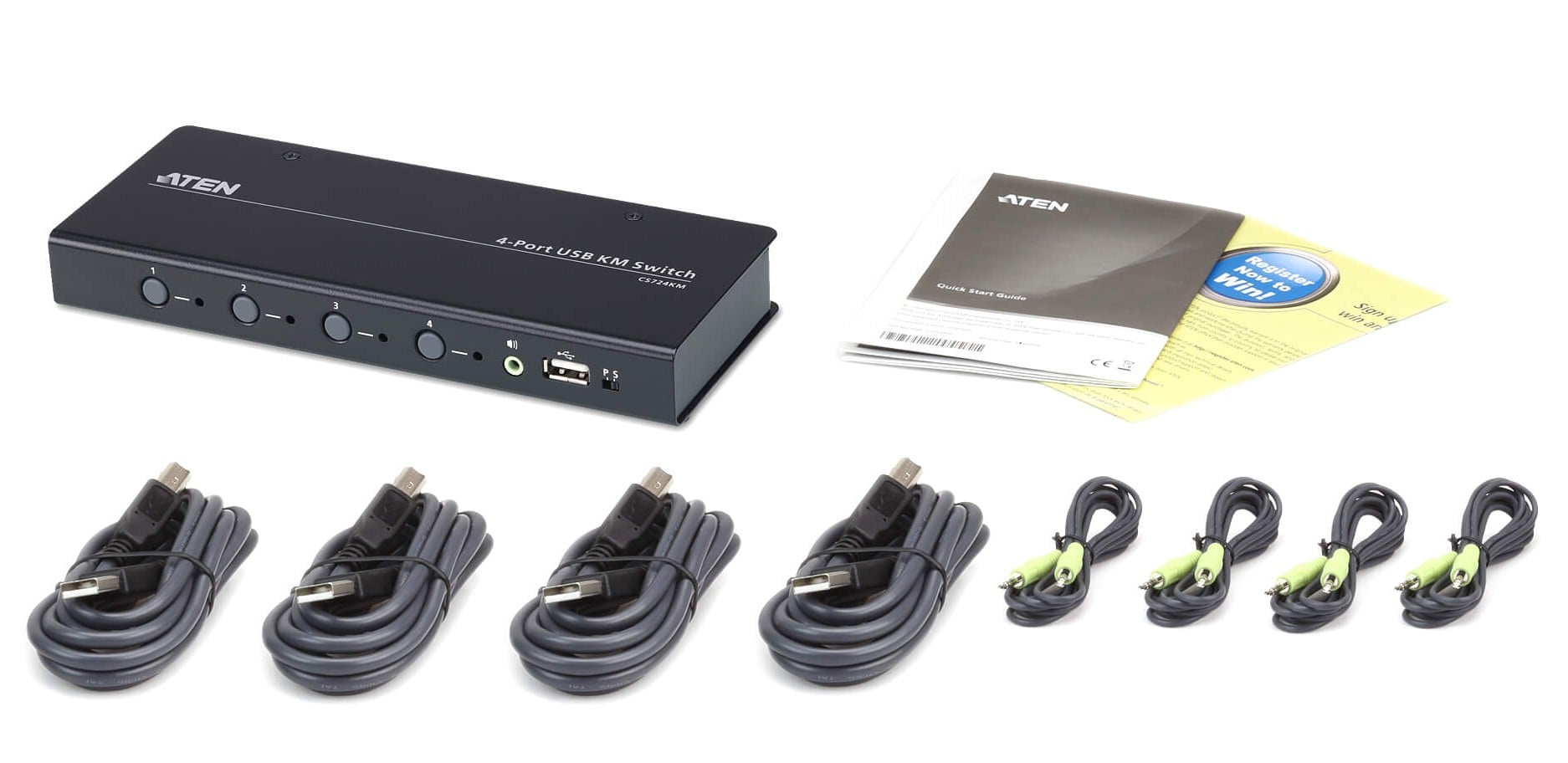

Package contents- 1 x USB KM switch to 4 unlimited ports
- 4 x LIN 6 - 04 U 1 -V 1 BG USB cables (USB 2,0 -A USB 2,0 -B; 1,8 m/ 6 feet)
- 4 x LIN 5 - 0205 - 21 CG audio cables (1,8 m/ 6 feet)
- 1 x user instructions
