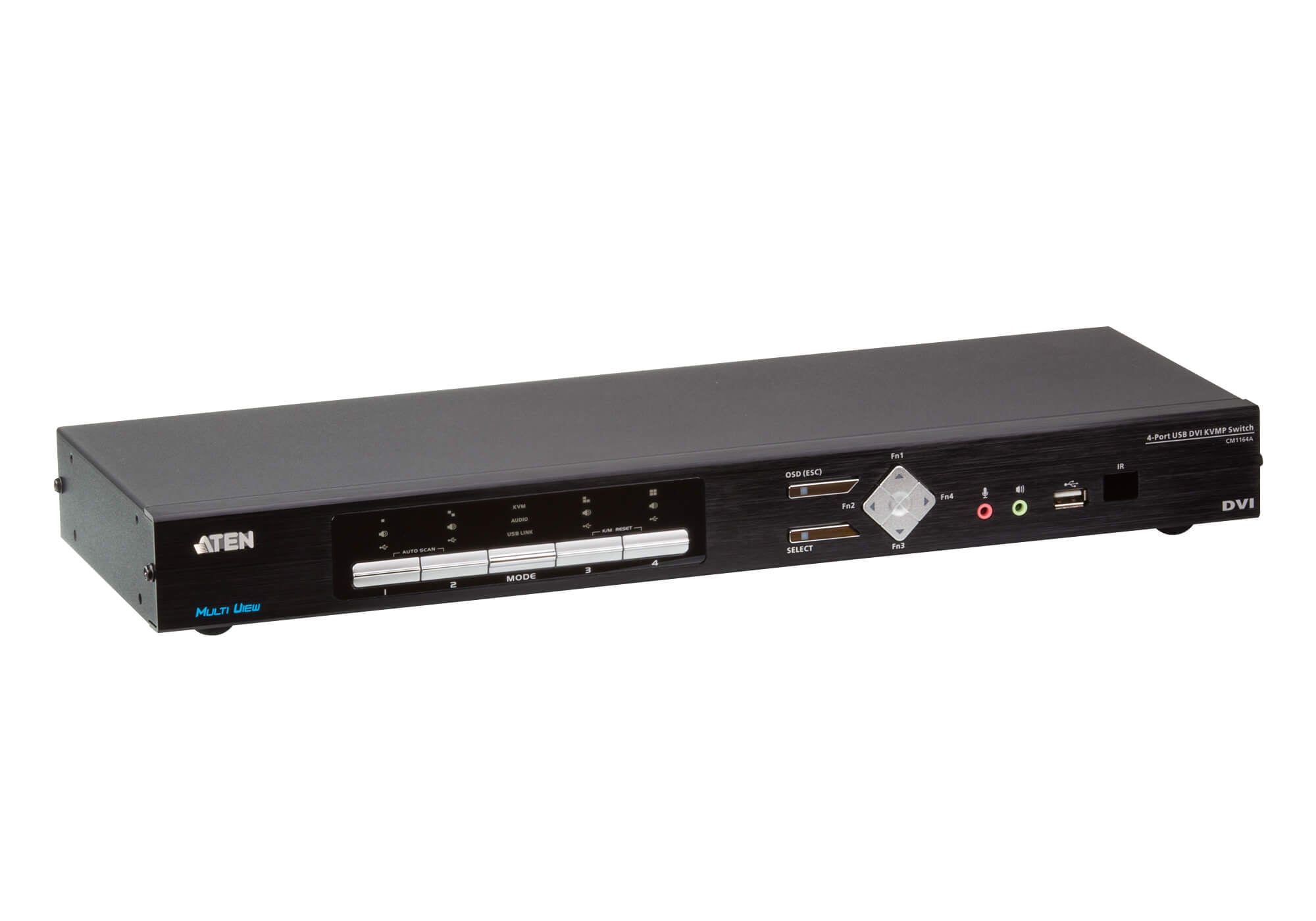

KVMP Multi-View USB DVI to 4 ports - ATEN IDATA CM- 1164 A

The KVMP™ multi-visualization USB DVI switch to 4 CM ports 1164 A from ATEN improves the operational efficiency of intensive monitoring applications. With the limited screen, users can manage data more efficiently, select, exchange and view up to 16 video sources simultaneously using an independent keyboard and mouse control. The CM 1164 A offers users the functionality à real-time monitoring by combining a DVI-D switch to 4 ports with a USB hub to 2 ports, it also offers the following modes à view: Quadruple view, Image image (PIP), Image image (PbP), Image on image (PoP), and Fullscreen.



Thanks to the Boundless Switching, CM 1164 A allows users to easily move the cursor over the windows to switch to other video sources. It makes it easier to access and control the target computer immediately.



The integration of the Daisy Connecting Control (DCC) allows users to control up to other 3 unità CM 1164 A via a single console. In addition, the CM 1164 A can ò be cascaded up to 2 levels to reach a maximum of 16 video sources displayed simultaneously on a screen.



Designed to meet the ever-increasing demands of multi-view functionality, CM 1164 A è specially designed for environments where è requires real-time monitoring such as aviation, finance and medical applications.



Features

• The multi-view console controls up to four video sources on a screen with mode à display including Quadruple View, Image in Image (PiP), Image for Image (PbP) and Image in Image (PoP)

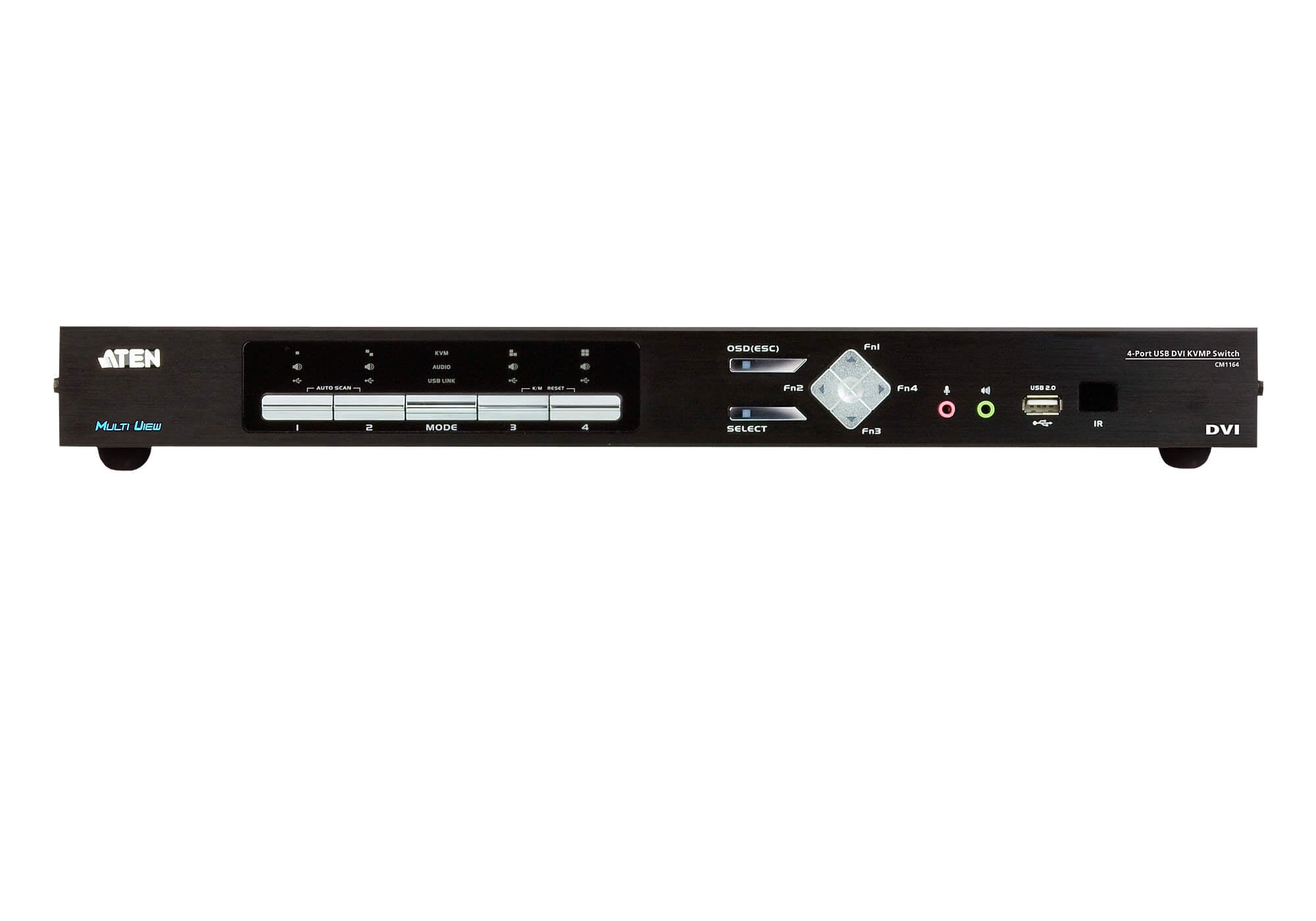

• System configuration by front panel, OSD, IR remote control, mode ` display and door selection


• Resize and/or reposition any PiP or PbP easily to fit user view requests


• DCC (Control to connect to daisy) — controls up to 3 unità CM 1164 A additional from a single console

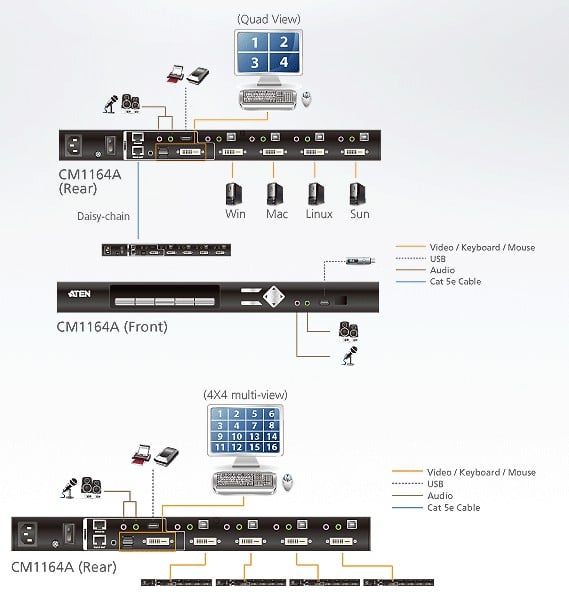

• Waterfall connection up to 2 levels — controls up to 16 computer (with multi-view mode à up to 4 x 4)


• Boundless Switching – easily move the mouse cursor over the windows to switch to other video sources


• DynaSync ™ – exclusive ATEN video technology that eliminates screen boot problems and optimizes resolution when switching between different sources


• HDCP 1.4 compatible


• Supports RS- 232 commands


• – drop-down menu edit screen windows and other functions with the mouse and control panel on screen


• Mouse port emulation / bypass function of the console that supports different mouse drivers and multifunction mouse


• Console keyboard emulation / bypass function that supports different multimedia keyboards


• Independent switch for USB peripheral port, audio function and KVM switch


• Automatic search function


• Initiating detection


• Multilingual keyboard map – supports keyboards in English, French, Japanese and German


• Complete bass response to offer a rich audio experience to 2.1 channels


• Supports keyboard combinations by emulation (for Sun / Mac)



Technical specifications

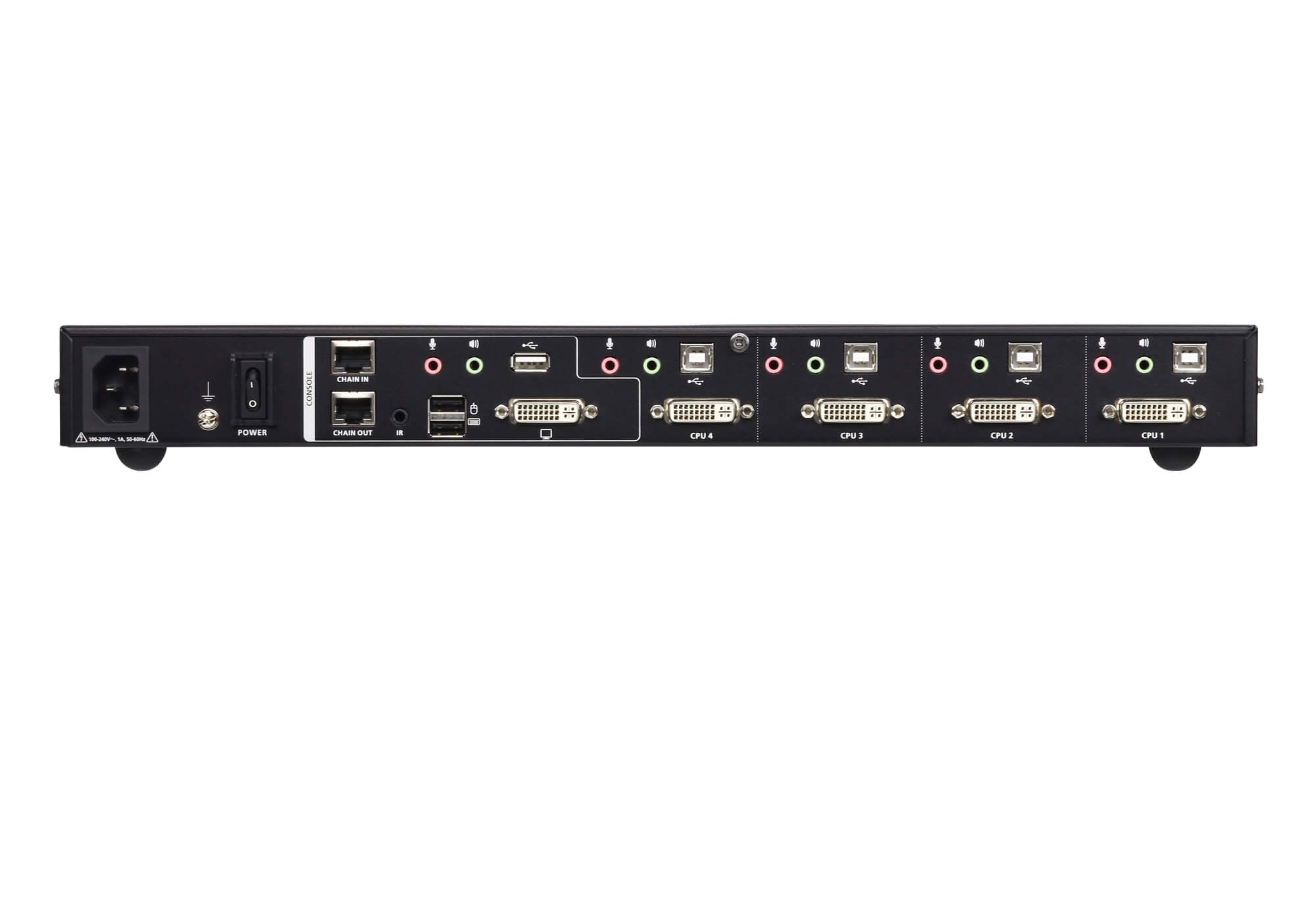

• Connectors:



- Console doors  

2 x USB type A female

1 x Single Link DVI-D female (white)

2 x 3,5 female audio connector (green; 1 x front panel, 1 x rear panel)

2 x Female audio connector from 3,5 mm (pink; 1 x front, 1 x rear)

2 x RJ- 45

- Doors KVM 

4 x female type B USB

4 x Single Link DVI-D female (white)

4 x Female audio connector from 3,5 mm (green)

4 x Female audio connector from 3,5 mm (pink)

- Power supply: 1 x IEC 320 connector

- USB Hub: 2 x USB 2.0 type A female

• Emulation:



Keyboard / Mouse USB

• Video: 1920 x 1200 at 60 Hz (DVI-D)


• Scan interval: 5 , 10 , 15 , 30 , 60 , 90 seconds (default: 5 seconds)



LED

• KVM  4 (orange)


• Audio  4 (green)


• USB  4 (green)



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 10 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Dimensions

• Width: 43,72 cm


• Depthà: 16,40 cm


• Height: 4,40 cm



Package contents

• 1 x CM 1164 A switch KVMP™ multi-visualization USB DVI to 4 ports


• 4 x LIN 5 - 35 W 1 -W 11 G KVM cables (DVI-D, USB, Audio)


• 1 x LIN 2 - 418 K-E 12 G power cord


• 1 x 2 XRT- 0013 G IR remote control


• 1 x rack mounting kit


• 1 x user instructions
