KVMP Switch Multi-View USB 4 K HDMI to 4 ports - ATEN IDATA CM- 1284

The KVMP™ multi-visualization USB HDMI to 4 ATEN CM 1284 ports improves the operational efficiency of real-time monitoring. The CM 1284 allows users to manage data more efficiently by allowing the selection, exchange and simultaneous view of more ù sources with independent keyboard and mouse control.



Advanced video support offers better defined HDMI connection with resolutions up to 4 K (4096 x 2160 at 30 Hz). The CM 1284 provides users with real-time monitoring functionality à offering two outputs on the console side. One offers the following modeà display: Quadruple View, Image in Image (PIP), Image for Image (PbP), Image on Image (PoP) while the other offers modeà Full screen. Thanks to the Boundless Switching, the CM 1284 allows users to easily move the cursor on the windows to switch to other video sources. It makes it easier to access and control the target computer instantly.



The integration of the functionality à Daisy Chain Control (DCC) allows users to control up to 3 additional drivesà CM 1284 via a single console. In addition, the CM 1284 can ò be cascaded up to 2 levels to reach a maximum of 16 video sources that è can select, exchange and view simultaneously through independent keyboard and mouse control.



Designed to meet the growing demand for multi-view functionality, CM 1284 è specially designed for real-time monitoring such as aviation, financial and medical applications.



Features

• The multi-view console controls up to four video sources on a screen with mode à display including Quadruple View, Image in Image (PiP), Image for Image (PbP) and Image in Image (PoP)


• It has two outputs on the console side: a multi-view output and a full-screen output


• Resize and/or easily reposition any PiP or PbP to fit user view requests


• System configuration by front panel, OSD, IR remote control and RS- 232 commands: mode ` display and selection of the port


• Supports top quality à video: up to 4 K (4096 x 2160 at 30 Hz) YCbCr 4: 2: 2


• Drop-down menu: Edit screen windows and other functions with mouse and control panel on screen

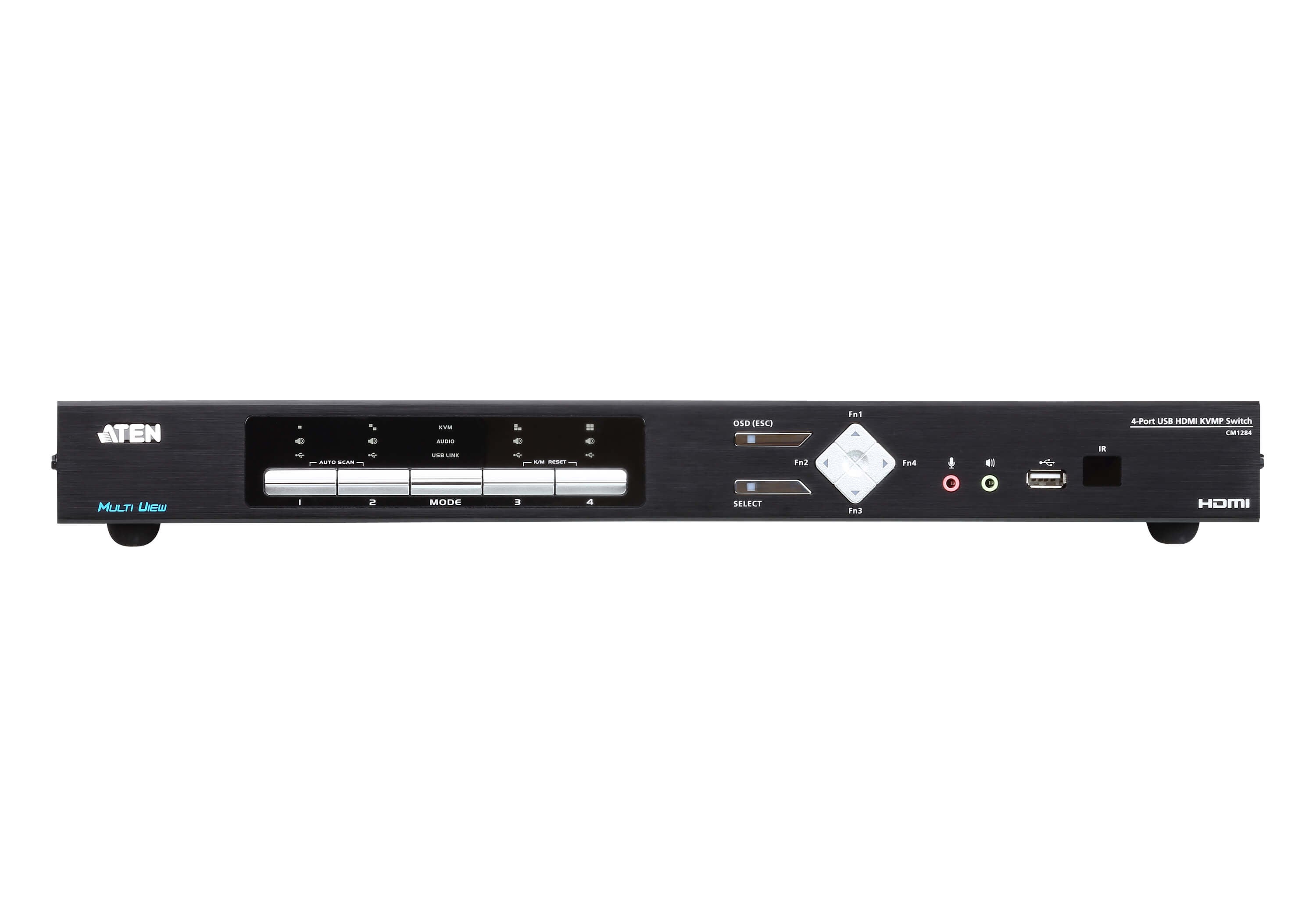

• Selecting the computer by means of the push button of the front panel and quick key, mouse and serial commands*


• Boundless Switching: Easily move the mouse cursor over the windows to switch to other video sources


• DynaSync & trade; Video: ATEN exclusive technology that eliminates screen boot problems and optimizes resolution when switching between different sources


• EDID Expert™: select the best EDID options for trouble-free ignition, high quality visualization and use of the best video resolution between different screens


• DCC (Daisy Chain Control): check up to 3 unità CM 1284 additional from a single console

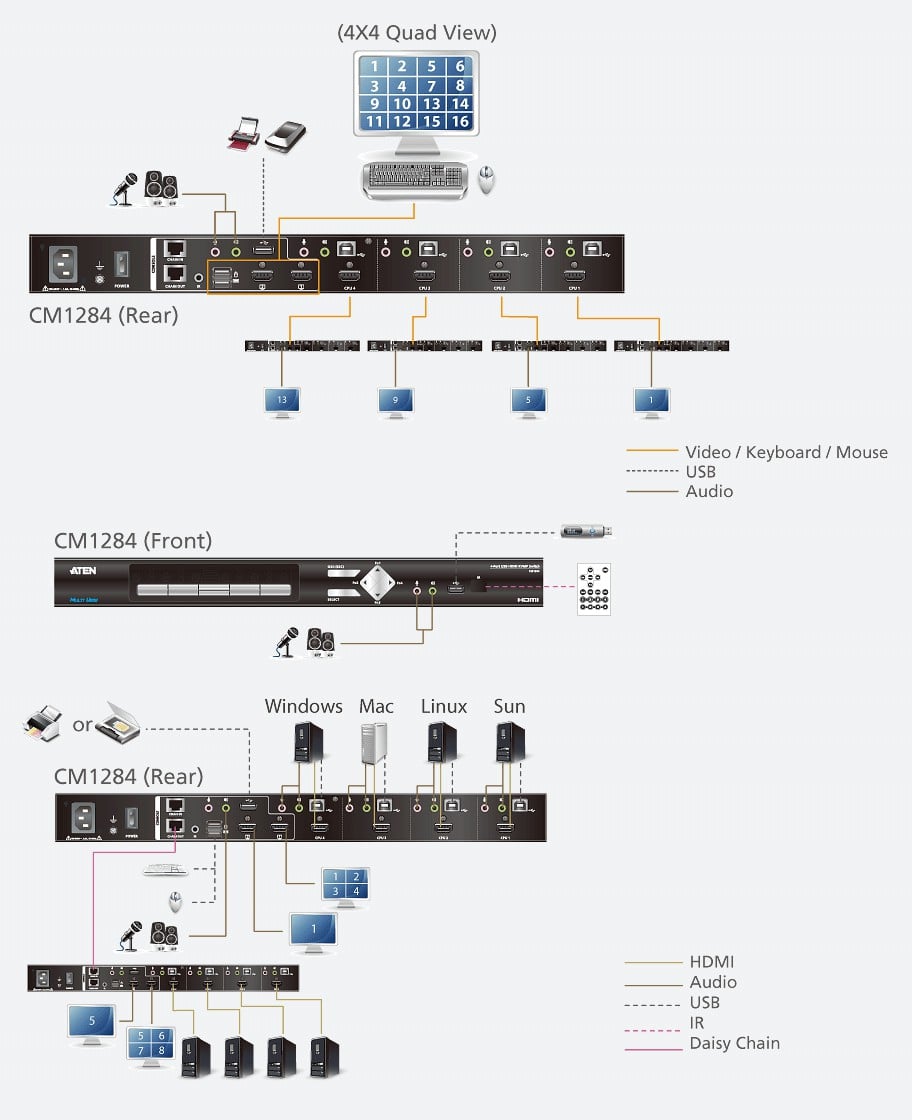

• Waterfall connection up to 2 levels: check up to 16 computer (with mode à multi display up to 4 x 4)


• HDCP 1.4 compatible


• Console keyboard emulation / bypass function that supports different multimedia keyboards


• Mouse port emulation / bypass function of the console that supports different mouse drivers and multifunction mouse


• Independent switch for USB peripheral port, audio function and KVM switch


• Initiating detection


• Automatic search function


• Firmware can be updated via the USB port of the computer


• Complete bass response to offer a rich audio experience to 2.1 channels


• Multilingual keyboard keymap: supports English, French, Japanese and German keyboards


• Hot Connectable


• Supports keyboard combinations by emulation (for Sun / Mac)**



Note:

*The è mouse port switch can only be used in mode à mouse emulation and è for mouse with USB wheel to 3 keys

**Combinations from PC keyboard emulate Mac keyboard. Mac keyboard works only with its computers



Technical specifications

• Connectors:



- Console doors  

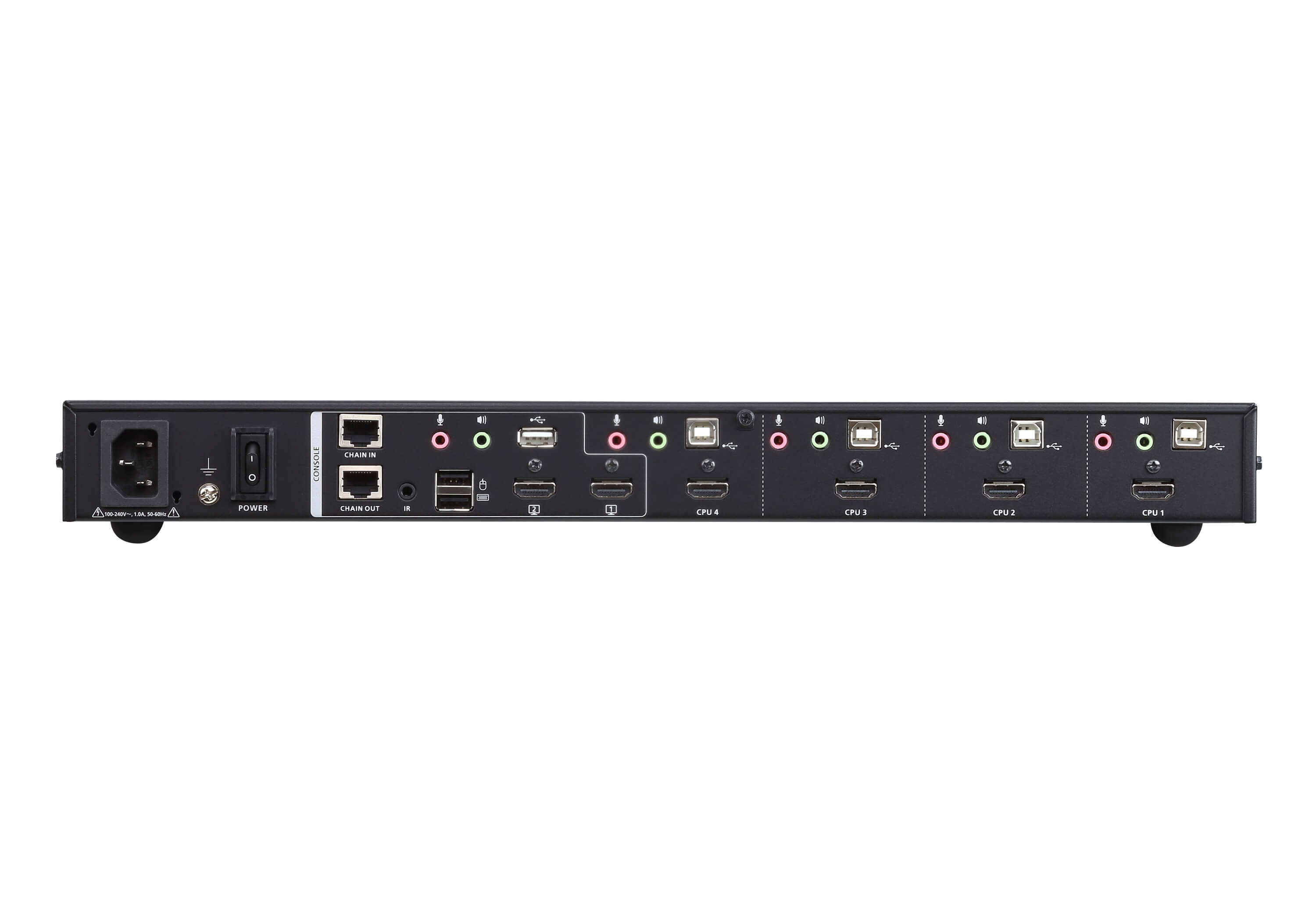

2 x USB type A female

2 x female HDMI (black)

2 x 3,5 female audio connector (green; 1 x front panel, 1 x rear panel)

2 x Female audio connector from 3,5 mm (pink; 1 x front, 1 x rear)

2 x RJ- 45

- KVM ports (computer) 

4 x female type B USB (white)

4 x female HDMI (black)

4 x Female audio connector from 3,5 mm (green)

4 x Female audio connector from 3,5 mm (pink)

• Power supply: 1 x IEC 320 connector


• USB hub: 2 x USB 2.0 type A female (1 x front panel; 1 x rear panel)


• Emulation: Keyboard / USB Mouse


• Video: 4096 x 2160 at 30 Hz


• Scan interval: 5 , 10 , 15 , 30 , 60 , 90 seconds (default: 5 seconds)



LED

• KVM  4 (orange)


• Audio  4 (green)


• USB  4 (green)



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 95 % relative humidity without condensation



Dimensions

• Width: 43,72 cm


• Depthà: 16,40 cm


• Height: 4,40 cm



Package contents

• 1 x CM 1284 switch KVMP™ multi-visualization USB HDMI to 4 ports


• 4 x LIN 5 - 28 V 1 -V 11 G USB HDMI cables


• 1 x LIN 2 - 418 K-E 12 G power cord


• 1 x 2 XRT- 0013 G IR remote control


• 1 x mounting kit on rack


• 1x User instructions
