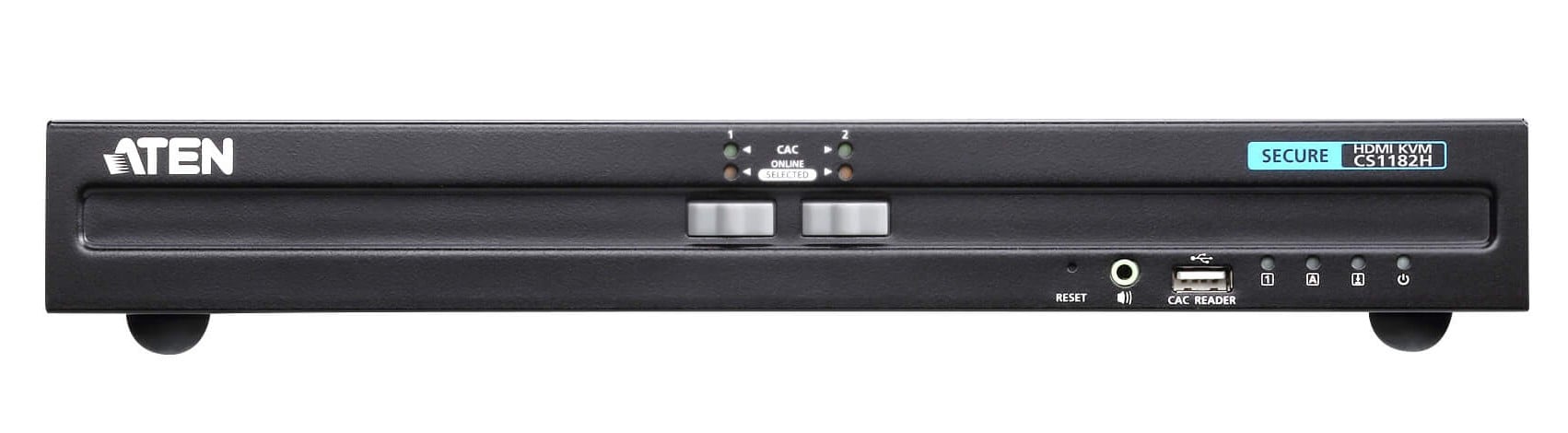

HDMI USB KVM switch for security at 2 ports - ATEN IDATA CS- 1182 H

The KVM PSS PP v 3.0 switch for the security of ATEN (CS 1182 H) è specially designed to meet the strict security requirements of secure installations for the defence and intelligence sector. The KVM PSS PP v 3.0 switch for the security of ATEN (CS 1182 H) è compliant with the PSS PP v 3.0 standard (Protection Profile for Peripheral Sharing Switch, 3.0 version) certified by the National Information Assurance Partnership (NIAP).

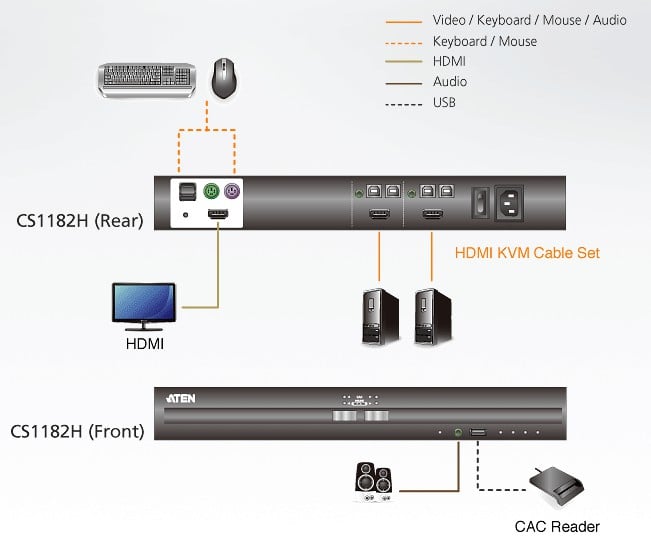

The KVM PSS PP v 3.0 switch for the security of ATEN (CS 1182 H) offers isolation between computer sources and peripherals by sharing a single keyboard, mouse, monitor, loudspeaker and CAC player (Common Access Card) between computers connected with various security classifications. The complianceà with PSS PP v 3.0 ensures functionalityà peripheral sharing to ensure maximum security of user data when switching to port focus, avoiding unauthorized data flows or leaks between connected sources. The main protections include isolation and unidirectional data flow, connectivityà and limited filtering of peripherals, user data protection, filtering and management of configurable devices and always tamper-proof design, sensitive resource isolation, advanced security and user-friendly design for immediate safe implementation.



Thanks to multi-level security, the KVM PSS PP v 3.0 switch for security of ATEN (CS 1182 H) ensures high-level desktop security and data security for applications such as government agencies, financial and other organisations that often manage confidential or sensitive data on separate networks.



Compliance with the common criteria NIAP

• Comply with PSS PP v 3.0 (Protection Profile for Peripheral Sharing Switch, 3.0 version)



Multi-level security

• Unauthorized Human Interface Devices (HIDs) or undefined CACs will be rejected/ignored


• Intrusion detection at the chassis is always active – makes the KVM PSS PP v 3.0 switches for the safety of ATEN not usable when physical tampering is detected


• – tamperproof seals offer visual indication of attempts to access internal components of the KVM PSS PP v 3.0 switches for ATEN security


• Firmware not reprogrammable – avoids reprogramming of KVM PSS PP v 3.0 switches for ATEN security


• Port selection via push buttons to improve security


• LED indicators for filtering peripherals and KVM switch status


• Robust metal housing



Two-channel isolation and unidirectional data stream

• Two-channel isolation – prevents data loss between computers connected via an isolated channel per port


• Unidirectional data stream – ensures a one-way data stream between console devices and the selected computer


• The KVM PSS PP v 3.0 switches for ATEN security control and isolate data flow between console devices and connected computers


• Supports analog audio (speaker only)*



Protection of user data

• Data protection – automatically deleted keyboard/mouse data buffer when switching to KVM port



Safety management

• KVM – log data provides administrative functions for authorized administrators to verify KVM log data


• Configurable – device filter the USB CAC port can be configured to allow/reject devices in the allowed/blocked list using the admin access function or Windows-based application


• Supports the activation/deactivation of the CAC function via the port



Superior video qualityà

• Superior video quality – up to 4 K (3840 x 2160 at 30 Hz)**


• DynaSync video ™ – an exclusive ATEN technology that eliminates display problems at startup and optimizes resolutions when switching from port to port



* Only data input from analog speakers is supported. The KVM PSS PP v 3.0 switches for ATEN's security do not convert digital audio to analog audio.

** The KVM DisplayPort series for security support video output resolutions of the console up to 4 K at 30 Hz.

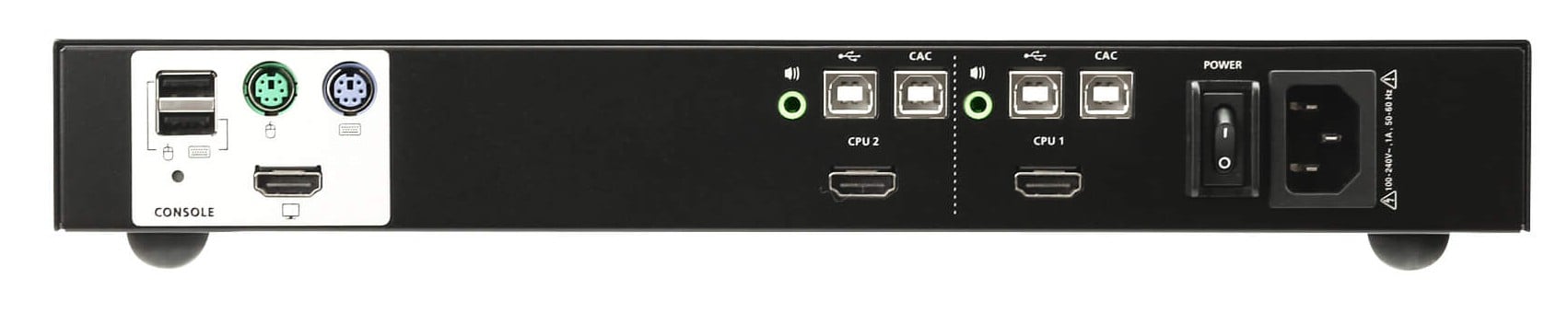

Connectors

• Console ports: 



2 x female type A USB (black)

1 x Mini-DIN 6 pin female (purple)

1 x Mini-DIN 6 pin female (green)

1 x female HDMI (black)

1 x Mini female stereo connector (green; front panel)

• KVM Doors:



4 x female type B USB (white)

2 x female HDMI (black)

2 x Mini female stereo connector (green)

• Power supply   1 x Tripolar AC sockets


• CAC USB & 1 x USB female type A port (white; front panel)



LED

• Power supply: 1 (blue)


• Online/selected (KVM port): 2 (orange)


• Online / Selected (CAC Port): 2 (green)


• Video: 1 (green)


• Key lock: 3 (green)



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 33.50 cm


• Depthà: 16.39 cm


• Height: 4.40 cm



Package contents

• 1 x CS 1182 H switch USB USB HDMI for security at 2 ports


• 1 x LIN 2 - 418 K-E 12 G power cord


• 1 x user instructions
