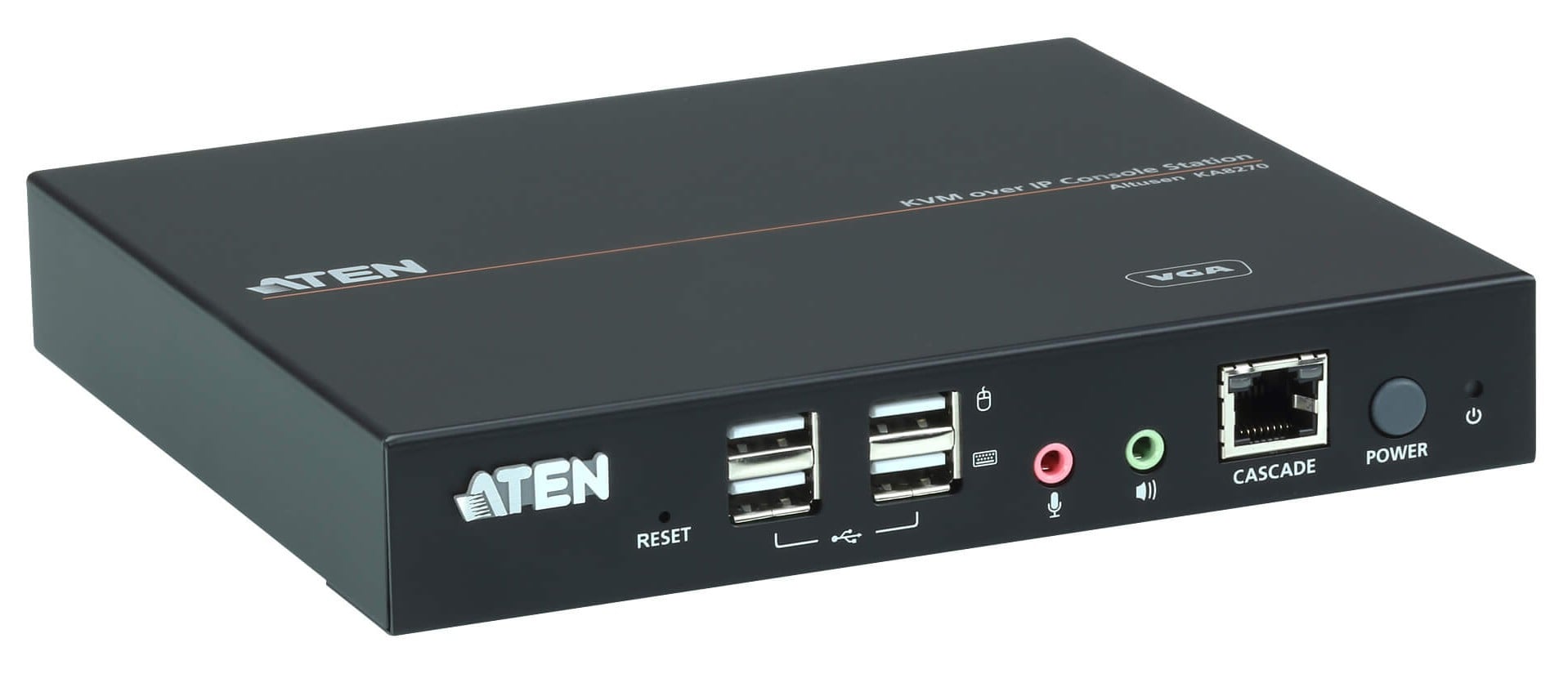

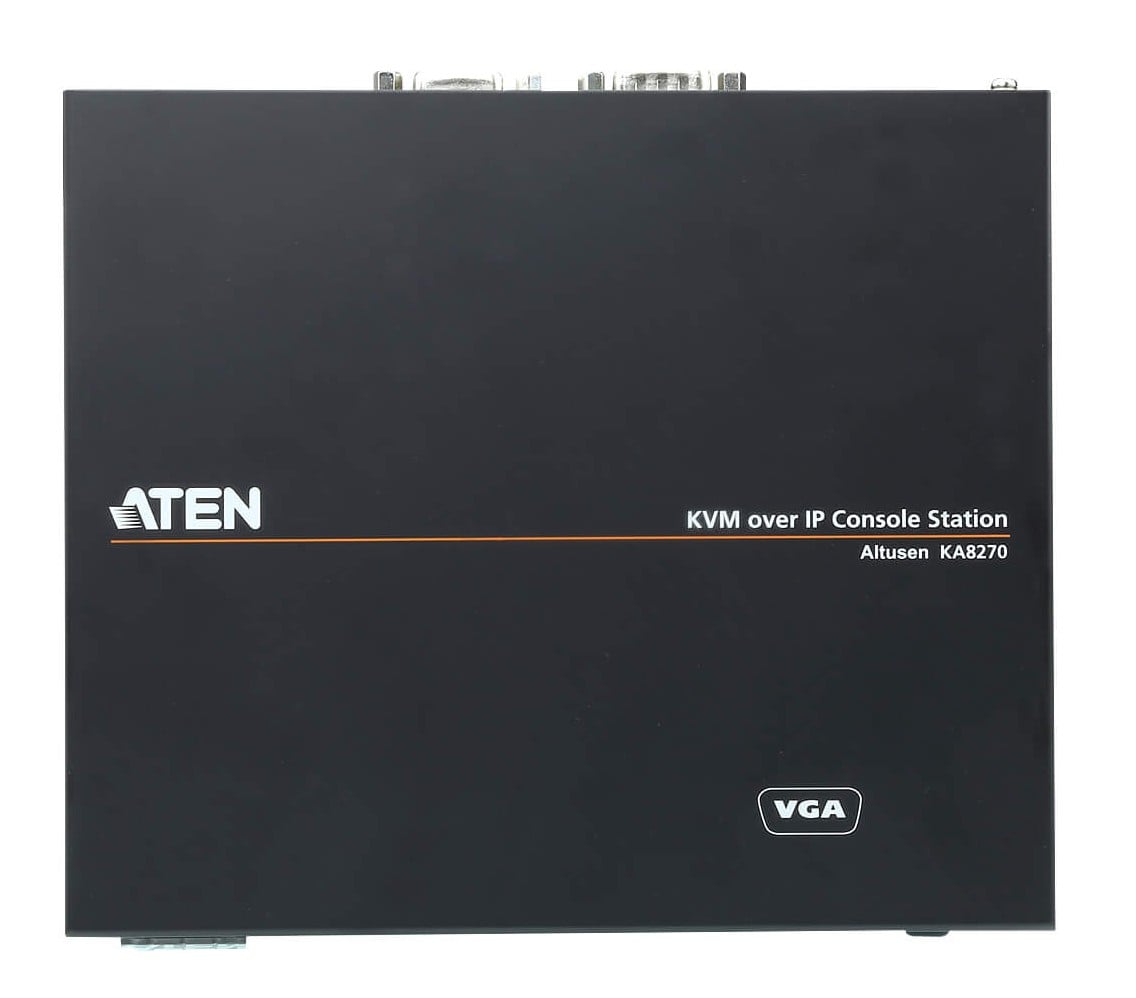

KVM over IP VGA Console Station - ATEN IDATA KA- 8270

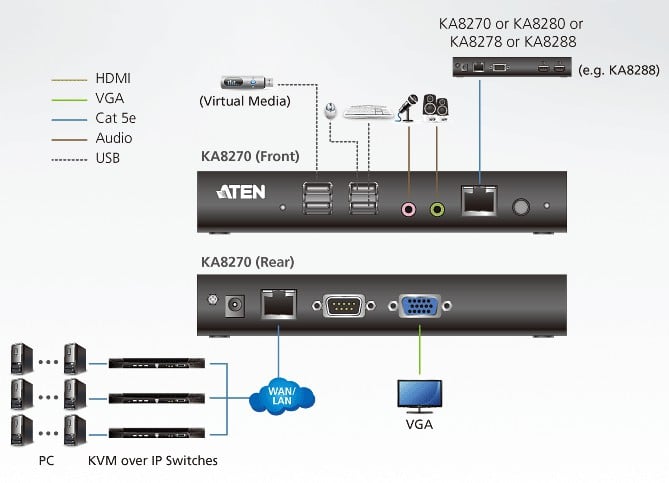

The KVM console station over IP KA 8270 è an autonomous console that replaces PCs or notebooks, and allows users to remotely access, monitor and control all servers connected to more ù KVM over IP switch from ATEN* with insurmountable security against virus threats. It also supports different types of encryption methods ensuring data protection. The KVM over IP console station can be distributed wherever immediate access and strict security is required, ideal for applications such as studies, offices, data centers, transmission stations, control rooms or centres for network operations.



The KA 8270 supports USB mouse/keyboard and two USB ports for the Virtual Media function, it also supports 1 VGA video output with resolutions up to 1920 x 1200 at 60 Hz.



In addition, the KVM over IP console station offers the Panel Array Mode™ function, which allows administrators to monitor the video output of up to 64 servers at the same time. This feature makes it possible at the same time to preview the contents of all ports, and è particularly suitable for environments such as production and surveillance that often requires monitoring of a large number of ports.



The KVM over IP console station can be placed on the desk, installed on the wall or on the back of the rack thanks to its 0 U rack mount design. It is flexible and easy to install, and offers a graphical user interface with multi-language interface for device management, customization of the user profile, as well as simplified configuration for large-scale distribution.



*KVM over IP compatible switches include KN 1132 V, KN 2116 VA, KN 4116 VA, KN 2132 VA, KN 4132 VA, KN 4164 V, KN 8132 V, KN 8164 V, KN 2124 VA, KN 4124 VA, KN 2140 VA, and KN 4140 VA. The above mentioned KVM over IP switches require the FW v 1.6. 151 or higher to support the KVM over IP console station.



Features

• An autonomous console that does not require Java replacing PCs and notebooks and allows users to remotely access and control ATEN's KVM over IP* switches


• Unsurpassable security against virus threats and data protection


• Single access consolidates management of more ù KVM switch over IP of ATEN


• Advanced FPGA graphics processor with Full HD resolution from 1920 x 1200


• Supports 1 video output VGA


• Panel Array Mode™ – allows administrators to monitor video output of up to 64 servers on a screen


• Supports Virtual Media


• Wall-mounted – standard mounting kit included


• Design saves space for mounting on 0 U rack for rear mounting of the rack


• Graphic user interface with multi-language interface

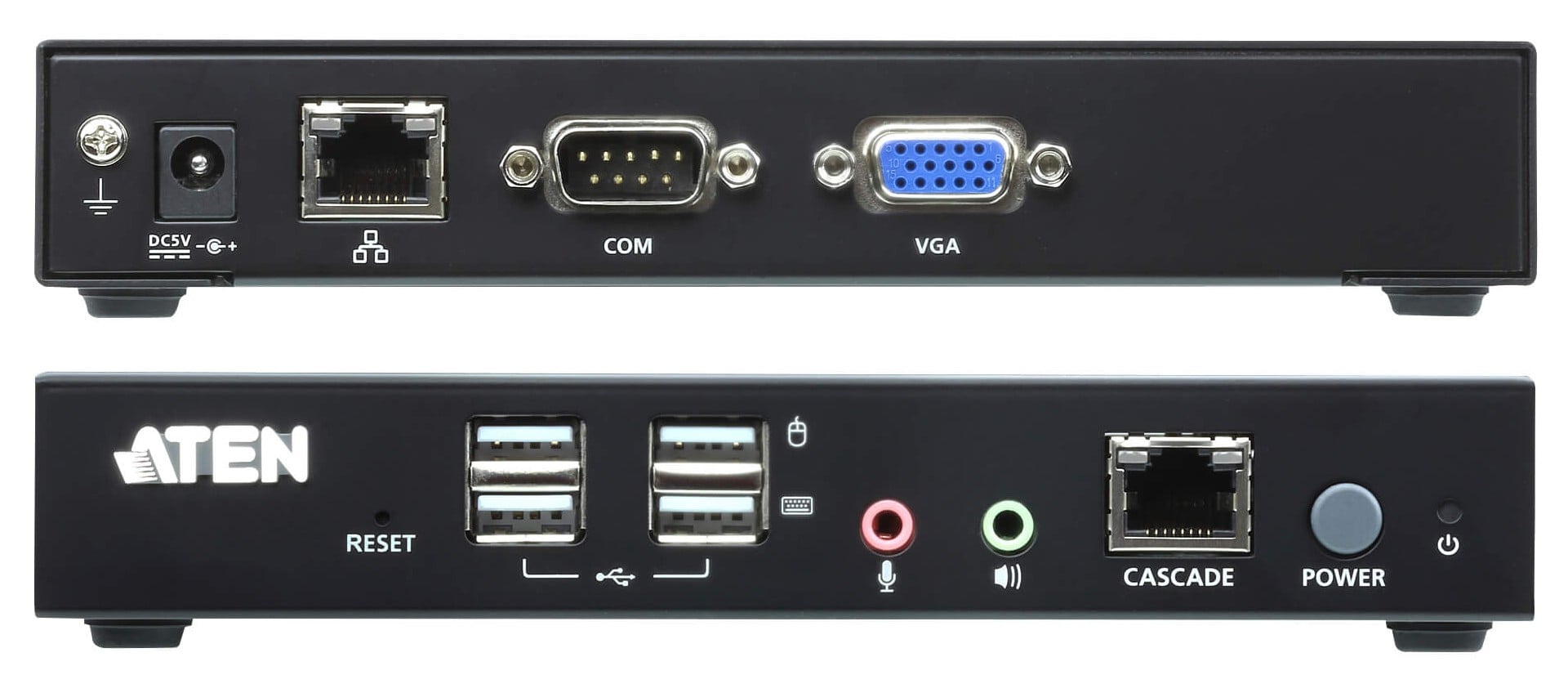

Connectors

• Video  1 x HDB- 15 female


• RS- 232   1 x DB- 9 male


• Power supply 1 x DC connector


• Audio  2 x Female audio connector


• LAN & 1 x RJ- 45 female


• Keyboard   1 x USB female type A


• Mouse  1 x female type A USB


• USB/emsp; 2 x female type A USB port


• Waterfall door 1 x RJ- 45 female



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Dimensions

• Width: 17,42 cm


• Depthà: 15,54 cm


• Height: 2,88 cm



Package contents

• 1 x console station KVM over IP VGA KA 8270


• 1 x 0 AD 8 - 8005 - 40 MG power supply


• 1 x LIN 2 - 418 K-E 12 G power cord


• 1 x mounting kit


• 4 x bearings


• 1 x user instructions
