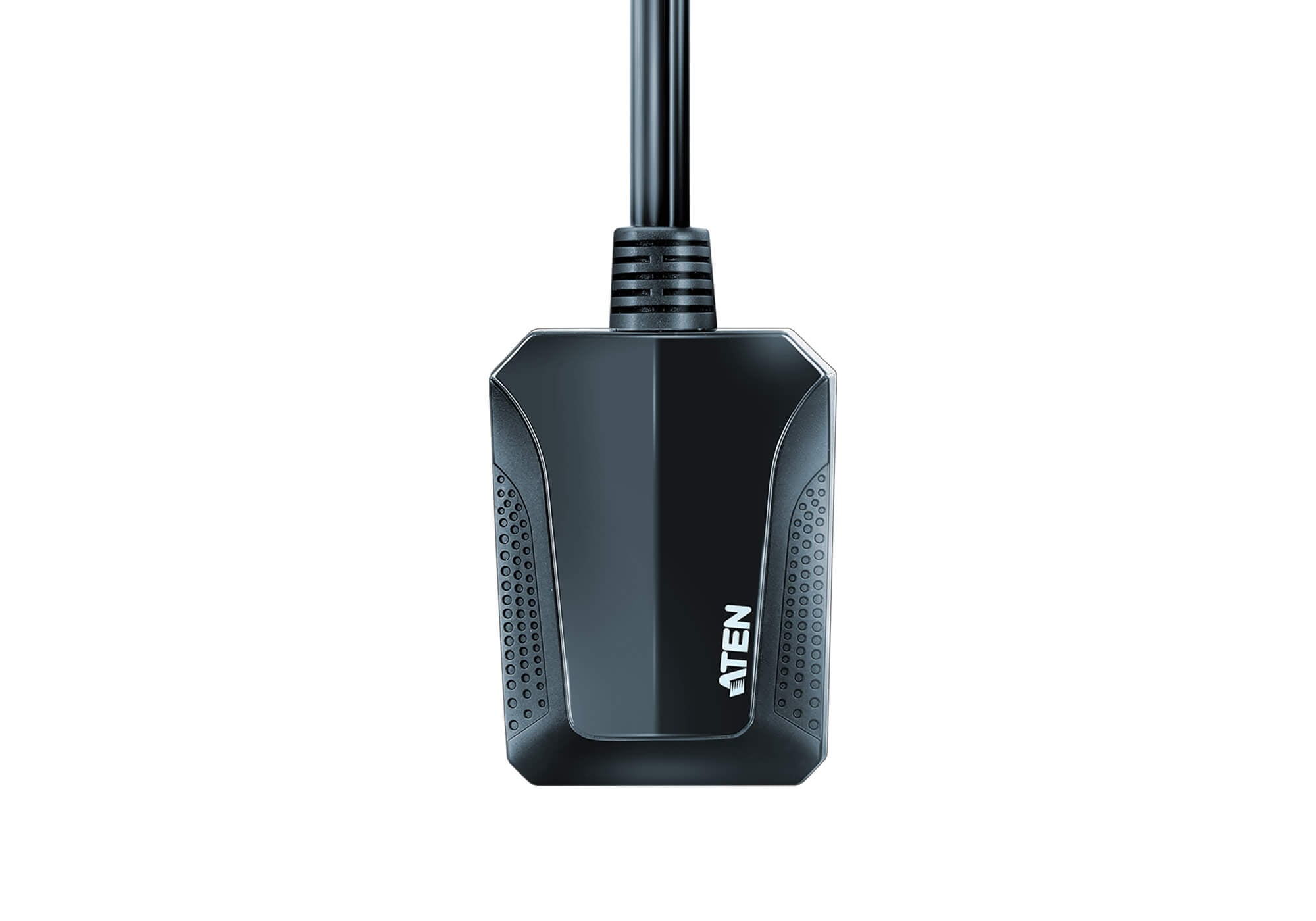

Crash Cart adapter USB KVM console for laptop, CV 211 - Aten IDATA CV- 211

ATEN è's 211 CV a USB laptop adapter with KVM console designed specifically for mobile IT managers. It's the perfect crash cart that transforms laptop into a KVM console that combines the functionality à of a wormhole switch, a capture console, an external DVD-ROM, a keyboard, a mouse and a monitor all in a unità convenient and compact. It is possible to quickly and professionally diagnose and solve the problems of server systems, ATM or PoS.

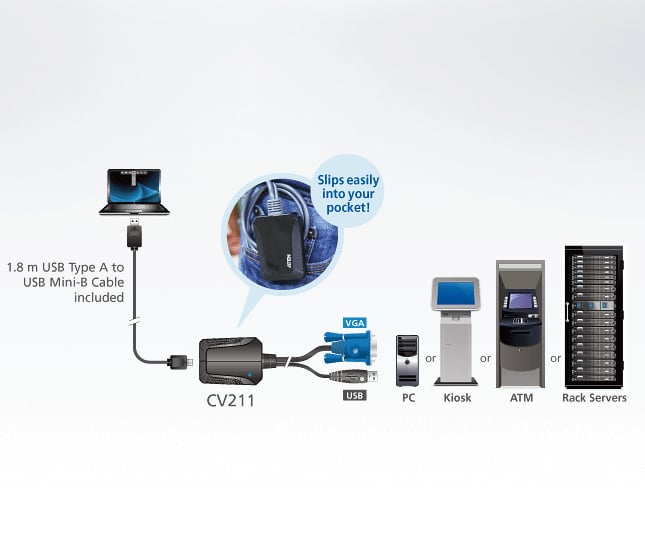

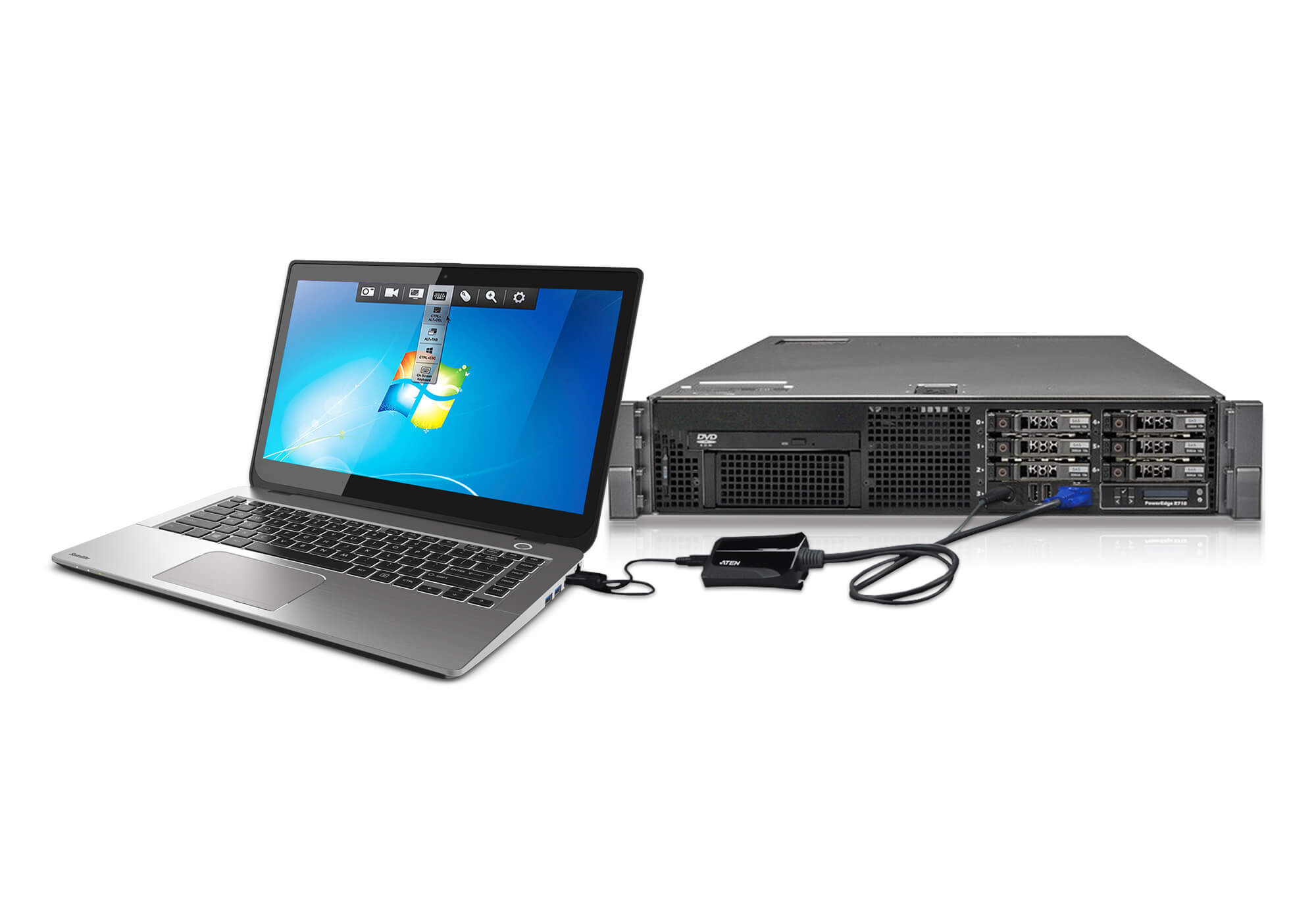

The Crash Cart USB console adapter KVM for CV laptop 211 offers direct Laptop-a-Computer connection to servers, computers, kiosks and ATMs. Recommended for IT professionals, CV 211 eliminates the needs à heavy cart crashes while offering bidirectional transfer of files, quick-choice macros, video recordings and screens via a USB 2.0 and composite VGA cable.



The innovative virtual media feature offers the file application, operating system patches, diagnostic tests and software installations through the intuitive GUI of the 211 CV that offers quick remote access and easy to use. The graphical user interface console window can be adjusted to the exact desktop size and resolution of the remote computer by automatically resize the panel; or è can manually adjust the window size to fit it better. It displays the entire desktop of the target computer without having to use a scroll bar.



In addition, the cable clip design makes the cable layout more tidy while CV 211 is used and transported. CV 211 è the perfect replacement for the crash cart because it allows you to solve system problems difficult to reach or when Internet access is not available or allowed.



USB console adapter for direct desktop access from laptop to computer

• Turn the laptop into an ultra mobile console for servers, computers, kiosks and ATMs


• Virtual media allows you to manage file applications, install OS patches, install software and perform diagnostic tests


• Updateable firmware to keep the unità up-to-date


• Eliminates the need for heavy and bulky crash carts


• – desktop scaling user can ` adjust the size/resolution of the remote desktop window by size or ratio



Troubleshooting server and computer problems

• Instant BIOS access for total server control during hardware and operating system malfunctions


• Bi-directional file transfer between laptop and target computer


• Video recording and image capture saves a record of remote operations for training and solving future problems


• DynaSync ™ – Mouse automatically syncs mouse movements of the laptop and target computer


• On-screen keyboard with multi-language support


• Supports shortcut macros to define the push of keys that perform specific actions on target computer and complete activities à efficiently and accurately



Easy to use

• Plug-and-play – no software installation needed on both sides


• The toolbar helps users to easily use all functions from a single-click control panel within the remote viewing window


• Adjustable video settings for optimal performance and images


• Design powered by USB bus with support for hot connection



Maximum convenience

• Integrated VGA cables and USB keyboard/mouse

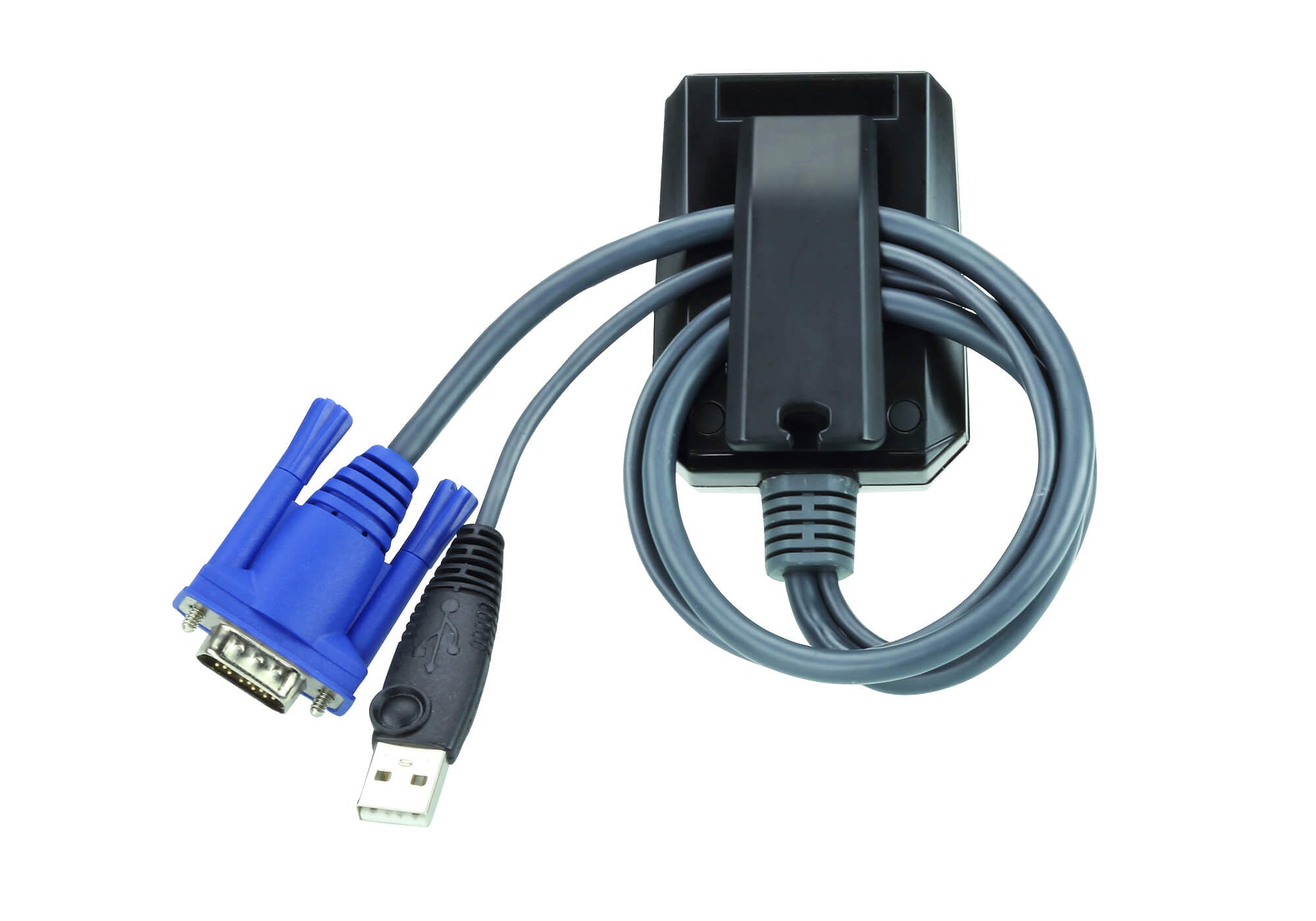

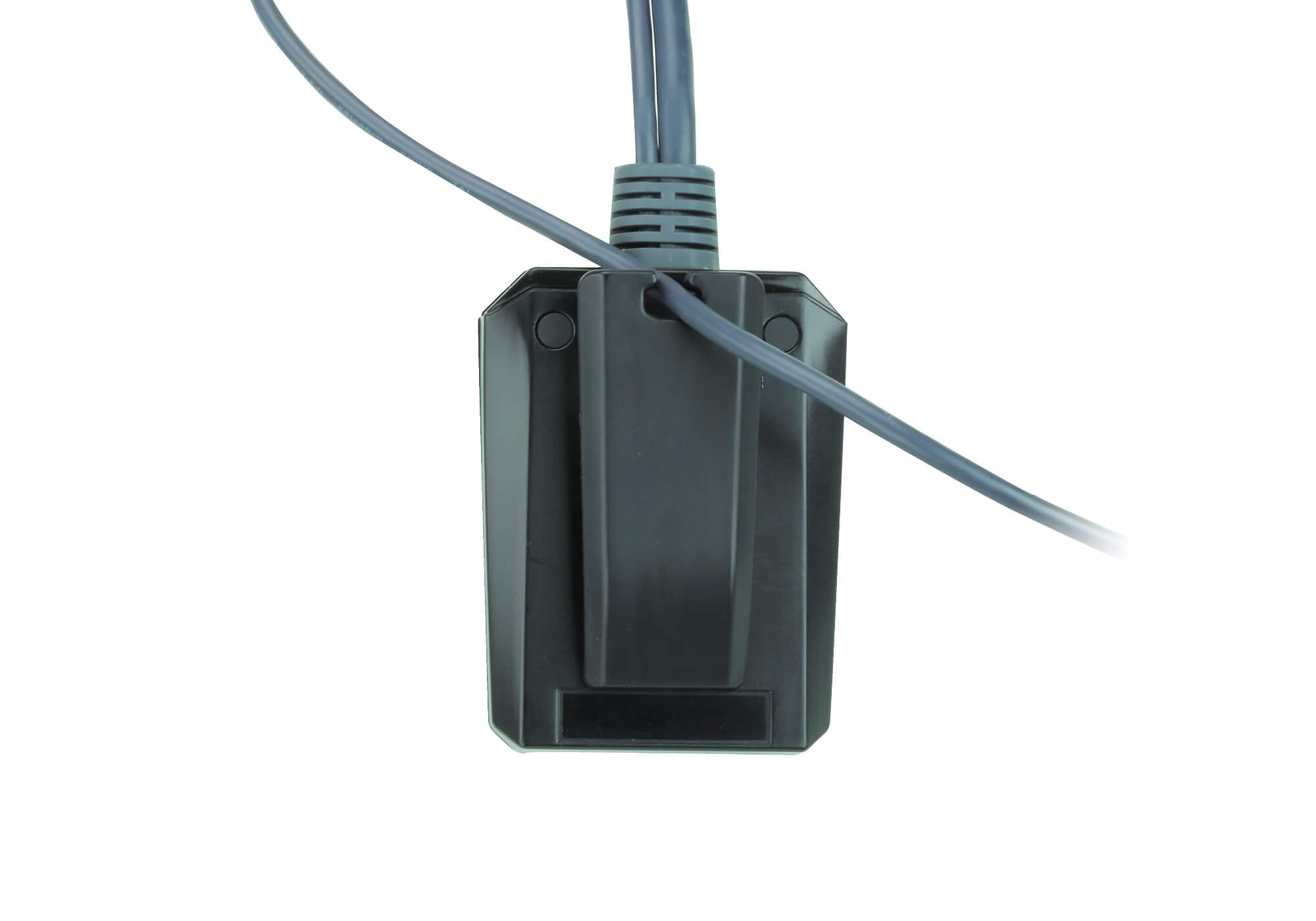

• Unique cable clip design to keep cables under control


• Supports analog video resolutions up to 1920 x 1200 to 60 Hz


• Compact and easy to carry, small size

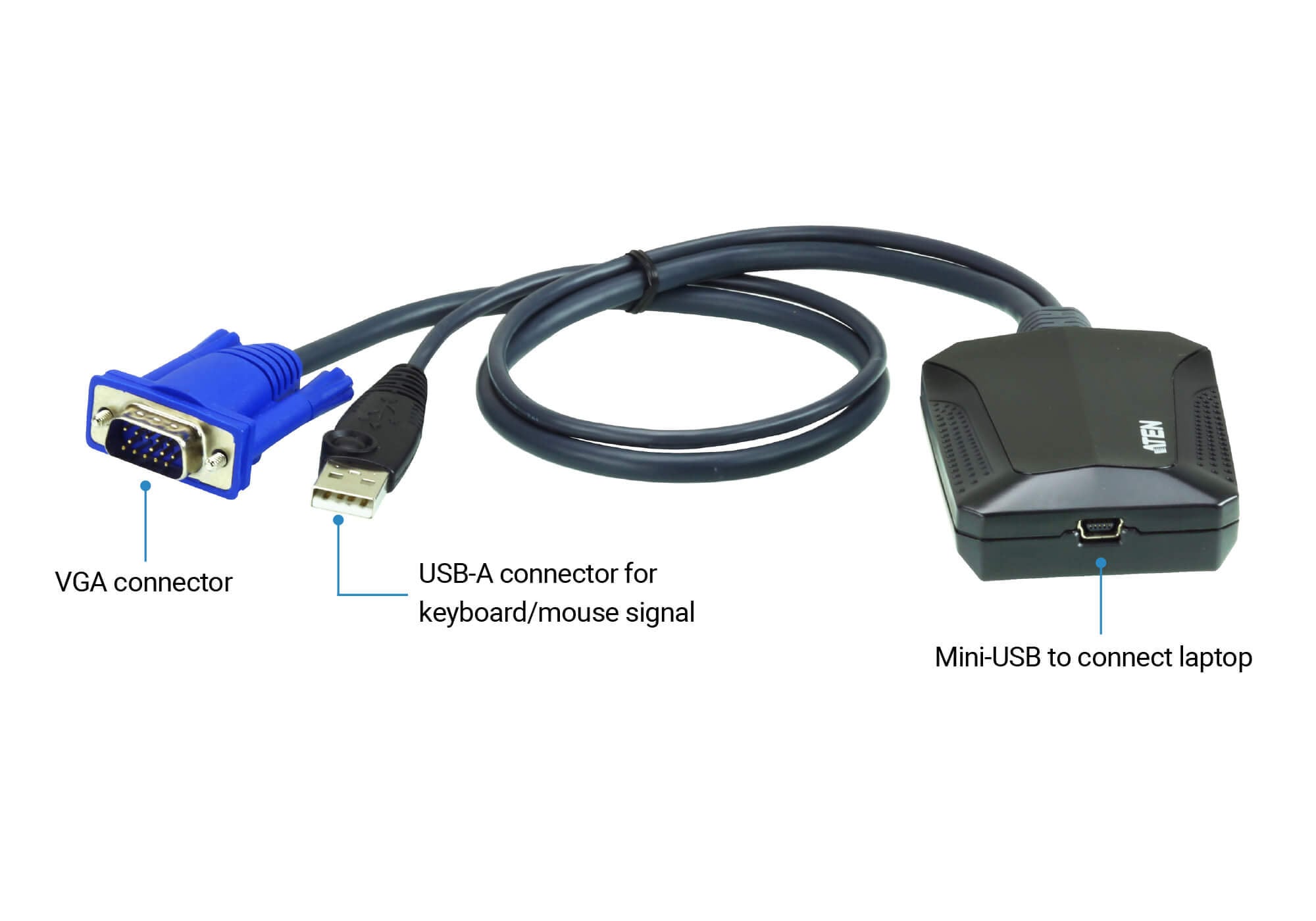

Connectors

• Luc port (USB Laptop Console)  1 x mini female type B USB


• KVM ports (computer)  1 x male type A USB ports


• 1 x male VGA (Blue)



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 7.05 cm


• Depthà: 5.37 cm


• Height: 3.01 cm



Package contents

• 1 x CV 211 Crash cart adapter with KVM USB laptop console


• 1 x LIN 6 - 04 U 1 -M 18 G USB Cable Type A to USB mini-B


• 1 x user instructions
