Switch KVMP Screen Double USB 3.0 4 K DisplayPort 4 ports - ATEN IDATA CS- 1944 DP

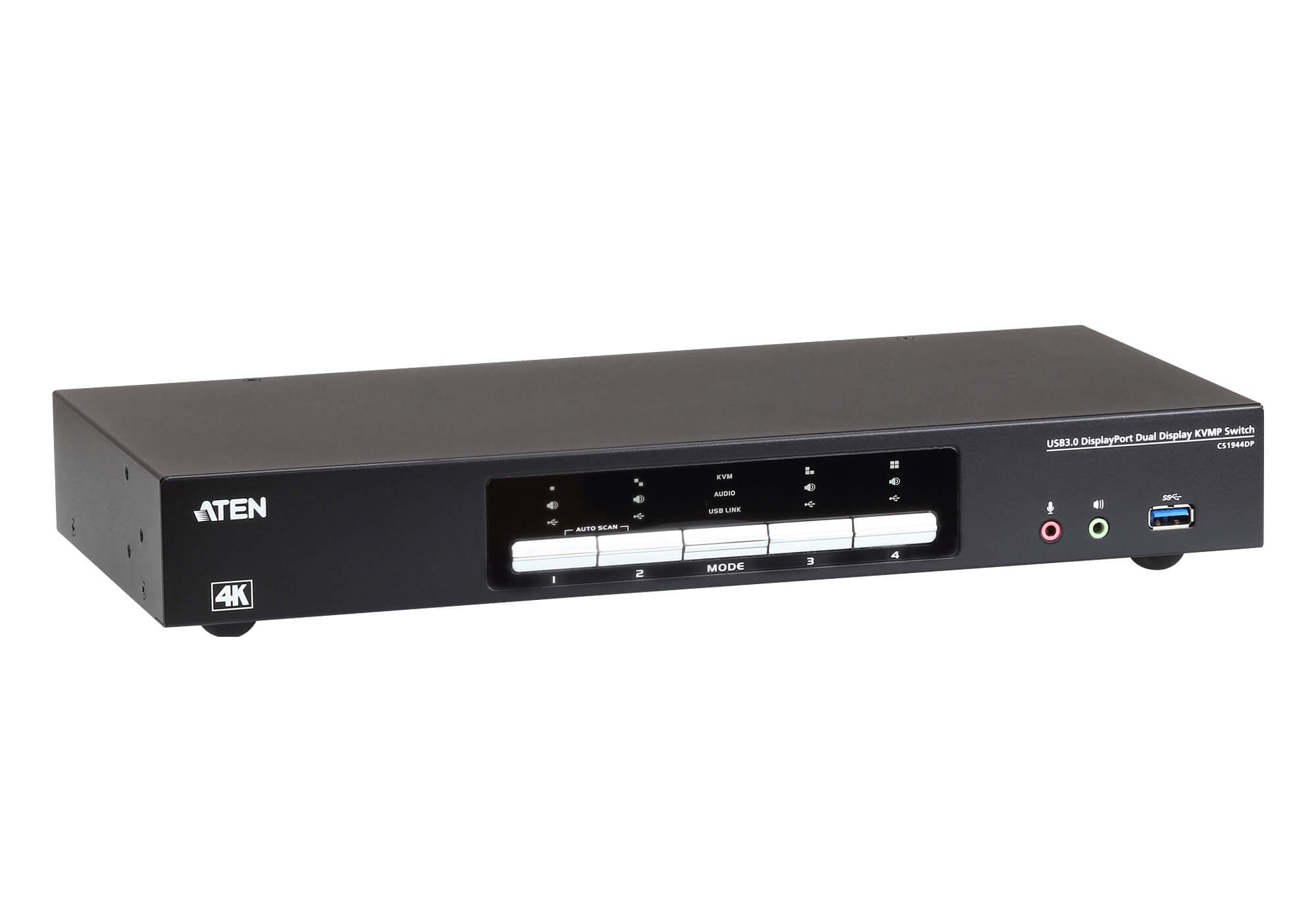

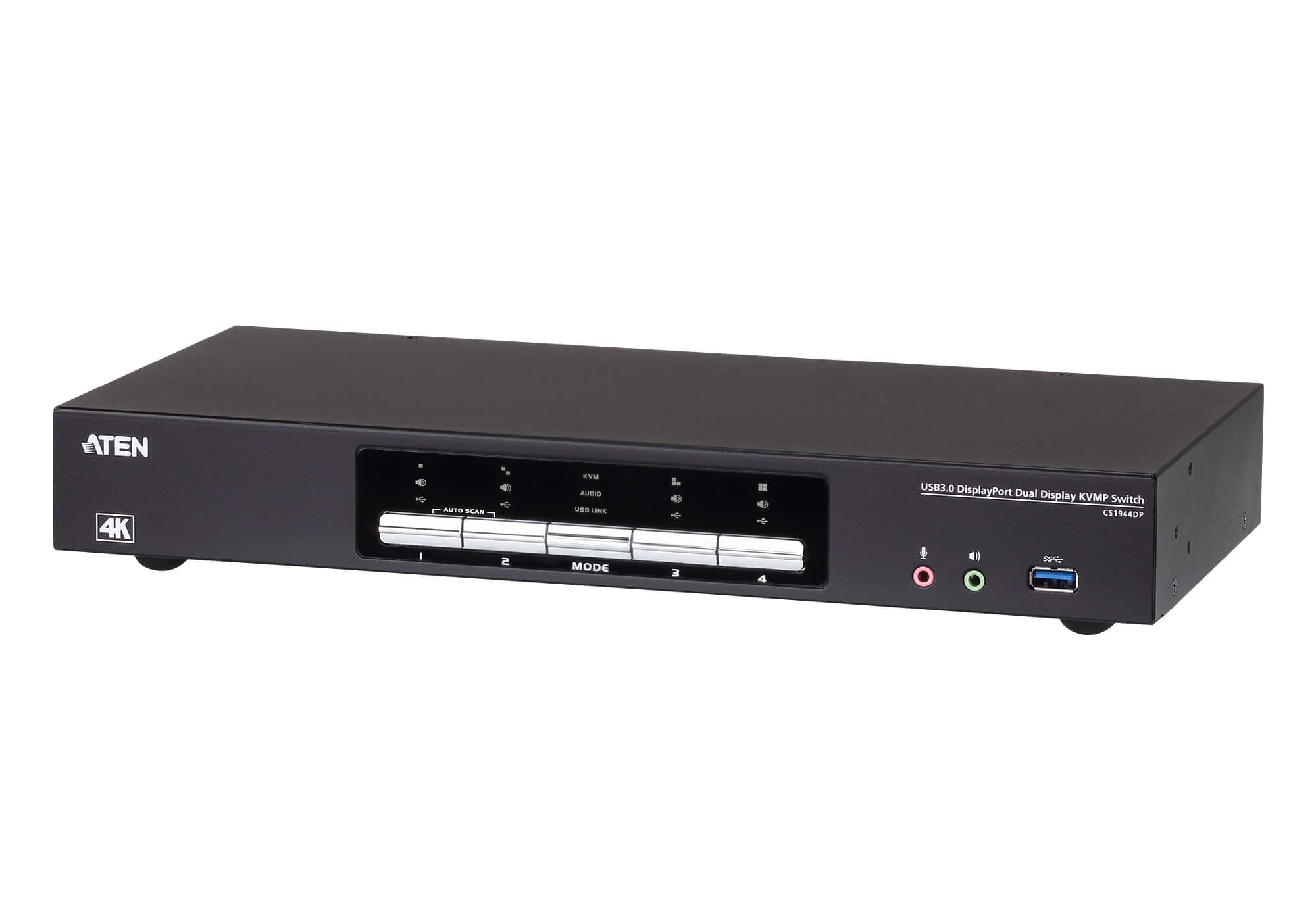

The ATEN CS 1944 DP desktop KVM switch helps you organize your desktop. Especially when managing multimedia workstations in large organizations, the CS 1944 DP provides instant access to two or four computers, all with a single USB keyboard, USB mouse and two DisplayPort monitors.



Advanced video support offers a better-defined DisplayPort connection with resolutions up to 4 K (4096 x 2160 / 3840 x 2160 to 60 Hz). The integration of the dual display functionality allows you to use larger screens and to switch easily to two or four DisplayPort systems. Moreover, thanks to the integrated USB 3.1 Gen 1 hub, the CS 1944 DP offers exceptional data transfer speeds & speeds up to 5 Gbps that allow you to maximize multimedia operations.



Designed to meet the ever-increasing demands of double viewing, ultra-fast data transfer speeds, and loss-free 4 K video resolutions, the CS 1944 DP è designed specifically for environments where è requires multitasking, such as design, financial trading and post-video production.



Features

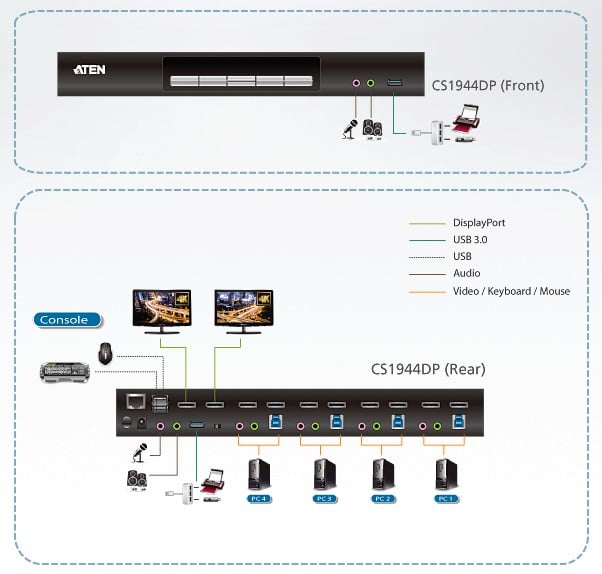

• One keyboard and one USB mouse control two/four DisplayPort computers and share two USB devices


• Supports display to four screens by connecting two double screen KVM switches


• Supports higher video – quality up to 4 K (4096 x 2160 / 3840 x 2160 at 60 Hz)


• Computer selection via front panel, shortcut keys, mouse and RS- 232 commands


• Hub USB 3.1 Gen 1 to 2 ports with speed à SuperSpeed 5 Gbps data transfer


• Supports Modelità dual DisplayPort (DP++) technology*


• Supports MST (Multi-Stream Transport)**


• Supports emulation/bypass function of the console keyboard


• Supports emulation/bypass function of the console mouse


• Independent switch of KVM, USB and audio


• Multilingual keyboard map – supports keyboards in English, French, Japanese and German


• HDCP Conforms


• Supports HD*** audio


• Initiating detection


• Updated Firmware



Note:

*Modalità dual DisplayPort (DP++) technology does not require an active adapter for many of the individual screen settings. Active DisplayPort adapters are recommended if you are not è certain of the video source compatibilityà DP+++.

** MST (Multi-Stream Transport) requires monitors that can support daisy connection DisplayPort 1.2 , or the use of a hub DisplayPort MST powered. A DisplayPort display v 1.1 a può be the last display in a DisplayPort v 1.2 connection. The PC source must conform DisplayPort 1.2

***L HD audio via DisplayPort cannot be exchanged independently



Connectors

• Console ports  



2 x USB type A female

2 x DisplayPort female (black)

2 x 3,5 female audio connector (green; 1 x front, 1 x rear)

2 x Female audio connector from 3,5 mm (pink; 1 x front, 1 x rear)

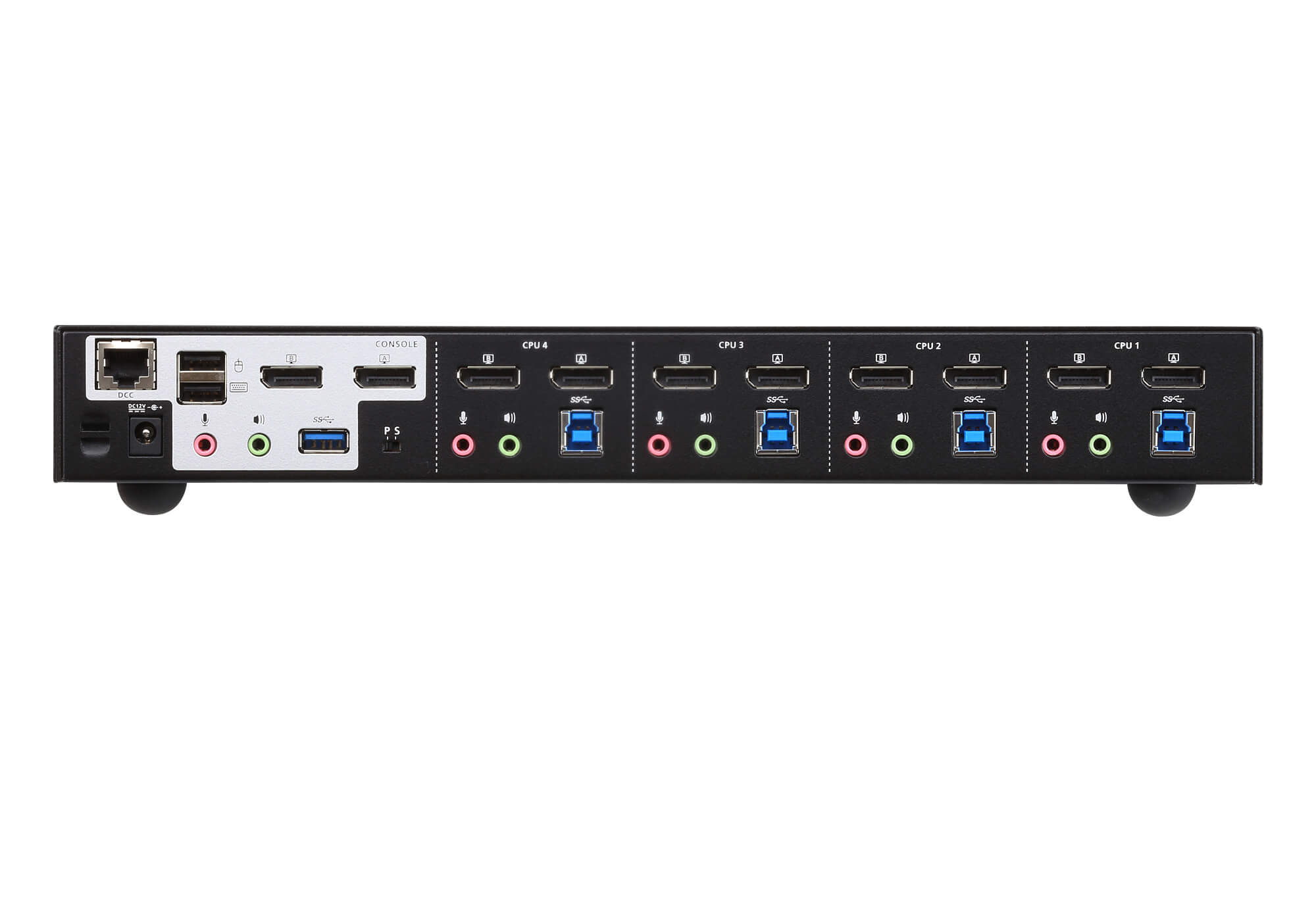

• KVM ports (computer) 



4 x USB 3.1 Gen 1 female type B (blue)

8 x DisplayPort female (black)

4 x Female audio connector from 3,5 mm (green)

4 x Female audio connector from 3,5 mm (pink)

• Interconnect ports   1 x RJ- 45 female


• Power supply: 1 x DC connector


• USB hub: 2 x USB 3.1 Gen 1 type A female (blue; 1 x front; 1 x rear)

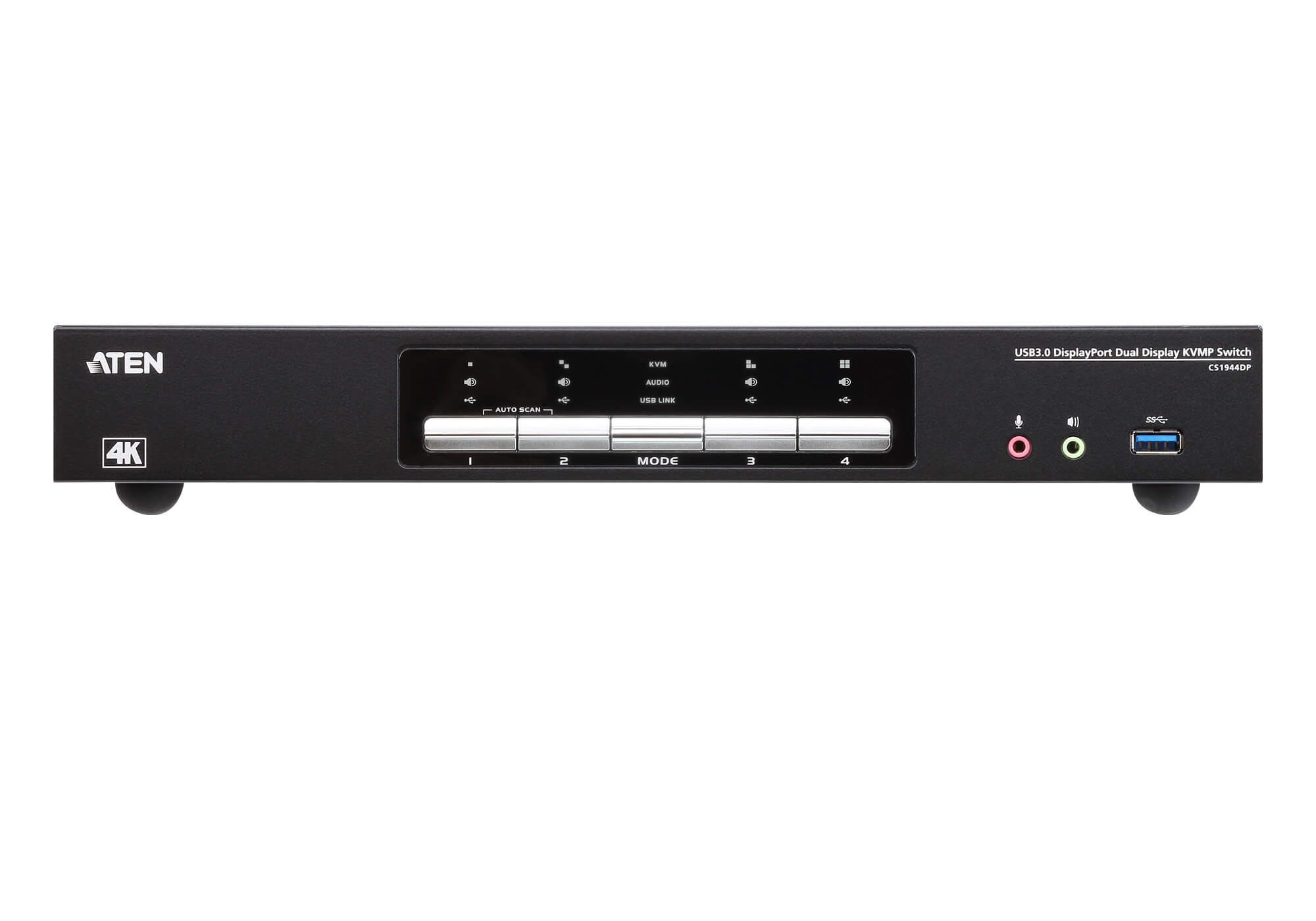

Switches

• Selected: 5 x Push button


• Station selection: 1 x Sliding support



Environmental features

• Operating temperature: 0 – 50 °C


• Storage temperature: - 20 – 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Dimensions

• Width: 33,50 cm


• Depthà: 15,66 cm


• Height: 4,40 cm

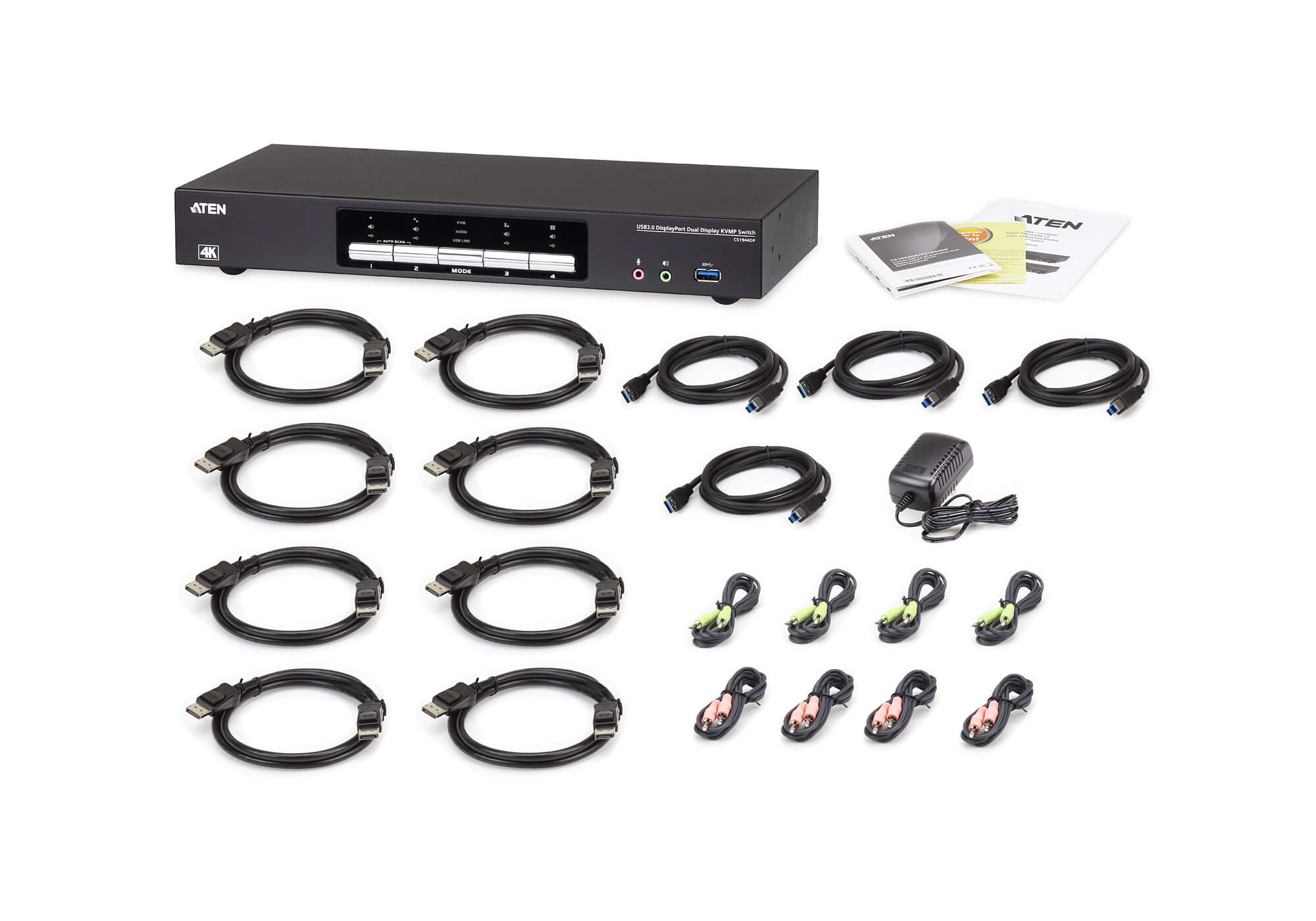

Package contents

• 1 x Switch KVMP™ double screen USB 3.0 4 K DisplayPort to 4 ports


• 8 x LIN 5 - 20 K 1 -K 13 G cables DisplayPort 1.2


• 4 x LIN 6 - 11 C 1 -E 12 G USB cables 3.0


• 8 x LIN 5 - 0205 - 21 CG/LIN 5 - 0205 - 21 Audio cable DG


• 1 x LIN 2 - 418 K-E 12 G power supply


• 1 x user instructions
