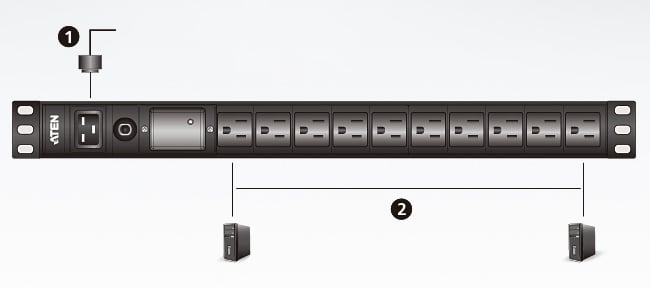

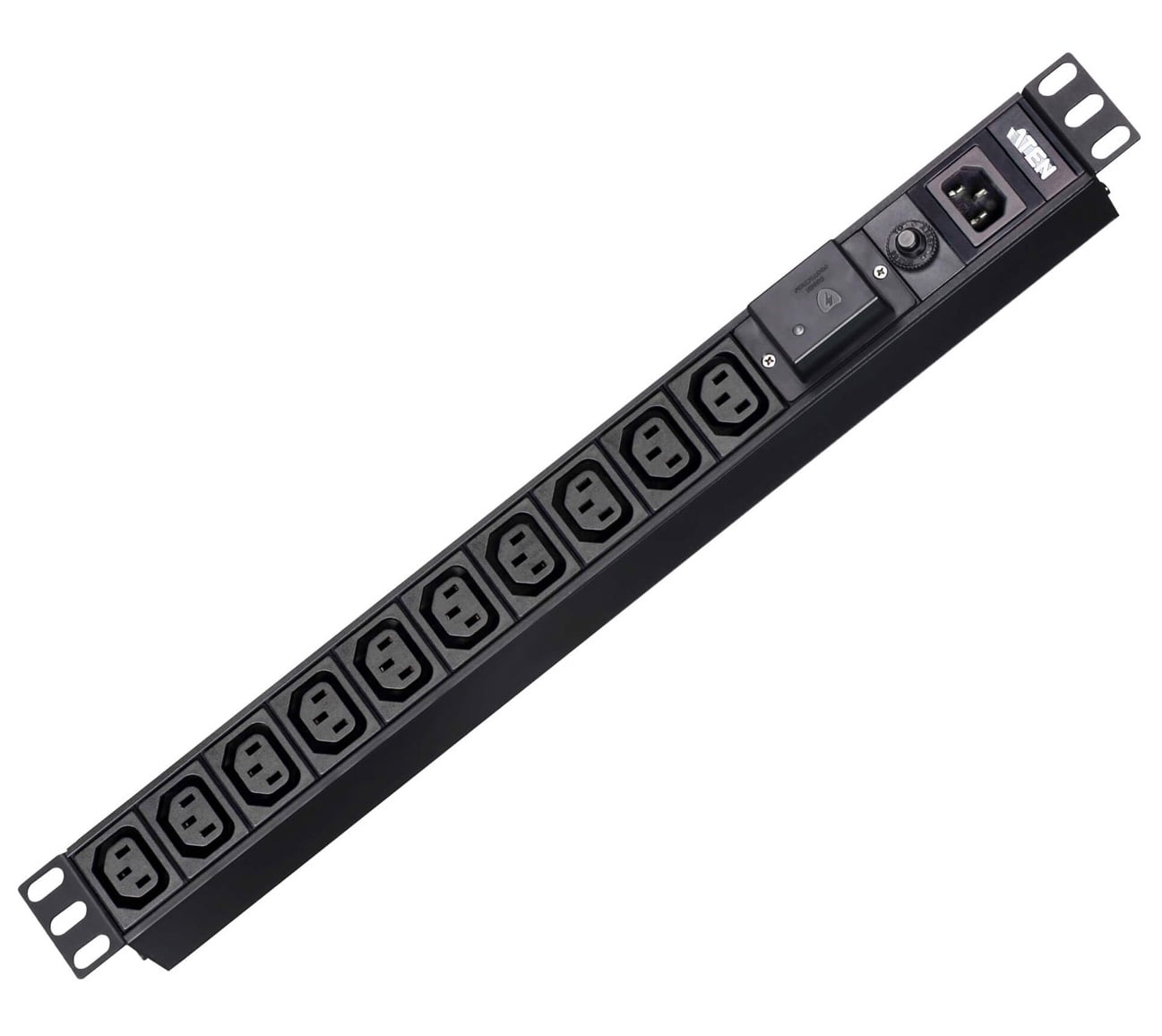

Aten's PE0110S is a rack-mount 1U 10-outlet Power Distribution Unit (PDU) that offers IEC and NEMA outlets. It distributes power to 10 outlets from a single plug with unfiltered electrical pass-through. The PE0110S also offers surge protection to protect equipment from damage due to voltage surges and spikes. The built-in surge protection includes an LED indicator that shows the equipment status.
The aluminum housing increases the life of the units thanks to a robust case made of impact-resistant material for maximum durability. The basic 1 U PDU can be easily installed on a wall, wooden furniture, or workstations.
Features- Design for 1U rack mounting to take up less space
- Models with IEC or NEMA outputs
- Surge protection
- Overcurrent protection
- Aluminum material
- Ideal for data centers, server rooms, and telecommunications equipment
Technical specifications- Nominal input voltage: 100 - 240 V AC
- Maximum input current: 10 A (maximum)
- Input frequency: 50 - 60 Hz
- Input connection: IEC-320 C14
- Input power: 2400 VA (maximum)
- Output type: (10) IEC -320 C13
- Maximum output current (output): 10 A (maximum)
- Maximum output current (accumulator): 10 A (maximum)
- Maximum output current (total): 10 A (maximum)
- OPD (overcurrent protection device)
Dimensions- Length: 48,20 cm
- Width: 4,44 cm
- Height: 4,50 cm
