PDU 1U 10 Outlets with Surge Protection - ATEN PE0210SG

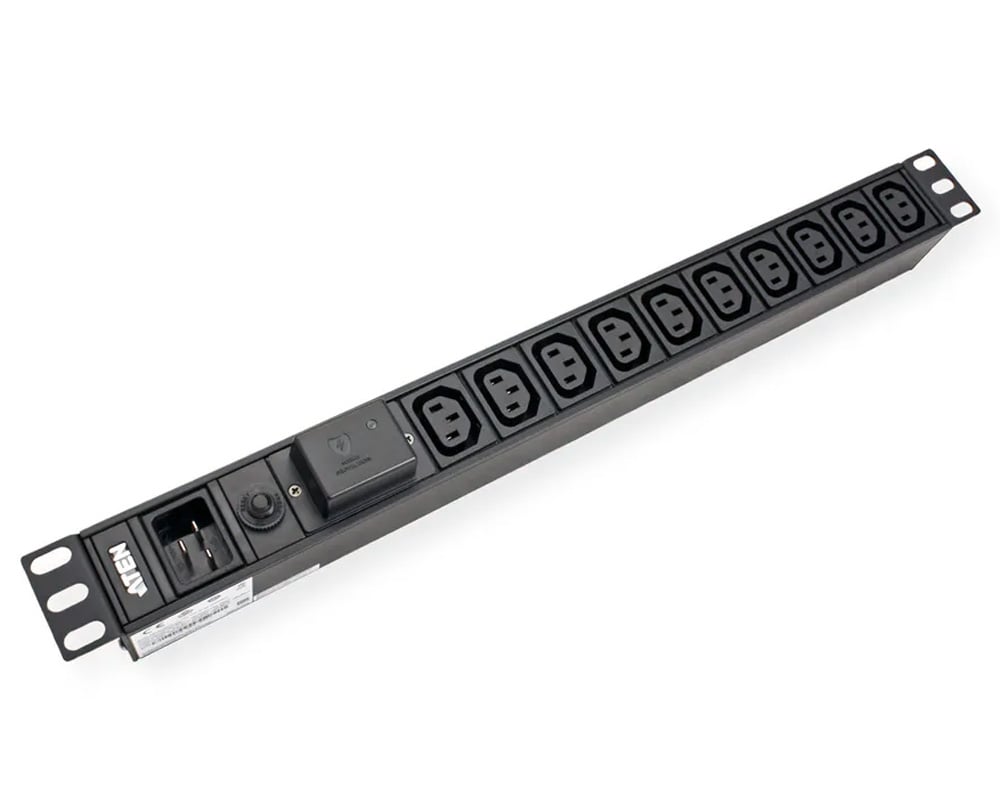

The Aten PE0210S is a rack-mount Power Distribution Unit (PDU) 1 U with 10 outlets offering IEC and NEMA outlets. It distributes power to 10 outlets from a single plug with unfiltered electrical pass-through. The PE0210S also offers surge protection to protect equipment from damage due to current surges and spikes. The built-in surge protection includes an LED indicator to show the equipment status.



The aluminum housing increases the life of the units thanks to a robust case made of impact-resistant material for maximum durability. The basic 1 U PDU can be easily installed on a wall, wooden furniture, or workstations.



Features

• Design for 1U rack mounting to take up less space


• Models with IEC or NEMA outputs


• Surge protection


• Overcurrent protection


• Aluminum material


• Works with data centers, server rooms and telecommunications equipment



Technical specifications

• Nominal input voltage: 100 - 240 V AC


• Maximum input current: 50 - 60 Hz


• Input connection: IEC-320 C20


• Input power: 3840 VA (maximum)


• Output type: (10) IEC 320 C13


• Maximum output current (output): 10 A (maximum)


• Maximum output current (battery): 16 A (maximum)


• Maximum output current (total): 16 A (maximum)


• OPD (overcurrent protection device)



Dimensions

• Length: 48,20 cm


• Width: 4,44 cm


• Height: 4,50 cm
