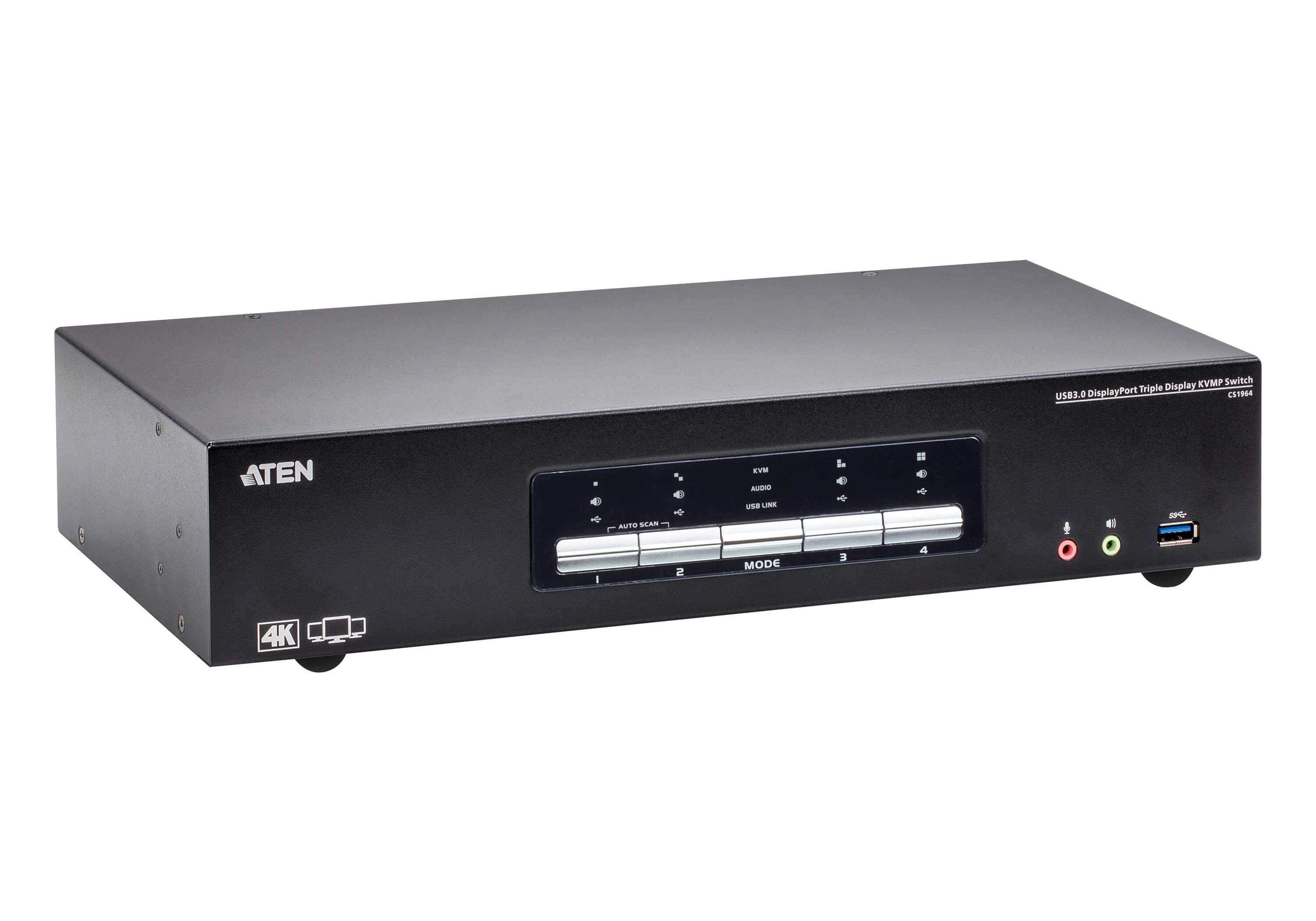

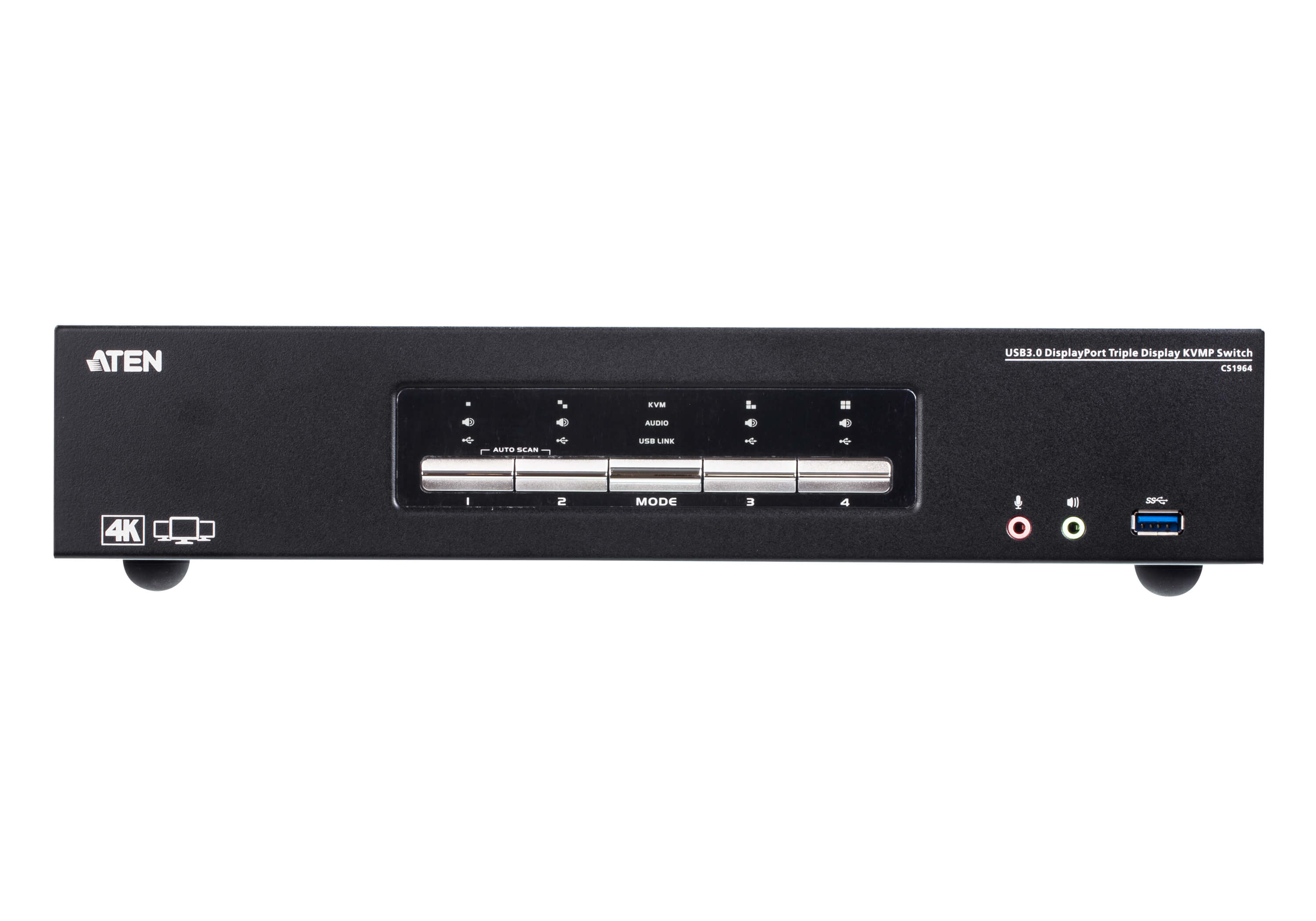

Switch KVMP USB 3.0 4 K DisplayPort Triple Display 4 ports - Aten IDATA CS- 1964

The ATEN CS 1964 optimizes the organization of the desk to help manage a three-display multimedia workstation. The CS 1964 offers immediate and simplified access to four computers via a single USB keyboard, USB mouse and three HDMI monitors. By connecting two CS 1964 daisies for six displays, è can perform multitasking without any problems to increase productivityà and improve the workflow.



The CS 1964 è equipped with the technology patented by ATEN, Video DynaSync™, which optimizes display resolution and speed switching between systems. So more, the CS 1964 supports a higher quality à video up to 4 K DCI (4096 x 2160 to 60 Hz). In addition, the CS 1964 offers speed à data transfer up to 5 Gbps with an integrated USB 3.1 Gen 1 hub that allows you to easily accelerate multimedia operations, also features N-key Rollover that offers support for up to 15 buttons simultaneous pressures preventing the ghosting effect or blocking.



The integration of all these advanced features à, the CS 1964 offers unique advantages for users who need to use more ù systems and perform more ù activityà on desktops extended on three displays. The CS 1964 è particularly useful for financial trading, CGI work, graphic design, control center, call center, video post production, gaming applications and more.



Features

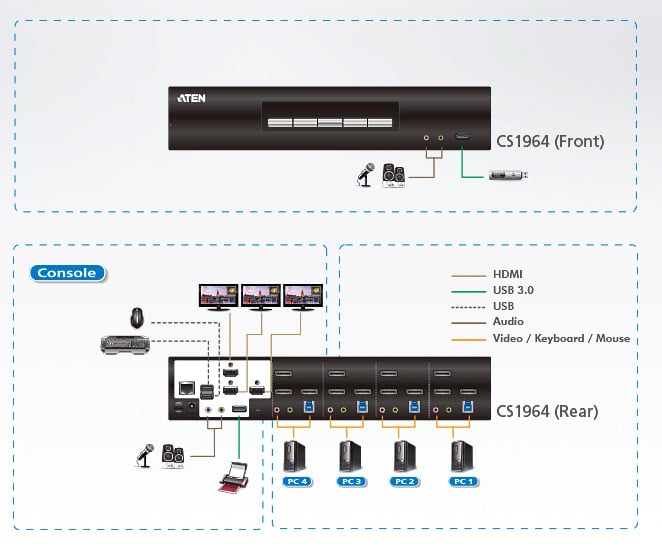

• One USB keyboard/mouse and three HDMI monitors to control four DisplayPort computers


• Supports higher quality à video: up to 4 K DCI (4096 x 2160 at 60 Hz); HDCP compliant


• Computer selection via push buttons, quick keys, 1 mouse and RS- 2322 commands


• Supports N-key Rollover 3 (NKRO) that allows typing without collisions


• DynaSync & trade; Video: ATEN exclusive technology that eliminates screen boot problems and optimizes resolution when switching between different sources


• Supports six-screen display by connecting two KVM Triple Display switches


• Hub USB 3.1 Gen 1 to 2 integrated ports with speed à data transfer SuperSpeed 5 Gbps


• Supports console keyboard emulation/bypass function


• Supports the emulation/bypass function of the console mouse


• Independent switching of KVM, USB devices and 4 audio focus


• Supports 4 HD audio


• Updated Firmware

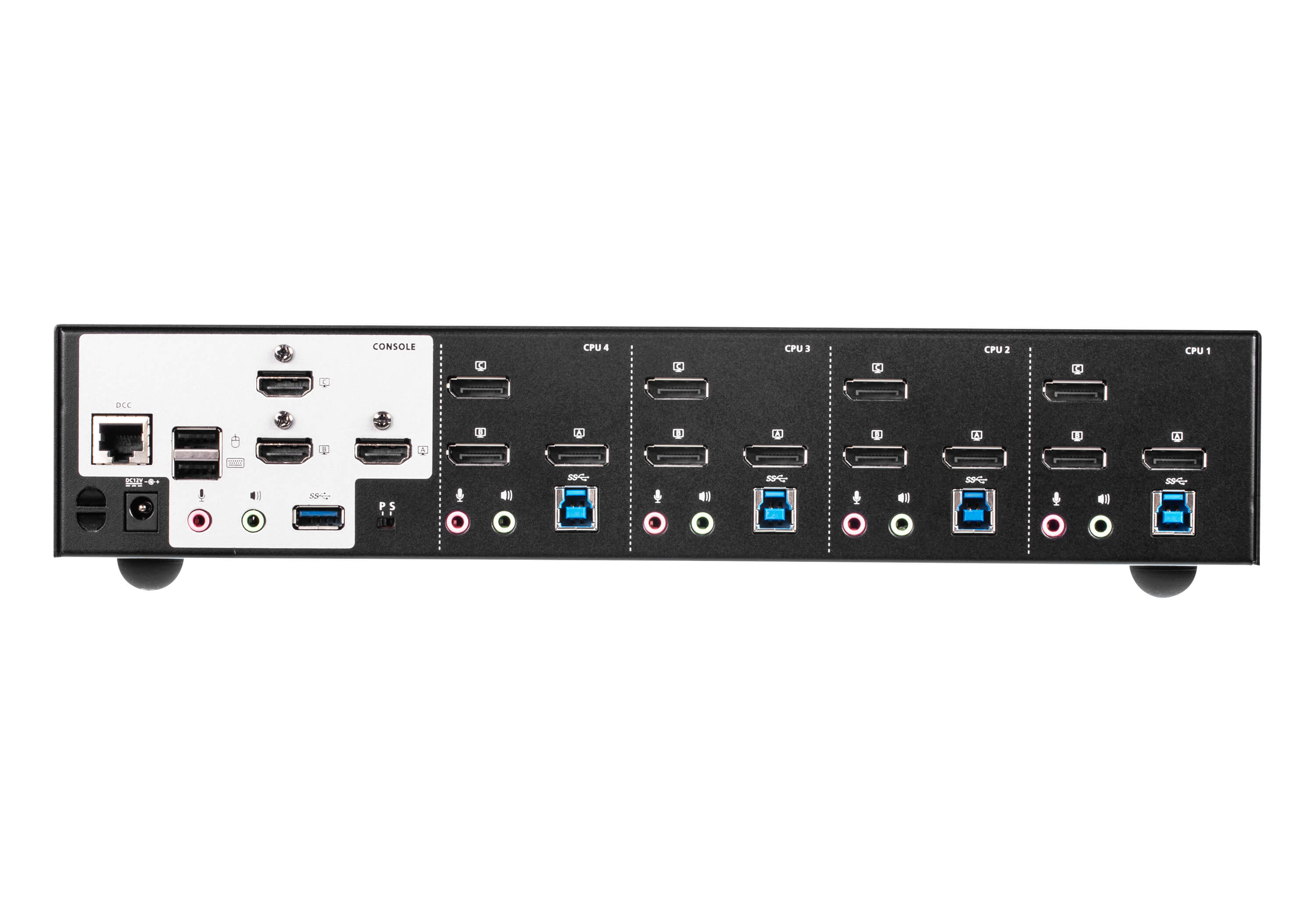

Connectors

• Console ports  



2 x USB type A female

3 x female HDMI (black)

2 x 3,5 female audio connector (green; 1 x front, 1 x rear)

2 x Female audio connector from 3,5 mm (pink; 1 x front, 1 x rear)

• KVM ports (computer) 



4 x USB 3.1 Gen 1 female type B (blue)

12 x DisplayPort female (black)

4 x Female audio connector from 3,5 mm (green)

4 x Female audio connector from 3,5 mm (pink)

• Connecting ports  



1 x RJ- 45 female

• USB Hub: 2 x USB 3.1 Gen 1 type A female (blue; 1 x front; 1 x rear)


• Power supply: 1 x DC connector



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 33,50 cm


• Depthà: 15,60 cm


• Height: 6,55 cm



Package contents

• 1 x Switch KVMP™ USB 3.0 4 K DisplayPort Triple Display at 4 ports


• 6 x LIN 5 - 20 K 1 -K 13 G cables DisplayPort 1.2


• 2 x LIN 6 - 11 C 1 -E 12 G USB cables 3.0


• 2 x LIN 5 - 0205 - 21 CG audio cables


• 2 x LIN 5 - 0205 - 21 Audio Cable DG


• 1 x 0 AD 8 - 8012 - 33 MG power supply


• 1 x LIN 2 - 418 K-E 12 G power cord


• 1 x user instructions
