HDMI KVM Extender on network cable 4 K@ 60 Hz 70 m - Techly IDATA HDMI-KVM 67

€265.52
Tax included €217.60 excl. VAT

Extender HDMI KVM Techly composed of transmitter and receiver. Extends HDMI signal up to 70 m by cable Cat 6 / 6 A/ 7 with resolution 4 K@ 60 Hz. Supports KVM function and Dolby audio formats.



Return policy



Delivery policy



Direct contact for info



Secure Payment

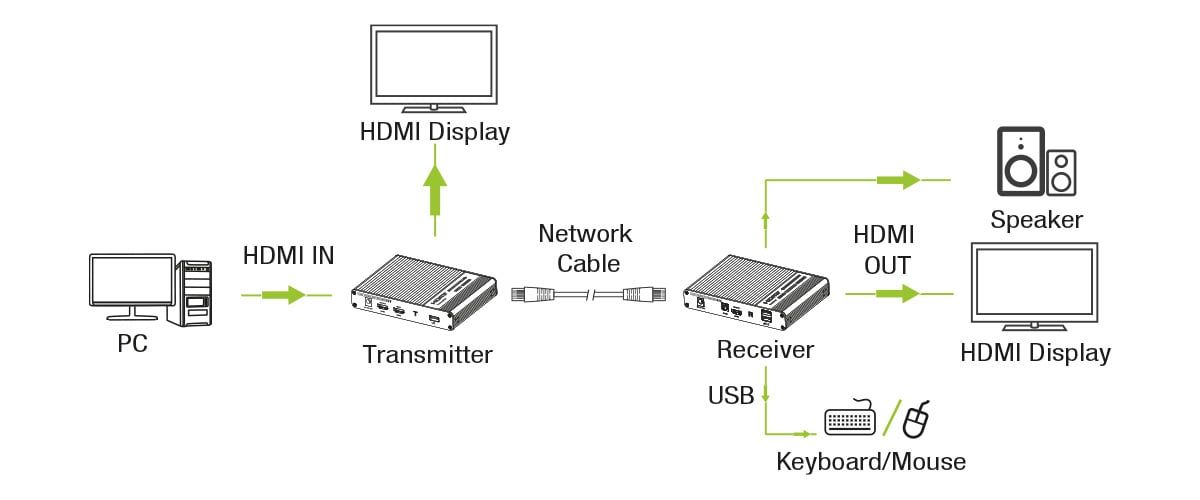

This HDMI extender includes a unit à transmitter and a unità receiver, allows the transmission of HDMI signal at a distance up to 70 meters at a resolution of 4 K using a network cable category 6 / 6 A/ 7. Supports KVM function, allowing you to remotely manage a PC via mouse and USB keyboard. Ideal for advertisingà outdoors, video clips, monitoring systems, home entertainment, conferences, etc.



Features

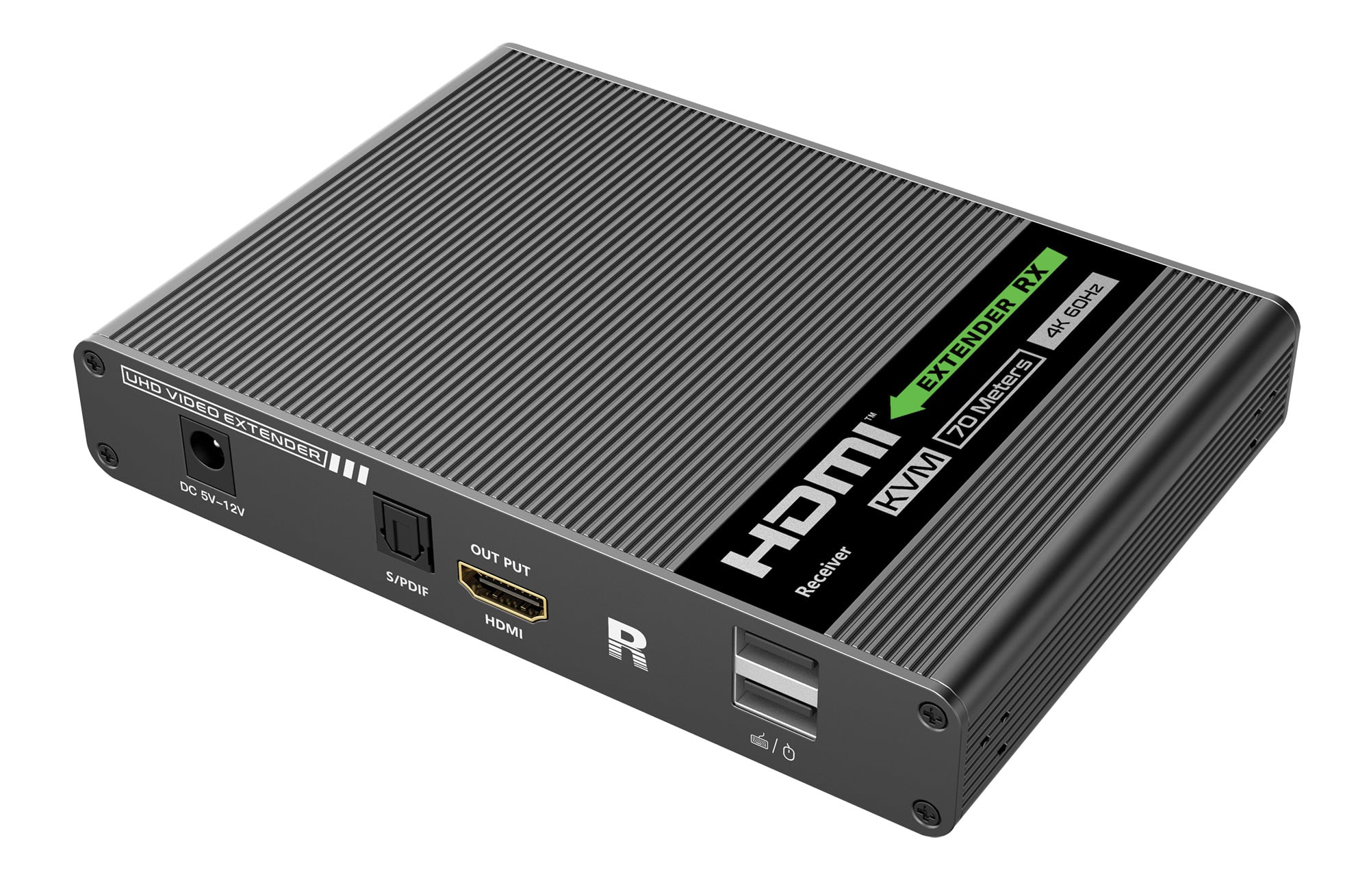

  • HDMI KVM Extender consisting of a local unit and a remote unit (receiver)

  • Allows you to extend the HDMI signal to 70 meters via a single network cable with zero latency

  • Supports KVM function, allows you to manage a PC remotely via mouse and keyboard equipped with USB connection

  • Supports audio formats (Dolby True HD 7.1 CH, Dolby Digital 5.1 CH)

  • Supports resolution up to 4 K@ 60 Hz, HDR (YUV 4: 4: 4), EDID passback

  • The receiver can & grave; extract digital audio from the transmitter via S/PDIF port

  • Supports KVM function

  • è transmitter equipped with HDMI port for local monitor

  • With lightning protection, overvoltage protection and ESD protection



Technical specifications

  • Voltage: DC 5 V- 12 V

  • Consumption: < 4W sia per trasmettitore che per ricevitore

  • Supports standard HDMI 2.0

  • Supports standard HDCP 2.2

  • HDMI Resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600

  • Supports audio formats: LPCM/DTS-HD/DTS-Audio/Dolby True HD 7.1 CH/Dolby Digital 5.1 CH

  • TMDS input and output signal: 0.7 ~ 1.2 Vp-p(TMDS)

  • DDC input and output signal: 5 Vp-p(TTL)

  • Input cable: ≤ 8 m (AWG 24)

  • Output cable: ≤ 8 m (AWG 24)

  • Transmission distance: ≤ 70 m with cable category 6 / 6 A/ 7

  • Dimensions: 150 x 107 x 28,4 mm

  • Color: black



Environmental information

  • Usage temperature: - 20 to ~ 60 °C

  • Storage temperature: - 30 to ~ 70 °C

  • Humidità without condensation: from 0 to ~ 90 % RH



Package contents

  • 1 transmitter

  • 1 receiver

  • 2 DC power supplies 5 V/ 2 A

  • 1 USB cable

  • 8 mounting brackets

  • 18 screws

  • User manual

  • Brand
  • Reference
    IDATA HDMI-KVM67
  • In stock
    11 Items
  • EAN13
    8059018361629
