Extender HDMI Wireless Kit 5 G 4 K 60 Hz up to 50 m - Techly IDATA HDMI-WL 699 E

•

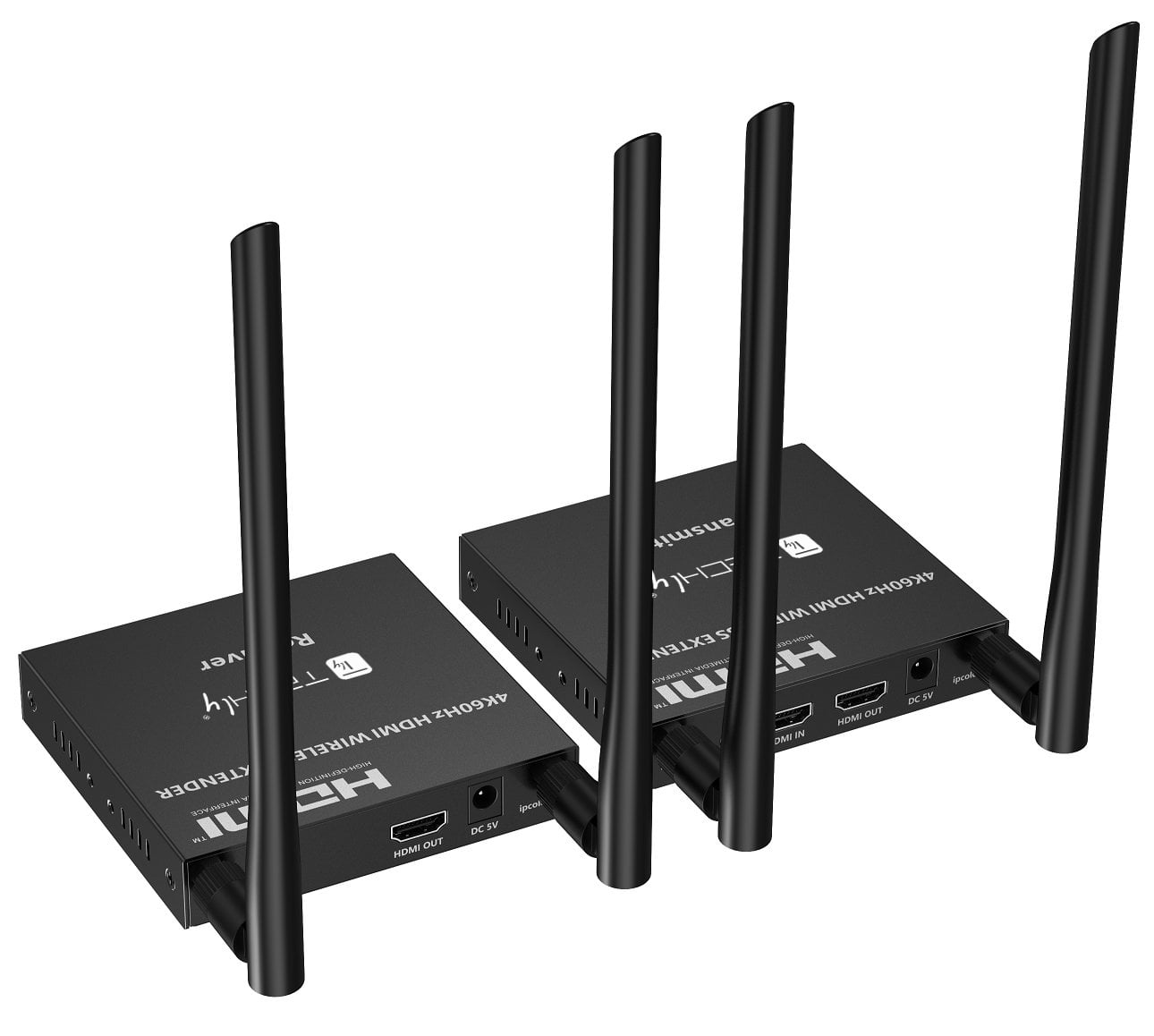

• Wireless extender HDMI 4 K at 60 Hz which includes a transmitter and a receiver

• The adoption of IPColor STREAM technology allows for high definition and low latency transmission

• It is based on 5 G wireless frequency band, with stable anti-interference and safety performance

• Supports wireless transmission from 1 to 4 and resolution 4 Kx 2 K to 60 Hz (view line, 1 to 1 )

• The transmission distance can & grave; reach 50 meters, effectively solving problems caused by complex wiring

• It is an ideal wireless video transmission solution for video conferencing, home entertainment, multimedia teaching and much more


Features

•

• Video and audio transmission via wireless connection up to 50 meters

• HDMI 2.0 compatible and HDCP 1.4 /HDCP 2.2

• Supports input and output with maximum resolution 4 K@ 60 Hz to maintain the qualityà of the original signals

• The channel can be changed by pressing the button on TX/RX to ensure stable and powerful anti-interference performance

• Voltage/current: DC 5 V/ 2 A

• Power consumption: TX ≤ 5 W, RX ≤ 4 W

• TMDS signal input and output 0,7 ~ 1,2 Vp-p (TMDS)

• DDC signal input and output 5 Vp-p (TTL)

• Wi-Fi frequency band 5,18 ~ 5,24 GHz

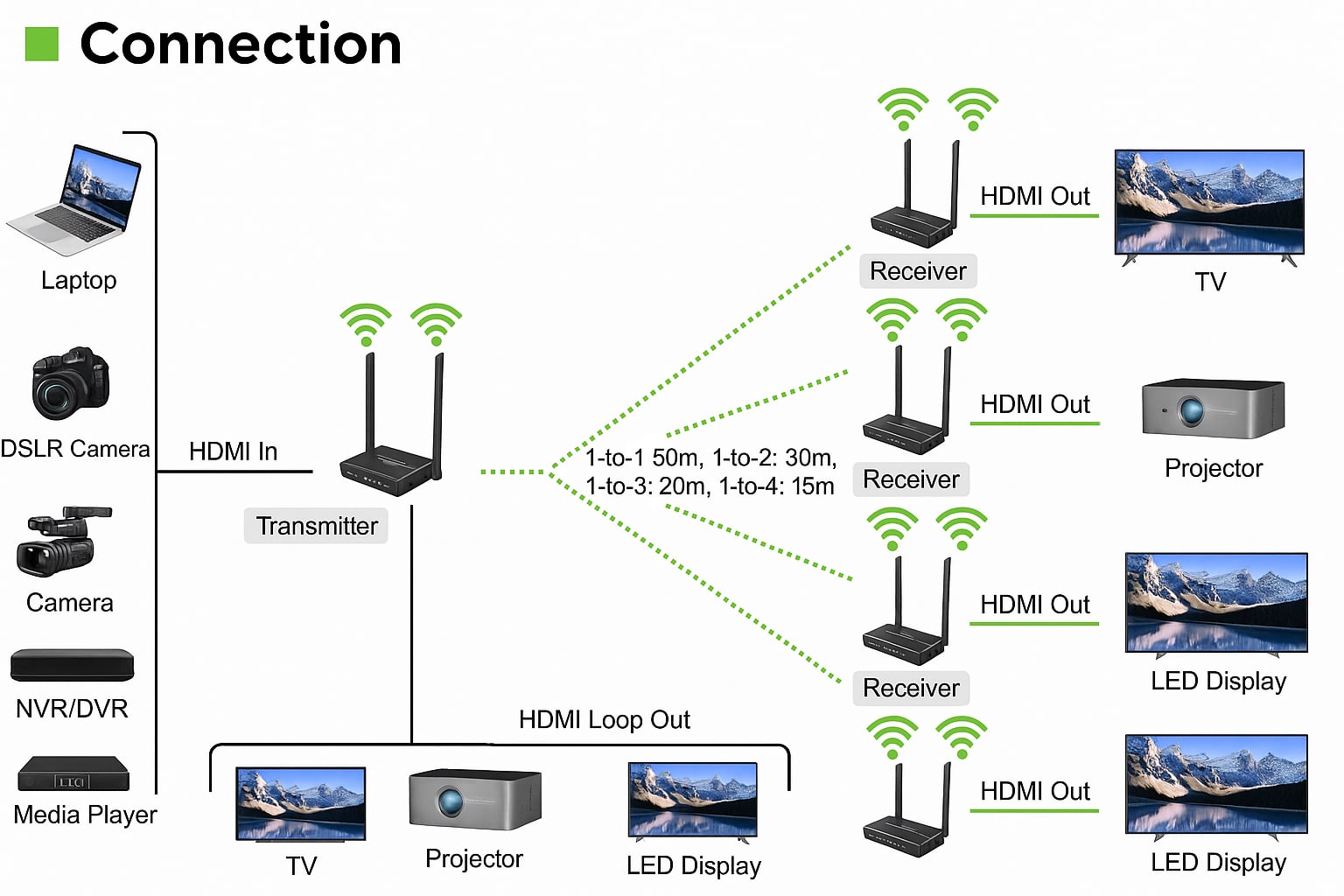

• Transmission distance: one to one ≤ 50 m; one to two ≤ 30 m; one to three ≤ 20 m; one to four ≤ 15 m

• Latency: 4 K at 60 Hz: 130 ~ 220 ms; 1080 P at 60 Hz: 70 ~ 120 ms (delays may vary depending on resolution, transmission distance and connection capacity)

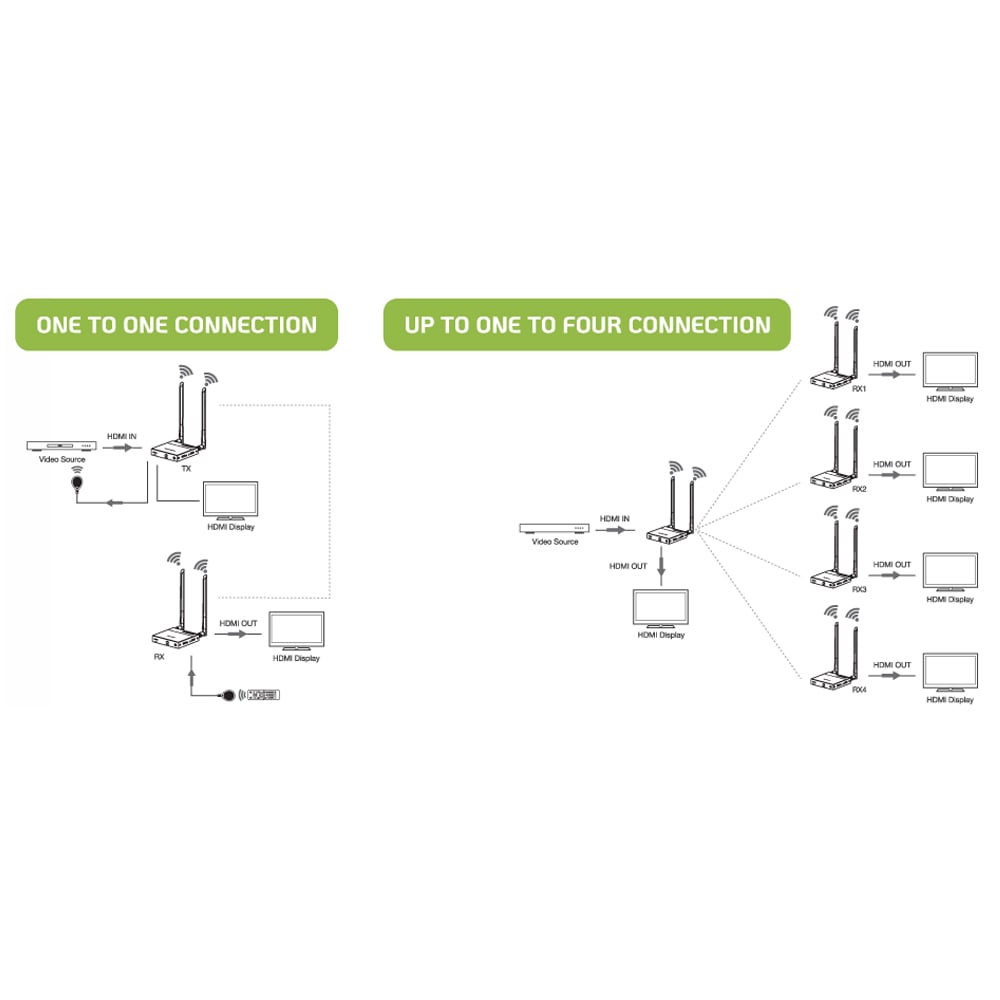

• Type of connection: one by one; one by two; one by three; one by four

• Support SSID association

• EDS protection: 1 with 3 level contact discharge; 1 b with 3 level discharge; Standard: IEC 61000 - 4 - 2

• Infrared: 20 ~ 60 kHz

• Reception capacity: ≤ 5 m

• Supports firmware upgrade via Micro USB port

• Color: black


Installation requirements

•

• HDMI source device (DVD, game consoles, PC, etc.)

• HDMI display device (TV, projector, LED screen, etc.)


Video Specifications

•

• Standard HDMI 2.0 and HDCP 1.4 /HDCP 2.2

• Velocità maximum transfer 18 Gbps

• Supported resolutions: 4096 x 2160 @ 24 / 30 / 50 / 60 Hz, 3840 x 2160 @ 24 / 30 / 50 / 60 Hz, 1080 P@ 50 / 60 Hz, 720 P@ 50 / 60 Hz, 1920 x 1200 , 2560 x 1440


Environmental features

•

• Operating temperature: - 20 ~ 60 °C

• Storage temperature: - 30 ~ 70 °C

• Humidità (without condensation): 0 ~ 90 % RH


Dimensions

•

• TX: 106 (L) x 103 (P) x 20,6 (A) mm

• RX: 106 (L) x 103 (P) x 20,6 (A) mm


Package contents

•

• 1 x Transmitter

• 1 x Receiver

• 2 x Power supply 5 V 2 A

• 1 x Extension IR receiver

• 1 x Extension IR blaster

• 4 x antenne

• 4 x Fastening pin

• 10 x Screws

• 2 x Ground screws

• 1x User manual
