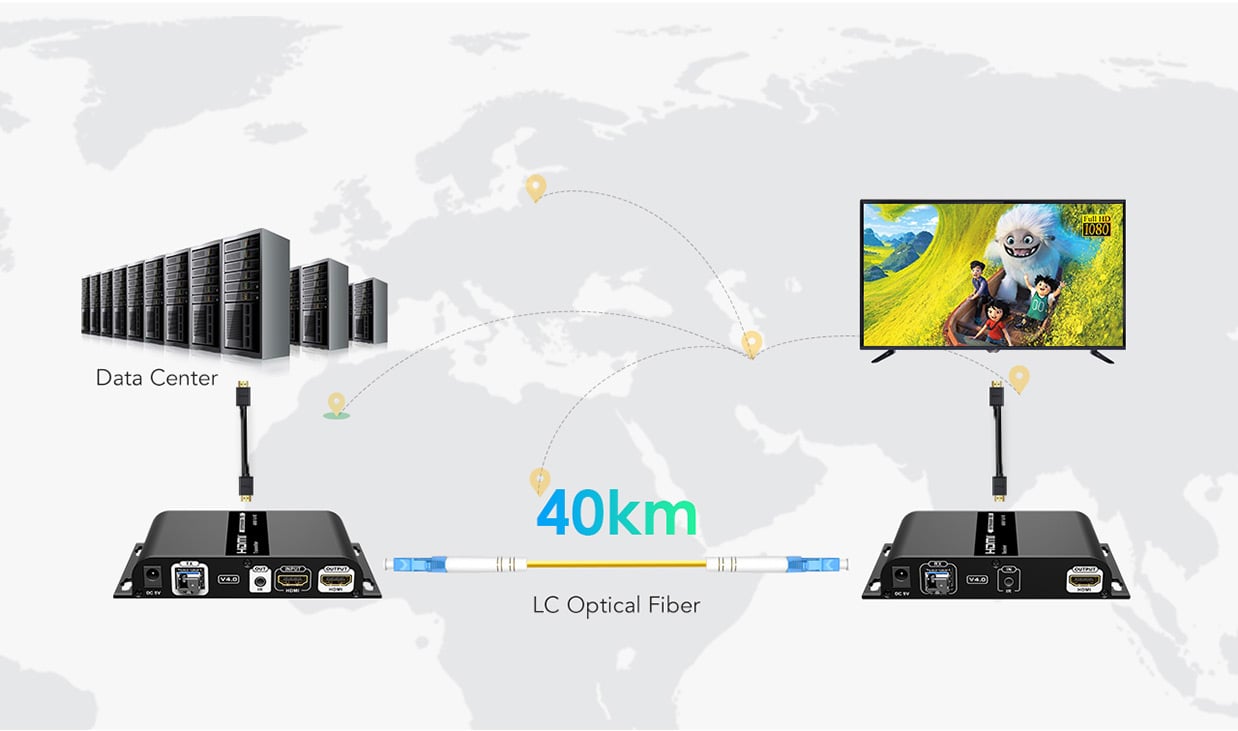

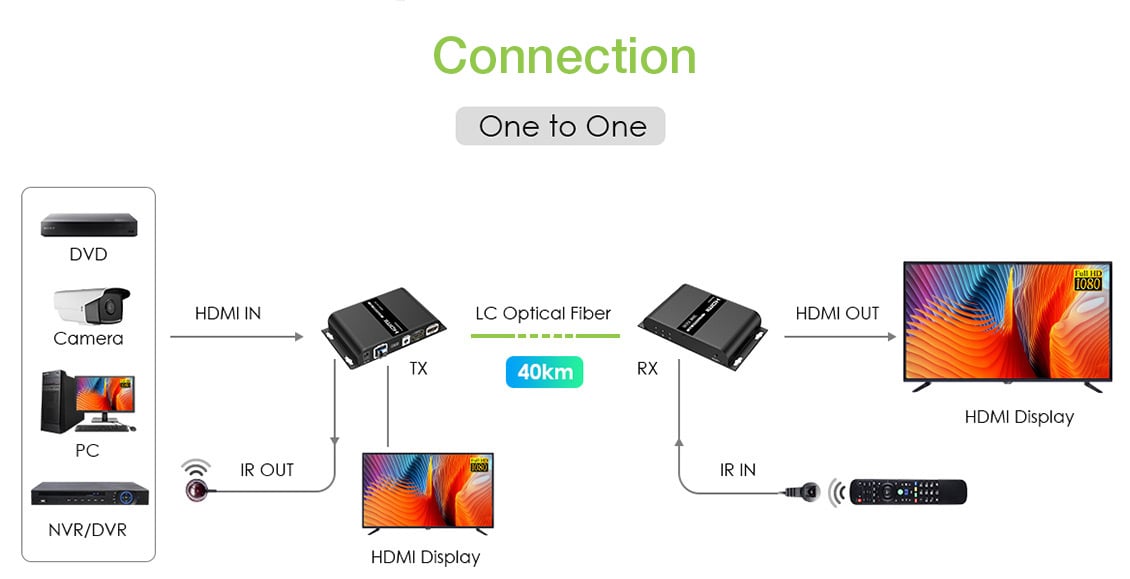

This fiber optic extender uses monomodal fiber optics to transmit high-definition signals at a distance of 40 km and supports local loop-out and IR passback.
It can be widely used in safety monitoring, medical systems, commercial visualization and other fields.
Technical specifications- Power supply: 5 V DC / 2 A
- Consumption: < 3W
- HDMI version: HDMI 1.3 , HDCP 1.4 compatible
- Supported resolution: 480 i@ 60 Hz; 480 p@ 60 Hz; 576 i@ 50 Hz; 576 p@ 50 Hz; 720 p@ 50 / 60 Hz; 1080 i@ 50 / 60 Hz; 1080 p@ 50 / 60 Hz
- DDC signal voltage: 5 Vp-p (TTL)
- Central Wave Length: 1310 / 1550 nm
- Connector: LC
- Velocità transmission: 1.25 Gbps
- Type of fiber: monomodal
- Transmission distance: < 40 km
- In/out light power: 3 dB
- Sensitivityà reception: - 23
- IR remote control: frequency range 20 - 60 KHz
Environmental features- Operating temperature: - 20 / 60 °C
- Storage temperature: - 30 / 70 °C
- Humidità relative: 0 - 90 % (without condensation)
Dimensions- Width: 138.0 mm
- Depthà: 81.5 mm
- Height: 24.0 mm
Package contents- 1 x Extender Transmitter
- 1 x Extender Receiver
- 1x User manual
- 2 x Power supply 5 V/ 2 A
- 1 x Extension cable for IR blaster
- 1 x IR receiver extension cable
- 1 x Optical transmitter (T 1310 /R 1550 nm)
- 1 x Optical transmitter (R 1150 /T 1310 nm)
