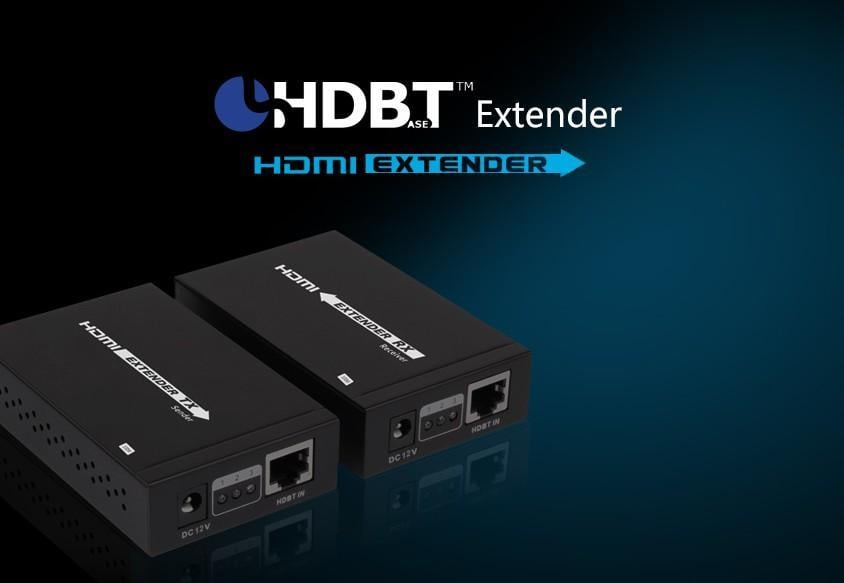

Extender HDbaseT 4 K amplifier up to 100 m - Techly IDATA EXT-E 90

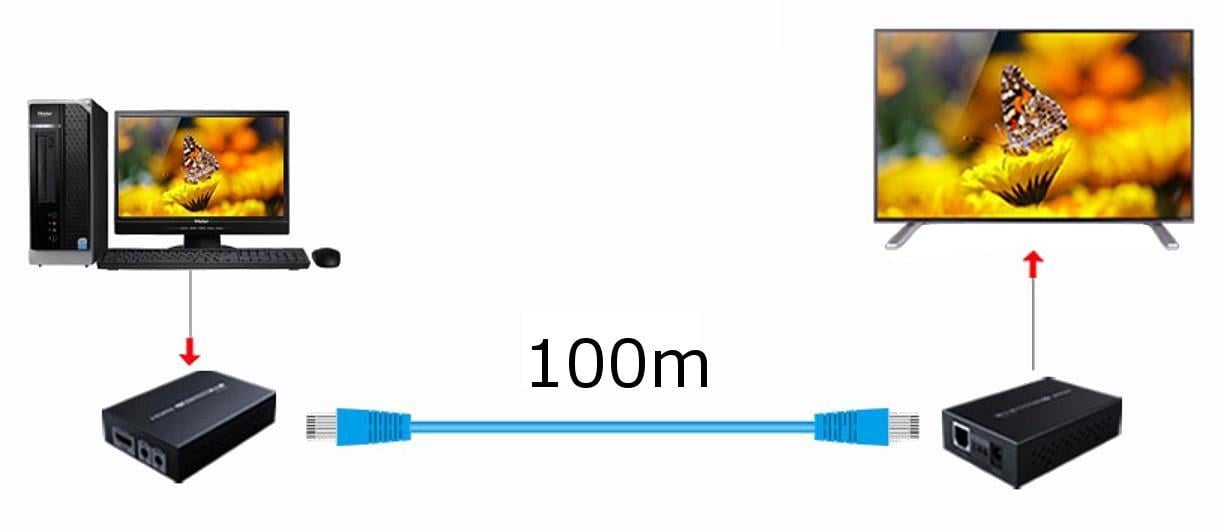

The extender IDATA EXT-E 90 è based on HDBaseT technology and allows you to extend the HDMI signal on 4 Kx 2 K screens up to 100 meters with single Cat cable. 6 A/ 7 .



Features

• Supports HDBaseT Extension Technology


• Supports Full HD 1080 P@ 60 Hz, 3 D, 4 Kx 2 K


• Extends signal 1080 P to 100 meters on cable Cat. 6 A


• Supports uncompressed HDMI signal


• Supports uncompressed audio signal like LPCM


• Supports compressed audio signal like DTS Digital and Dolby Digital


• Supports HDCP, CEC, 24 deep color


• Can be powered via network cable



Technical specifications

• HDMI signal: 4 Kx 2 K, HDCP compatible, CEC support and 24 bit deep color

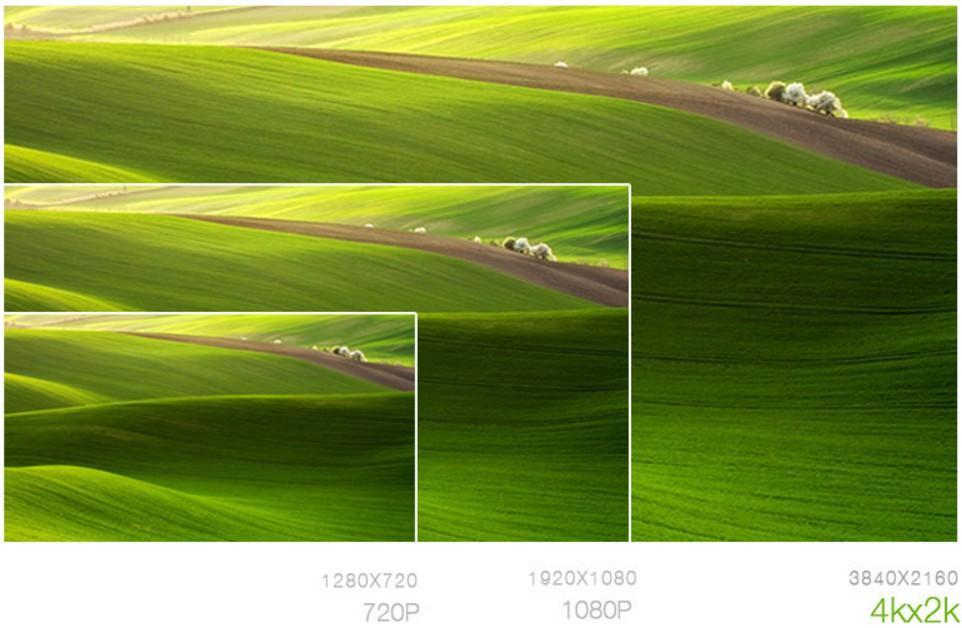

• Resolution: 480 i/ 480 P/ 576 i/ 576 P/ 720 P/ 1080 i/ 1080 P/ 3 D/ 4 Kx 2 K


• Audio: LPCM, DTS, Digital, Dolby Digital


• Network cables: CAT 5 E, CAT 6 , CAT 6 A, CAT 7


• Transmission distance:



- CAT 5 E/ 6 : 100 m up to 1080 P@ 60 Hz 36 bpp; 70 m 1080 p@ 60 Hz 48 bpp, 1080 p@ 60 Hz 3 D, 4 Kx 2 K 30 Hz

- CAT 6 A/ 7 : 100 m 1080 p@ 60 Hz 48 bpp, 1080 p@ 60 Hz 3 D, 4 Kx 2 K 30 Hz

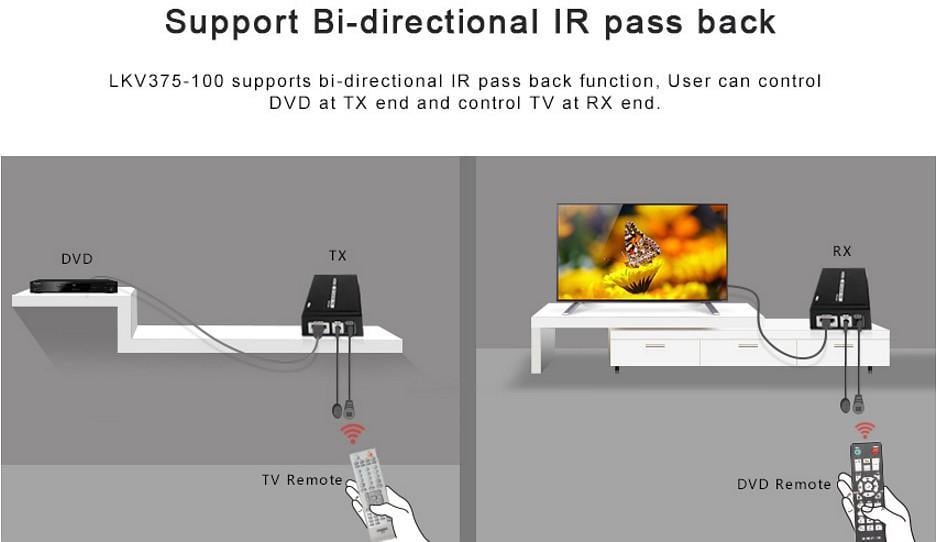

• Infrared sensor: supports frequency 20 ~ 60 kHz bidirectional IR transmission


• Power supply: 2 x DC 12 V/ 1 A


• Power consumption: 8 W


• Housing: metal


• Color: black



Connections

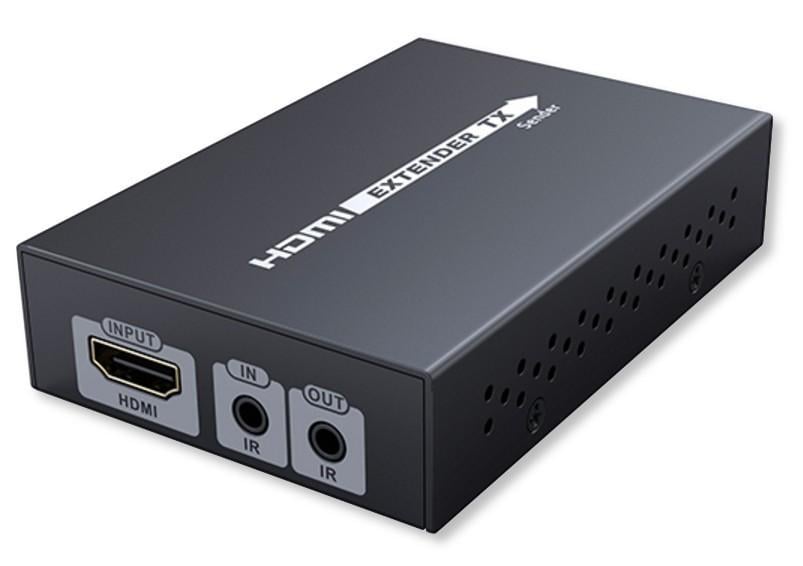

• Transmitter:



- Input: HDMI Female, to connect the HDMI source

- Output: RJ- 45 Female HDBaseT

- IR input, for connection of IR receiver with extension cable

- IR output, for connection of the IR extender with extension cable

- DC 12 V power connector

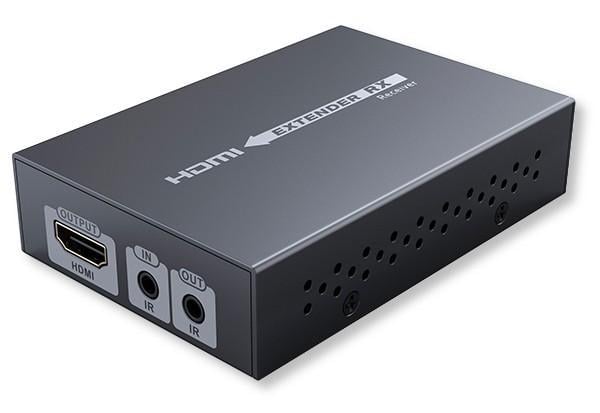

• Receiver:



- Input: RJ- 45 Female HDBaseT

- Output: HDMI Female, for HDMI screen connection

- IR input, for connection of IR receiver with extension cable

- IR output, for connection of the IR extender with extension cable

- DC 12 V power connector



Dimensions

• Width: 98,5 mm


• Height: 23 mm


• Depthà: 66,5 mm


• Transmitter weight: 79 g


• Receiver weight: 107 g



Certifications

• CE


• FCC


• RoHS


• RAEE



Package contents

• 1 x HDbaseT transmitter


• 1 x HDbaseT Repeater


• 2 x DC power supply 12 V/ 1 A


• 2 x IR cables in and out


• 1 x User manual
