HDMI extender on Optic Fiber Monomodal up to 40 km - Techly IDATA EXT-EF 3000

IDATA EXT-EF 3000 è an HDMI extension kit on fiber optic over IP, which includes a transmitter and a receiver.

With this device, the HDMI signal 1080 p@ 60 Hz can be extended up to 40 km by means of single mode optical fiber.

Supports local HDMI output, unidirectional IR passback, through RS- 232 and audio extraction via the S/PDIF output on the receiver.

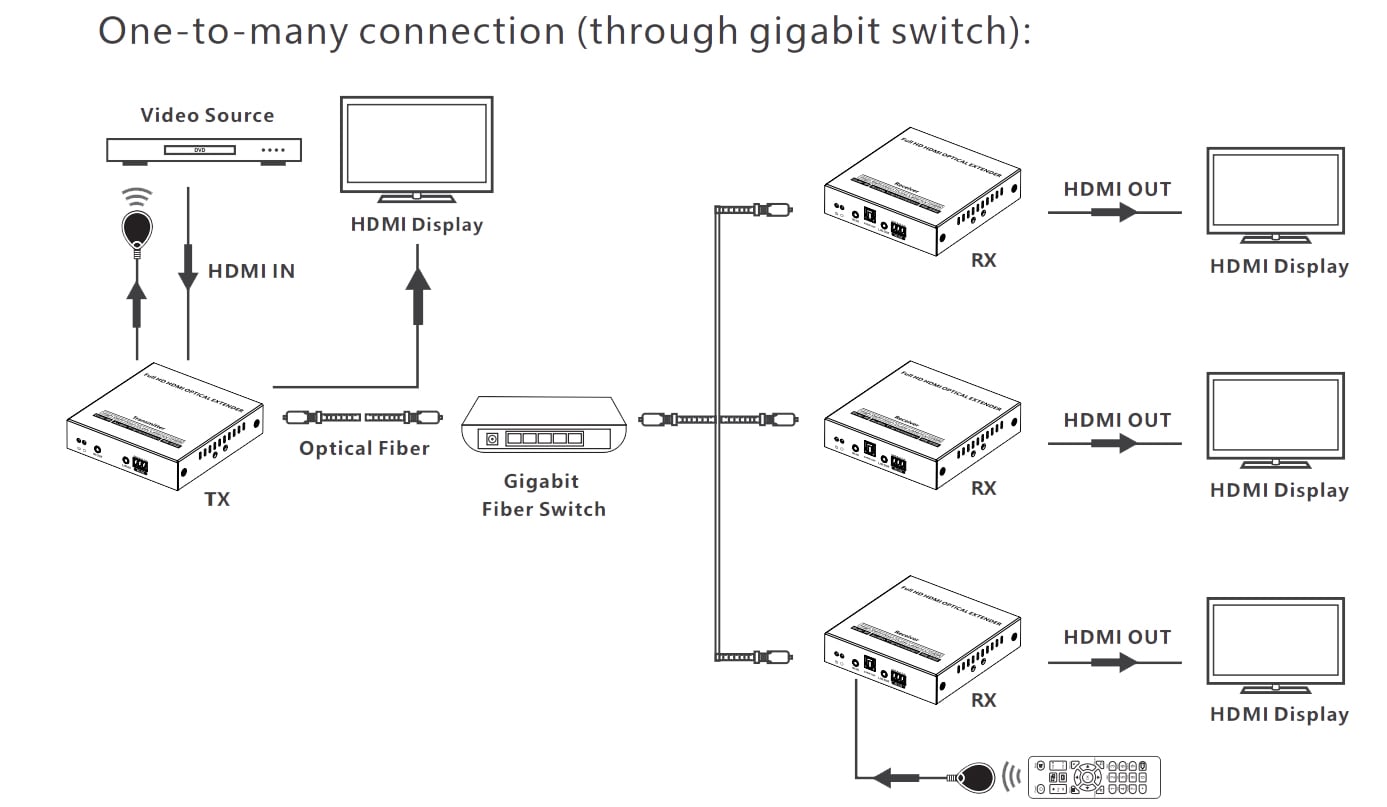

Supports point-to-point or point-to-multipoint connection via gigabit and è switch also supported the switch cascade connection.

It allows reliable video transmission and represents a distribution solution that can be widely used in security monitoring, rail transport, television, smart home, home theater and other fields.



Features

• Kit extender consisting of transmitter and receiver to extend the HDMI signal up to 40 km distance on fiber optic cable monomodal

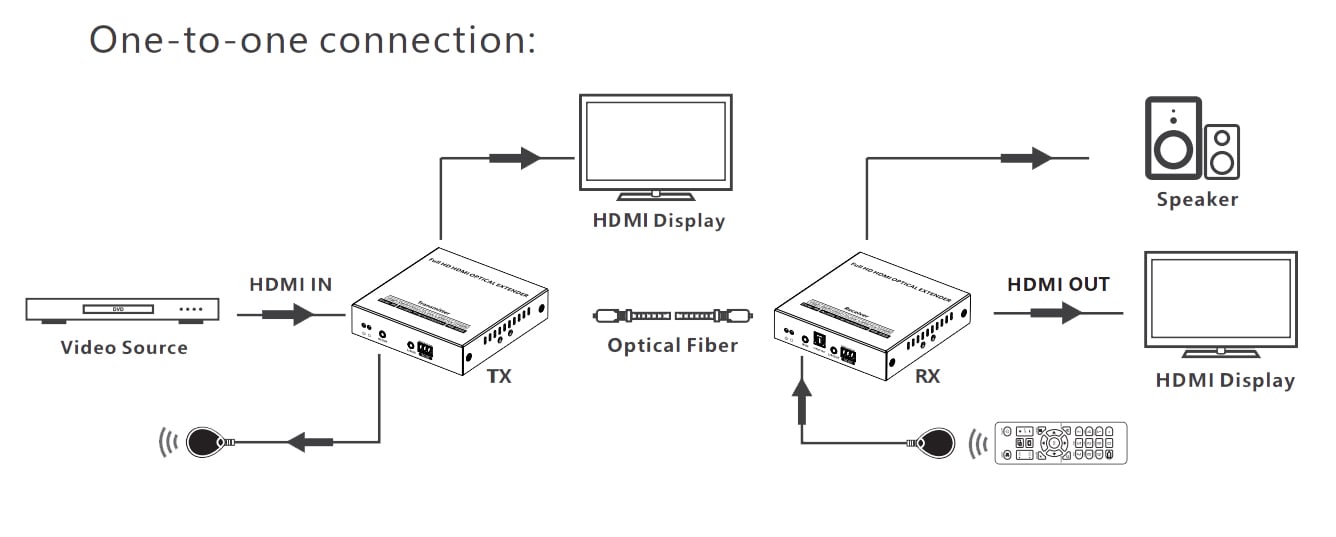

• Supports point-to-point connection or multipoint connection via gigabit switch or cascade switch


• Supports resolution up to 1920 x 1080 @ 60 Hz


• Supports HDR 10 , EDID passback, RS- 232 passthrough


• Supports IR passback for remote control


• The transmitter supports HDMI loop-out for local monitoring


• The transmitter has an audio input from 3.5 mm, the receiver has an audio output independent of 3.5 mm and S/PDIF


• Lightning protection, overvoltage protection, ESD protection



Technical specifications

• Adopt ipcolor PIXEL technology to get uncompressed transmission and low latency


• Supports resolution up to 1080 p@ 60 Hz included 1920 x 1200 / 1920 x 1080 , backcompatible


• Supports transmission on optical fiber, maximum supported transmission distance è 40 km


• Supports one-to-many connection via gigabit switch or cascade switch


• Supports HDR 10


• Supports EDID passback


• Supports RS- 232 passthrough


• With local HDMI output on the transmitter


• Supports unidirectional IR passback


• The transmitter has an audio input from 3,5 mm for sound embedding, the receiver has an audio output independent of 3,5 mm and S/PDIF


• Lightning protection, overvoltage protection, ESD protection


• Supports constant operation 24 hours on 24



Environmental features

• Operating temperature - 20 °C~ 60 °C


• Storage temperature - 30 °C~ 70 °C


• Humidità 0 ~ 90 % RH (without condensation)



Dimensions

• Width: 103 mm


• Depthà: 106 mm


• Height: 25 mm



Package contents

• 1 x Transmitter


• 1 x Receiver


• 2 x DC power supply 5 V 2 A


• 1 x IR Blaster extension cable


• 1 x IR receiver extension cable


• 1 x Optical Transceiver SFP (T 1310 /R 1550 nm)


• 1 x Optical Transceiver SFP (T 1550 /R 1310 nm)


• 2 x Clamper


• 4 x Mounting wings


• 10 x Screws


• 2 x Terminal screws


• 1 x Education manual
