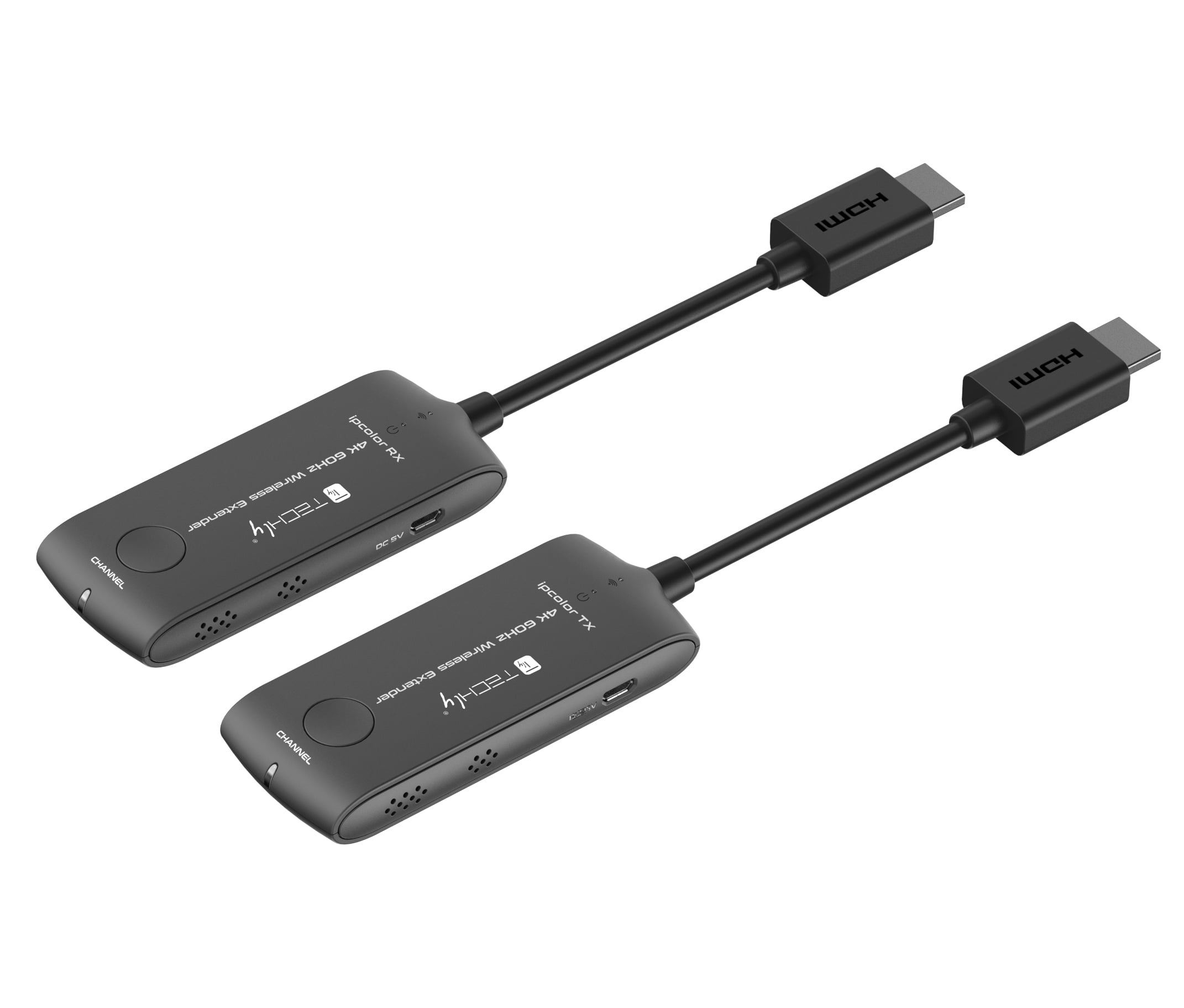

Extender HDMI 4 K 60 Hz Wireless 5 G 20 m - Techly IDATA HDMI-WL 488

This è a wireless HDMI 4 K 60 Hz extender kit consists of a transmitter and receiver. The adoption of the ipcolor STREAM technology can ò achieve high definition and low latency transmissions. Based on the wireless frequency band 5 G, provides stable performance without interference and in full safety. It supports wireless 1 to 1 and the transmission distance can ò reach the 20 meters, effectively solving the problems caused by complicated wiring. It is an ideal wireless video transmission solution for video conferencing, home entertainment, multimedia teaching, etc.



Features

• Extends the HDMI signal from source to screen wirelessly up to 20 meters (with obstacle-free field): no connecting cables between transmitter and receiver are required


• Supports point-to-point connection and resolution up to 4 Kx 2 K@ 60 Hz


• Based on 5 G wireless frequency band supports stable and interference-free transmission; supports SSID combination and channel change to avoid interference in environments with other devices


• Supports IR passback to control the local HDMI source remotely and output available on the transmitter



Technical specifications

• Power supply: Micro USB power supply (5 V/ 1 A)


• Power consumption: TX < 4.5W, RX < 3.5W


• HDMI 2.0


• HDCP 1.4 /HDCP 2.2


• Velocità maximum transmission: 18 Gbps


• Supported video resolutions: 3840 x 2160 @ 24 / 30 / 50 / 60 Hz (YUV 4 : 4 : 4 , YUV 4 : 2 : 2 and RGB), 1080 P @ 50 / 60 Hz, 720 P @ 50 / 60 Hz, 1920 x 1200 @ 60 Hz


• TMDS signal input and output: 0.7 ~ 1.2 Vp-p(TMDS)


• DDC signal input and output: 5 Vp-p(TTL)


• Transmission frequency band: 5.18 - 5.24 GHz


• Transmission distance: ≤ 20 m


• Material: ABS


• Color: black



Environmental features

• Operating temperature: - 20 ~ 50 °C


• Storage temperature: - 30 ~ 70 °C


• Operative (non-condensed) humidità 0 ~ 90 % RH



Dimensions

• TX: 40,2 x 230,0 x 15,0 mm (P x L x A)


• RX: 40,2 x 230,0 x 15,0 mm (P x L x A)



Package contents

• 1 x Transmitter


• 1 x Receiver


• 2 x Power supply cable


• 1x User manual
