KVM HDMI 4 K@ 60 Hz Extender Cat Cable 5 / 6 Black - Techly IDATA HDMI-KVM 473

•

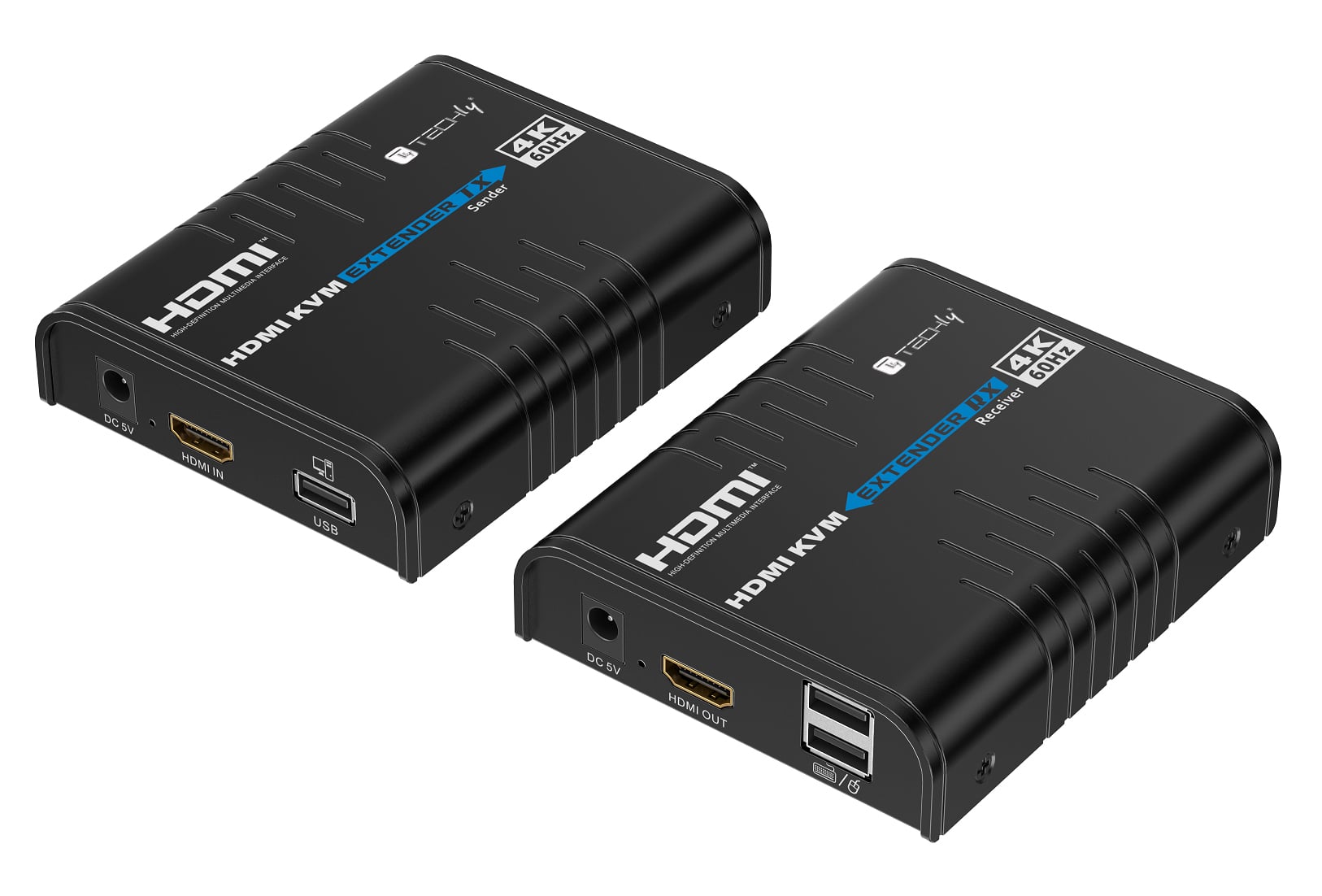

• This product è a KVM HDMI 4 K extender kit consisting of a transmitter and a receiver

• Compatible with Cat 5 / 5 and/ 6 or higher network cables, the transmission distance of the Cat 6 è cable of 120 meters

• The HDMI 4 K signal at 60 Hz can be extended by supporting one-to-one connections, one-to-many connections via Gigabit switch or switch cascade

• It also supports the KVM function (with passback control) and can be used in meetings, home entertainment, educational presentations and other sectors

• For KVM function, connect the keyboard/mouse to the receiver USB port and connect the computer to the transmitter USB port via USB cable

• High definition transmission and low latency

• Supports resolution up to 4096 x 2160 , 60 Hz, backcompatible

• Protection against lightning, surges and electrostatic discharges

• Supports stable operation 24 hours on 24 , 7 days on 7

• Aluminum housing (top), durable and durable

• Color: black


Technical specifications

•

• Transmission distance: CAT 5 80 m / CAT 5 and 100 m / CAT 6 120 m

• Transmission latency: 1080 P: 80 ~ 110 ms; 4 K at 60 Hz: 120 ~ 170 ms

• HDMI 2.0 version

• HDCP version: 1.4 /HDCP 2.2 (TX); HDCP 1.2 (RX)

• Supported HDMI resolution: 4096x2160@24/30/50/60Hz, 3840x2160@24/30/50/60Hz, 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920x1200, 1680x1050, 1600x900, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600

• Velocità maximum transfer: 18 Gbps

• HDMI output: LPCM 2.0

• Power supply: DC 5.0 V/ 1 A (for TX and RX)

• Consumption: TX< 3.5 w RX< 2.5 w


Environmental features

•

• Operating temperature: - 20 °C 60 °C

• Storage temperature: - 30 °C~ 70 °C

• Humidità relative: 10 95 % (without condensation)


Dimensions (TX and RX)

•

• Width: 109 mm

• Depthà: 89,5 mm

• Height: 26,3 mm

• Weight: TX: 240 g RX: 243 g


Package contents

•

• 1 x HDMI KVM Extender Transmitter

• 1 x HDMI KVM Extender Receiver

• 2 x DC power supply 5 V/ 1 A

• 1 x USB cable

• 1 x Instructions manual
