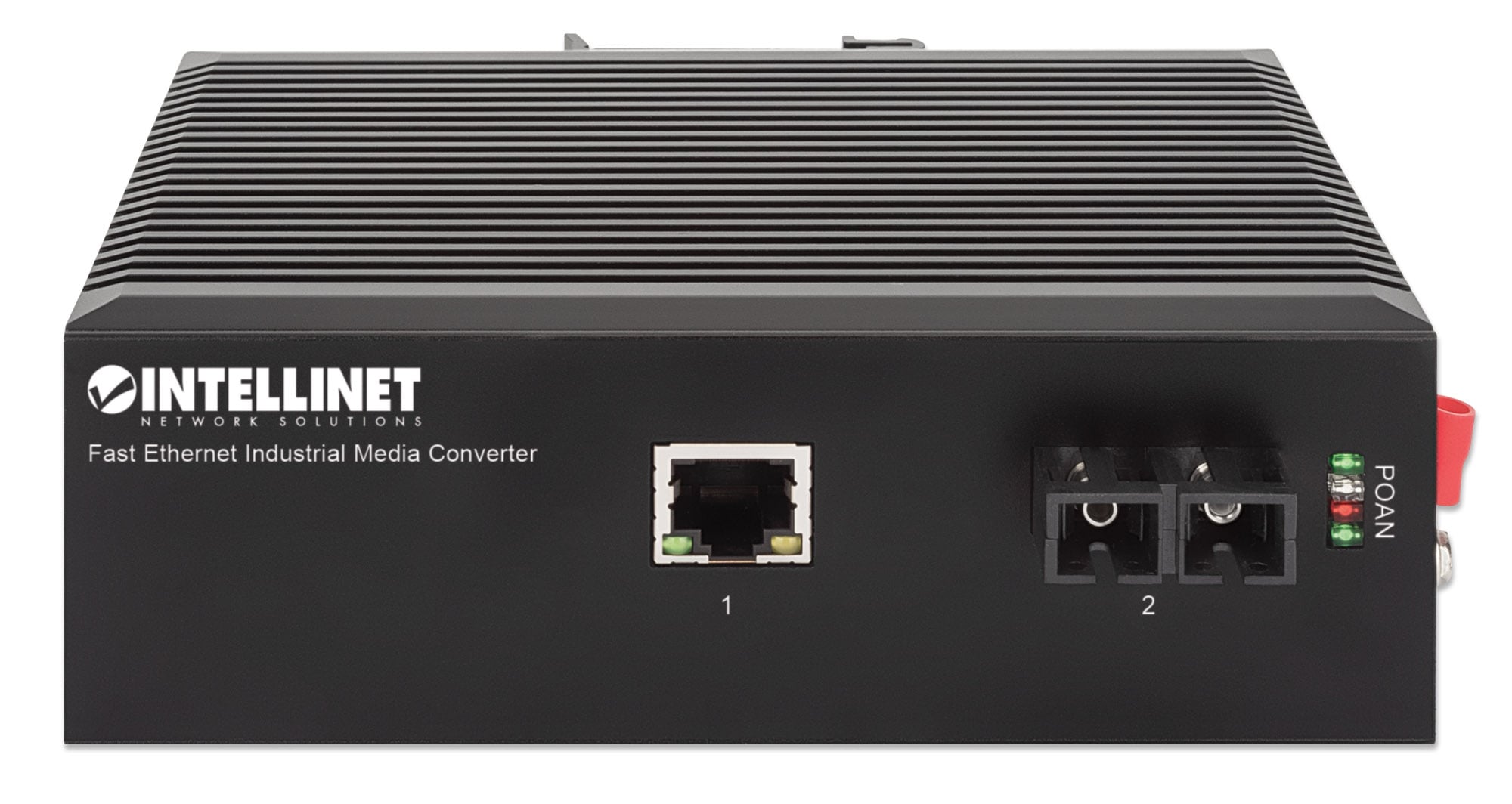

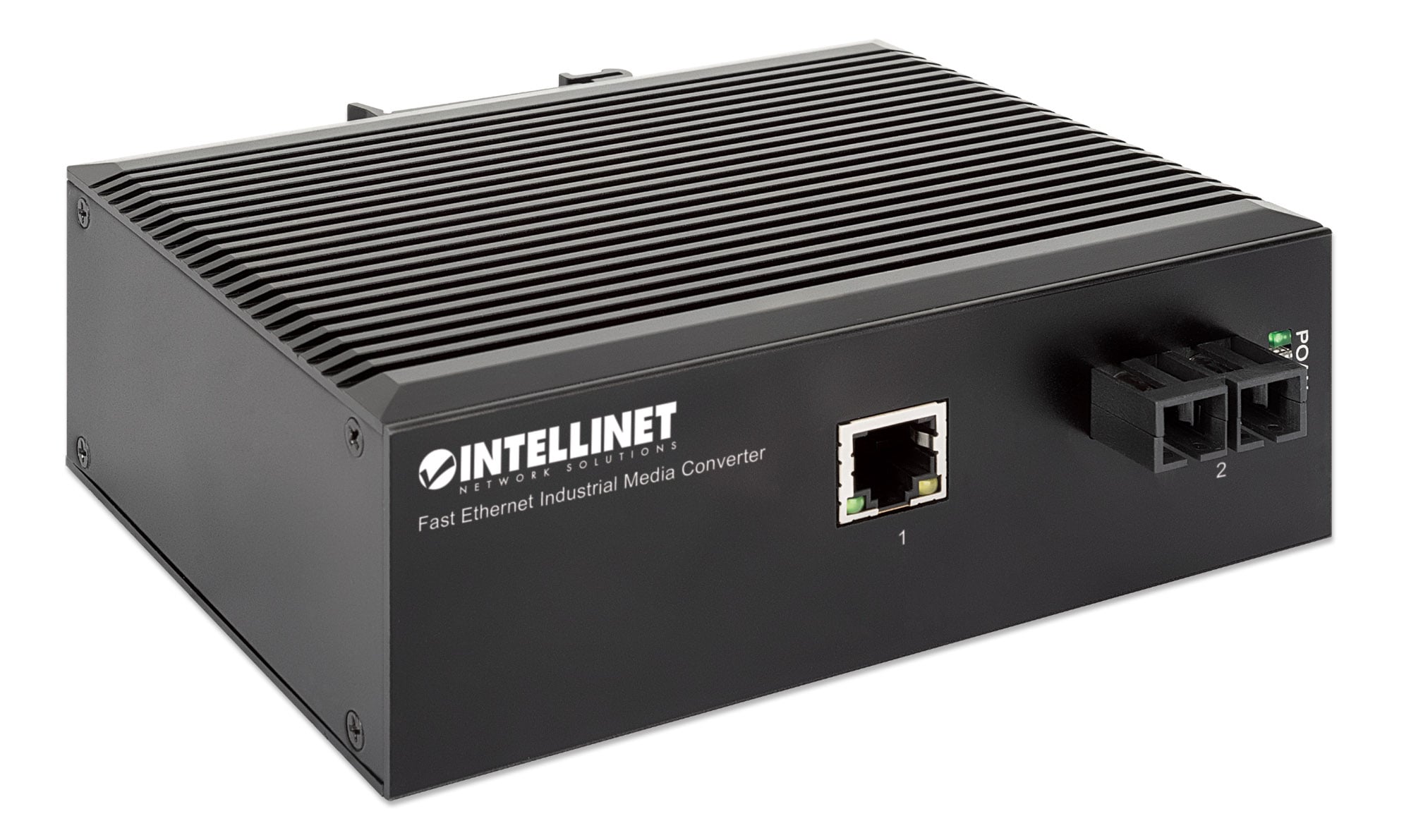

- One RJ45 10/100 port supporting a maximum distance of 100 m
- One single-mode fiber optic 100Base-FX SC port supporting a maximum distance of 20 km
- Compact metal housing IP40 to withstand harsh industrial conditions

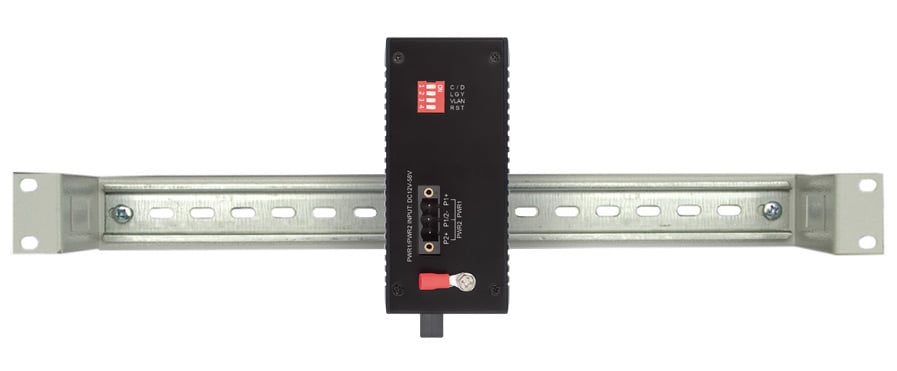

- Optional DIN rail mounting
- Two redundant DC inputs (12 - 58 V) with I/O terminal block

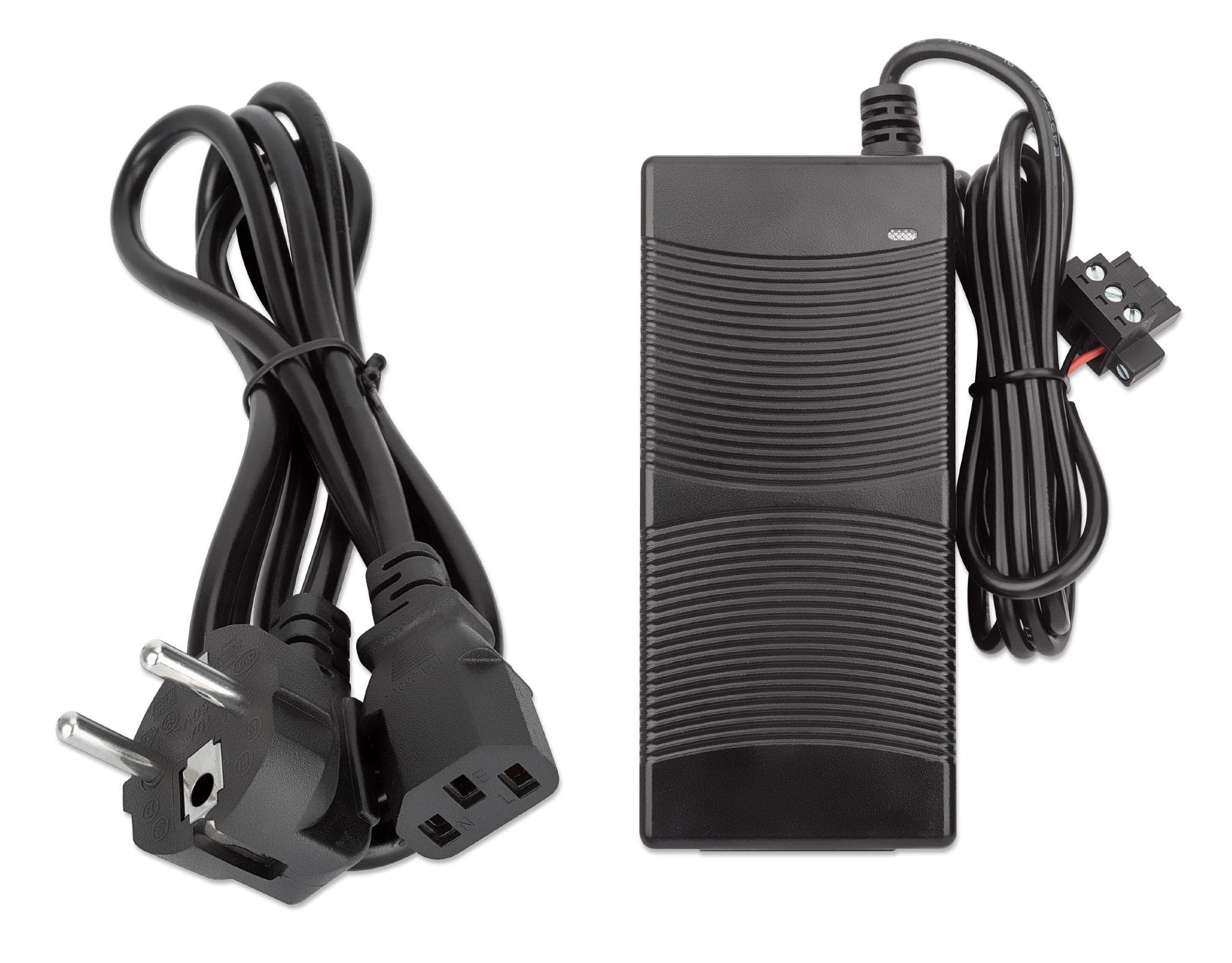

- Requires industrial power supply (not included)
- Port with surge protection up to 6kV
- Rated for shock (IEC 60068-2-27), drop (IEC 60068-2-32), and vibration (IEC 60068-2-6)
- Wavelength: 1310 nm
- Supports full-duplex and half-duplex modes with auto-negotiation
- Wide operating temperature: -40 to 75℃
- Supports 8k MAC addresses with Auto-learning and Auto-aging
- Buffer memory of 1 MByte
- Supports jumbo frames up to 10 kbytes
- Fanless design for silent operation
- One year warranty
Standards- IEEE 802.3 (10Base-T Ethernet)
- IEEE 802.3u (100Base-TX Fast Ethernet)
General Information- 10/100Base-TX Cat5e or higher UTP/STP RJ45
- 1000Base-LX single-mode 8,3/125 µm, 8,7/125 µm, 8/125 µm or 10/125 µm
- Fiber cable: 20 km
- RJ45 cable: 100 m
- Wavelength: 1310 nm
- Min. TX Power: -9 dBm
- Max. TX Power: -3 dBm
- Forwarding rate: 1.0416 Mpps
- Switching capacity: 1.4 Gbps
- Certifications: FCC Class B, CE, RoHS, UKCA, NDAA
LED- P for Power
- O for fiber optic port
- N for NMC
- A for alarm (voltage)
DIP switch- C/D for remote PD reset
- LGY to switch between fully compliant/ non-fully compliant 802.3bt PDs
- VLAN for port isolation
- RST for reset
Power- DC input voltage: 12 - 58 V
- Power consumption: 6.0 W (max.)

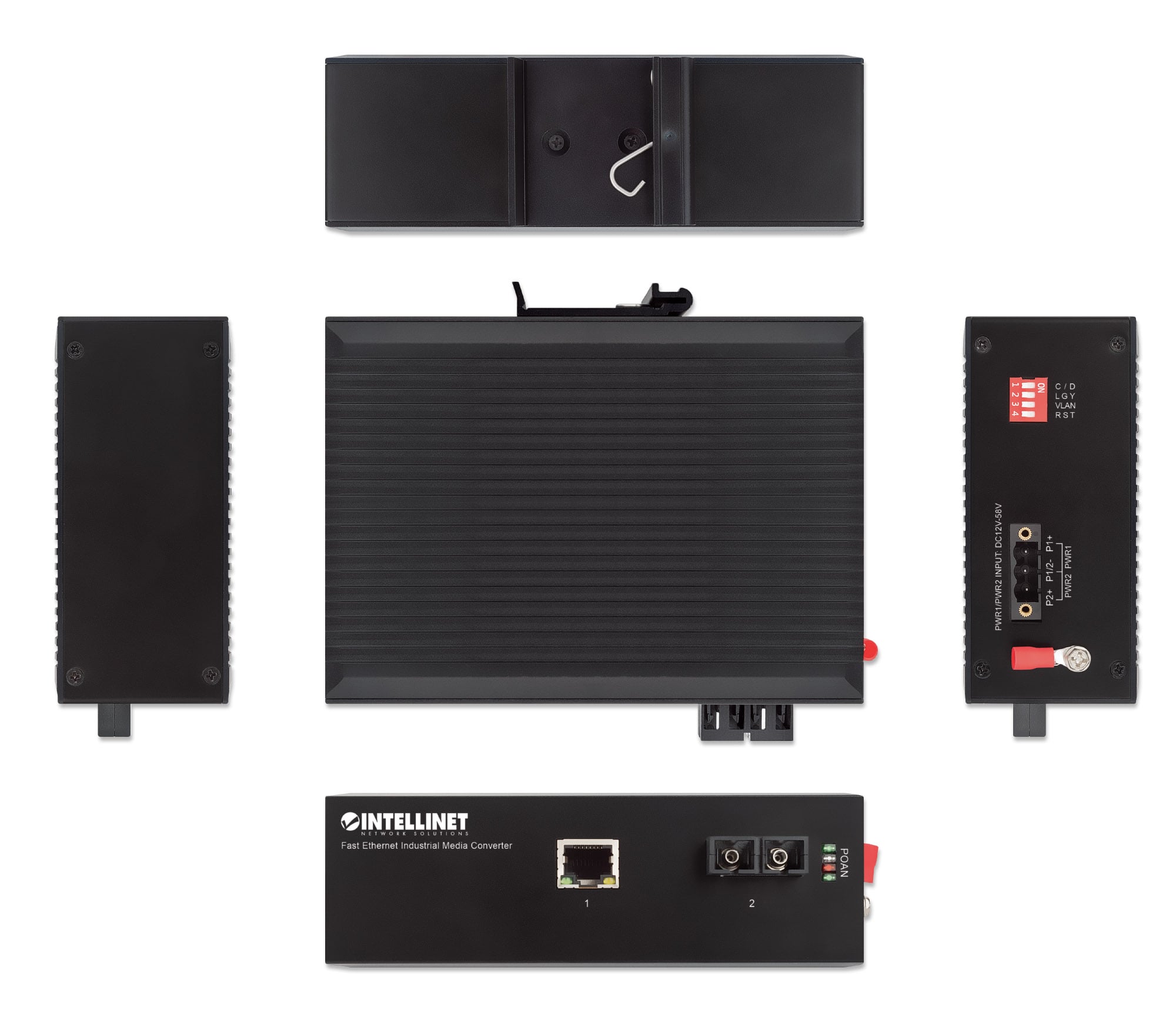

Physical information- Metal housing

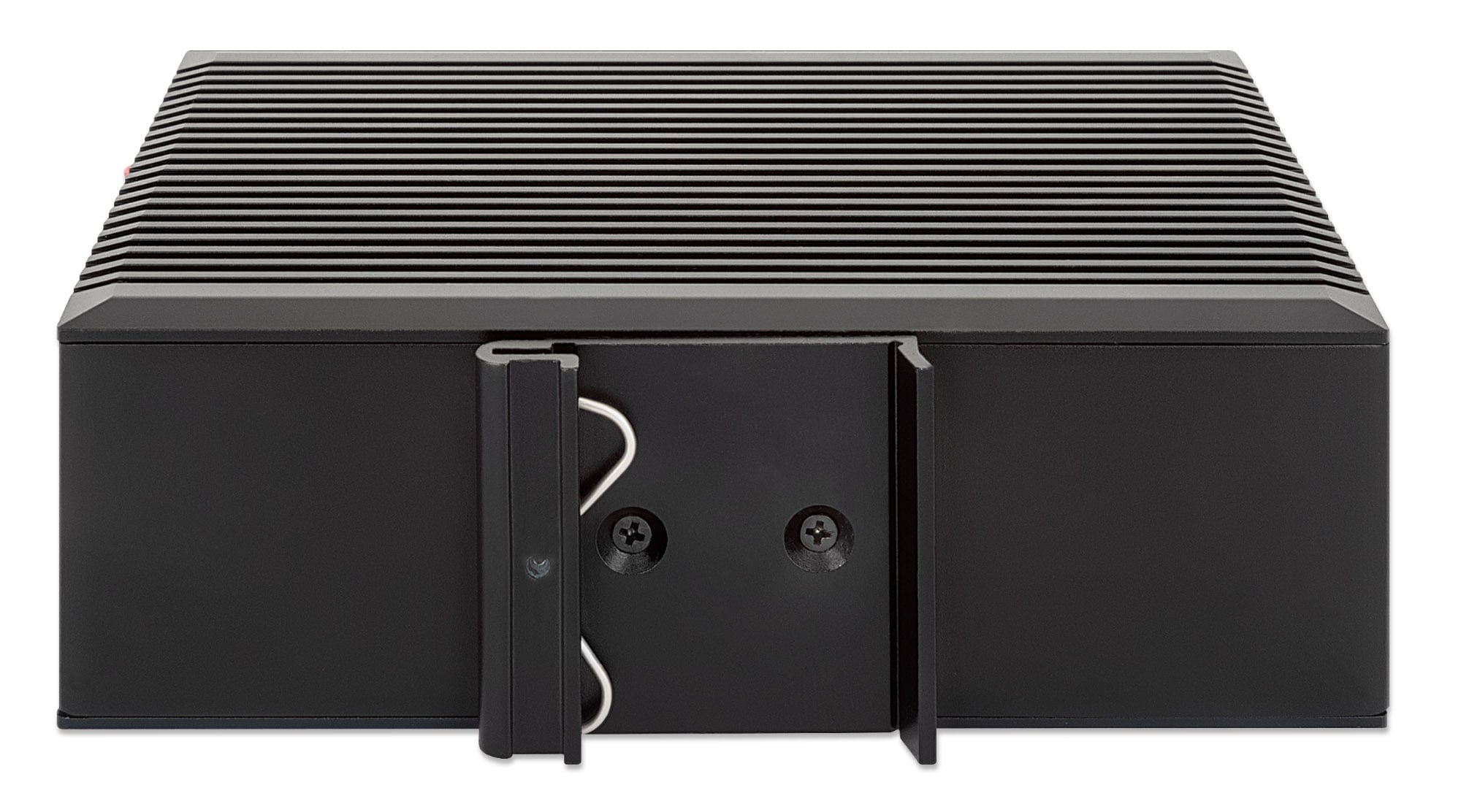

- DIN rail: conforming to IEC/EN 60715 (top hat)
- Dimensions: 143 x 104 x 48 mm
- Weight: 600 g
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Relative humidity: 5 - 90% RH, non-condensing
Package contents- Industrial Fast Ethernet Media Converter
- User manual
