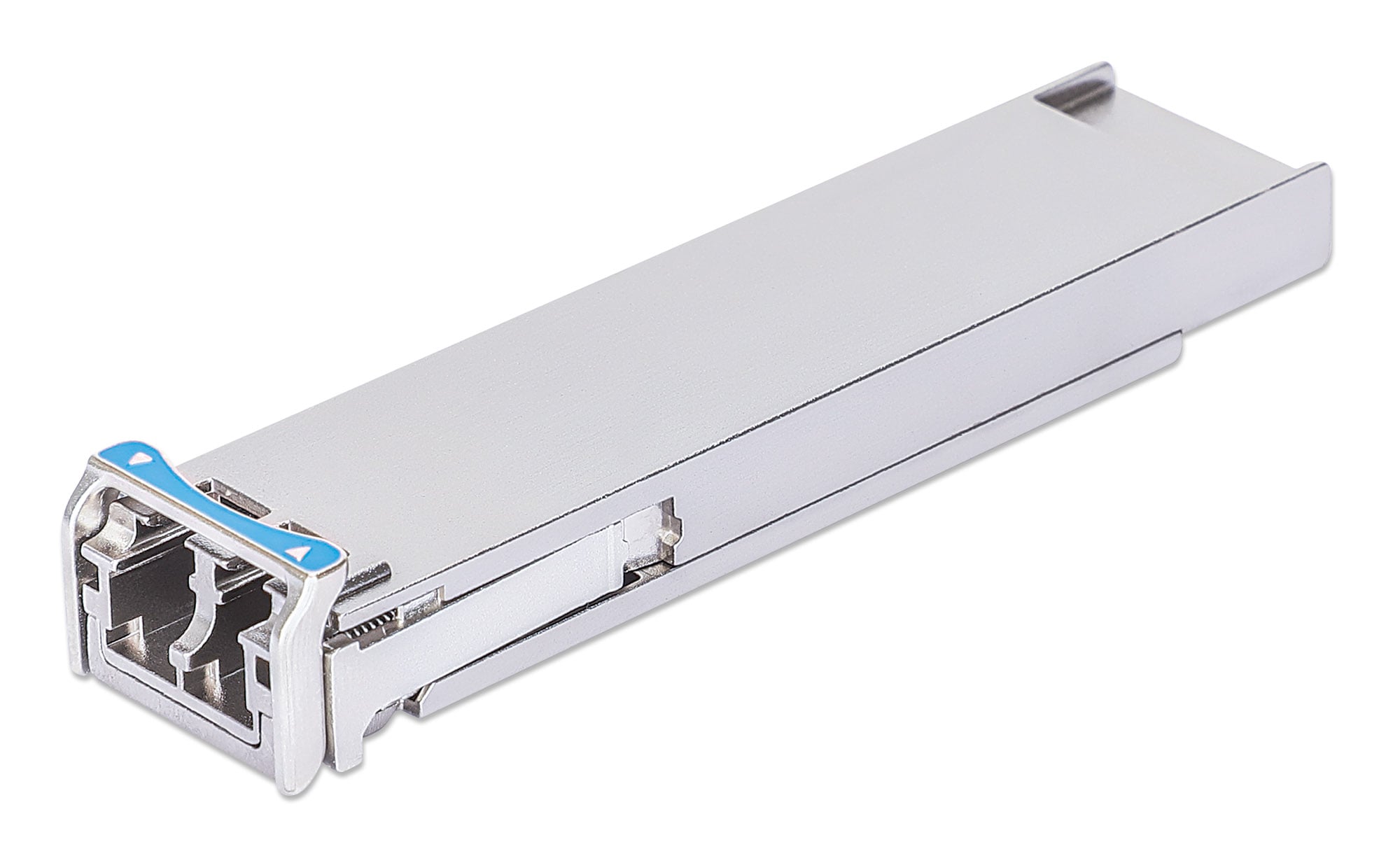

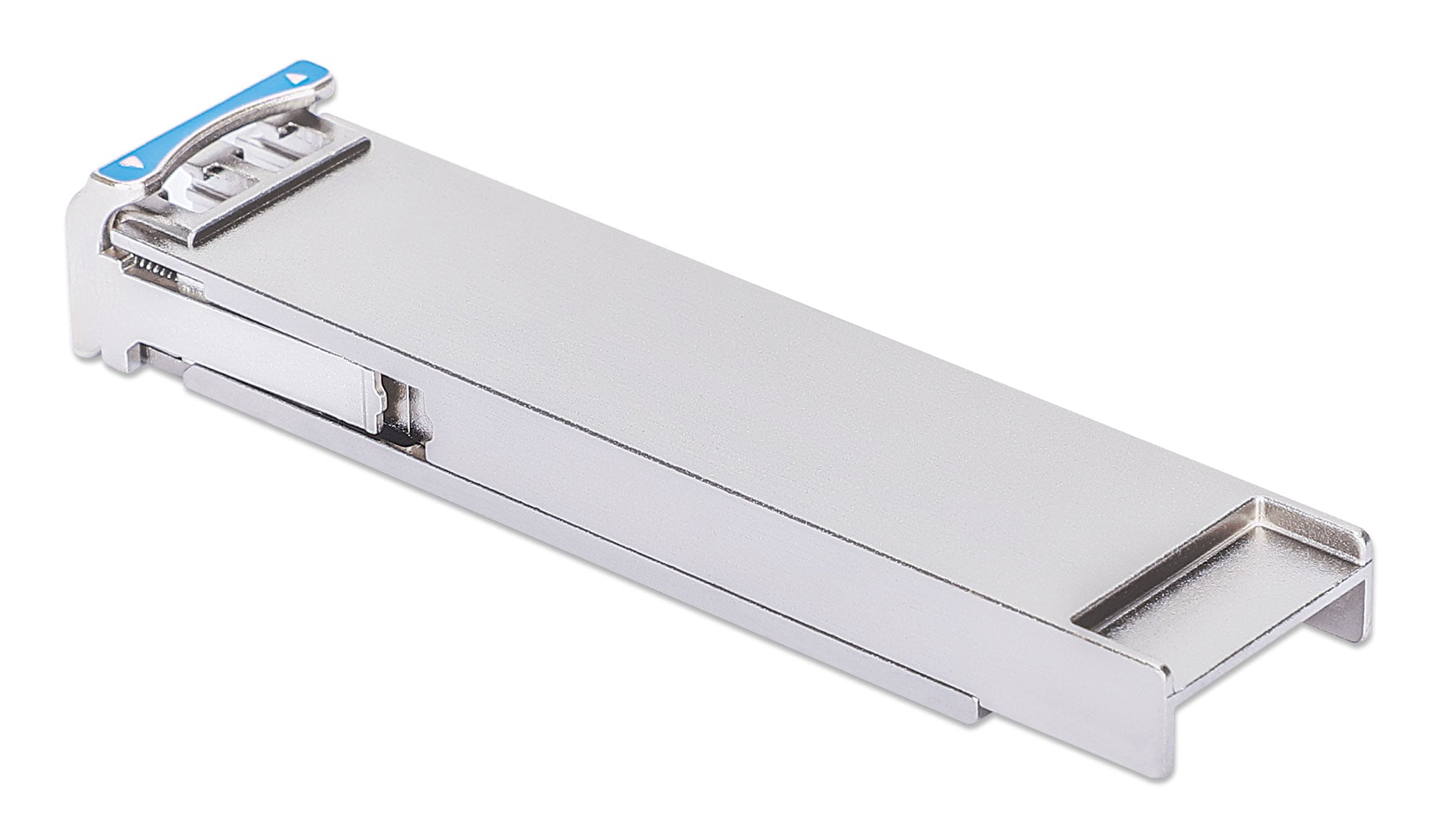

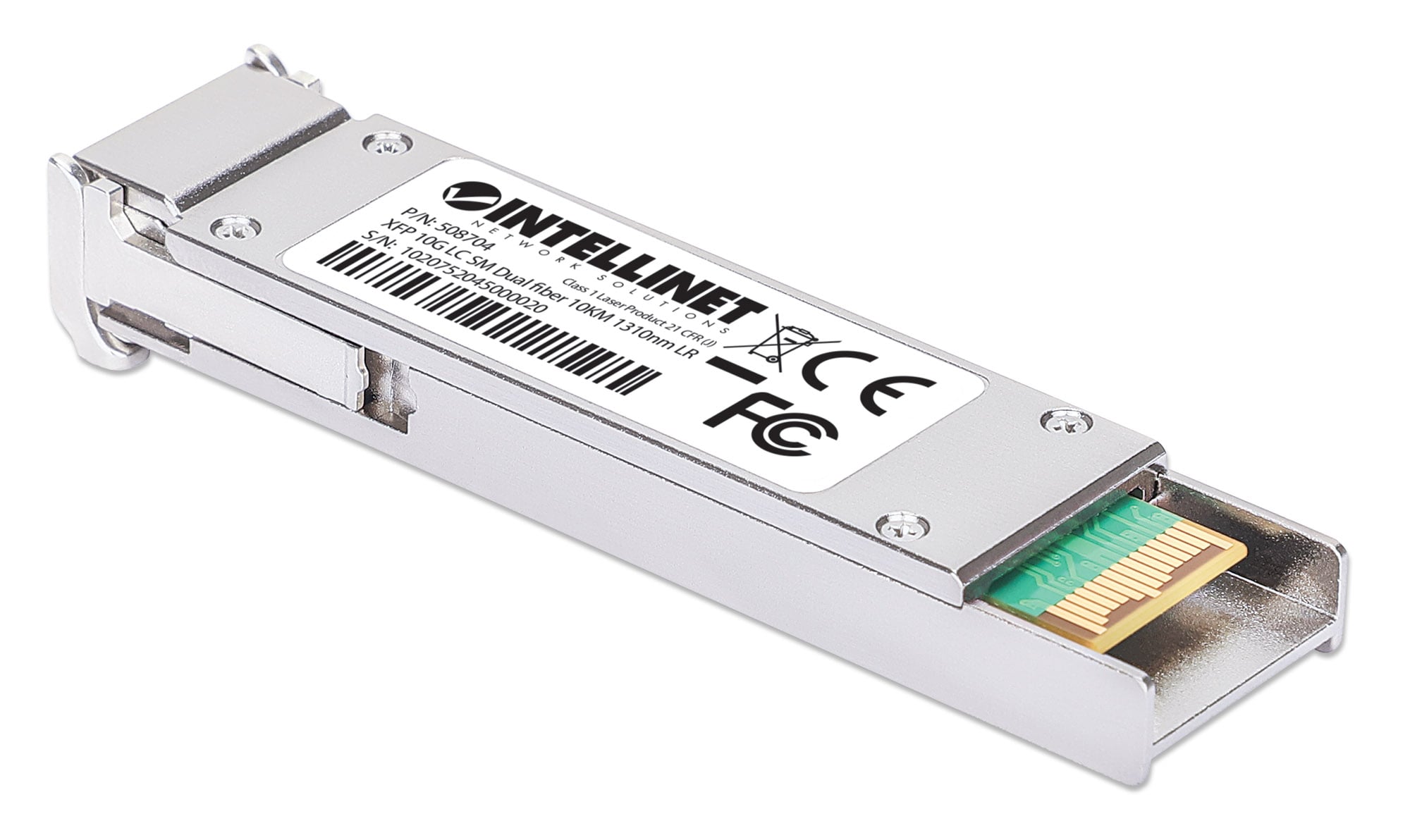

Transceiver XFP Single-Mode Optical Fiber LC Duplex 10GBase-LR - Intellinet I-TX-MGBIC-10GXFPLR

€96.01
Tax included €78.70 excl. VAT

Transceiver XFP 10GBase-LR for single-mode optical fiber with LC duplex connector. Data transfer rate 10 Gbps, distance up to 10 km with 9/125 µm cable. Wavelength 1310 nm. MSA compliant, power supply 3.3 V.



Return policy



Delivery policy



Direct contact for info



Secure Payment

  • Compliant with MSA for compatibility with major switch manufacturers such as Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti and others (see specifications)

  • Data transfer speed: 10 Gbps

  • One 10GBase-LR single-mode fiber LC duplex port

  • Supported fiber distance: up to 10 km

  • Wavelength: 1310 nm

  • Equivalent to the XFP-10GLR-OC192SR transceiver

  • Standard form factor XFP

  • Reduced electromagnetic interference thanks to metal housing

  • Supports hot-plugging



Standard

  • IEEE 802.3z (Gigabit Fiber Optic)

  • IEEE 802.3ae (Fiber optic 10 Gigabit Ethernet)



General information

  • Media support: 10GBase-LR single-mode fiber

  • Connection: LC duplex fiber optic port

  • Distance: 10 km with 9/125 µm cable

  • Wavelength: 1310 nm

  • Fiber optic power:


- Maximum TX power: -1 dB

- Minimum TX power: -6 dB

- Sensitivity: -15 dB

  • Design: XFP

  • Certifications: FCC Class A, CE, IEC-60825, RoHS



Power

  • Required power: 3.3 V

  • Power consumption: 1,5 Watt (maximum)



Environmental information

  • Dimensions (L x D x H): 78 x 16 x 11 mm (3.07 x 0.63 x 0.43 in.)

  • Weight: 30 g

  • Operating temperature: from 0 to 70°C

  • Operating humidity: 10 – 85% RH, non-condensing

  • Storage temperature: from -40 to 85°C



Package contents

  • 10 Gigabit Fiber XFP Optical Transceiver Module

  • Brand
  • Reference
    I-TX-MGBIC-10GXFPLR
  • In stock
    28 Items
  • EAN13
    0766623508704
