Switch KVM 8 Doors DisplayPort USB 3.0 4 K@ 60 Hz - Aten IDATA CS- 19208

The USB 3.0 4 K DisplayPort KVM to 8 CS 19208 ports of ATEN can ` access and control up to 8 computer DisplayPort from a single USB keyboard, USB mouse and monitor console. Thanks to the dual interface console, users can choose between the video output DisplayPort/HDMI can support quality videosà high up to 4 K DCI (4096 x 2160 to 60 Hz), for detailed views.

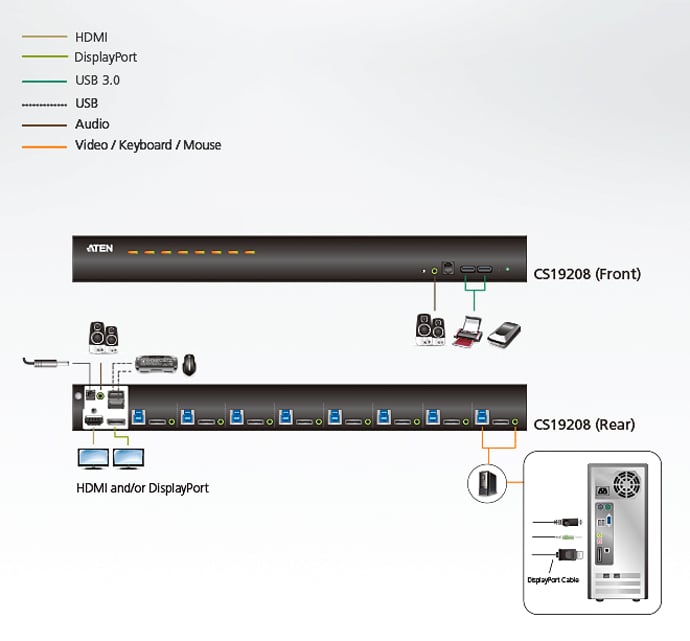

To meet expansion and flexibility demands, the CS 19208 can be cascaded up to two levels to control up to 128 computers from a single console. The CS 19208 also supports multi-display function by stacking up to eight unitsà CS 19208 to compare and analyze information about 8 monitors, substantially simplifying the work environment.



Thanks to two patented ATEN technologies – Video DynaSync™ and EDID Expert™, CS 19208 can ò optimize display resolution, accelerate switching between ports, as well as enhance and eliminate boot problems.



In addition, CS 19208 has an integrated 3.1 Gen 1 USB hub that offers speed à data transfer up to 5 Gbps to allow users to speed up operations and immediately share USB peripherals. As a simplified selection method of ports, CS 19208 offers push buttons, quick keys, RS- 232 and OSD commands with a new interface to allow intuitive and simplified operations.



To eliminate security-related concerns, è a two-level password authorisation is available to improve security protection for computer access and control. By consolidating these advanced functionalityà, the CS 19208 è ideal for managing servers/computer rooms applied to the sector with high and multitasking image requirements such as businesses, government, production, telecommunications, finance, health, industrial automation, etc.

• Quality à top video– up to 4 K DCI (4096 x 2160 at 60 Hz) and USB hub 3.1 Gen 1 at 2 integrated ports with speed à data transfer SuperSpeed 5 Gbps


• Waterfall connection up to two levels – to control up to 128 computer


• Multiscreen – feature for stacking up to eight units à CS 19208 and viewing videos from a maximum of 8 monitors (double screen/triple screen/quadruple screen/multiscreen)


• DynaSync ™ – exclusive ATEN video technology that eliminates screen boot problems and optimizes resolution when switching between different sources



Features

• A USB console controls up to 8 computers with DisplayPort interface and two additional USB 3.0 peripheral devices


• Waterfall connection up to two levels – to control up to 128 computer 1


• Multiscreen – feature for stacking up to eight units à CS 19208 and viewing videos from a maximum of 8 monitors (double screen/triple screen/quadruple screen/multiscreen)


• DynaSync ™ – exclusive ATEN video technology that eliminates screen boot problems and optimizes resolution when switching between different sources


• EDID Expert™ – selects the optimal modeà EDID for trouble-free ignition and high quality à display


• Supports a video output DisplayPort or HDMI – allows you to choose a suitable video output and implement a console flexibly


• Superior video quality – up to 4 K DCI (4096 x 2160 at 60 Hz)


• Hub USB 3.1 Gen 1 to 2 integrated ports with speed à data transfer SuperSpeed 5 Gbps


• Audio enabled – Full bass response to offer a rich experience for stereo audio to 2.1 channels


• Supports 2 HD audio


• Computer selection using push buttons, quick keys, OSD and RS- 232 commands


• Independent switching of KVM and 3 USB devices


• Two-level password permission (administrator/user) for increased security protection


• Modelità – transmission operations can be performed simultaneously on all selected computers, software installation and update, shutdown of all system components, etc.


• Modelità automatic scanning for monitoring all computers


• Mouse port emulation/bypass function of the console that supports different mouse drivers and multifunction muse


• Multilingual keyboard map – supports English(USA), English(GB), German (GER), German (Switzerland), French, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Traditional Chinese, and Simplified Chinese


• Support and emulation of the Mac/Sun 4 keyboard


• Supports hot link


• DisplayPort 1.2 Conform; HDCP 2.2 conform


• Multiplatform – Windows, Linux, Mac and Sun support


• Updated Firmware


• Supports multimedia and wireless mouse and keyboards



Technical specifications

• Direct: 8


• Maximum: 128 (cascade)


• Select port: OSD, quick keys, push button, RS- 232 command

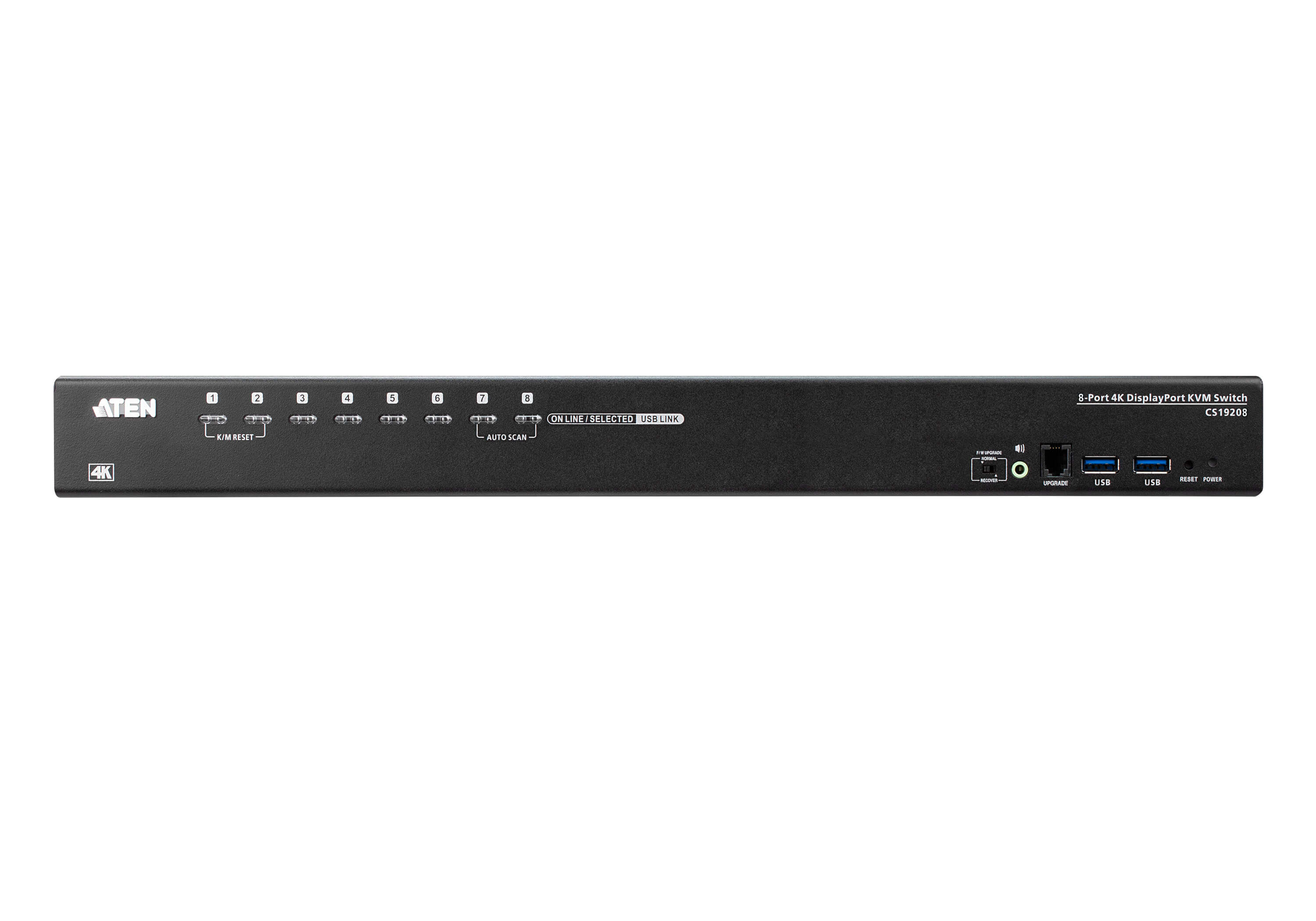

• Console ports: 



1 x DisplayPort female

1 x female HDMI (black)

2 x USB Type A female

2 x audio jack from 3,5 mm female (green; 1 x front, 1 x rear)

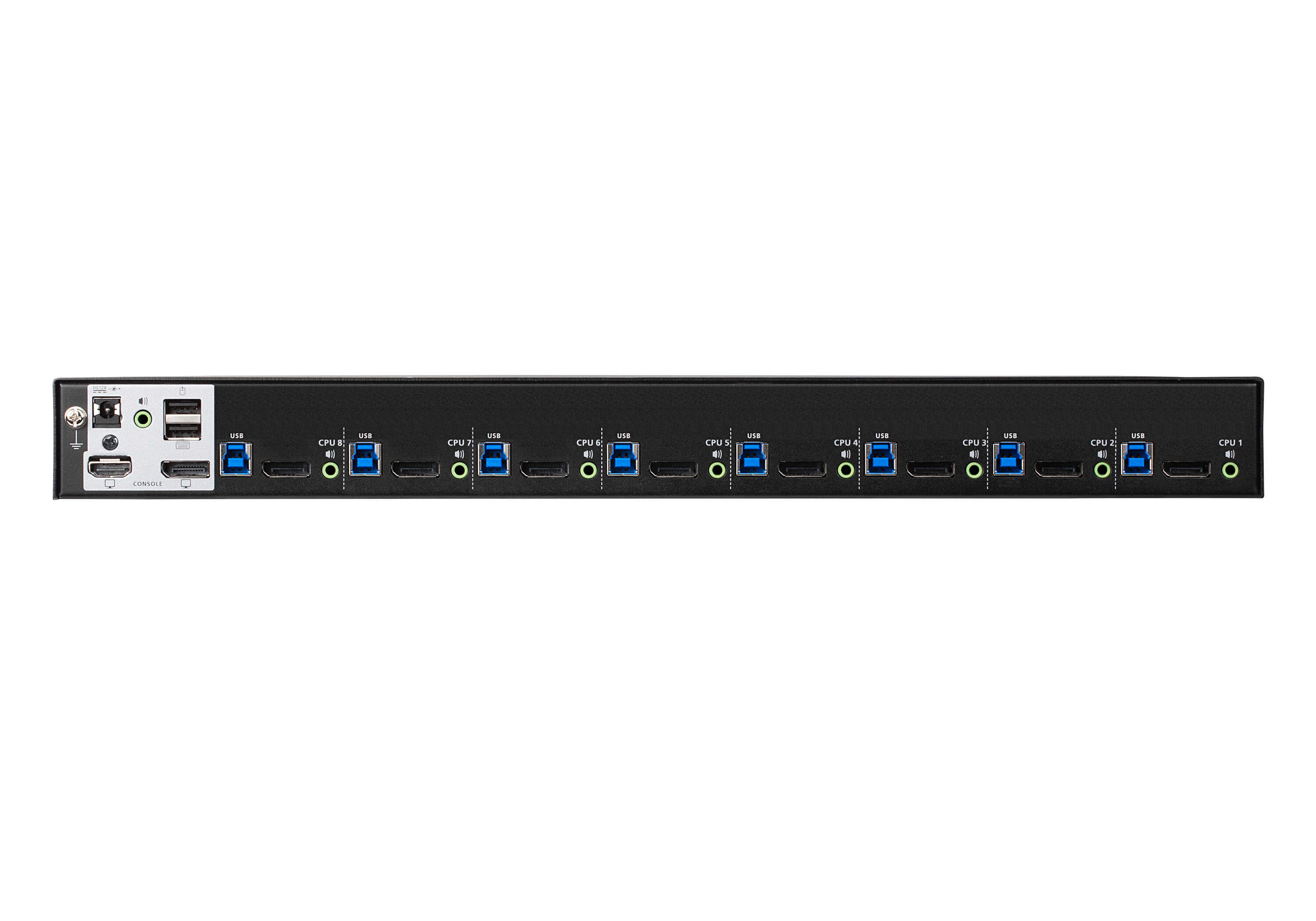

• Doors KVM: 



8 x DisplayPort female

8 x USB 3.1 Gen 1 female type B (blue)

8 x audio jack from 3,5 mm female (green)

• Switches:



- Select port: 8 x push buttons

- Restore: 1 x push button semi-incrusted

- Recover firmware update & 1 x sliding switch



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 – 80 % relative humidity without condensation



Dimensions

• Width: 43,24 cm


• Depthà: 21,43 cm


• Height: 4,40 cm



Package contents

• 1 x USB switch 3.0 4 K DisplayPort KVM to 8 ports CS 19208 with rack mounting kit


• 2 x LIN 5 - 20 K 1 -K 13 G cables DisplayPort 1.4


• 2 x LIN 6 - 11 C 1 -E 12 G USB cables 3.0


• 2 x LIN 5 - 0205 - 21 CG audio cables


• 1 x LIN 5 - 04 A 2 -J 11 G Cable Firmware Update


• 1 x 0 X 02 - 0017 - 000 G set of feet (4 pieces)


• 1 x 0 AD 8 - 8012 - 33 MG + LIN 2 - 418 K-E 12 G power supply


• 1 x user instructions
