Switch KVMP USB 3.0 4 K HDMI Dual Display with 4 ports - Aten IDATA CS- 1844

This dual display switch KVMP™ offers a value solution for desktop workstations with immediate and simplified access to four computers with HDMI interface from a single USB keyboard, mouse and two HDMI monitors; to meet user requests, è complies with the HDMI 2.0 standard and supports qualityà higher videos up to 4 K DCI (4096 x 2160 at 60 Hz), to offer stunning and more ù vivid images.

In addition, DynaSync & trade; video technology patented by ATEN optimizes visualization resolution, speeds up exchange between systems, as well as ensuring that open windows on the extended desktop are not restored to default configurations on the main display when ports are exchanged, offers a smooth and seamless user experience. As for the immediate sharing of data, an integrated 3.1 Gen 1 USB hub offers speed & agrave; data transfer up to 5 Gbps, which allows you to speed up operations and efficiently share USB peripherals.

• Superior video quality – 4096 x 2160 at 60 Hz and 3840 x 2160 at 60 Hz


• Hub USB 3.1 Gen 1 to 2 ports with speed à SuperSpeed 5 Gbps data transfer


• Quadruple display – connect two drivesà IDATA CS- 1844 to configure quadruple view controlled by an operator


• Supports DynaSync&trade Video;


• Computer selection via push buttons, quick keys, mouse, remote door selector and RS- 232 commands



Features

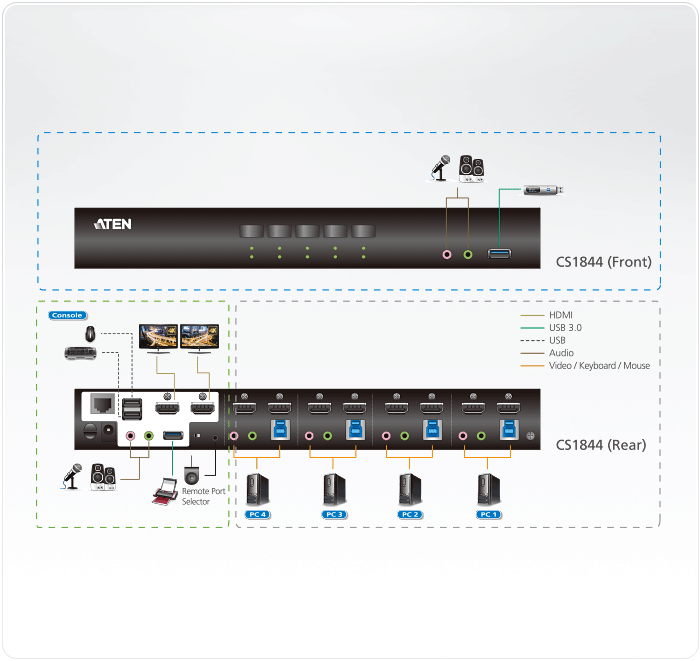

• One USB keyboard, one mouse and two HDMI monitors control four HDMI computers and share two USB devices


• Supports display to four screens by connecting two KVM Dual Display switches


• DynaSync video ™ – è an exclusive ATEN technology that optimizes display resolution, speeds up the transition between system and system, and ensures that open windows on an extended desktop don't go back to default configuration on the main display when ports are changed


• Supports superior video – 4 K UHD (3840 x 2160 at 60 Hz) and 4 K DCI (4096 x 2160 at 60 Hz)


• Computer selection via push buttons, quick keys, mouse (1 *), remote port selector and RS- 232 commands (2 *)


• Hub USB 3.1 Gen 1 to 2 integrated ports with speed à data transfer SuperSpeed 5 Gbps


• Supports console keyboard emulation/bypass function


• Supports the emulation/bypass function of the console mouse


• Independent switching of KVM, USB devices and stereo audio focus (3 *)


• Multilingual keyboard keymap – supports English, French, Japanese and German keyboards


• HDMI 2.0 conformance; HDCP 2.2 conformance


• Supports HD audio (3 *)


• Initiating detection


• Modelità automatic scanning for monitoring all computers


• Updated Firmware



Notes:

1 . Switching the è mouse port supported only in mode à emulation mouse and USB mouse with wheel and 3 keys.

2 . Scroll the DCC switch to position s to allow the KVM switch to receive the RS- 232 commands via a cable from RJ- 45 to DB- 9 . Consult the user manual.

3 . HD audio via the HDMI channel cannot be switched independently.



Technical specifications

• Computer connections: 4


• Select port: shortcut, push button, mouse, RS- 232 commands, remote port selector



Connectors

• Console doors: 2 x USB-A female - 2 x HDMI female (black) - 2 x audio connector from 3,5 mm female (green; 1 x front, 1 x rear) - 2 x audio connector from 3,5 mm female (pink; 1 x front, 1 x rear)

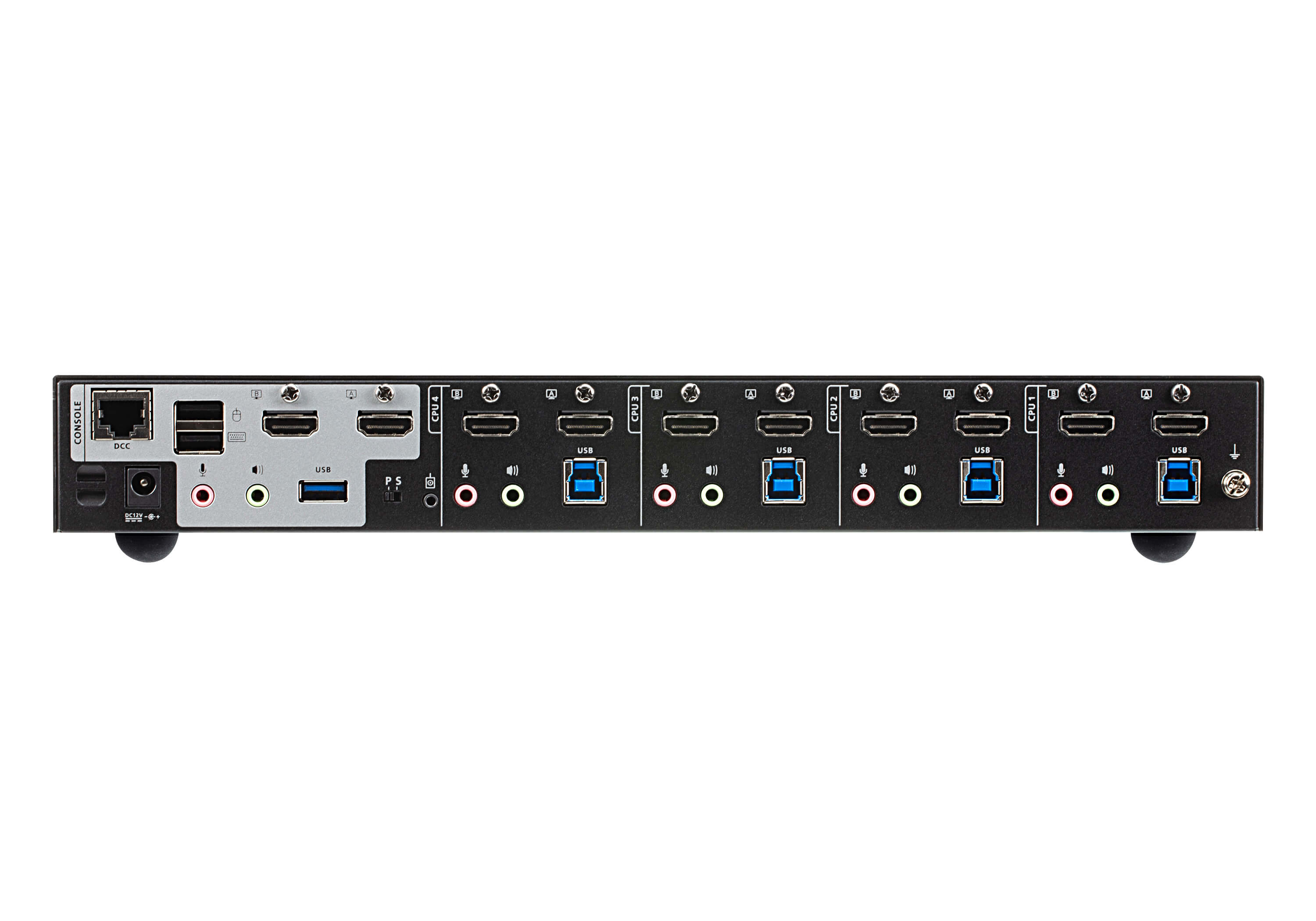

• KVM ports (computer):  4 x USB 3.1 Gen 1 type B female (blue) - 8 x HDMI female (black) - 4 x audio connector from 3,5 mm female (green) - 4 x audio connector from 3,5 mm female (pink)


• Interconnecting doors: 1 x RJ- 45 female


• Remote door selector: 1 x female 2,5 audio connector


• Power supply: 1 x DC connector


• USB Hub: 2 x USB 3.1 Gen 1 type A female (blue; 1 x front; 1 x rear)



Switches

• Selected: 5 x push button


• Station Selection: 1 x Sliding Mount



LED

• Online / Selected: 5 (orange)


• USB connection: 5 (green)


• Audio  5 (green)



Emulation

• Keyboard / Mouse: USB



• Video: 4096 x 2160 at 60 Hz


• Scan interval: 1 - 99 seconds (default: 5 seconds)


• Consumption: DC 12 V: 4.42 W: 63 BTU



Environmental characteristics

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Proprietà physical

• Metal structure


• Dimensions (L x P x A): 33,50 x 16,05 x 4,40 cm



Package contents

• Switch KVMP™ USB 3.0 4 K HDMI Dual Display to 4 ports


• 8 HDMI 2.0 cables


• 4 USB cables 3.0


• 4 Speaker cables


• 4 cables Microphone


• 1 Power supply


• 1 Remote door selector


• 1 User Manual
