- Provides power and data for up to 48 PoE network devices
- Six slots for 10G SFP/SFP+ modules with small form factor
- Compatible with Domotz for cloud management
- PoE power budget of 450 watt
- Output power up to 30 watts per port
- Supports VLAN (tag-based and port-based)
- Auto-sensing with automatic speed detection of ports 10/100/1000 Mbps
- Supports IEEE 802.3at and IEEE 802.3af compatible devices (wireless access points, VoIP phones, IP cameras)
- Self-Healing Network: The Powered Device Monitor (PDM) function restarts any connected PoE device that is not responding or not sending network traffic
- Supports IEEE 802.3at/af detection and protection against short circuit, overload, and high voltage
- All RJ45 ports have Auto-MDIX and NWay auto-negotiation support
- Compliant with IEEE 802.3az (Energy Efficient Ethernet EEE) specifications
- Green Ethernet energy-saving technology that disables unused ports and adjusts power levels based on cable length
- Switch fabric of 216 Gbps
- SNMP management and remote monitoring (RMON)
- Dual protocol IPv4/v6
- Supports link aggregation (trunking)
- Multicast filtering with IGMP Snooping
- Supports per-port bandwidth control
- Supports port mirroring
- Supports two types of QoS: CoS and DSCP
- Broadcast storm control with multicast packet rate settings
- Supports jumbo frames up to 12 kbyte
- Supports Rapid Spanning Tree / Spanning Tree protocol
- Store and forward switching architecture
- Operates in full/half duplex mode
- IEEE 802.3x flow control for full duplex
- Supports 32k MAC addresses
- Buffer memory of 2 MByte
- Configuration via Web browser or RJ45 console port

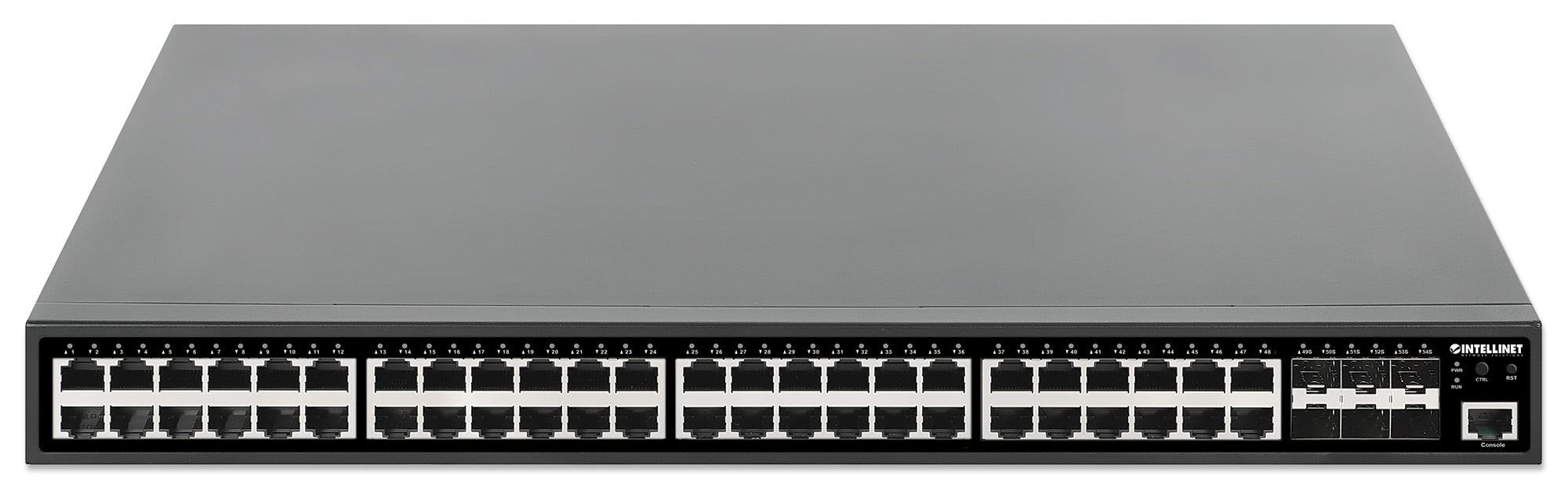

- Power, Link/Activity, PoE, and System LEDs
- Three high-volume cooling fans to ensure perfect ventilation
- Includes 19 rack mounting brackets
- Fully NDAA compliant
Standard- IEEE 802.1d (Spanning Tree Protocol)
- IEEE 802.1p (Traffic Prioritization)
- IEEE 802.1q (VLAN Tagging)
- IEEE 802.1w (Rapid Spanning Tree Protocol)
- IEEE 802.3ad (Link Aggregation)
- IEEE 802.3 (Ethernet 10Base-T)
- IEEE 802.3ab (Gigabit Ethernet Twisted Pair)
- IEEE 802.3ab (Twisted Pair Gigabit Ethernet)
- IEEE 802.3ae (10 Gigabit Ethernet over fiber)
- IEEE 802.3az (Energy Efficient Ethernet)
- IEEE 802.3af (Power over Ethernet 802.3at type 1)
- IEEE 802.3at (Power over Ethernet 802.3at type 2)
- IEEE 802.3u (100Base-TX Fast Ethernet)
- IEEE 802.3x (flow control, for full-duplex mode)
General information- 10Base-T Cat5e UTP/STP RJ45, 8 pin
- 100Base-TX Cat5e UTP/STP RJ45, 8 pin
- 1000Base-T Cat5e UTP/STP RJ45, 8 pin
- MAC address table: 32k
- Buffer memory: 2 MByte
- Forwarding rate: 160.704 Mpps
- Backplane / switch fabric speed: 216 Gbps
- Switch architecture: store and forward
- Configuration options:
- Port speeds: 10 Mbps, 100 Mbps, 1000 Mbps or auto-negotiation
- PoE on/off per port
- Maximum PoE per port
- PoE mode per port
- PD monitoring function, guard
- Flow control: on/off per port
- VLAN
- Rate Limiting (ingress rate and egress rate)
- Port Mirroring, one-to-one or many-to-one
- Port aggregation/LACP: 16 groups
- Broadcast Storm configuration with transmission rate, multicast rate and flooded unicast rate
- IGMP Snooping
- Access management filtering: SNMP, HTTP, HTTPS, SSH, TELNET Quality of Service (QoS): CoS or DSCP
- Link Layer Discovery Protocol (LLDP)
- The built-in ICMP Ping client sends ping requests to other network nodes
- SNMPv1/v2c/v3 (Simple Network Management Protocol)
- RMON (1, 2, 3 and 4 groups)
- DHCP: Client/Option82/Snooping
- LAN Settings (IP address, gateway, etc.)
- Energy Efficient Ethernet (EEE)
- SSHv2
CertificationsLED- PoE
- Power
- Link/Activity
- System
Buttons- Reset
- LED Link/PoE light switch
Output port pinout RJ45- Pin 1: CC (+)
- Pin 2: CC (+)
- Pin 3: CC (-)
- Pin 6: CC (-)

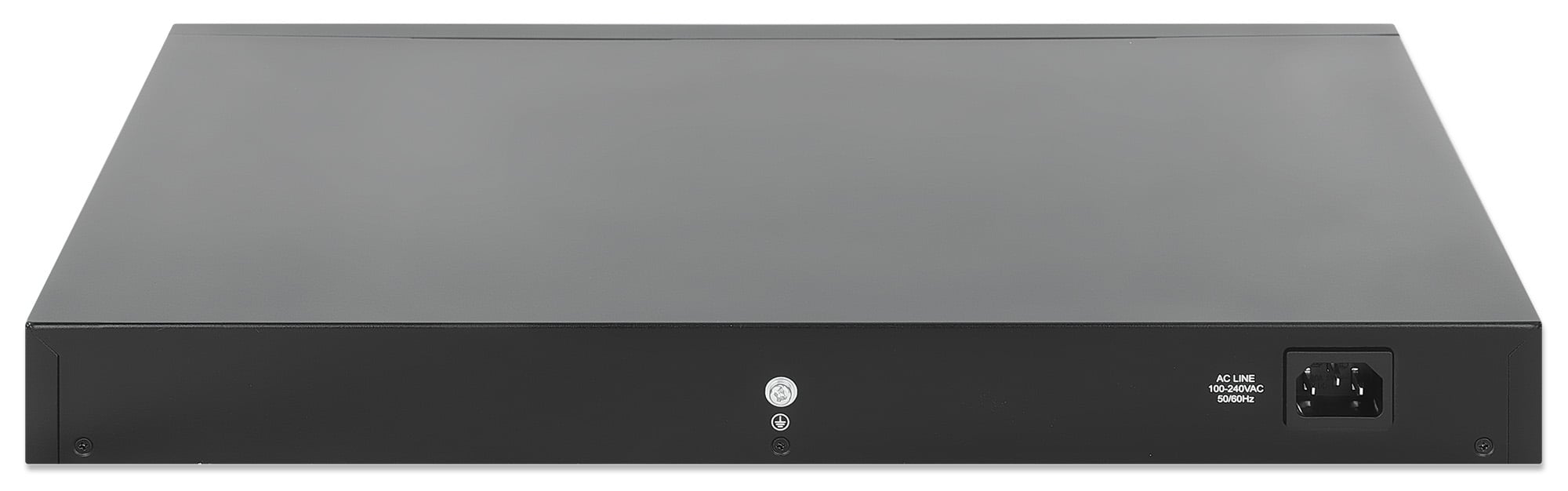

Power- Input: 100.0 - 240.0 VAC, 50 - 60 Hz, internal power supply
- PoE power budget: 450,0 watt (max.)
- Power consumption: 460,0 W (max.)
Physical information- Metal housing
- Dimensions: 330 x 440 x 44 mm (13,03 x 17,32 x 1,73 inches)
- Net weight: 5,45 kg (12,02 lbs)
- Gross weight: 6,5 kg (14,33 lbs)
Environmental information- Operating temperature: 0 - 45°C (32 - 113°F)
- Storage temperature: -40 to 70°C (-40 - 158°F)
- Operating humidity: 10 - 90% RH, non-condensing

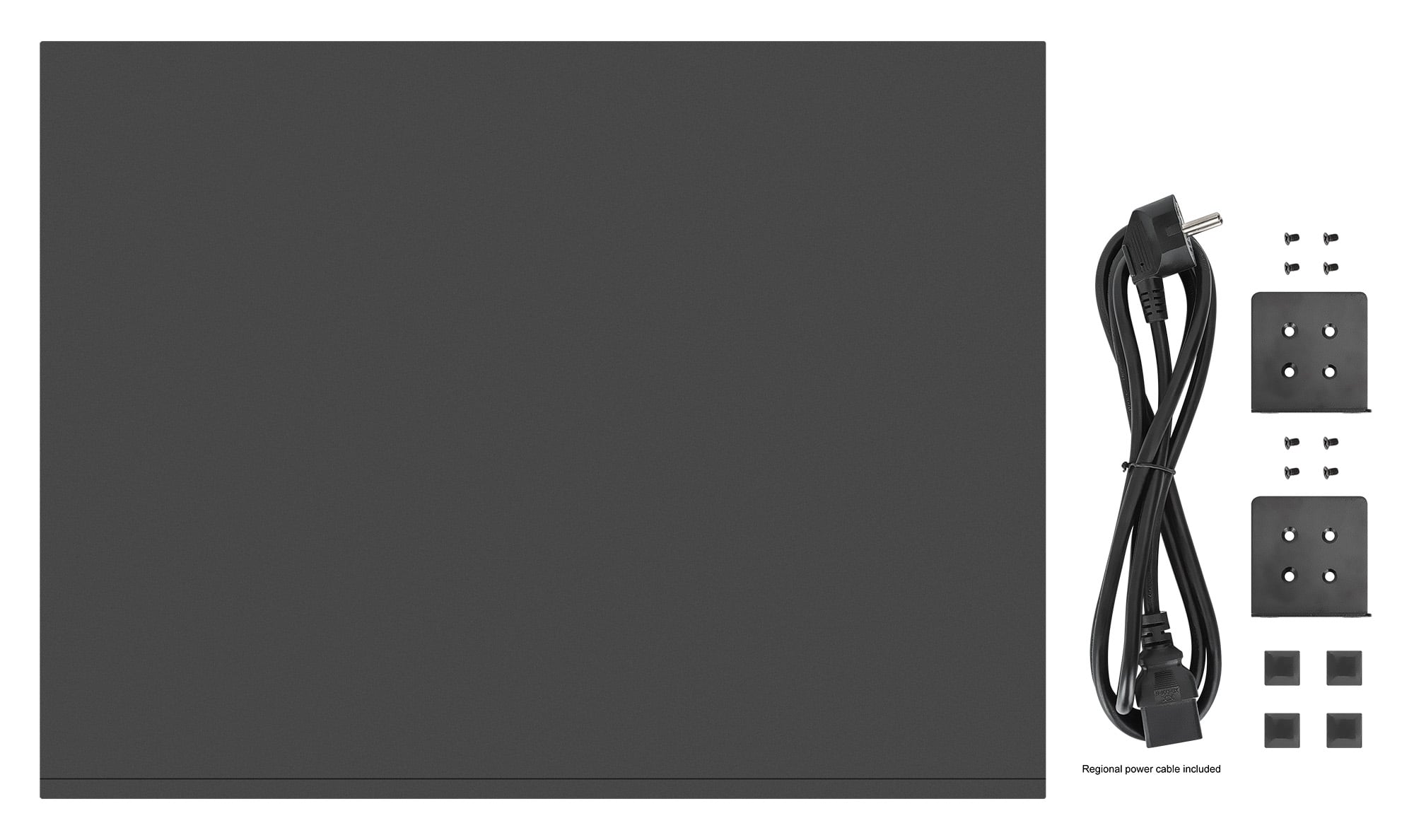

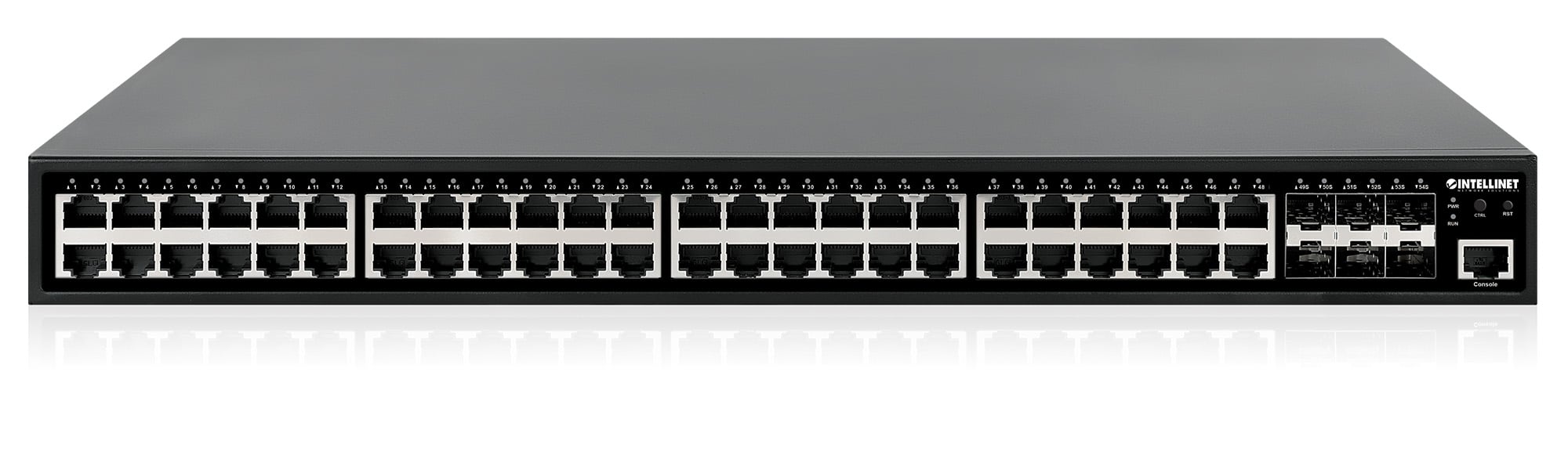

Package contents- Managed PoE+ Layer 2+ Gigabit Ethernet switch with 48 ports and six 10G SFP+ uplinks
- Power cable
- Instructions
- Rack mounting brackets 19
