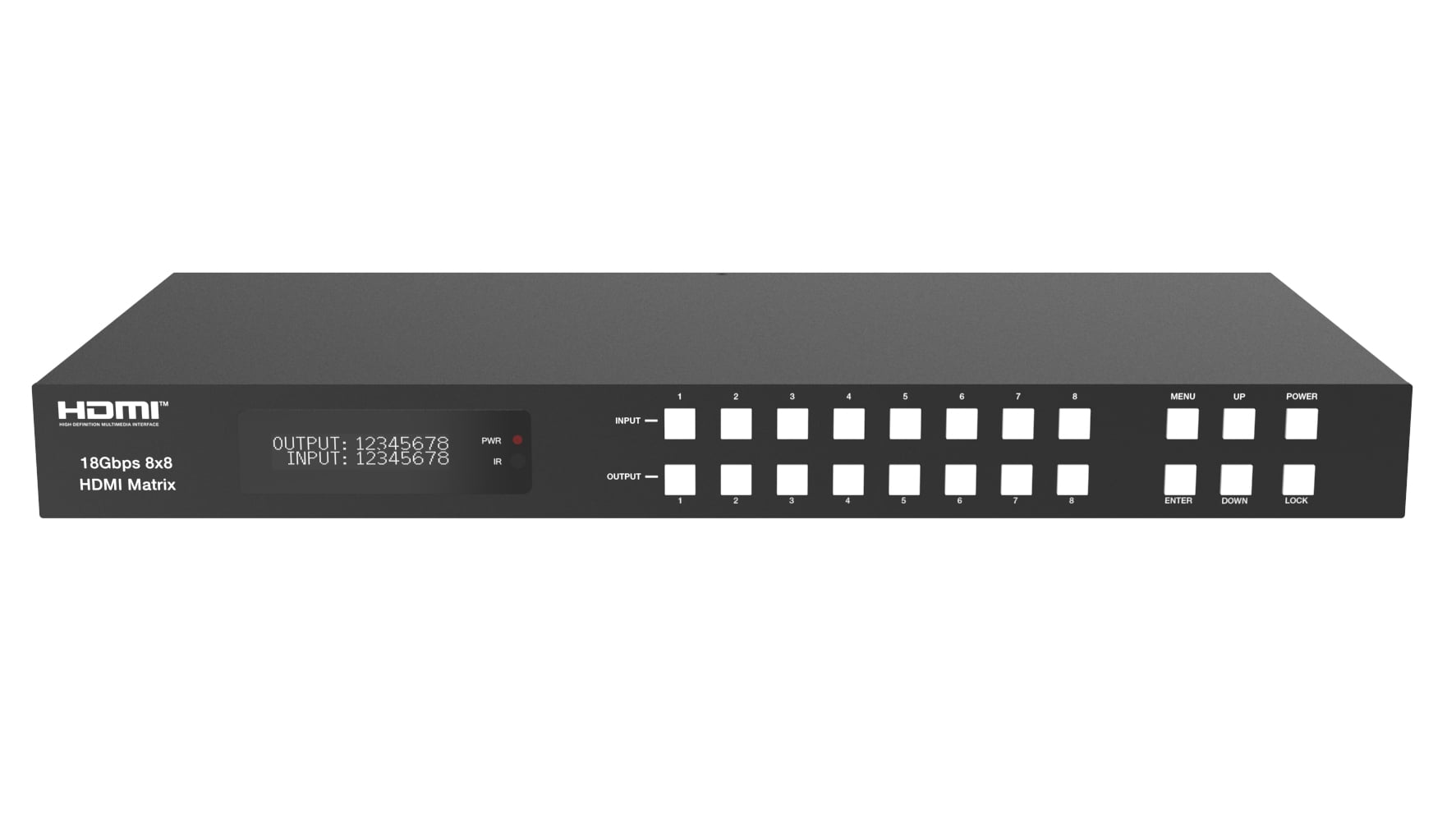

Matrix Switch HDMI 2.0 b 8 x 8 18 Gbps 4 K@ 60 Hz - Techly IDATA HDMI-MXB 88 D

The IDATA HDMI-MXB 88 D HDMI 8 x 8 matrix from 18 Gbps supports video transmission (up to 4 Kx 2 K to 60 Hz YUV 4: 4: 4) and high-resolution multichannel digital audio from 8 HDMI sources to 8 HDMI display. The audio is separated in analog and coaxial audio è supported by 8 HDMI 2.0 output ports.

While the ARC function of the HDMI è output enabled, the ARC audio from the HDMI display devices will verrà extracted in coaxial audio output.

Each HDMI output of this HDMI 8 x 8 matrix supports the 4 K 2 K downscaler to 1080 P independently.

The control is via front panel buttons, IR remote control, RS- 232 , LAN and GUI Web.



Features

• HDMI 2.0 b, HDCP 2.2 and HDCP 1.4


• Video resolution up to 4 K 2 K@ 60 Hz (YUV 4: 4: 4) on all HDMI ports


• Supports video bandwidth of 18 Gbps


• Dolby Vision, HDR 10 + and HLG are supported


• Supports 4 K -> 1080 P Down Scaler for each output port


• Pass-through HDMI audio to 7.1 CH (LPCM, Dolby TrueHD and DTS-HD Master Audio)


• De-embedded è audio supported via analog and coaxial ports


• ARC, CEC and smart EDID management are supported


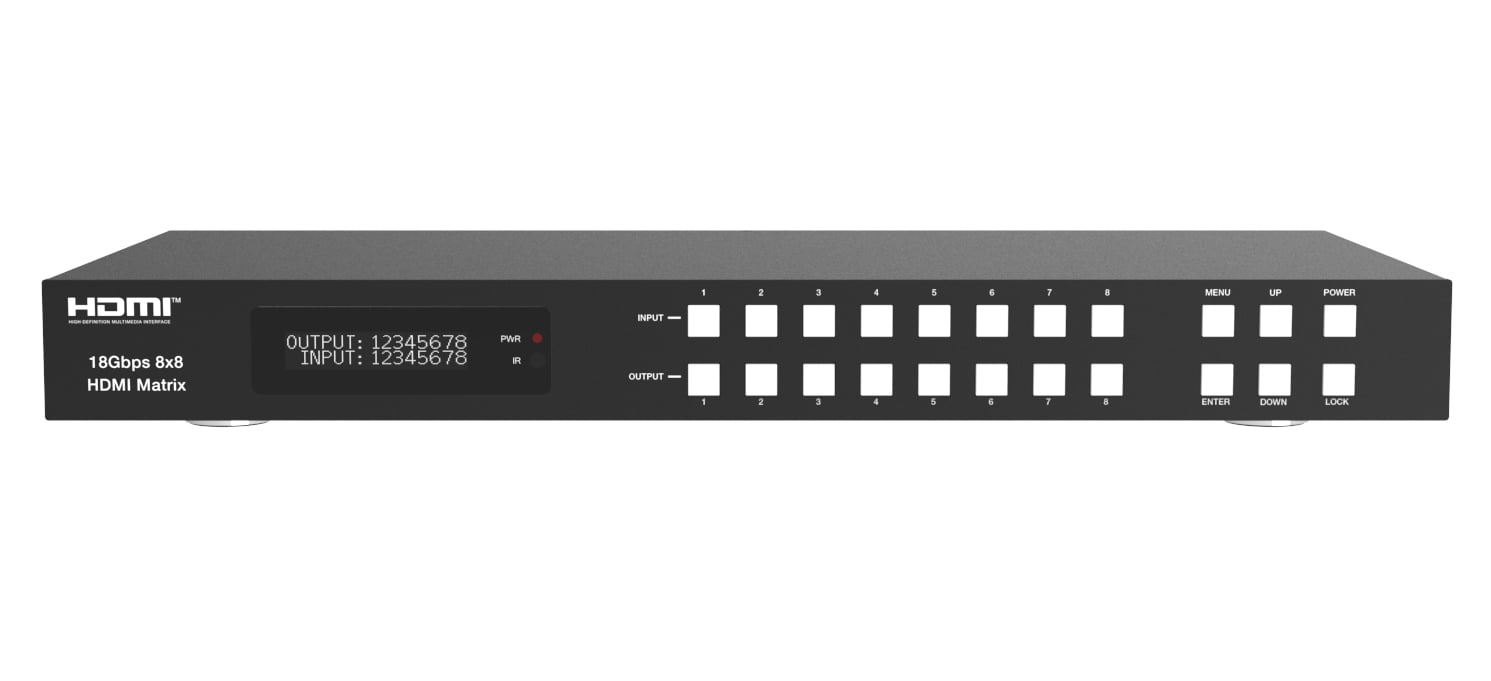

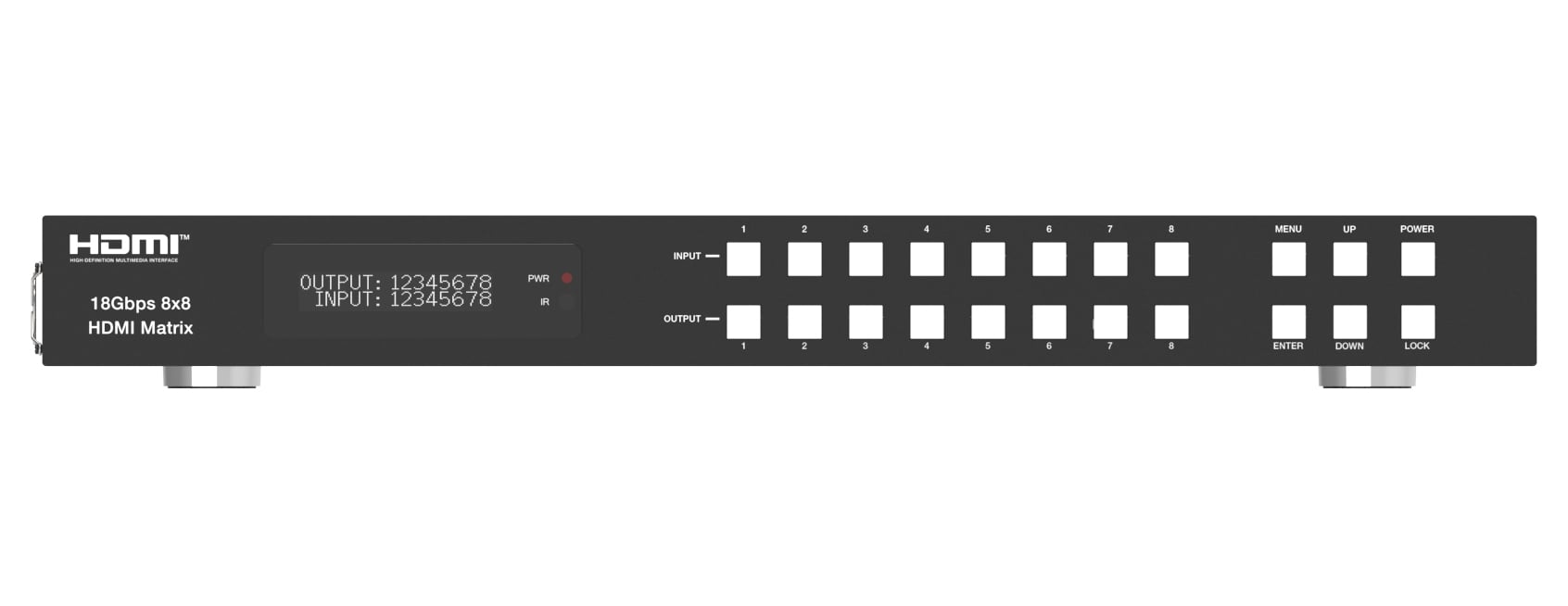

• Design mounted on 1 U rack with OLED display on the front panel


• Control via front panel buttons, IR remote control, RS- 232 , LAN and Web GUI



Technical Specifications

• Compatibilityà HDMI: HDMI 2.0 b


• Compatibilityà HDCP: HDCP 2.2 and HDCP 1.4


• Bandwidth: 18 Gbps


• Video resolutions: up to 4 K 2 K@ 50 / 60 Hz (YUV 4 : 4 : 4 ), 4 K 2 K@ 30 Hz, 1080 p@ 120 Hz, and 1080 p 3 D@ 60 Hz


• Depthà color: 8 -bit, 10 -bit, 12 -bit


• Colour space: RGB, YCbCr 4 : 4 : 4 , YCbCr 4 : 2 : 0


• HDMI audio formats: LPCM 2 / 5.1 / 7.1 Dolby Digital, DTS 5.1 , Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X


• Coaxial audio formats: LPCM 2.0 , Dolby Digital / Plus, DTS 5.1


• Audio format L/R: PCM 2.0


• HDR format: HDR 10 , HDR 10 +, Dolby Vision, HLG


• ESD protection: Human-body Model: ± 8 kV (Air-gap dishcharge) , ± 4 kV (Contact dishcharge)



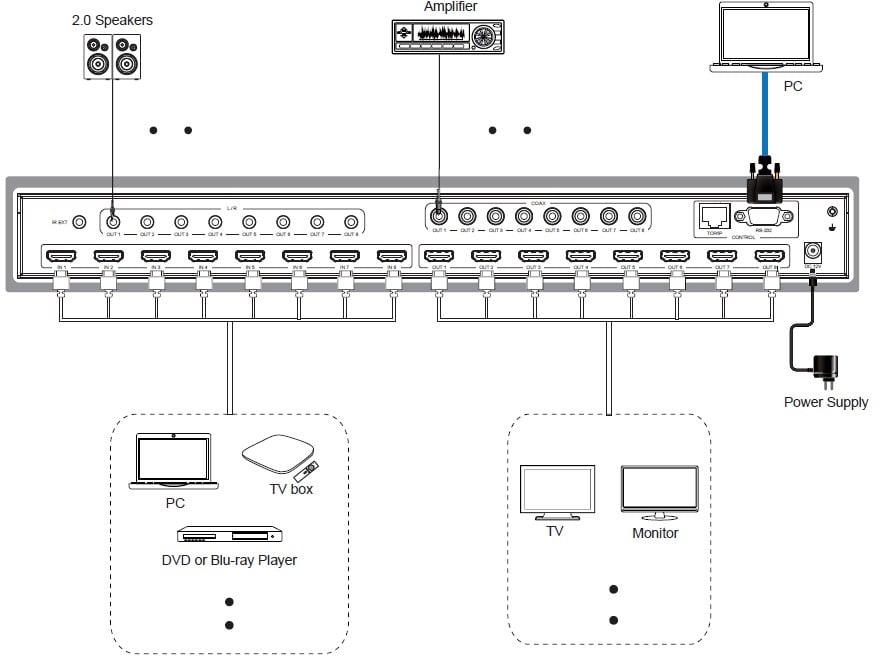

Connections

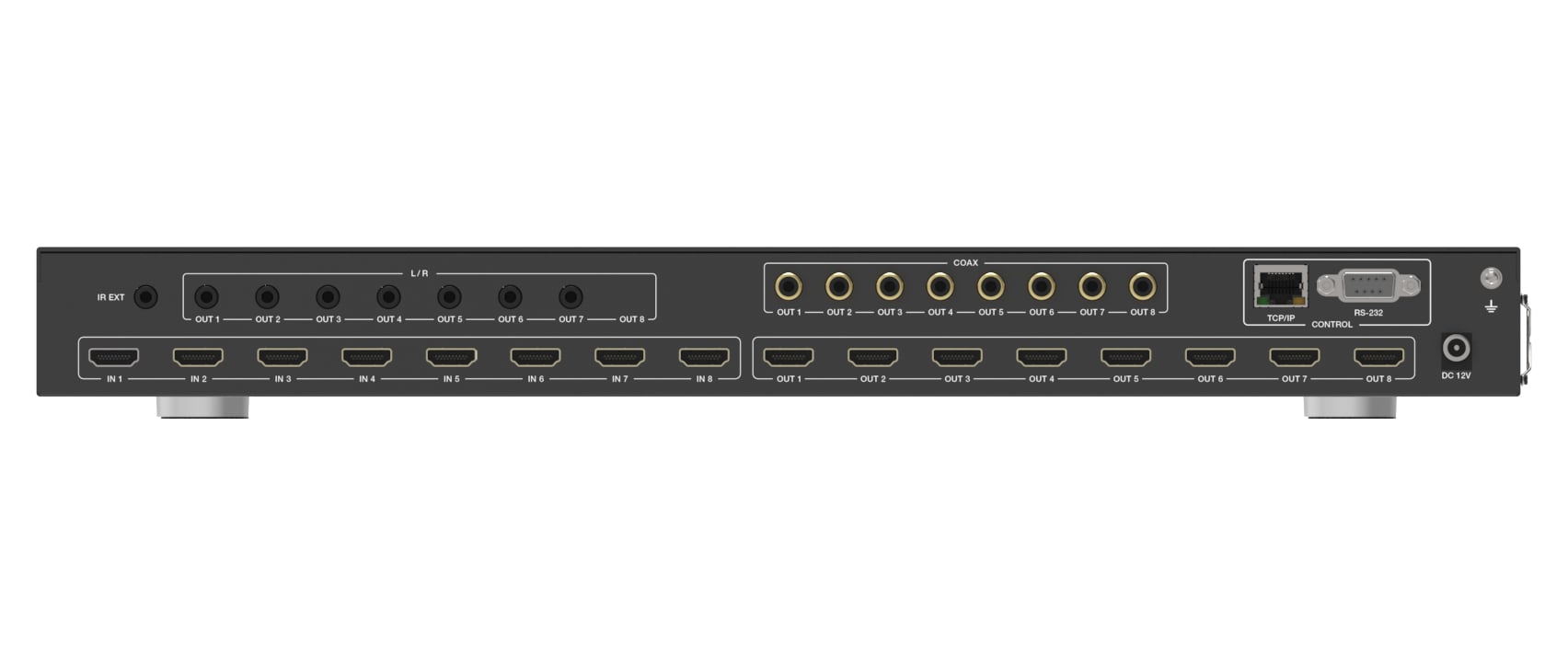

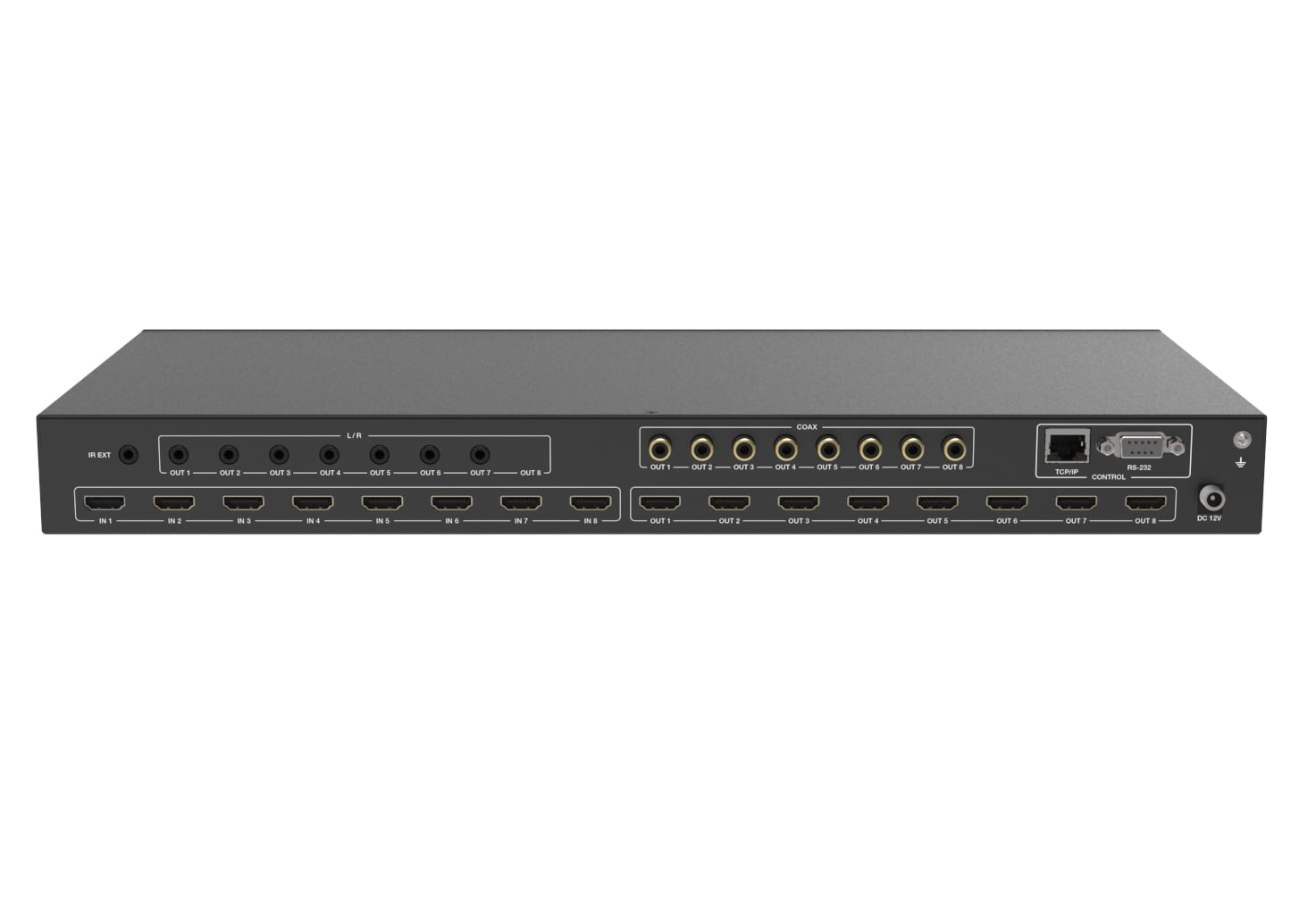

• Inputs: 8 x HDMI Type A [ 19 -pin female] / 1 x IR EXT [ 3.5 mm Stereo Mini-jack]


• Outputs: 8 x HDMI Type A [ 19 -pin female] / 8 x Coaxial audio [RCA] / 8 x L/R Audio [ 3.5 mm Stereo Mini-jack]


• Control doors:



1 x TCP/IP [RJ 45 ]

1 x RS- 232 [D-sub 9 ]



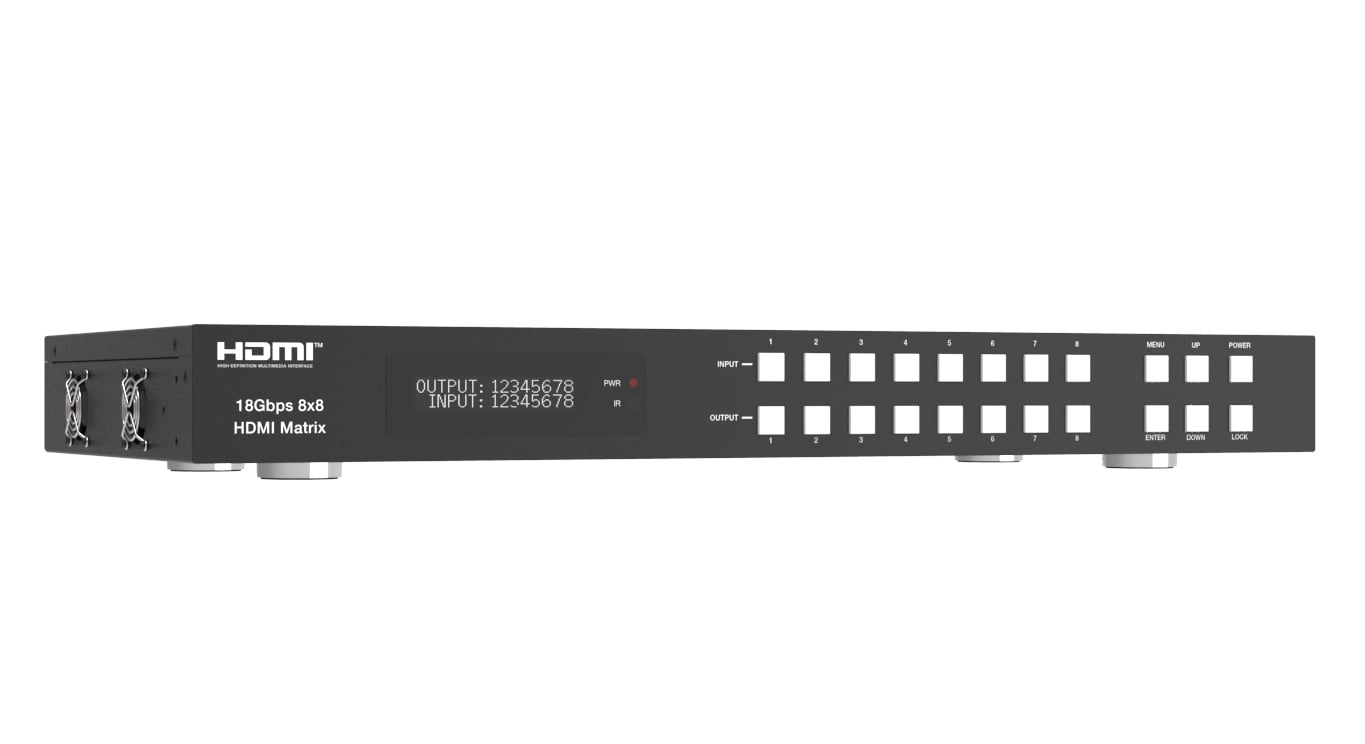

Mechanical information

• Housing: metallic


• Color: black


• Dimensions: 440 mm × 200 mm × 44.5 mm


• Weight: 2.8 kg


• Power supply: Input: AC 100 ~ 240 V 50 / 60 Hz, Output: DC 12 V/ 5 A


• Consumption: 43 W (max)


• Operating temperature: 0 ° C ~ 45 ° C


• Storage temperature: - 20 ° C ~ 60 ° C


• Humidità relative: 20 ~ 90 % RH (without condensation)



Cable resolution/length

• 4 K@ 60 Hz: 5 meters


• 4 K@ 30 Hz: 10 meters


• 1080 p@ 60 Hz: 15 meters



Package contents

• 1 x HDMI Matrix 8 x 8


• 1 x Power supply 12 V/ 5 A


• 1 x IR remote control


• 1 x IR broadband receiver cable (1.5 meters)


• 1 x Male-female serial cable RS- 232 (M/F from 1.5 meters)


• 2 x Mounting brackets


• 1 x Education manual
