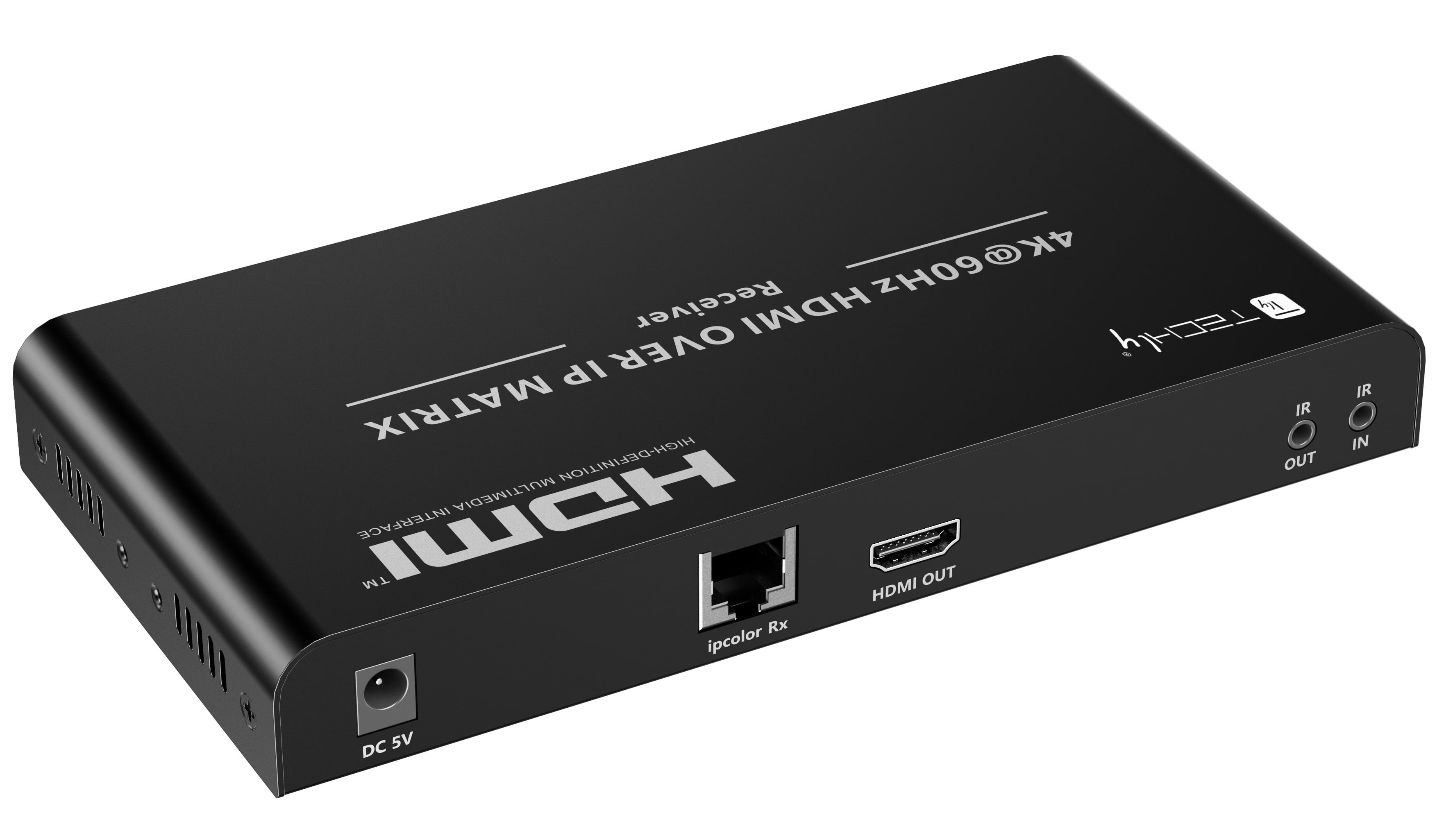

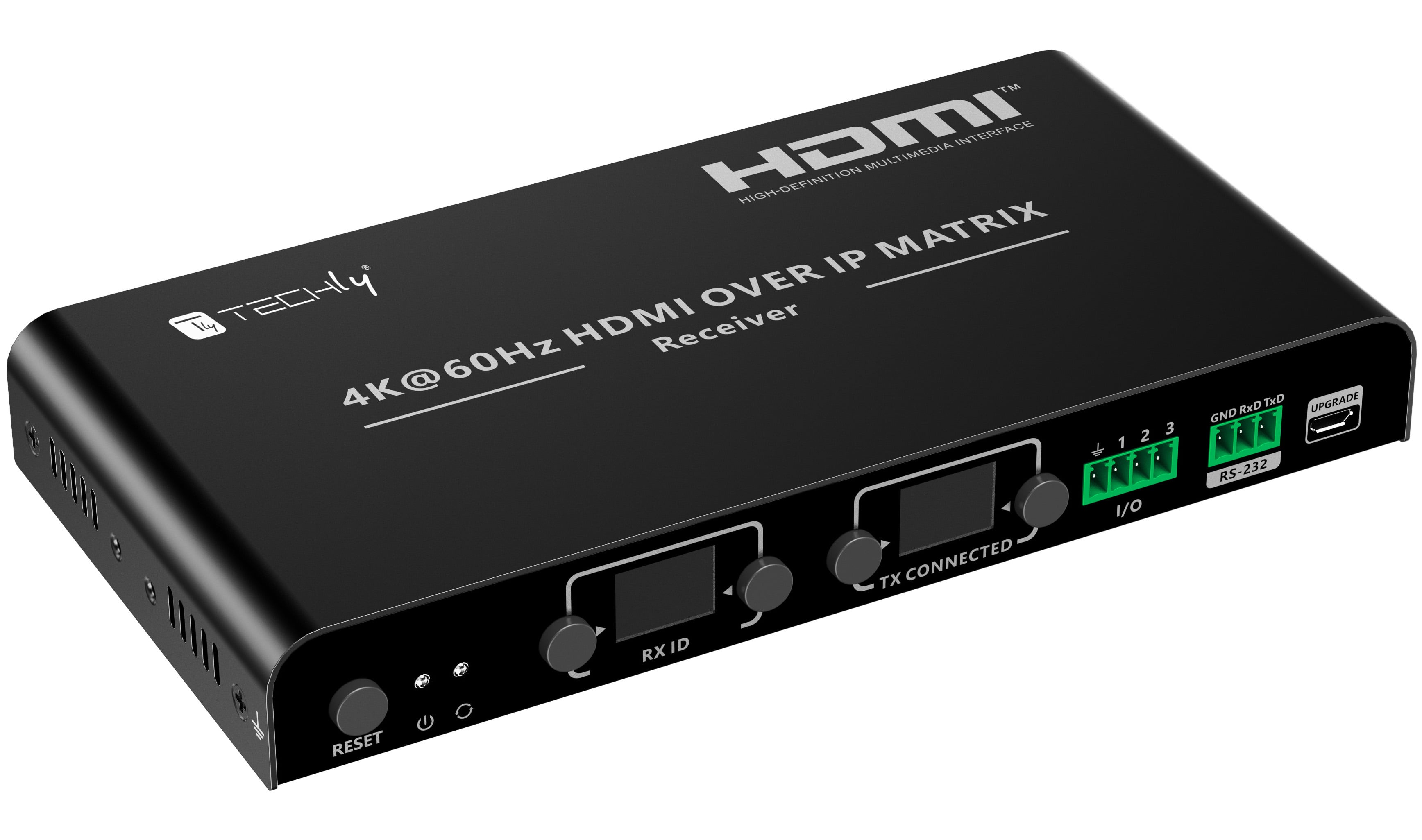

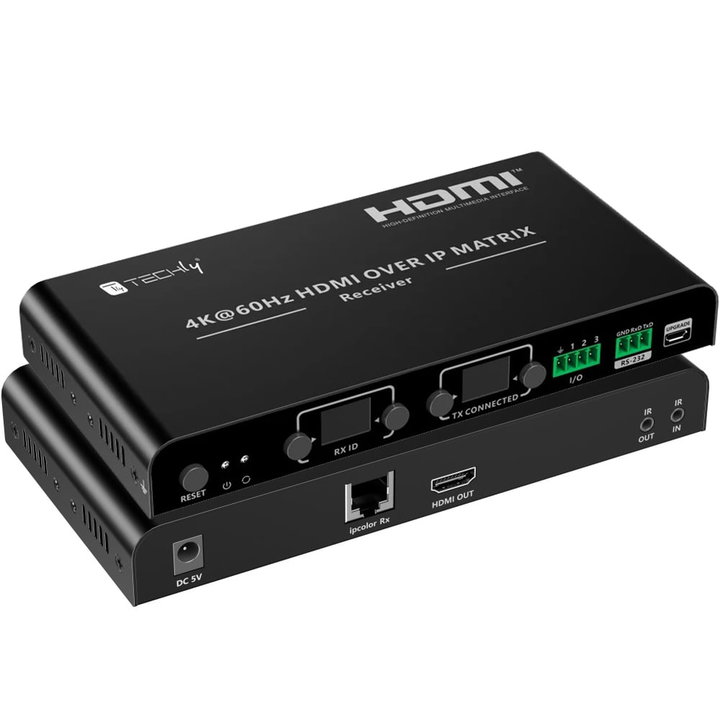

- Receiver for HDMI matrix over IP 4 K@ 60 Hz, able to make switching, extension and distribution of audio and video signals 4 K@ 60 Hz via the IGMP switch
- Based on ipcolor STREAM & trade technology; to provide high definition and low latency transmission
- The transmitter can & grave; extend 100 signal sources and switch to 253 receiver terminals
- The HDMI signal can be extended to 120 meters on network cables of category 6 or higher level, while supporting the one-to-one connection and multi-point connection
- Equipped with loop out HDMI, bidirectional IR passback, RS- 232 control, I/O
- Widely used in audiovisual conferences, transport control centres, radio and television, education and training and other fields
Features- Based on ipcolor STREAM & trade technology; to offer high-definition transmission and low latency
- Supports resolution up to 3840 x 2160 at 60 Hz, backcompatible
- Compatible with Cat 5 / 5 and/ 6 network cables or higher level, the transmission distance of the Cat 6 è cable of 120 meters
- Compatible with HDMI-MX 02 T IDATA transmitter

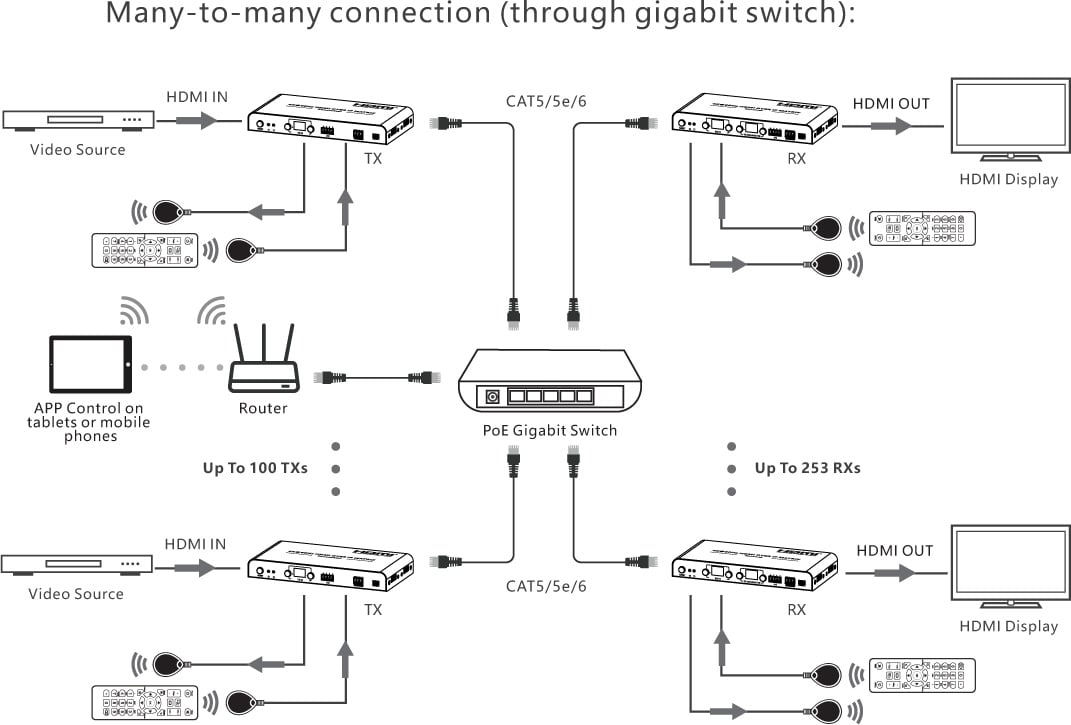

- Supports one-to-one or many-to-many connections via the gigabit switch
- Supports RS- 232 passthrough and control
- The transmitter supports HDMI loop output
- Supports bidirectional IR pass-back (20 .60 KHz)
- Supports I/O interface control
- Supports POE (Power over Ethernet)

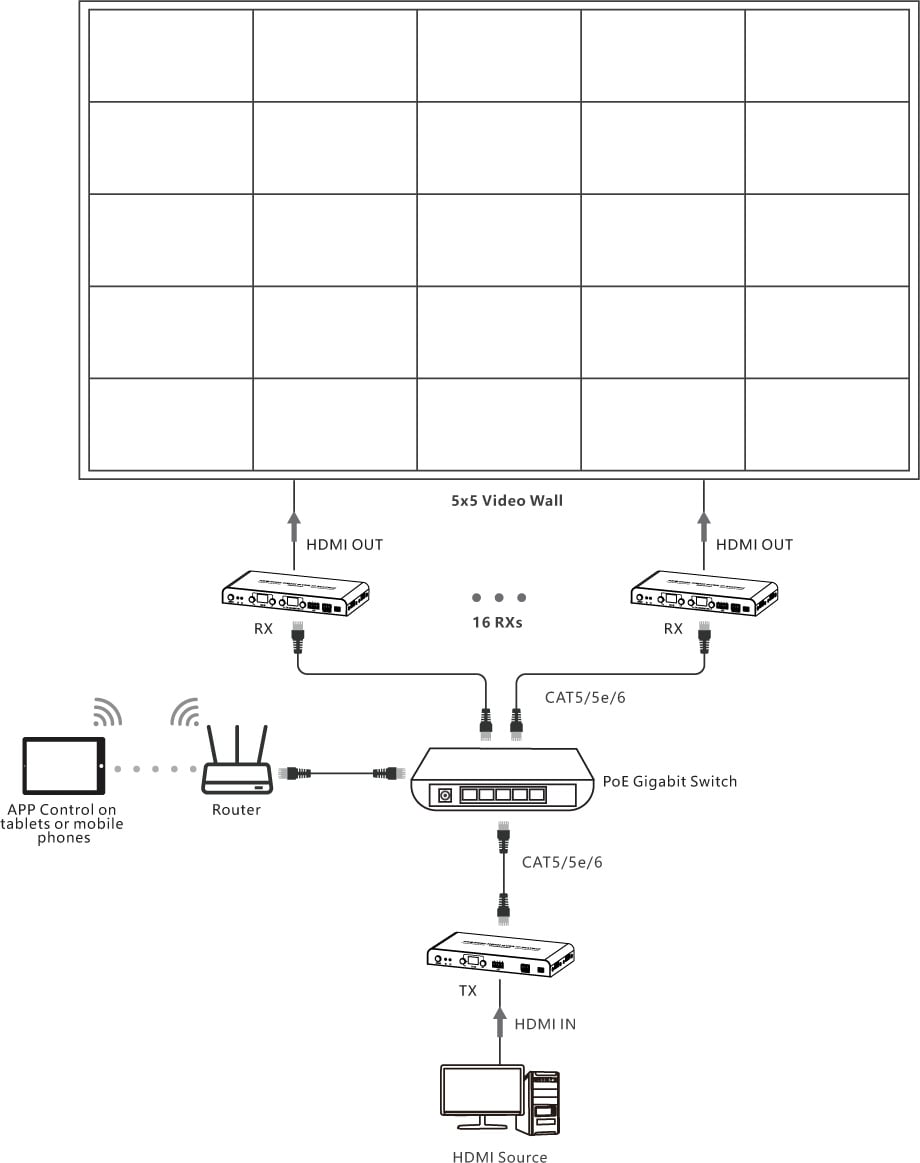

- Multi-screen junction creation with videowall up to 5x5 (also including 1x1 / 1x2 / 1x3 / 1x4 / 1x5 / 2x1 / 2x2 / 2x3 / 2x4 / 2x5 / 3x1 / 3x2 / 3x3 / 3x4 / 3x5 / 4x1 / 4x2 / 4x3 / 4x4 / 4x5 / 5x1 / 5x2 / 5x3 / 5x4 / 5x5) via switch and controlled by APP
- Supports 100 signal source inputs and 253 signal outputs, providing a many-to-many flexible matrix configuration
- Firmware update via Micro USB port
- Lightning protection, overvoltage, ESD protection
- Supports stable operation 24 hours on 24 , 7 days on 7
Technical specifications- Input: 1 xRJ 45
- Output: 1 xHDMI
- HDMI length: < 5 m
- Maximum transfer speed: 18 Gbps
- HDMI 2.0
- HDCP 1.4 /HDCP 2.2
- Supported resolutions: 3840 x 2160 @ 24 / 30 / 50 / 60 Hz, 1080 p@ 50 / 60 Hz, 720 p@ 50 / 60 Hz, 1920 x 1200 @ 60 Hz, 2560 x 1440 @ 60 Hz
- Connection Type:

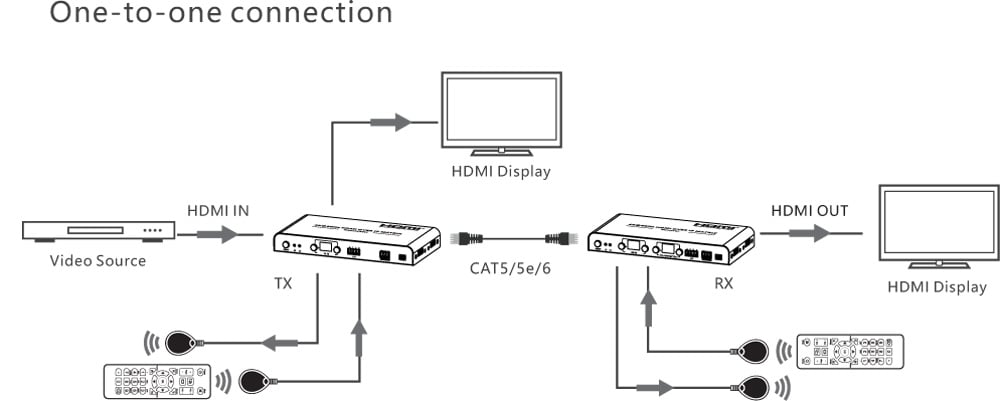

connection one to one
many connection to many

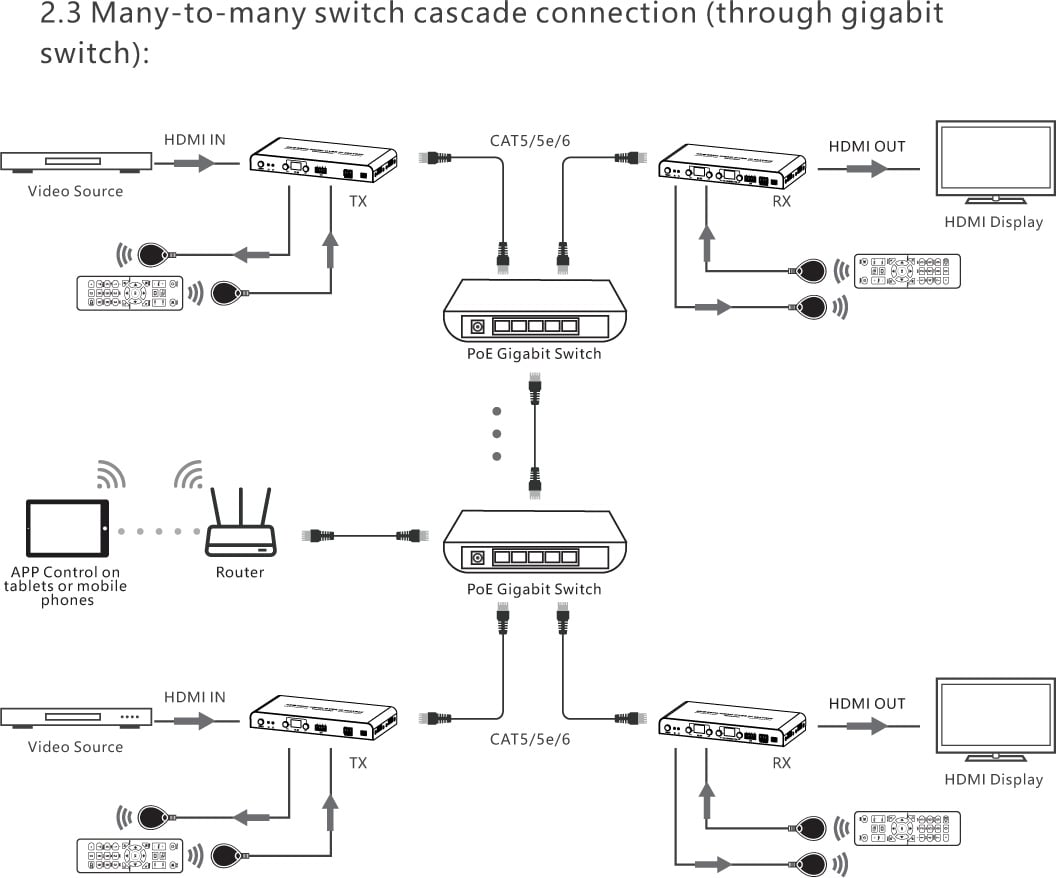

cascade connection
- Transmission distance: CAT 5 80 m / CAT 5 AND 100 m / CAT 6 120 m
- Transmission latency: 70 ~ 180 ms
Command signal1 x IR input from 3,5 mm
1 x IR output from 3,5 mm
- Receiving range IR ≤ 5 m
- IR frequency 20 kHz~ 60 kHz
- RS- 232 (GND/RXD/TXD)
Velocità default transmission: 115200
Supported: 2400 , 4800 , 9600 , 19200 , 38400 , 57600 , 115200
Feeding- DC power supply 5 V/ 2 A
- Power consumption RX ≤ 3,5 W
Protection- ESD protection
- Lightning protection
- Overvoltage protection
Environmental features- Working temperature - 20 °C- 60 °C
- Storage temperature - 30 °C- 70 °C
- Humidità 0 ~ 90 %RH (without condensation)
Dimensions- Width: 191 mm
- Depthà: 96 mm
- Height: 25 mm
Package contents- 1 x HDMI-MX 02 R IDATA Receiver
- 1 x Power supply 5 V/ 2 A
- 1 x IR receiver extension cable
- 1 x Installation kit
- 1x User manual
