KVM USB True 4 K HDMI HDBaseT 3.0 4 K@ 100 m - Aten IDATA CE- 840

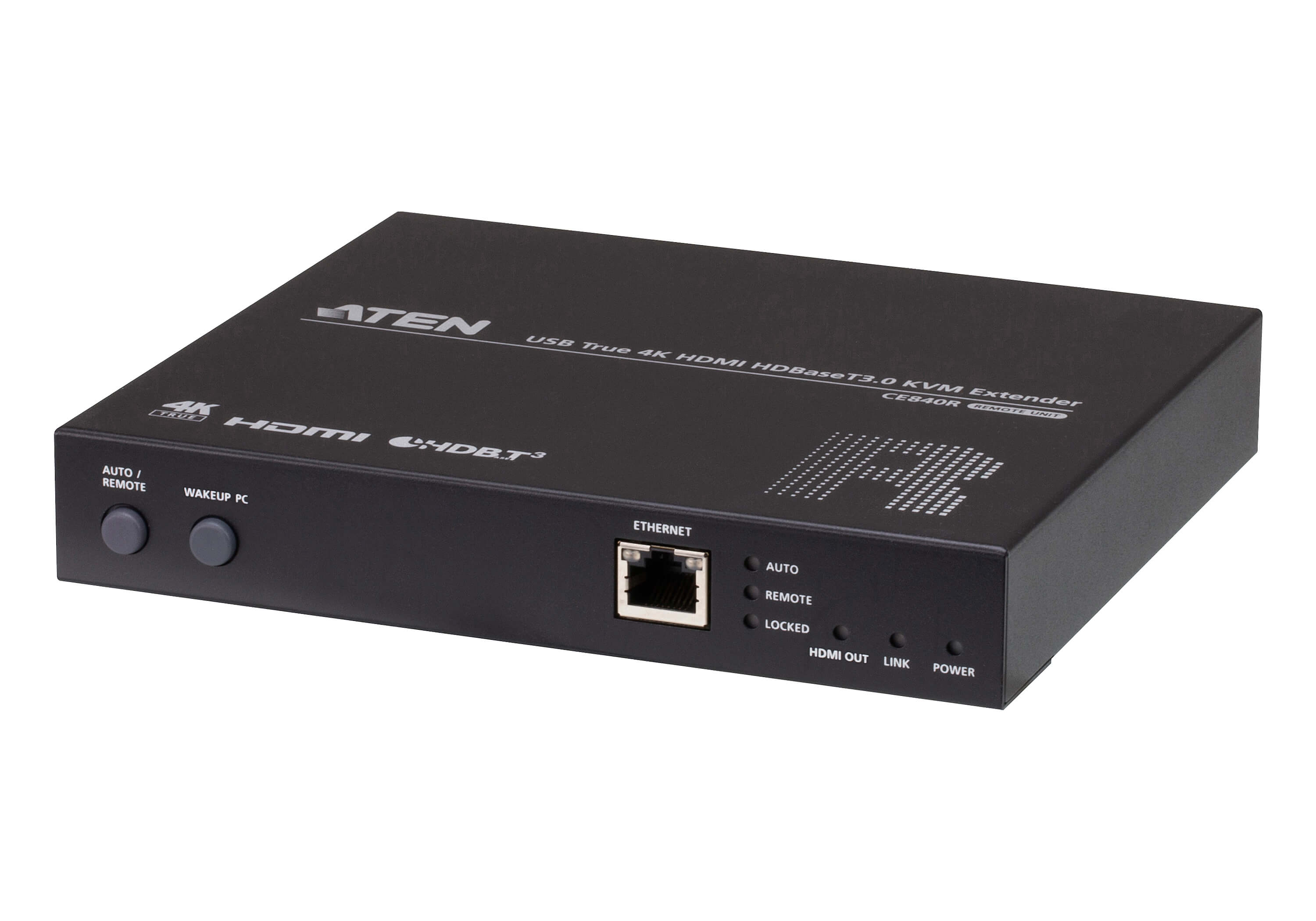

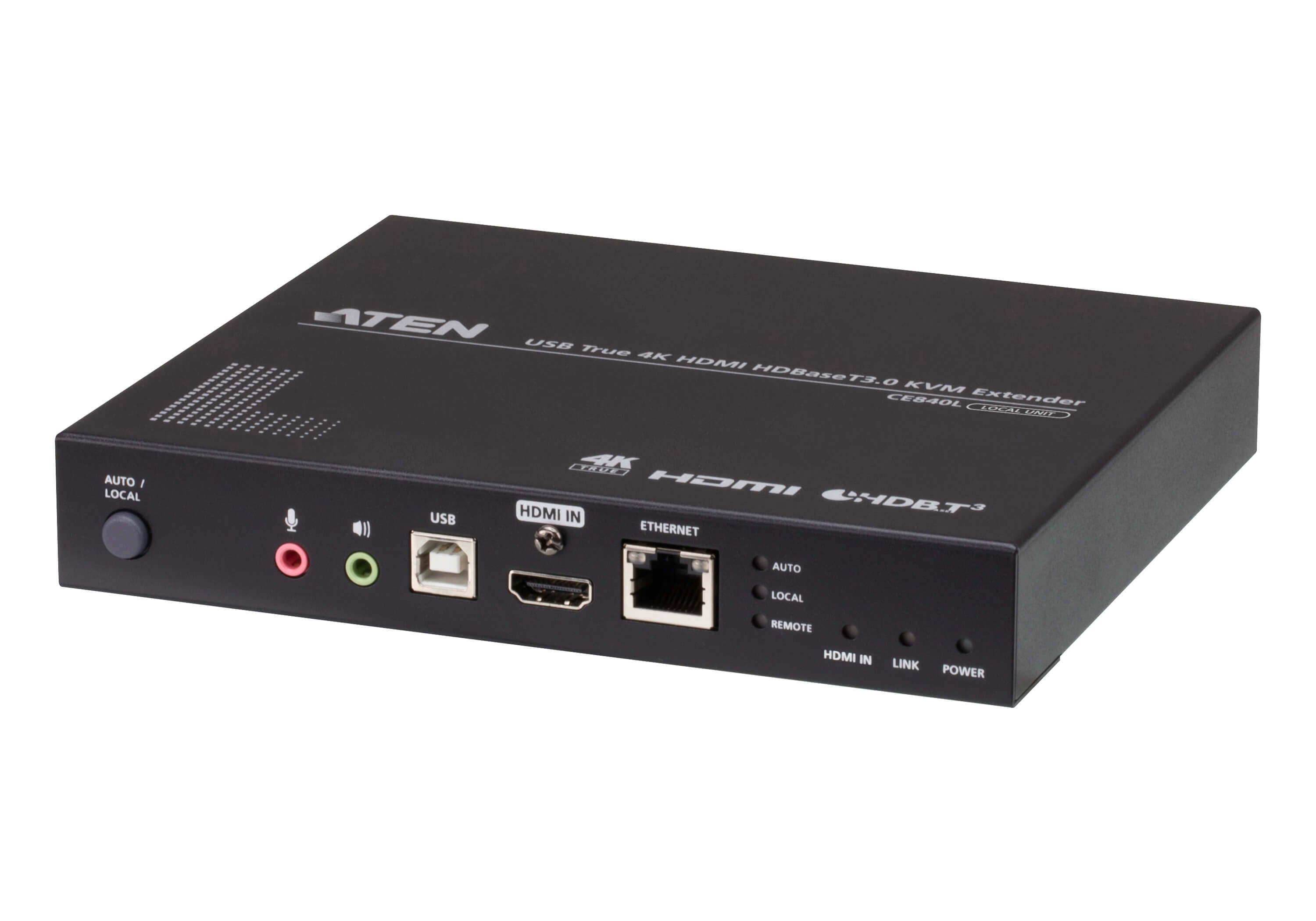

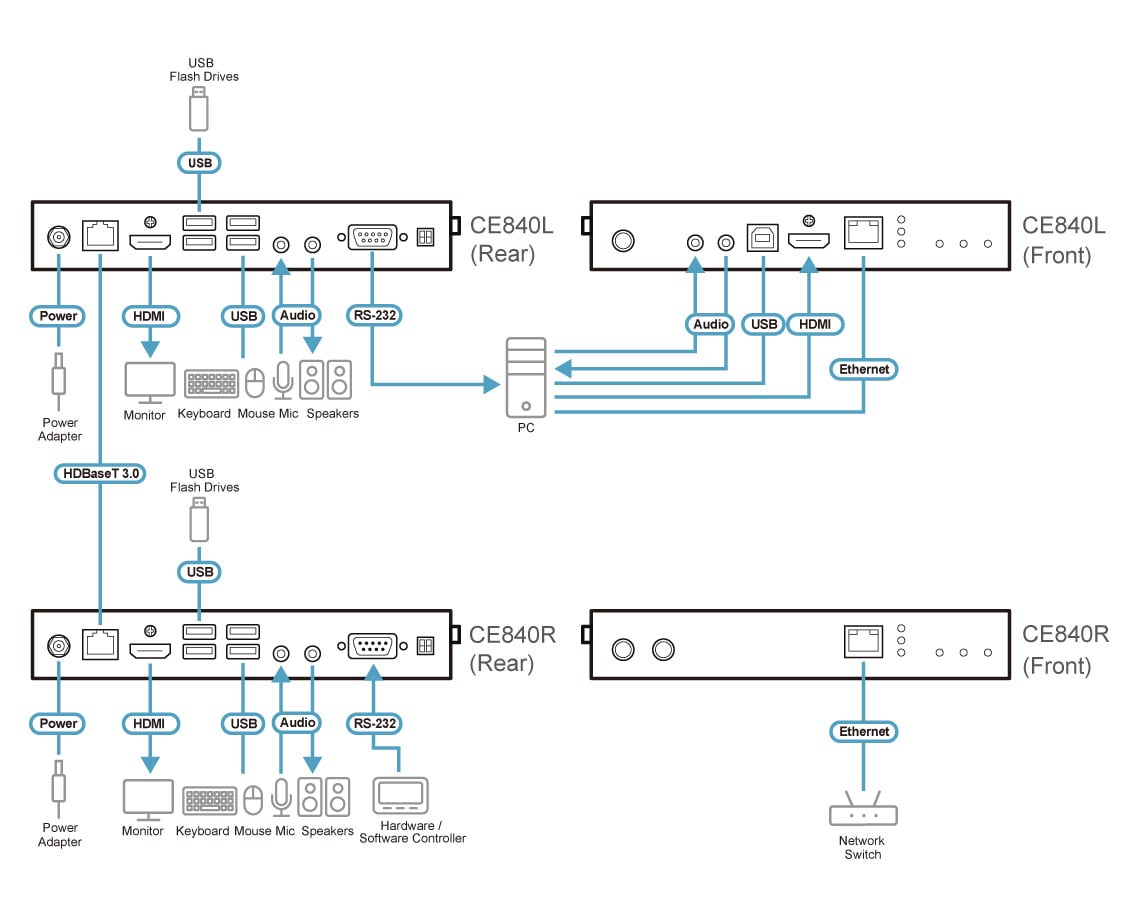

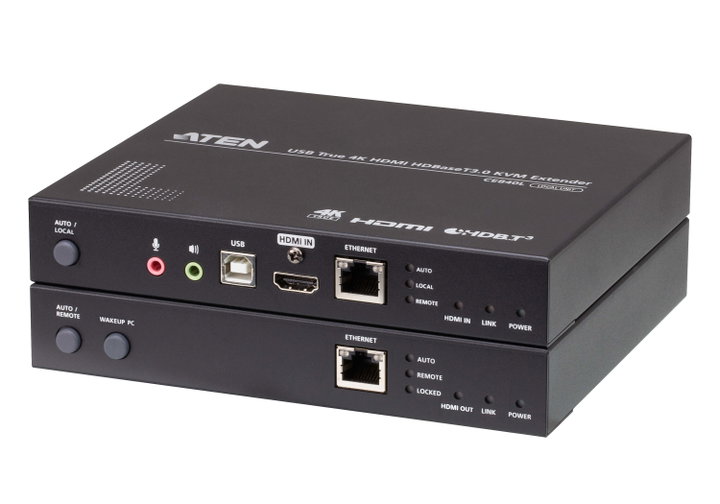

Adopting the latest HDBaseT 3.0 technology, the CE840 USB True 4K HDMI HDBaseT 3.0 KVM Extender consists of a local unit and a remote unit, enabling transmission of True 4K HDMI, audio, RS232, Ethernet and uncompressed USB signals over 100 m via a single Cat 6A cable (recommended ATEN 2L-2920 Cat 6A) or higher. Installation is simple, neat and cost-effective without compromising di alta qualità AV content distribution. The CE840 allows dual-console operation via the two USB ports for connecting USB keyboard and mouse, and buttons, hotkeys for switching between remote and local console. The front panel LEDs indicate the active USB control mode. Additionally, each unit contains an HDMI output port for local control and two USB 2.0 ports for connecting USB peripherals. Consequently, operators can acquire data and manage equipment from a single workstation, even remotely.



IDATA CE- 840 offers excellent AV performance, without compression and zero latency. In addition to support for HDR 10 +, the extender è also capable of transmitting video signals up to True 4 K (3840 x 2160 @ 60 Hz 4 : 4 : 4 and 4096 x 2160 @ 60 Hz 4 : 4 : 4 ) on 100 m. The extender also supports individual stereo audio and HDMI audio formats, including LPCM 7.1 CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio.



IDATA CE-840 è the ideal solution for medium and large applications that require extension of uncompressed AV and control signals and access and remote control, including factories, warehouses, data centers, as well as health and medical applications where precise visualization and accurate representation are essential.



Features

• HDBaseT 3.0 – supports the transmission of True 4 K HDMI signals, audio, RS 232 , Ethernet and USB over a long distance via a single Cat 6 A or higher cable, without compression and with zero latency


• Qualità top video – supports HDR 10 + and video resolutions up to True 4 K (3840 x 2160 @ 60 Hz 4 : 4 : 4 and 4096 x 2160 @ 60 Hz 4 : 4 : 4 ) over 100 m


• Modelità HDBaseT™ long flow up to 1080 P @ 150 m


• Long reach mode switch: switch from modeà HDBaseT™ Standard to long-range mode in an instant


• Dual console operation: system control via keyboard, mouse and USB HDMI monitors installed on both the local and remote console


• Selectable active console via buttons, shortcut keys on the remote unit and local unità - allows control of the USB-based signal from both the remote and the local endà with LEDs indicating the USB control mode


• Flexible extension 4 x USB 2.0; each unit à remote and local contains 2 ports for connection of keyboard and mouse USB and 2 ports for connection of other USB devices


• Supports individual stereo audio and HDMI audio formats, including LPCM 7.1 CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio


• Compatible with HDCP 2.3 and 2.2


• Support widescreen formats


• ESD protection integrated by 8 KV/ 15 KV


• Updated Firmware


• Software or driver installation required è


• Installable on rack

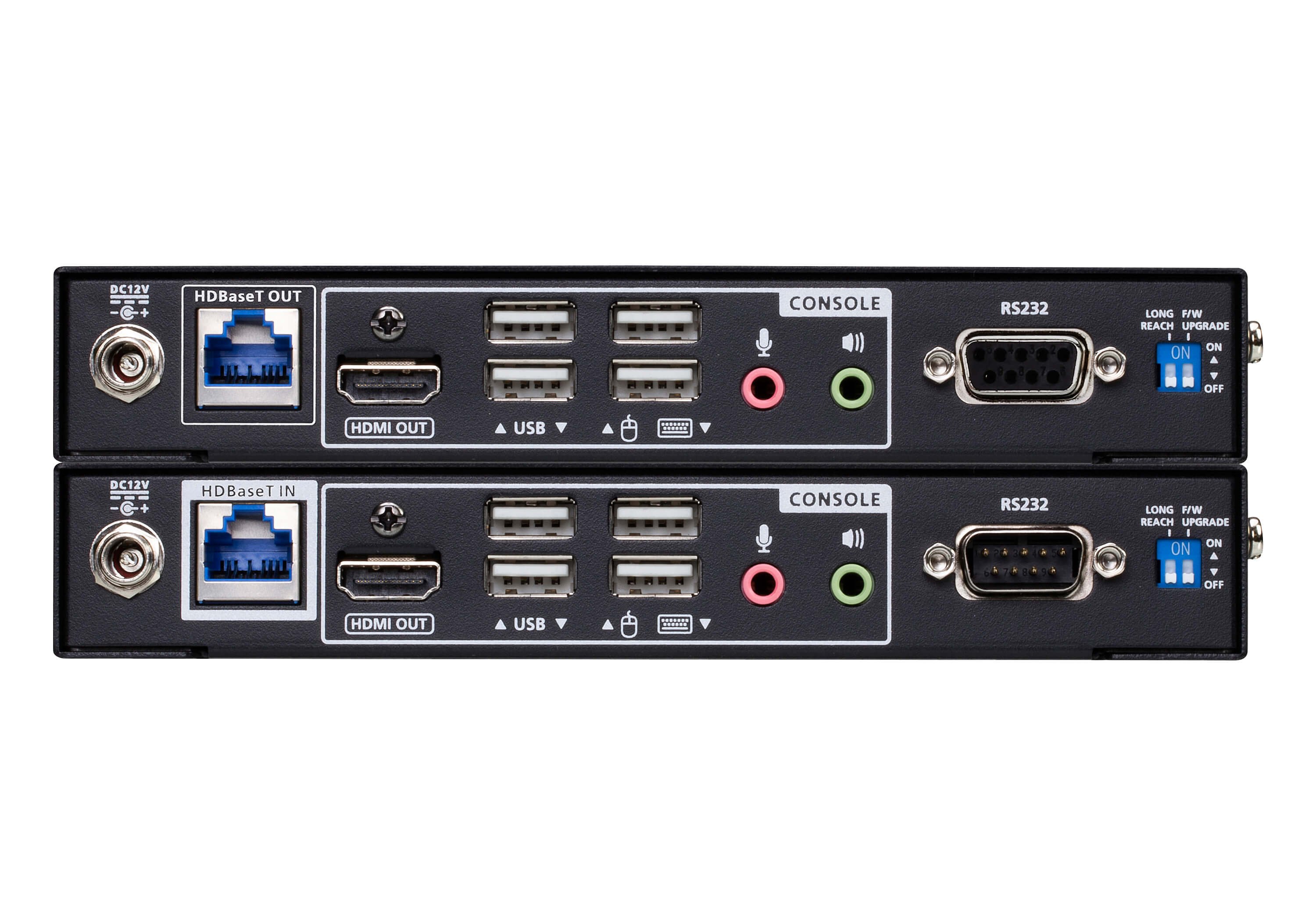

Connectors

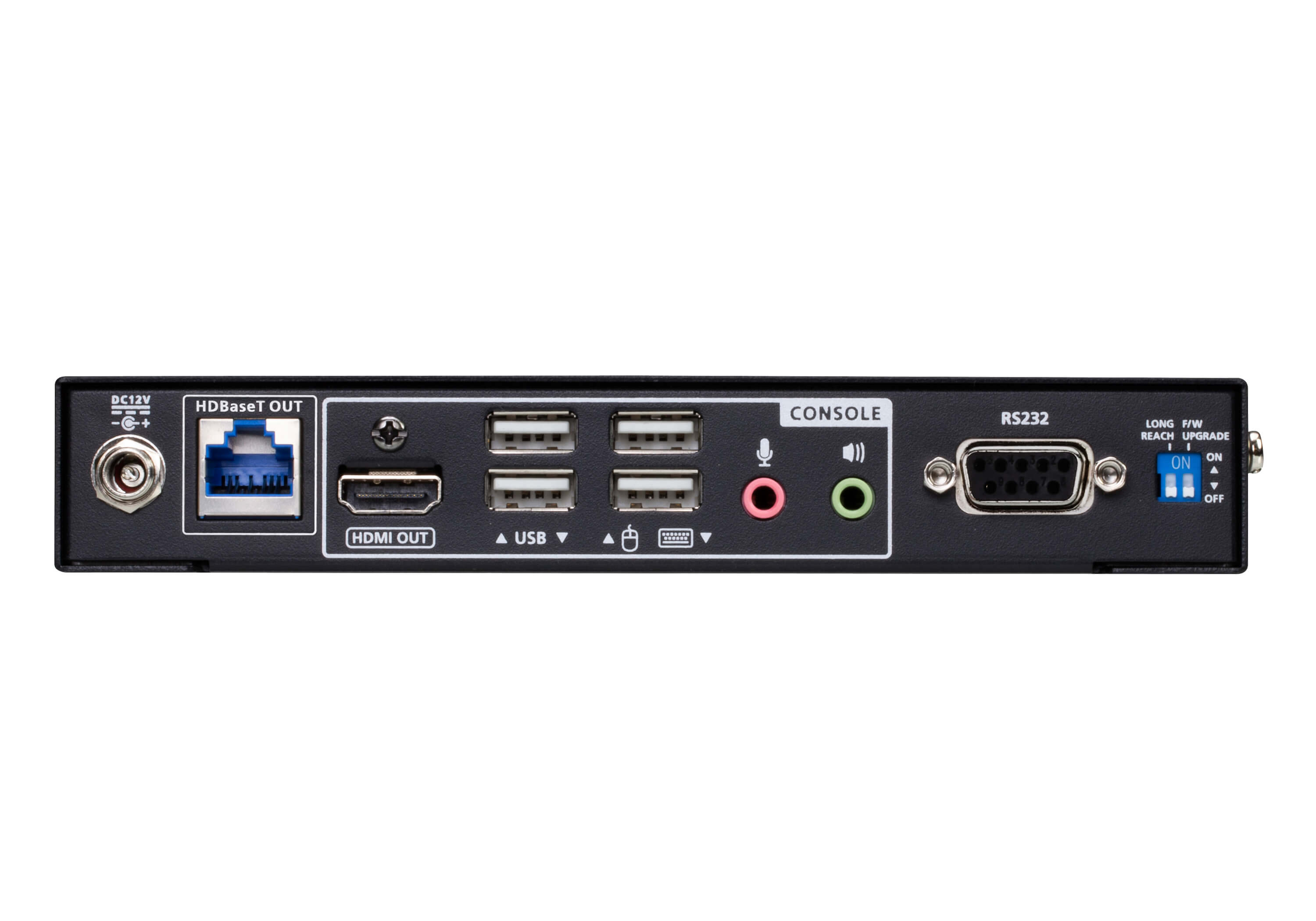

• L console doors:



1 x HDMI (female, black)

4 x USB type A (female, white)

1 x mini stereo jack (female, green)

1 mini stereo jack (female, pink)

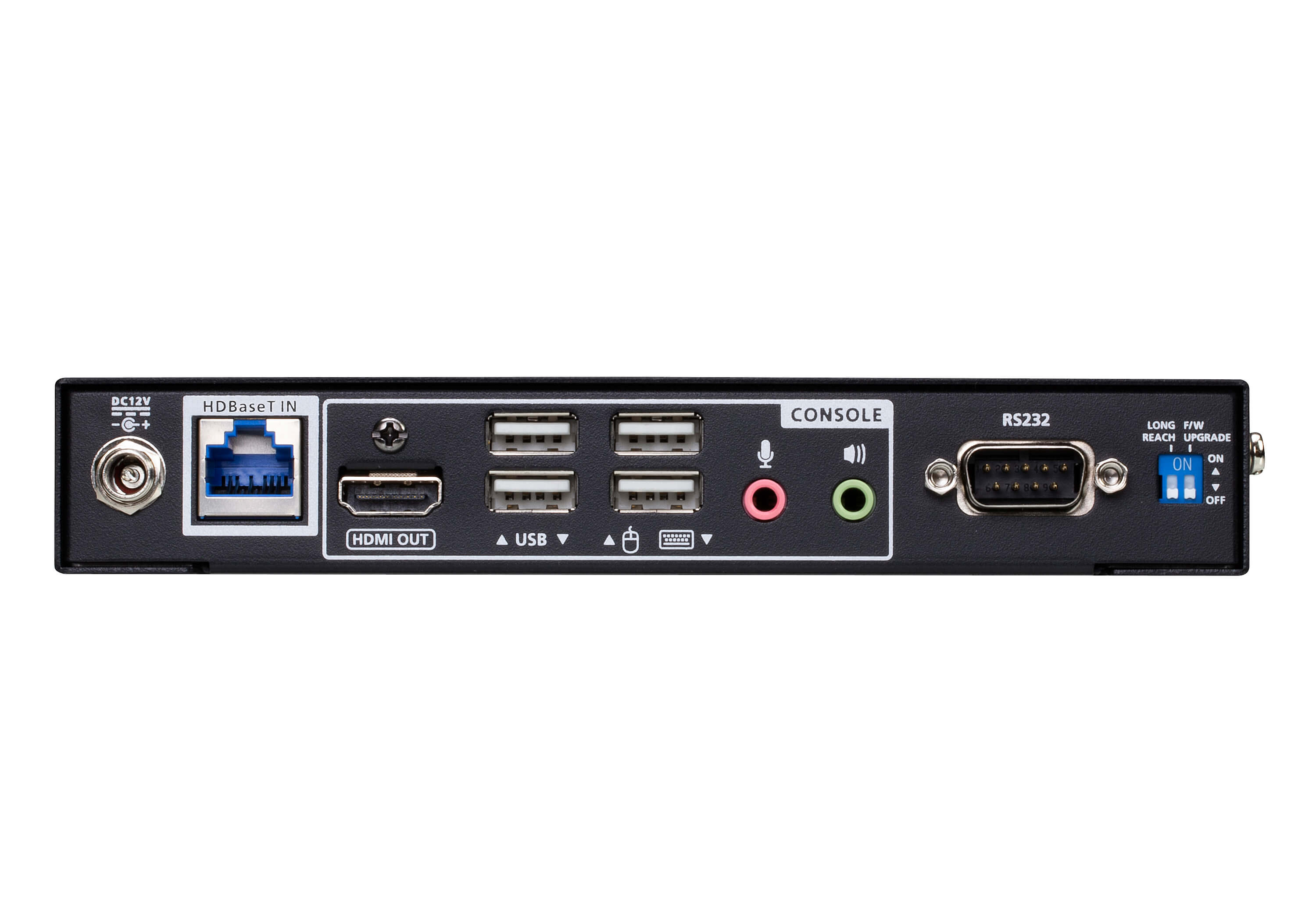

• Console doors R:



1 x HDMI (female, black)

4 x USB type A (female, white)

1 x mini stereo jack (female, green)

1 x mini stereo jack (female, pink)

1 x GbE (RJ- 45 female, black)

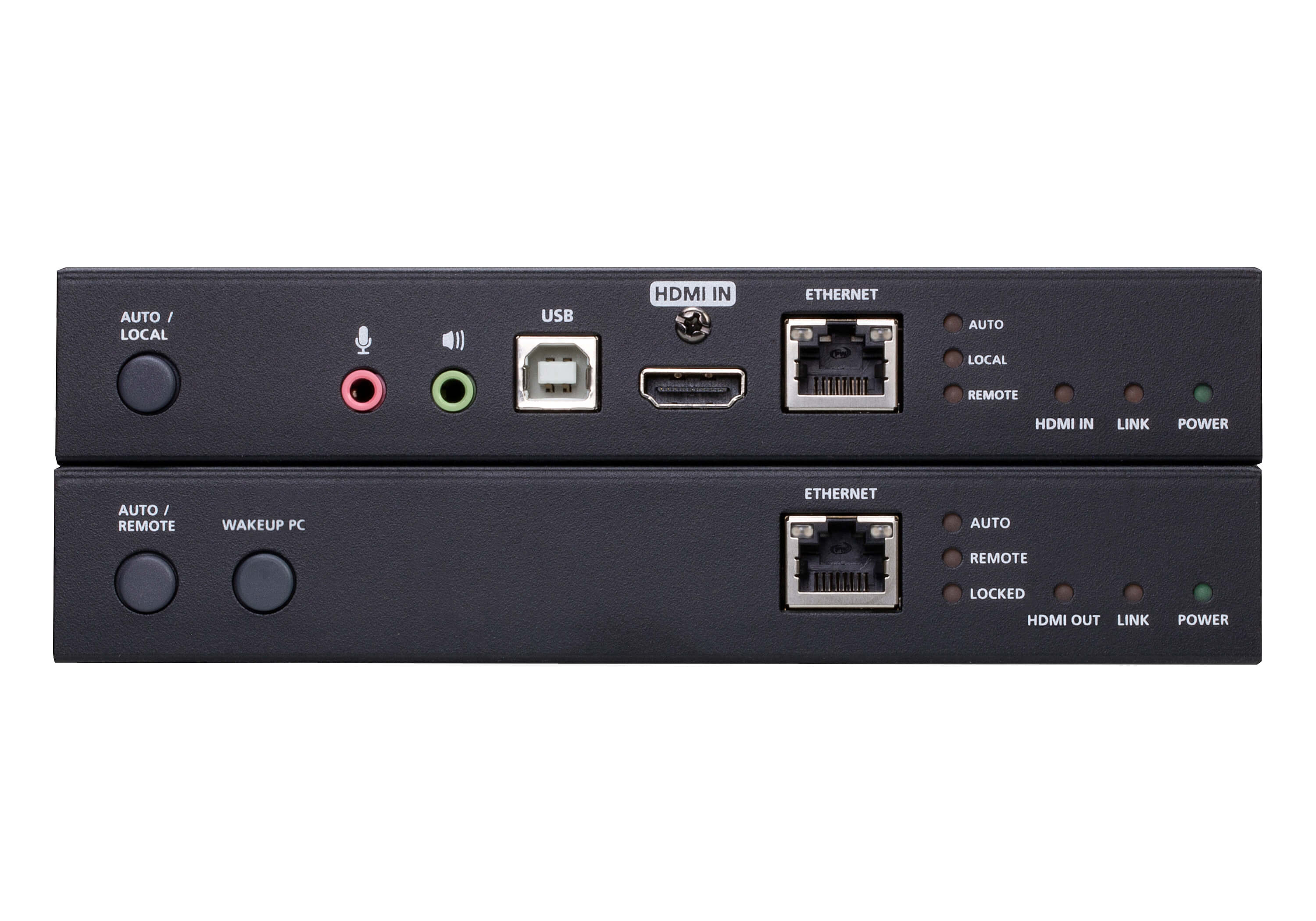

KVM Doors

• 1 x HDMI (female, black)


• 1 x USB type B (female, white)


• 1 x mini stereo jack (female, green)


• 1 x mini stereo jack (female, pink)


• 1 x GbE (RJ- 45 female, black)



Maximum resolution

• 4096 x 2160 @ 60 Hz (4: 4: 4 )


• 3840 x 2160 @ 60 Hz (4: 4: 4 )



Environmental features

• Operating temperature: 0 - 40 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % RH, Without condensation



Dimensions

• Width: 17,82 cm


• Depthà: 15,60 cm


• Height: 2,88 cm



Package contents

• 1 x CE 840 Extender KVM USB True 4 K HDMI HDBaseT 3.0 (unità local)


• 1 x CE 840 Extender KVM USB True 4 K HDMI HDBaseT 3.0 (unità remote)


• 1 x HDMI cable


• 1 x Microphone cable


• 1 x Speaker cable


• 1 x USB Type-A to USB Type-B cable


• 2 x Mounting kit


• 8 x Feet


• 2 x Power supplies and power cables


• 1 x Instructions for use
