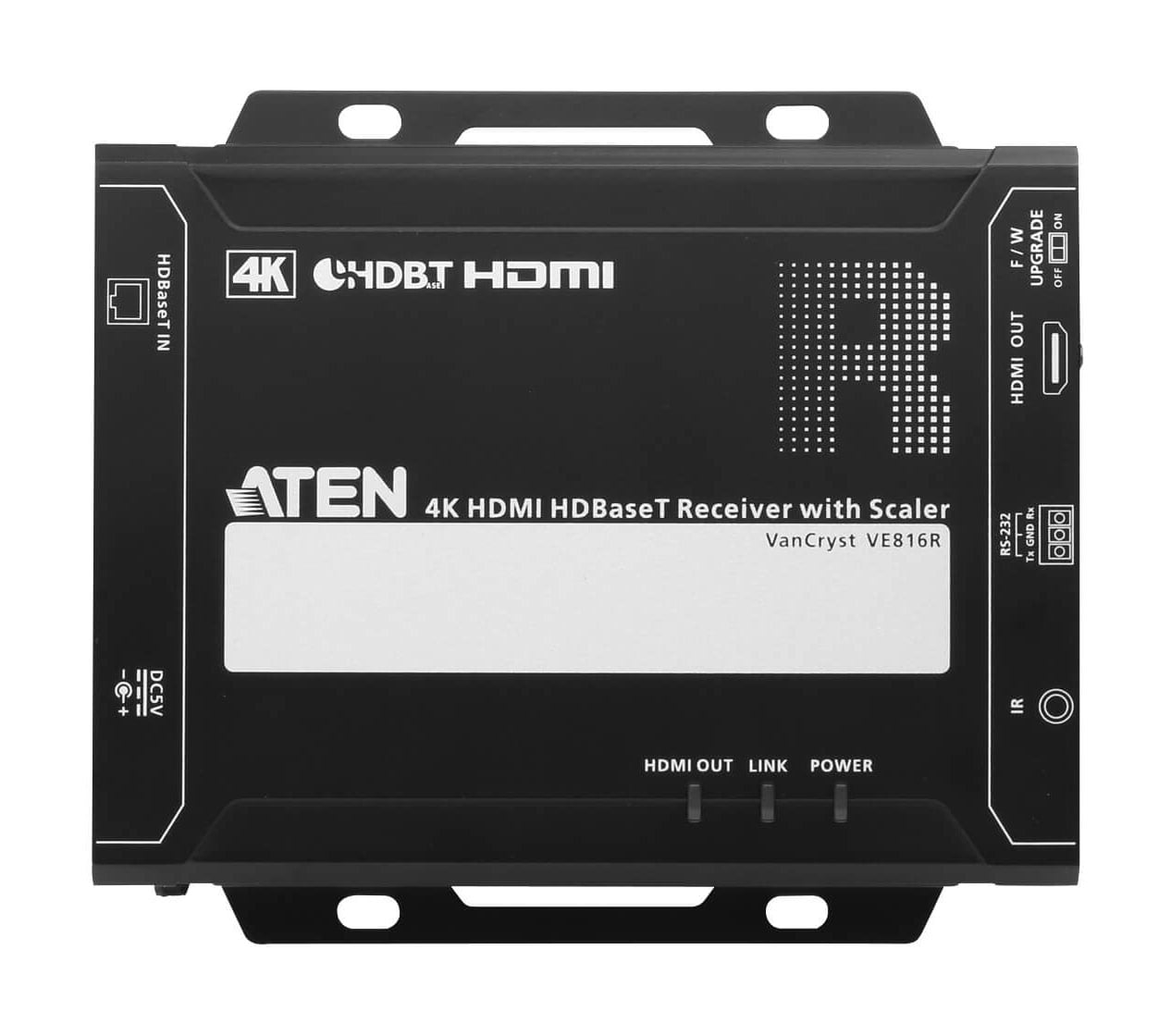

HDBaseT 4 K HDMI receiver with Scaler VE 816 R - Aten IDATA VE- 816 R

This è receiver designed to work with several ATEN HDBaseT matrix switches to extend the 4 K HDMI signals to 100 m via a single Cat 5 and/ 6 / 6 to and, at the same time, scale the videos of different resolutions for optimal viewing. Thanks to the support for the RS- 232 bidirectional channel and the IR signal pass-through, IDATA VE- 816 R offers users a way to remotely control compatible devices. When used with a HDBaseT matrix, it features Frame Sync technologies and Tester qualityà audio to ensure smooth video and an intuitive cable test process.

When used with HDBaseT-Lite HDMI matrix switch or modular matrix switch with HDBaseT output cards, it supports video wall integration and Seamless Switch function, offering users excellent A/V experiences.



Features

• HDBaseT 4 K HDMI receiver with scaler


• Extends HDMI, RS- 232 and IR signals up to 100 m via a single Cat 5 and/ 6/ 6 cable to


• HDCP 2.2 compatible


• Superior video qualityà



- 4 K up to 100 m

- 1080 p up to 150 m

• Modelità long HDBaseT distance, activated by RS- 232 commands, the Modelità long distance extends signals up to 150 m, 1080 p, via a single Cat 5 and/ 6 cable


• Scaler, scale videos of different resolutions to its optimal output for viewing and avoid black screen*


• Video wall, has video wall profiles that allow you to customize the layouts of the screen through an intuitive web graphic interface**


• Seamless Switch & trade; allows fast switching (close to zero seconds), continuous video transmissions, real-time switching and stable signal transmissions**


• HDBaseT Anti-blocking, resists signal interference during video transmission with high quality through HDBaseT technology


• Two-way RS- 232 channel allows control through serial terminals or serial devices, e.g. touch screens and barcode scanners


• Two-way IR channel, IR transmission is processed in one direction at a time***


• Tester quality à cable, examines the quality à of the cable category by detecting the signal level from HDBaseT matrix switches to VE 816 R.


• FrameSync, avoids the presence of little sharp images by synchronizing the output camera frequency of the scaler with the frame frequency of the input signal


• Remote firmware update


• Integrated ESD protection 8 KV/15 KV


• Plug-and-play


• Mountable on rack



• Notes:



* Videos may not be displayed in the range when è enabled Seamless Switch™ or Video Parades, in this case adjust device display settings.

** The functionality à Seamless Switch™ and video wall are available when the è receiver used with ATEN HDBaseT matrix. For more information, see the compatibility list below

*** Supports full IR frequency signals from 30 KHz to 56 KHz.



Technical specifications

• Video output:



- Interfaces: 1 x HDMI type A female (black)

- Impediences: 100 Ohm

- Max. distance: up to 10 m

• Video:



- Max. frequency of data: 10,2 Gbps (3,40 Gbps per wool)

- Pixel clock max.: 340 MHz

- Conformityà: HDMI (3 D, 4 K, Deep Color), HDCP compatible, HDBaseT compatible

- Maximum resolution/distance: Up to 4 K to 70 m (Cat 5 and/ 6) / 100 m (Cat 6 a/ 6); 1080 p a 100 m (Cat 5 and/ 6 / 6 a)

- * 4 K supported: 4096 x 2160 / 3840 x 2160 at 60 Hz (4: 2: 0 ) and 4096 x 2160 / 3840 x 2160 at 30 Hz (4: 4: 4 )

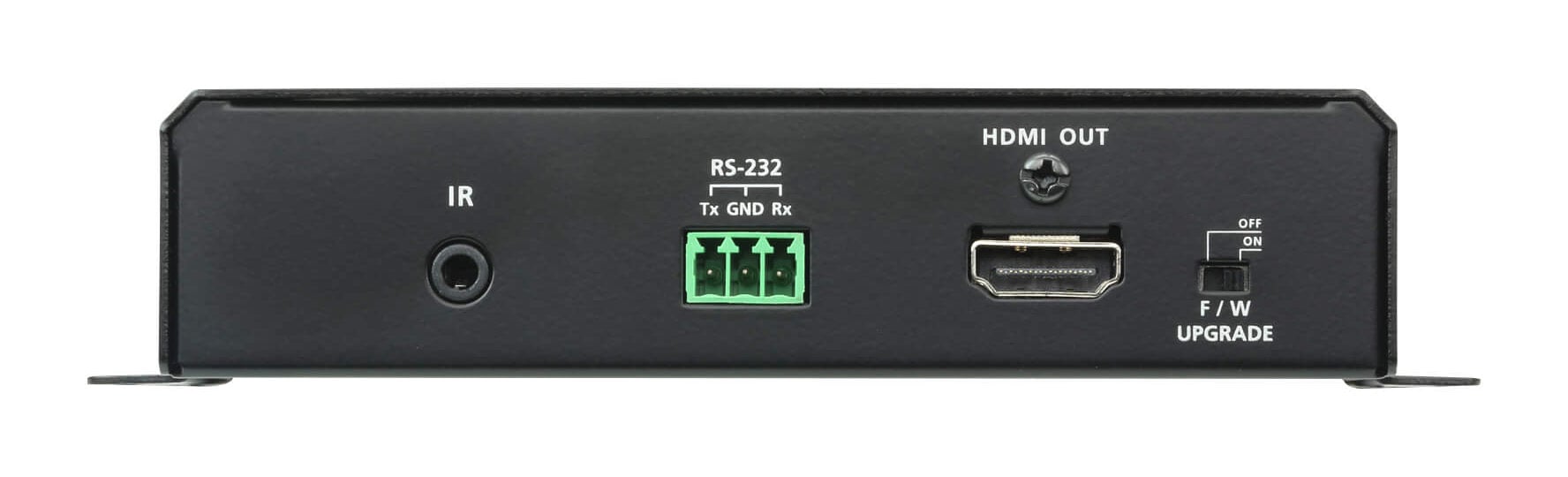

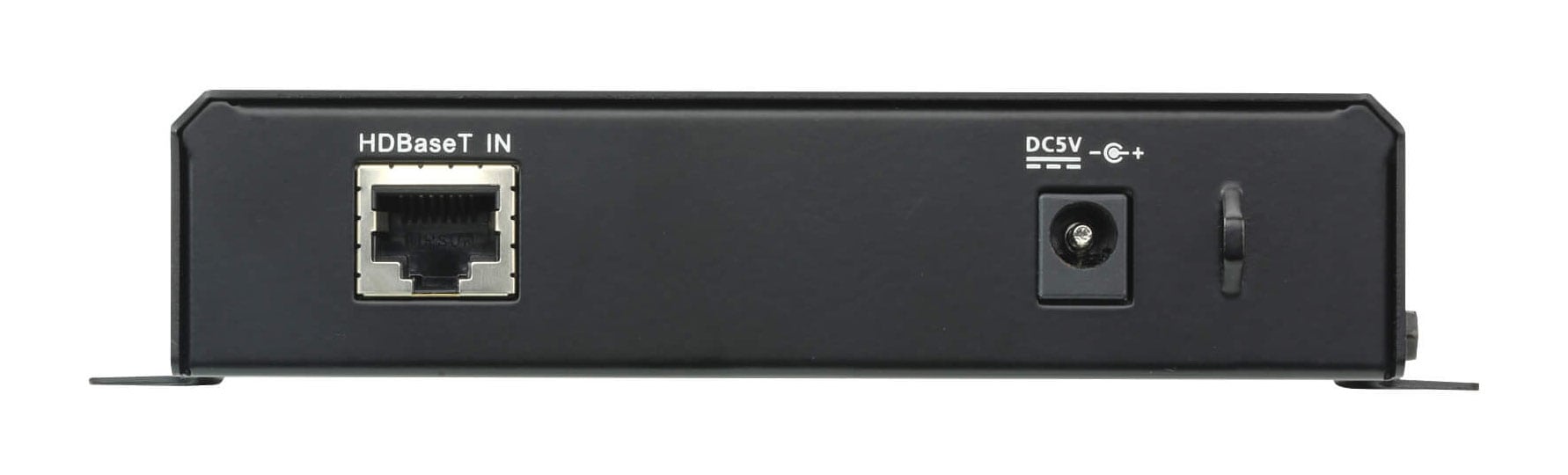

• Connectors:



- Unità a Unità: 1 x RJ- 45 female

- Power supply: 1 x DC connector (silver)

• Control:



- IR channel: 1 x female mini stereo connector (black)

- RS- 232 channel: 1 x Terminal block, 3 poles (green)

• Switches:



- Firmware update: 1 x Sliding support

• Consumption:



- DC 5 V: 9.09 W: 28 BTU

• Environmental information:



- Operating temperature: 0 - 40 °C

- Storage temperature: - 20 - 60 °C

- Humidità: 0 - 80 % relative humidity, without condensation

• Proprietà physical:



- Structure: Metal

- Weight: 0.67 kg

- Dimensions (L x L x A) with bracket: 16.80 x 14.69 x 3.00 cm

- Dimensions (L x L x A) without bracket: 16.60 x 12.49 x 2.90 cm



Package contents

• 1 x HDBaseT receiver 4 K HDMI with Scaler VE 816 R


• 1 x IR transmitter


• 1 x IR receiver


• 1 x terminal block


• 1 x power adapter


• 1 x user instructions
