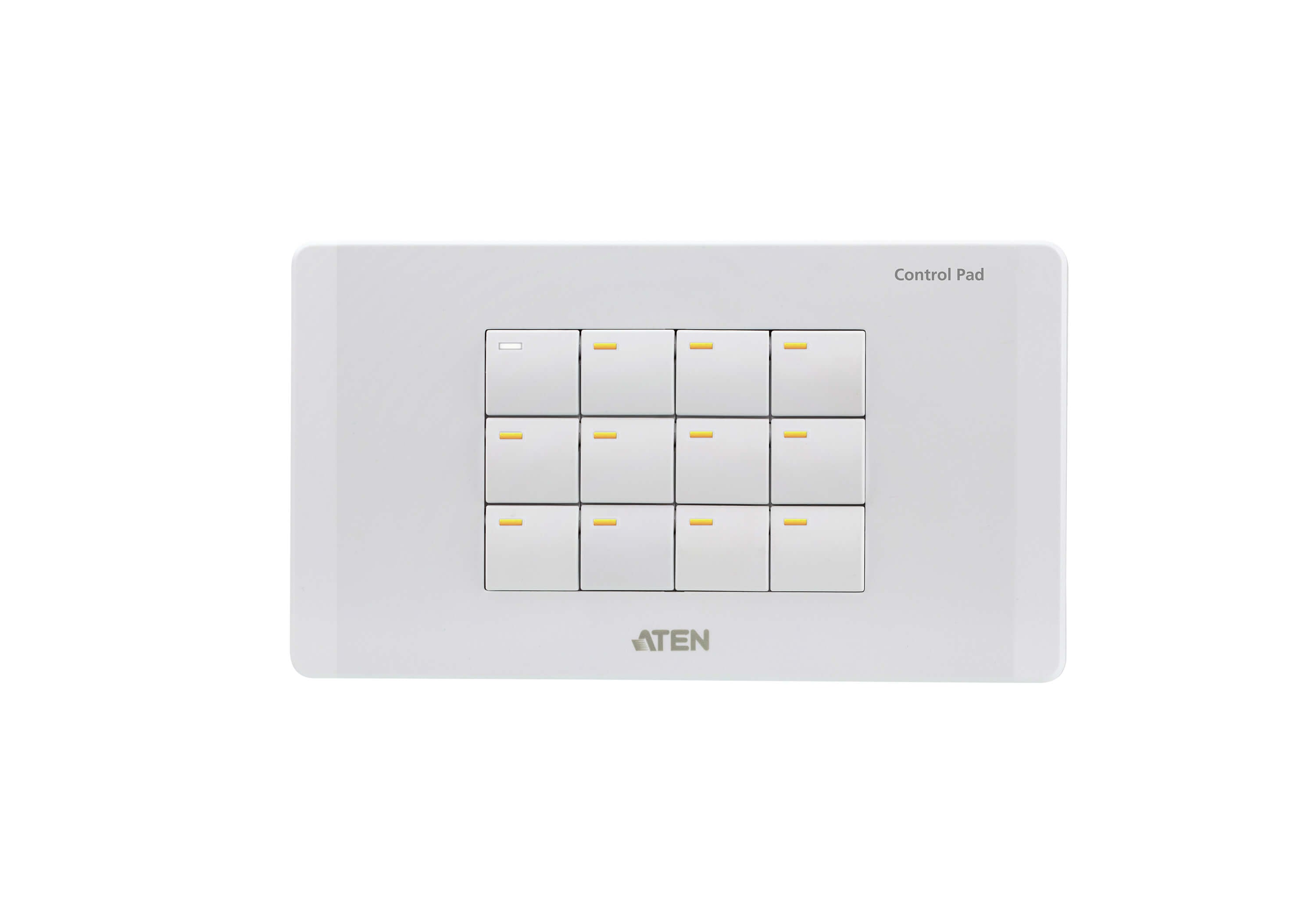

ATEN control system: 12 control pad buttons - ATEN IDATA VK- 0200

The VK 0200 è a 12 control pad fully customizable buttons that integrates a controller with a keypad for an all-in-one solution. Suitable for small/medium meeting rooms or classroom control, the VK 0200 offers a ready-to-use solution that makes it easy to connect devices, configurations through the intuitive VK 6000 configurator software, and flexible customization of keyboard button functions and layout to meet different applications.



The ATEN è control system is a management system based on Ethernet that allows you to connect all hardware devices in the room to get a centralized control. The control pad VK 0200 not only plays the role of main controller that allows you to connect hardware devices, but also acts as a control interface with buttons and layouts customizable. Created keeping in mind the flexibilityà, the control pad can ò be placed in 125 different combinations from 6 to 12 buttons that hook up with each other with the simple Lego. Through the connection to the local network, users can use the VK 6000 software without any problem to configure the desired control of any device connected by the control pad. With the combined control pad easy to use, you have a control easy to use, you have a control Instant and intelligent structures from a control pad can handle any device in the room.



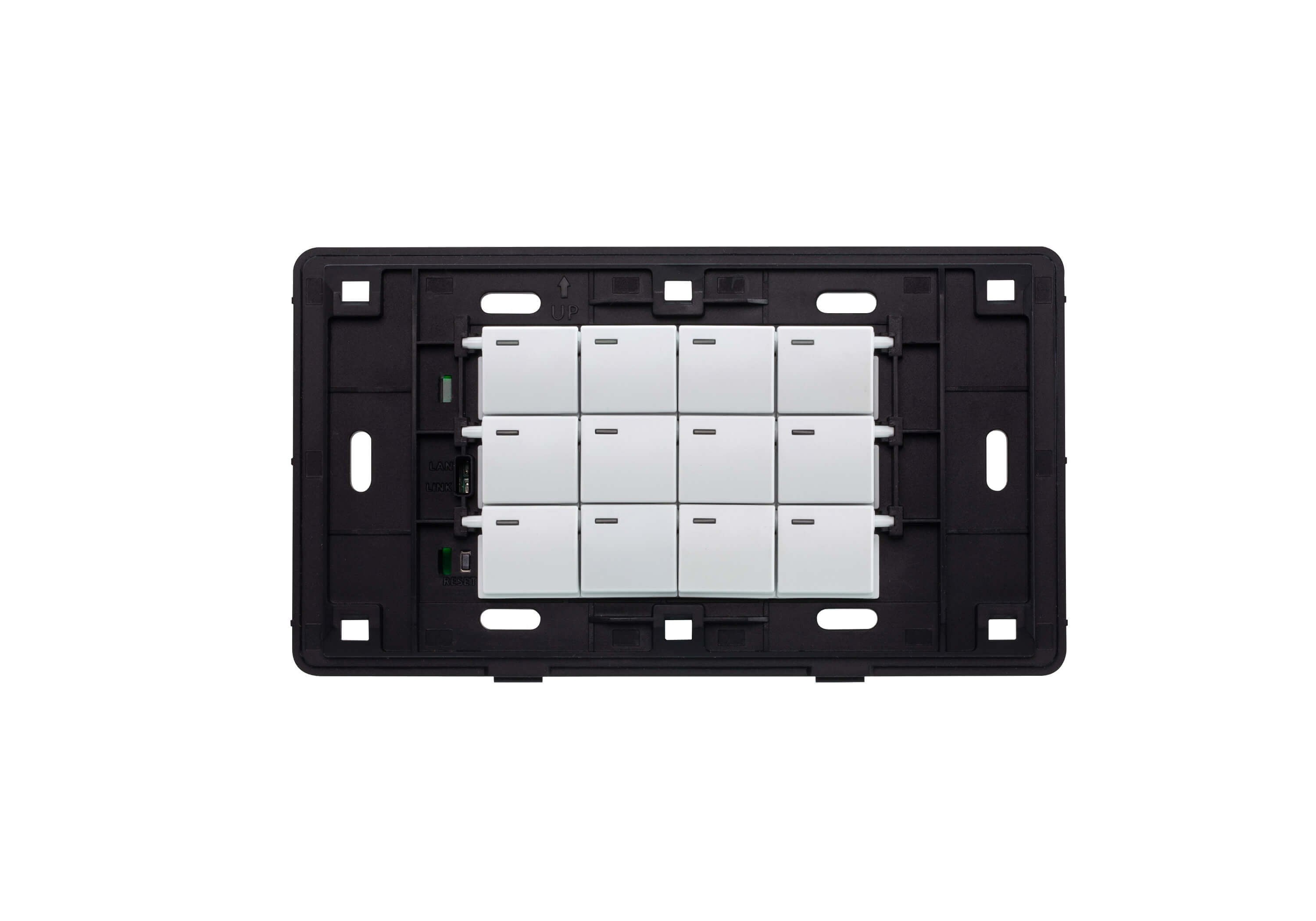

Control Pad VK 0200

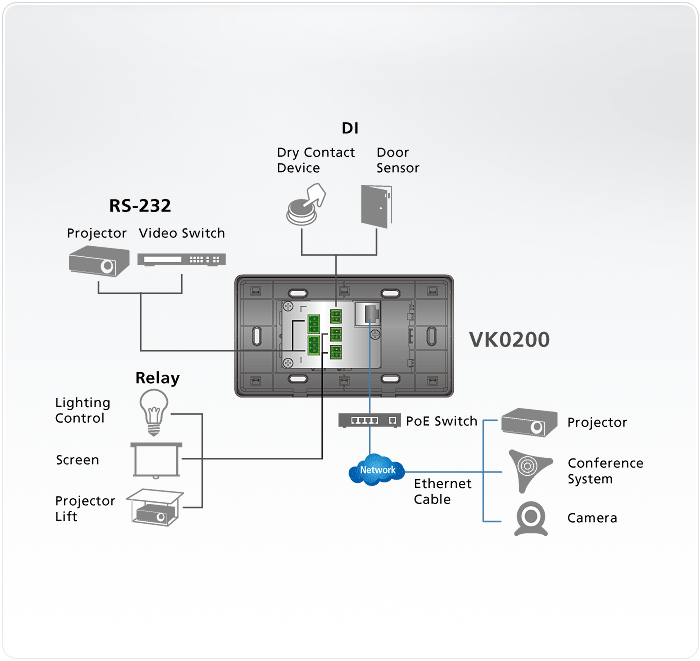

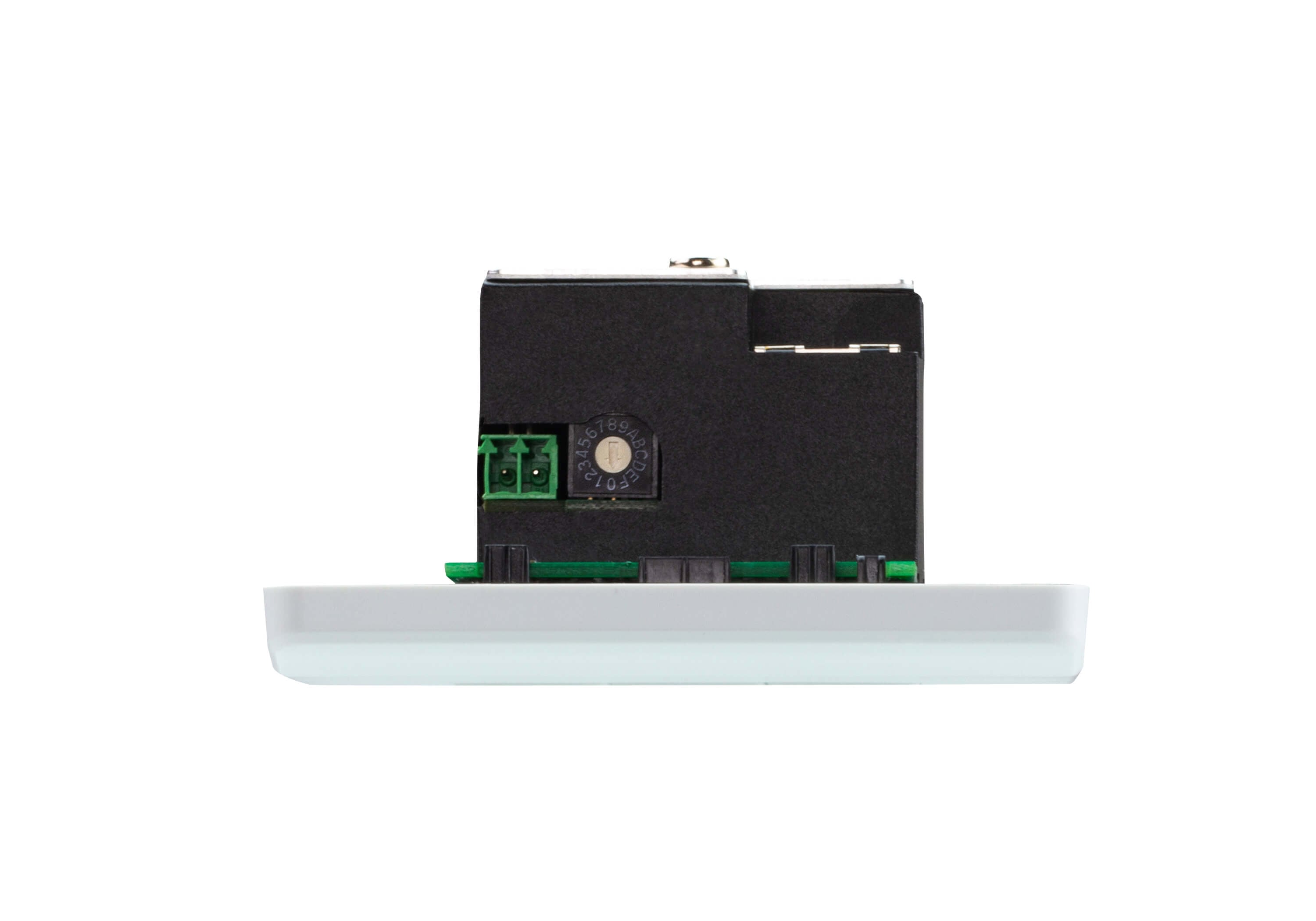

• Supports connection of different interfaces:



- 2 RS- 232 doors

- 2 relay channels;

- 1 digital input channel

- 1 port Ethernet

• Designed for mounting in EU type junction boxes and MK type to 2 bands

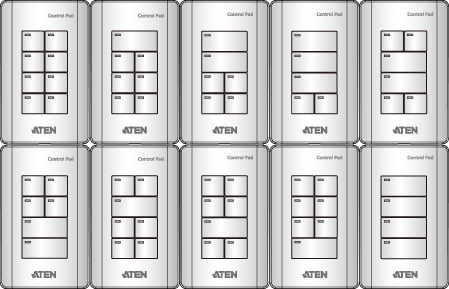

• Fully customizable with 125 layout combinations from 6 to 12 buttons


• Supports native IP KNX for creating management systems


• Telnet, TCP, UDP, HTTP, HTTPS, ONVIF, and PJLink


• Supports backup of 1 project files


• Web user interface for simplified system configuration


• Supports SSH communication for 2 data monitoring


• Connection LED indication and hardware status


• Two-colour LEDs for display in dark environments


• Redundant power supplies: Power over Ethernet and CC 5 V (optional)


• Custom Button Engraving Service



Software configurator VK 6000

• Easy profile setting through configuration steps using a graphical user interface


• Customizable user interface for use on mobile devices and PC 3


• Supports ControlAssist that allows 4 PC control


• Integrated database generator for device driver setting and global device management


• Integrated ATEN library that includes over 10.000 + device drivers and complete drivers for ATEN VanCryst products


• Two-way communication that allows monitoring of user-defined events and automatic activation of subsequent actions


• Test tool for checking commands in action before loading profile to the control pad VK 0200



Note:

1 . Each ATEN è control box can back up a project file.

2 . The SSH protocol can be used for monitoring the reception/transmission of the control pad data.

3 . Further licenses necessary for mobile control.

4 . For details on supported PC control actions, refer to the User Manual of the ATEN Control System.

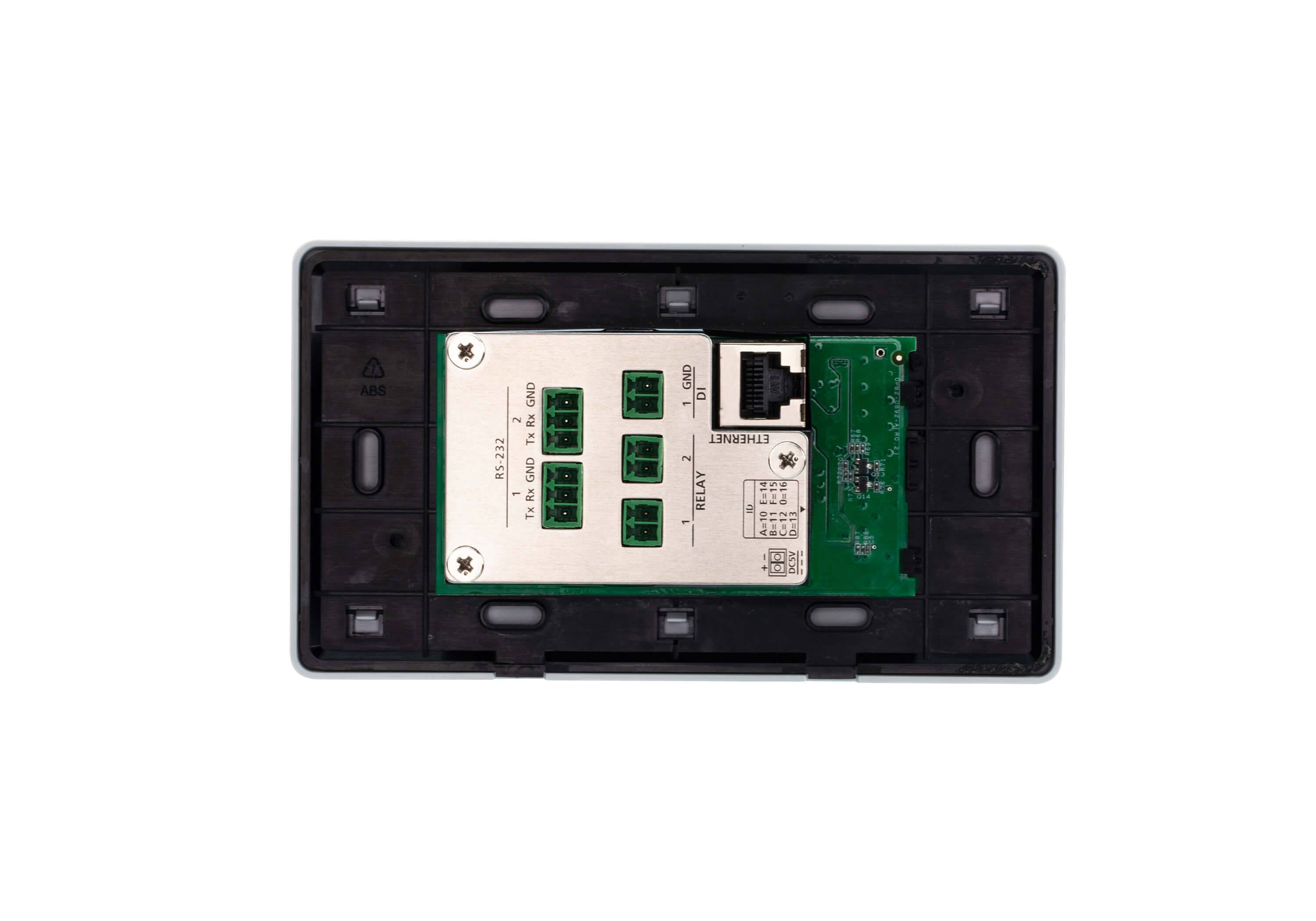

Interfaces

• Keyboard Layout



From 6 to 12 buttons customizable in 125 layout keypad

• Serial 



2 x Two-way ports RS- 232

(2 x 3 pole terminal block connectors);

– Velocità in baud: from 300 to 115200 (default: 9600);

– Data Bit: 8 (default) or 7;

– Stop Bit: 1 (default) or 2;

– Parità: None (default), equal or odd

• Relè 



- 2 x relay channels; (2 x 2 pole terminal block connectors);

- Normally open, relay; isolated;

- Current contact value: 24 V CC, 1 A maximum

• I/O 



- 1 x digital input channel

(1 x 2 pole terminal block connectors);

– Modelità VCC

Input voltage range: from 0 to 5 V DC;

Programmable range: from 1 to 5 V CC;

– Modelità dry contact

Load resistance 2 k ohm a + 5 V CC

• Ethernet 



- 1 x RJ- 45 female, 10 / 100 Base-T

- Supported protocol: ARP, ICMP, TCP/IP, DHCP, HTTPS, SSH

- DHCP activated. The following default IP settings will be used if no IP is assigned within 30 seconds:

IP: 192.168 . 0.60

Subnet mask: 255.255 . 255.0



Consumption 

• 5 V CC, 1,15 W, 5 BTU


• 48 V CC, 1,44 W, 7 BTU



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Dimensions

• Width: 8,32 cm


• Depthà: 14,76 cm


• Height: 4,84 cm



Package contents

• 1 x Control pad 12 buttons VK 0200


• 1 x button pack


• 6 x terminal blocks


• 1 x 0 X 12 - 0078 - 100 G plate


• 1x User instructions
