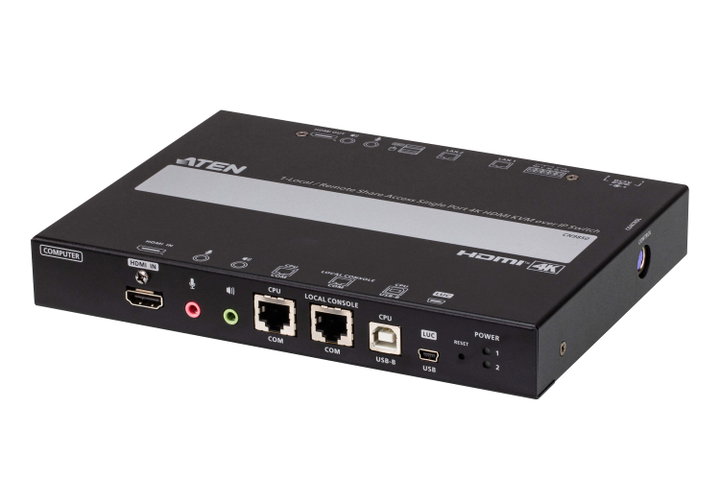

LCD console with switch KVM Over IP 4 K Shared Access Local/Remote - Aten IDATA CN- 9850

The LCD console with KVM over IP 9850 CN switches allows remote access to video, audio and virtual media of a PC or workstation and offers HDMI high definition videos with resolutions up to 4 K DCI (4096 x 2160) at 30 Hz on both the local and remote console. Built with an advanced FPGA graphics processor, the CN 9850 offers better qualityà image and video to improve user experience while meeting RS- 232 standards for serial control.

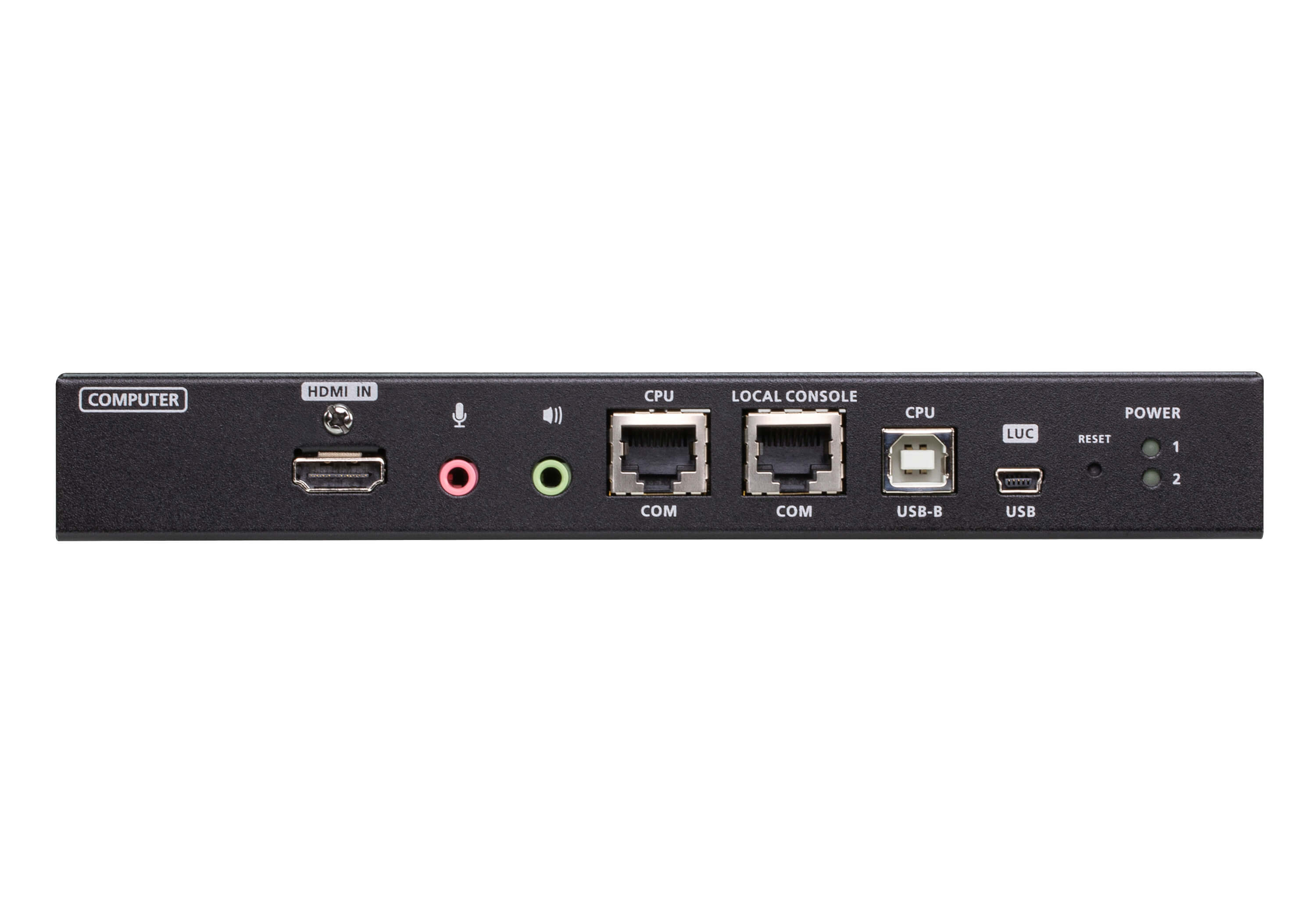

To facilitate operation, a mini USB port on the è front panel has been designed as a portable USB console port (LUC) for connecting to a laptop, which allows the user to access the PC/server for simple routine maintenance without needing an additional monitor, keyboard and mouse.

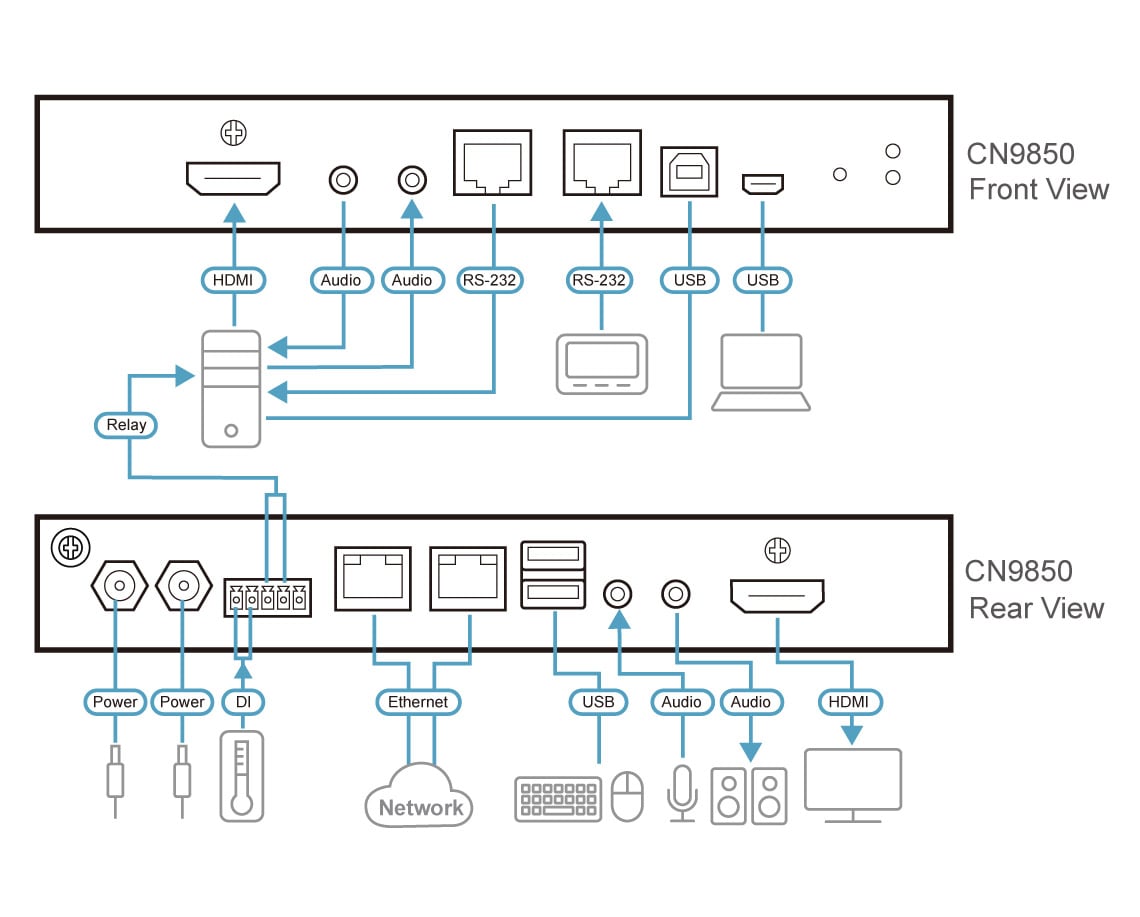

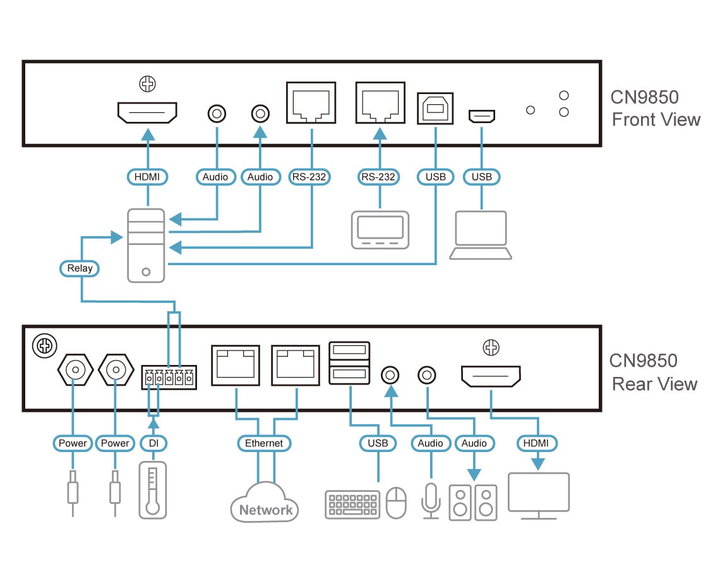

To ensure stable and seamless connectivity, the CN 9850 è with dual LAN functionality and dual power supply to maintain operations in the fluid and efficient server room. The power status detection function automatically sends event notifications when devices are offline (e.g. power failure) for device status monitoring. In addition, the CN 9850 has a relay / DI terminal (digital input) to 5 pin that allows remote rebooting of the local server and receiving a digital input from a connected input/alarm device for reporting critical events.



To facilitate remote management, the CN 9850 WebClient Viewer supports remote desktop access without additional software applications. The LCD console with KVM switch over IP HDMI 4 K offers a web-based graphical interface for remote access and management. In addition, a unified multilingual interface allows you to minimize user training times and increase productivityà.



IDATA CN- 9850 è ideal for data centers, server rooms and control rooms for remote access management in sectors requiring high quality images à and multitasking, such as global organizations and companies with different offices, where it can act as a bridge between local and remote workstations.



Hardware

• HDMI resolution up to 4 K DCI (4096 x 2160) @ 30 Hz


• A mini USB port in the front panel can be used as a USB port for virtual media or as a port for portable USB console (LUC)


• Compact and thin design for space optimization


• Supports a relè / DI terminal to 5 pin for environment monitoring and remote restart control


• Provides a FPGA graphics processor for better image qualityà


• Two NICs from 10 / 100 / 1000 Mbps for redundant LAN operation or two IPs


• Double power supply to ensure connectivity; without interruption


• Provides functionalityà over IP to LCD switches with KVM over IP switch without functionalityà over IP


• Enables access to CN 9850 via an integrated serial viewer or third-party software (such as Putty) for Telnet and SSH sessions



Note: the audio not è supported by CN 9850 HDMI and can be transmitted only through its audio ports by 3,5 mm



Management

• Consistent with RS- 232 standards for serial control


• Up to 64 user account: Up to 32 users can share control simultaneously


• Management of console access rights


• Session End Function: Administrators can terminate current sessions


• Log Server event registration and support based on Windows


• – event recording the CN 9850 can & grave; record all events occurring on it and write them to a searchable database


• Supports instant notification of critical system events via email, SNMP and Syslog trap


• Updated firmware via remote access


• Out-of-band support; access to CN 9850 via serial port with dial-up connection


• Local/remote sharing mode provides conveniently shared or exclusive console privileges


• The port sharing mode allows more ù users to access a server simultaneously


• DDNS – allows mapping a dynamic IP address assigned by a DHCP server to a host name


• Supports the export/import of user accounts and configuration settings


• Supports browser permission control


• Supports IPv 6


• Integration with the ATEN CC 2000 Management Software


• Integration with ATEN CCVSR Video Session Recording Software



Easy-to-use interface

• Browser-based and AP-based products offer a unified multilingual interface to minimize user training times and increase productivityà


• Multiplatform client support (Windows, Mac, Linux, Sun)


• Multibrowser support (IE, Firefox, Safari, Opera, Chrome)


• The browser-based user interface in pure web technology allows administrators to run administrative ` activities without pre-installed Java software package requirements


• Fullscreen or Desktop Virtual Remote large and scalable


• Magic panel with configurable function for quick start



Advanced security

• Smart Card / CAC Player Support


• External authentication support: RADIUS, LDAP, LDAPS and MS Active Directory


• Supports data encryption TLS 1.2 and 2048 bit RSA certificates to protect users accessing browsers


• The flexible encryption design allows users to choose any combination of DES to 56 bits, 3 DES to 168 bits, AES to 256 bits, RC 4 to 128 bits or Random for independent encryption of keyboard/mouse, video and virtual media data


• Supports IP / MAC filter


• Supports password protection


• Private Ca



Virtual media

• Virtual media allows file applications, operating system patches, software installation and diagnostic tests


• Works with USB enabled servers at OS and BIOS level


• Supports driveà USB DVD/CD 2.0 , USB mass storage devices, hard drives for PCs, ISO folders and images



Virtual remote desktop

• The quality & agrave; and video tolerance can be adjusted to optimize the data transfer rate & agrave; the monochrome depth & agrave;, the noise threshold and settings can be adjusted for compressing the data bandwidth in low bandwidth situations


• Full screen or scalable video screen


• Message Board for communication between remote users


• On-screen keyboard with multilingual support


• DynaSync ™ – Mouse automatically syncs local and remote mouse movements


• Supports macro output


• BIOS level access

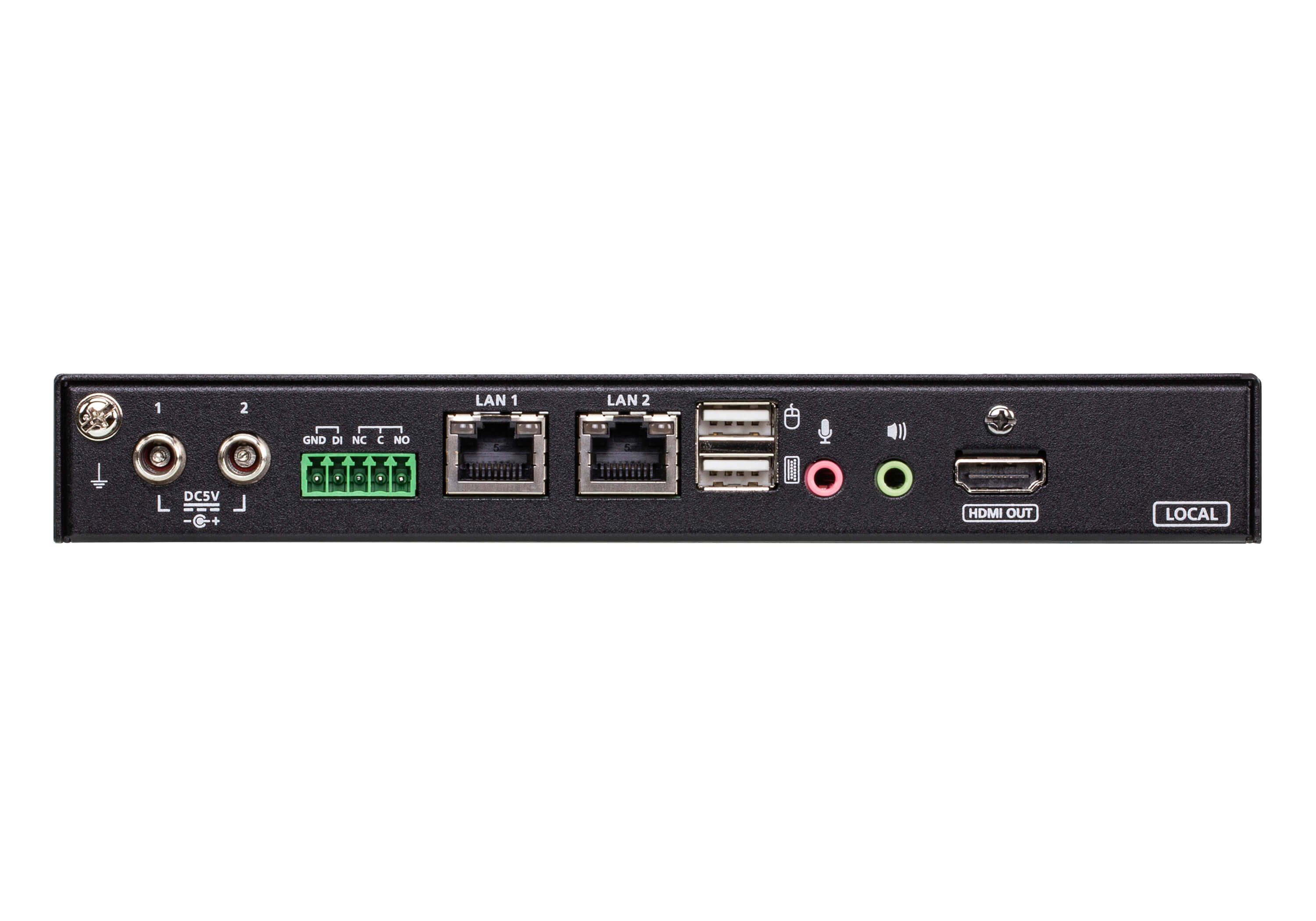

Connectors

• Console ports: 



2 x USB type A female (white)

1 x female HDMI (black)

1 x mini stereo jack female (green)

1 x mini stereo jack female (pink)

• KVM Doors:



1 x USB type B female (white)

1 x female HDMI (black)

1 x mini stereo jack female (green)

1 x mini stereo jack female (pink)



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità: 0 - 80 % RH, without condensation



Dimensions

• Width: 20,00 cm


• Depthà: 15,05 cm


• Height: 2,84 cm



Package contents

• 1 x LCD console with KVM switch over IP 4 K HDMI CN 9850


• 1 x KVM cable


• 1 x USB cable (from USB Type-A to USB Mini-B)


• 1 x control terminal unit


• 1 x power supply and power cable


• 1 x mounting kit


• 2 x HDMI locking devices


• 1 x set of feet (4 pieces)


• 1 x operating instructions
