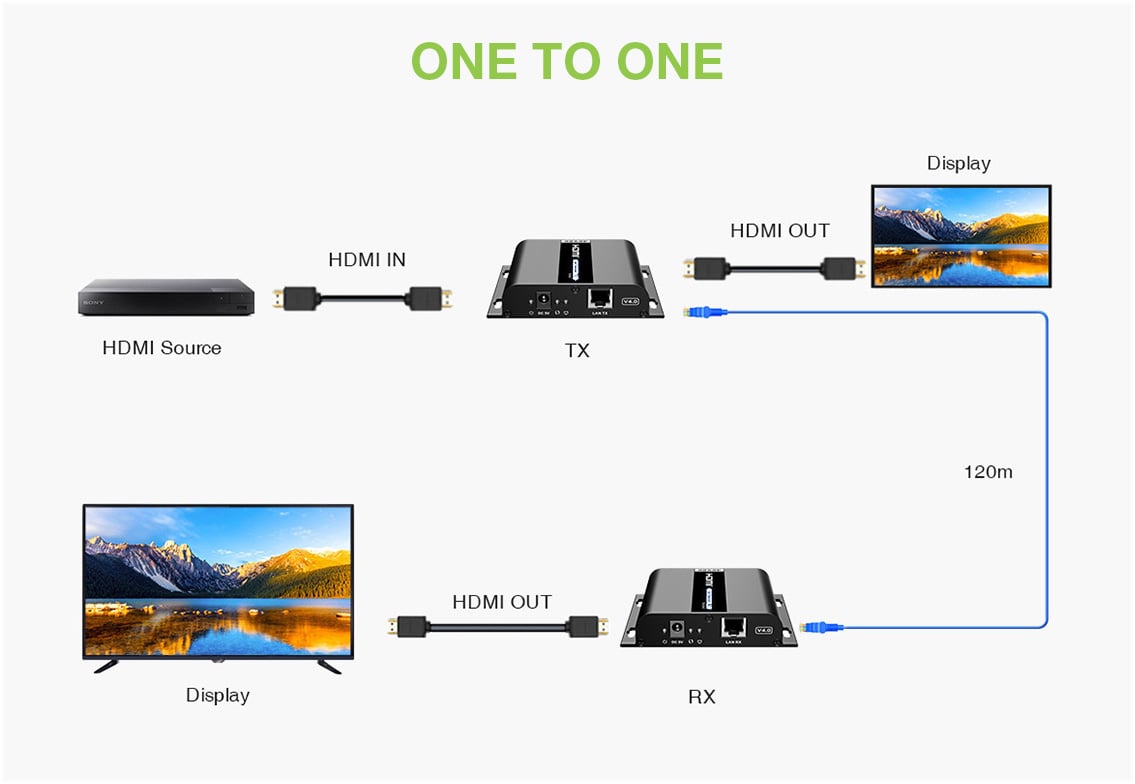

The HDMI extender over IP with POE takes advantage of the most recent transmission technology, extending your HDMI video/audio with resolution of 4 Kx 2 K to 30 Hz up to 120 meters via a single Cat network cable. 6 .
It supports IR signal transmission to control the media playback of the individual source device in the display position. In addition, thanks to the POE support, it directly feeds both extremesà TX and RX allowing a cleaner and compact installation.

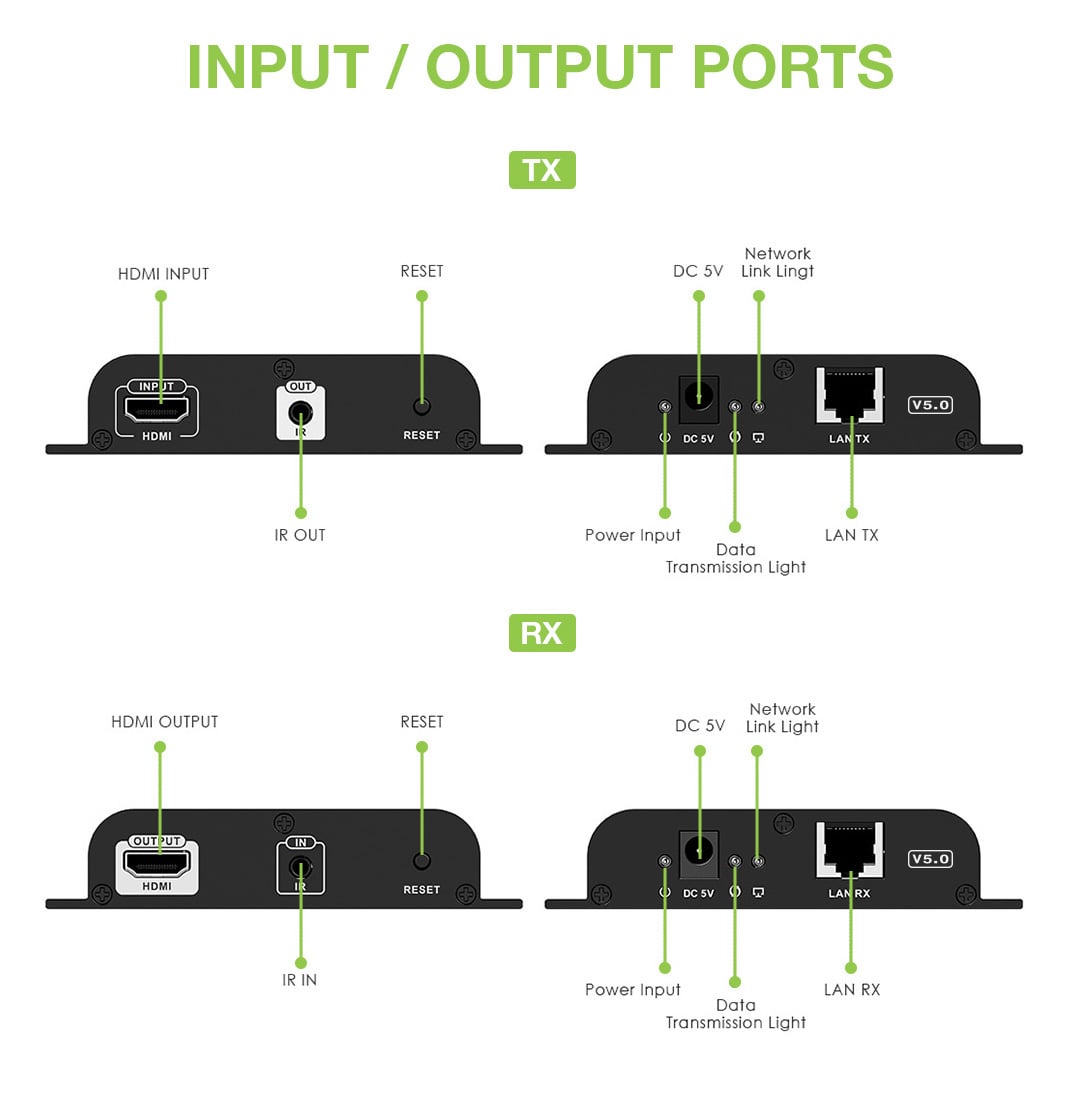

Not compatible with previous version IDATA EXTIP- 3834 KP 6Features- Additional Receiver
- Extends HDMI on a single network cable
- Supports cables Cat. 5 E/ 6
- It transmits signal 4 K Ultra HD (4 KX 2 K@ 25 / 30 Hz) up to 120 meters on Cat. 6
- Supports IR passback for easy control
- PoE: Provides power to drives ` sender and receiver over the connection cable
- Compatible with the existing network, does not affect the internet

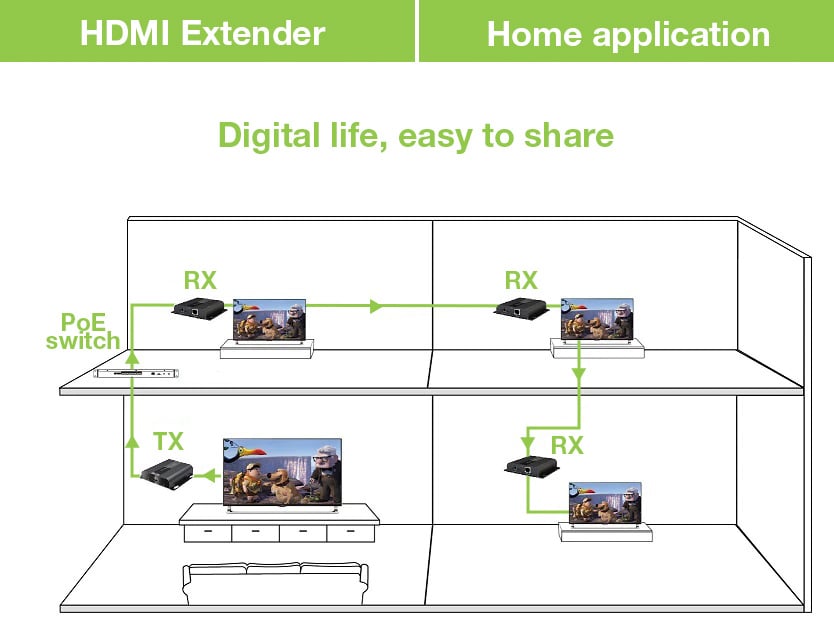

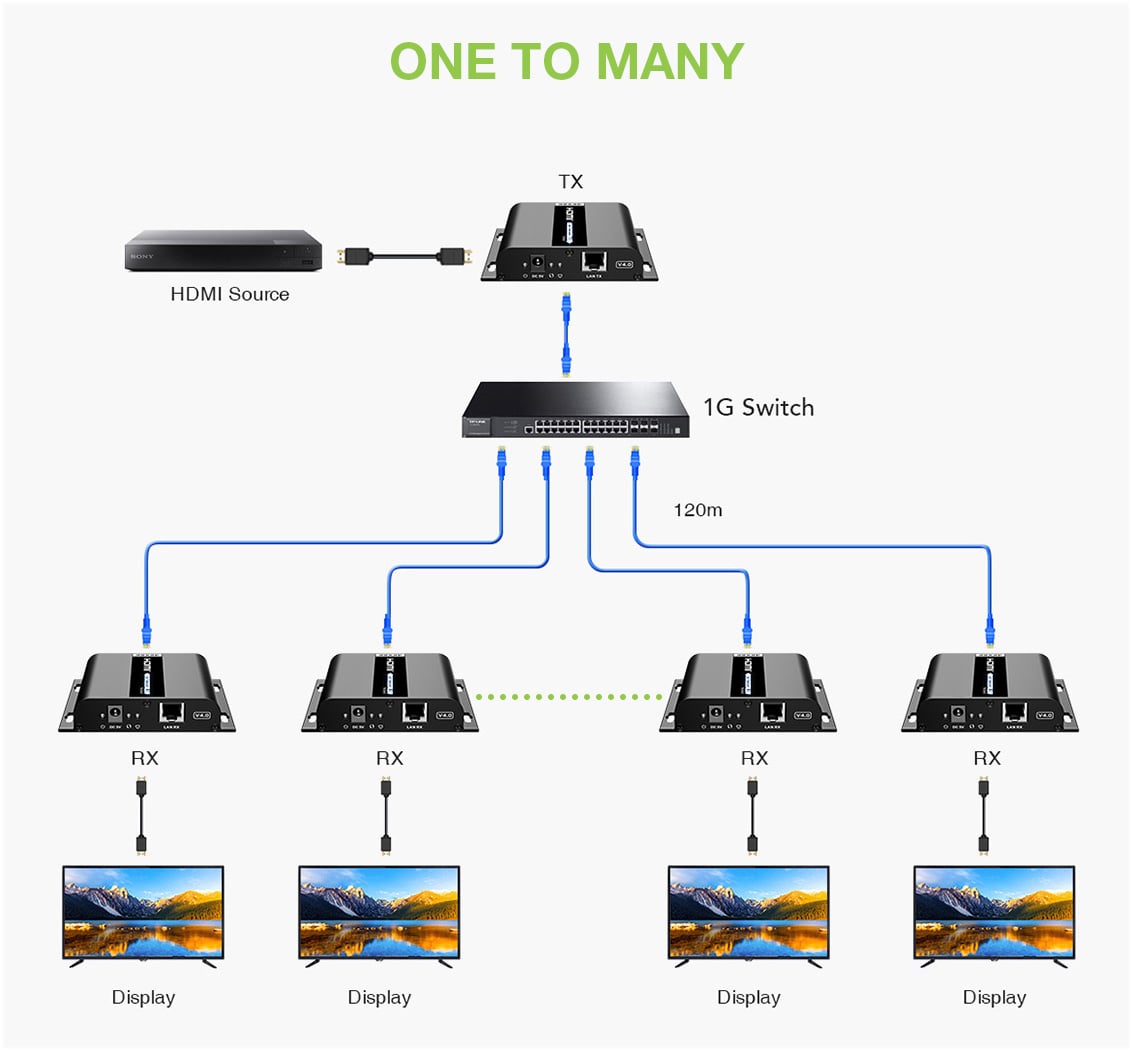

- Support connected with the PoE router to share and extend the HDMI signal without limits
- HDMI and HDCP
- The design allows wall installation
- Color: black
Technical specifications- HDMI 1.4
- HDCP 1.4
- Supported resolutions: 480 i@ 60 Hz, 480 p@ 60 Hz, 576 i@ 50 Hz, 576 p@ 50 Hz, 720 p@ 50 / 60 Hz, 1080 i@ 50 / 60 Hz, 1080 p@ 50 / 60 Hz, 4 Kx 2 K@ 24 / 25 / 30 Hz
- UTP/STP Cat 5 / 5 and/ 6 network cable
- Transmission distance up to 120 meters to 4 Kx 2 K@ 30 Hz Full HD on single CAT 6
- Input POE: supports IEEE 802.3 af (input power 10 W) External power supply 5 V 2 A (Optional, not included)
- Support both TX and RX powered by POE switches
- Supports IR devices from 20 ~ 60 KHz
- Operating temperature: 0 °- 60 °C
- DC power supply 5 V/ 2 A
- Power consumption TX: 4.5 W; RX: 3.5 W
- Input support POE IEEE 802.3 af (input power 10 W)
- Weight: 275 g
- Color: black
Protection- Protection against lightning
- Overvoltage protection
- ESD protection

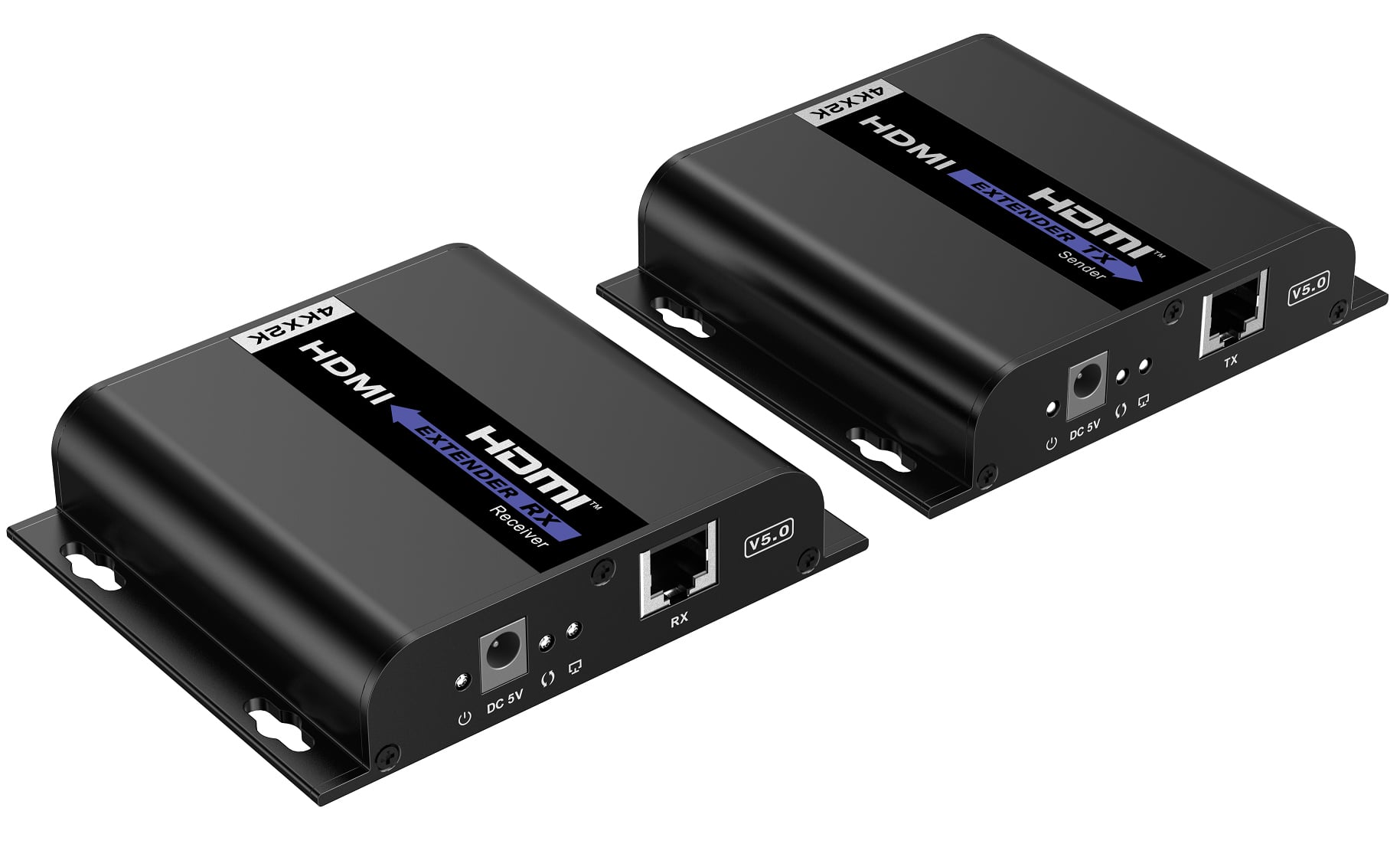

Size TX and RX- Length: 119 mm
- Width: 94 mm
- Height: 23,8 mm
CertificationsPackage contents- 1 x HDMI Receiver
- 1 x IR receiver extension cable
- 1x User manual
