HDMI 2.0 Extender over MPO Fiber Optic Cable 100m - Techly IADAP HDMI60-MPO

• The HDMI 2.0 optical fiber extender on MPO optical cable is an ideal installation solution for residential and commercial use, as well as for EMC medical projects
• It can be replaced at any time without having to replace the entire cable
• There is no signal loss over long distances nor EMI interference, making it the best choice for point-to-point and distributed ultra-high definition video connections

Technical Specifications

• HDMI 2.0 optical fiber extender source / HDMI 2.0 display
• Transmitter cable and receiver cable equipped with USB connection for power, length 50 cm
• Length 20 cm per side
• HDMI 2.0 standard
• Supports bandwidth of 18 Gb with 4K/50P/60P
• Supports HDCP
• Auto-detection function for EDID information
• Supports HDR formats
• Does not support ARC
• Maximum length up to 100 m
• Plug and Play
• O/E converter: 5 channels 850nm VCSEL array and 1 channel GaAs PD array; 1 channel 850nm VCSEL array and 5 channels GaAs PD array
• Connector type: HDMI type A (male) and MPO
• Cable type: Multimode 50/125 OM3-150
• Outer diameter of cable: 3,0 mm
• Outer sheath material: LSZH
• Cable color: aqua green and black
• MPO insertion loss ≤ 0,35 dB
• MPO return loss ≥ 30 dB
• Differential input 100 ohm
• Power consumption: 0,3 W (source) 0,4 W (display)

Package contents

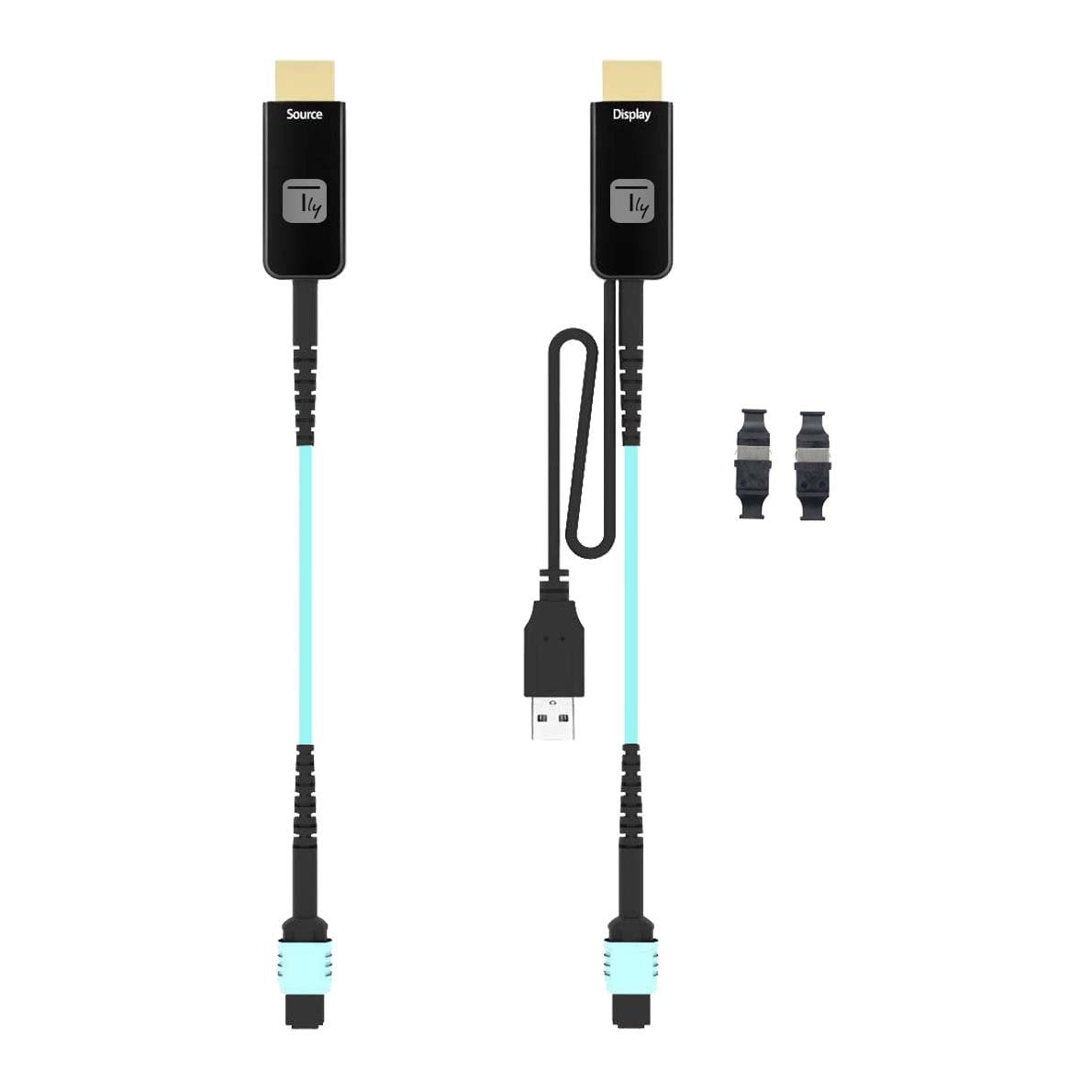

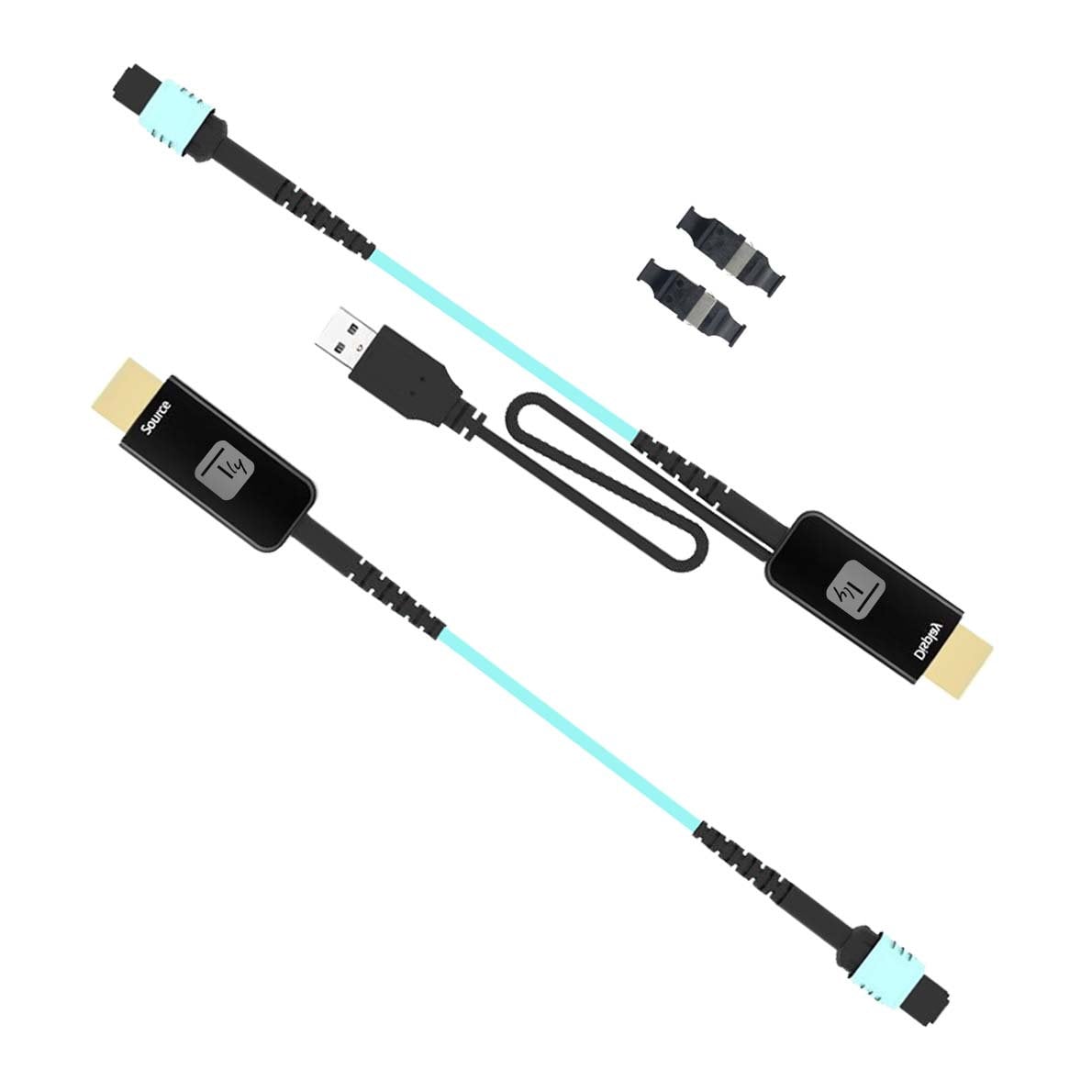

• 2 HDMI fiber extender 2.0 AM-AM (20 cm length per side)
• MPO adapter x 2 pieces (MPO fiber cable not included in the package)
