- Data transfer speed: 100 Mbps
- One 10/100Base-TX RJ45 port, maximum distance 100 m
- RJ45 port with Auto MDI/MDI-X and auto-negotiation support
- One SC duplex fiber optic port 100Base-FX multimode
- Supported fiber distance: up to 2 Km (cable 62.5/125 or 50/125 µm)
- Wavelength: 1310nm
- Flow control
- Power status and Link/TX LEDs for both ports
- External power supply, 5 V DC
Standard- IEEE 802.3 (Twisted Pair Ethernet)
- IEEE 802.3u (Twisted Pair/Fiber Optic Fast Ethernet)
Features - 100Base-TX Cat3 or higher UTP/STP RJ45, EIA/TIA 568
- 100Base-FX multimode with fiber 62.5/125 or 50/125 µm
- One RJ45 port, 100Base-TX
- One SC duplex fiber optic port, 100Base-FX
- 2 km (fiber cable 62.5/125 or 50/125 µm)
- 100 m (RJ45 cable)
- Wavelength: 1310 nm
- Min. TX power: -22 dBm
- Max. TX power: -12 dBm
- RX sensitivity: -30 dBm
- Signal loss: 2 dB/km

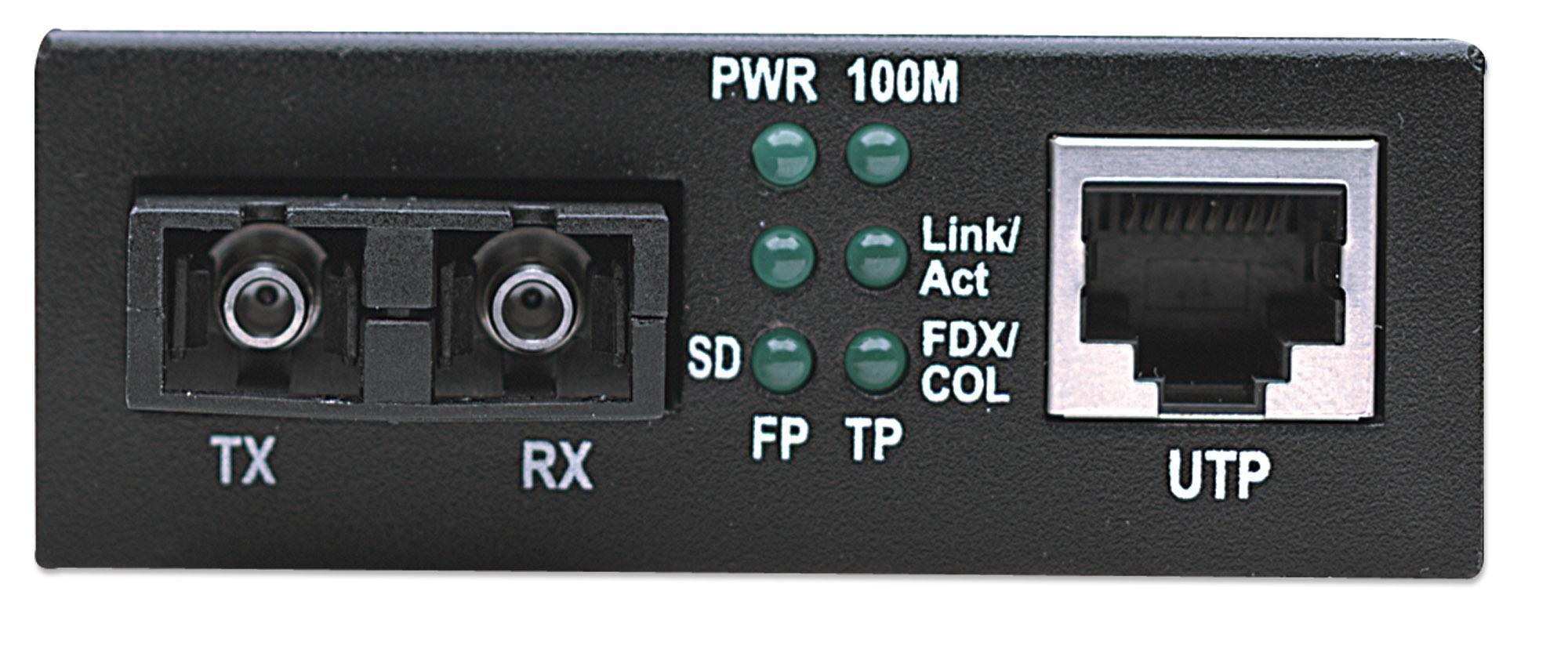

LED- Power
- LINK/ACT for RJ45 port
- LINK/ACT for SC fiber port
- Connection speed indicator 100 Mbps per RJ45 port
- Optical signal input LED
- Full/ half duplex

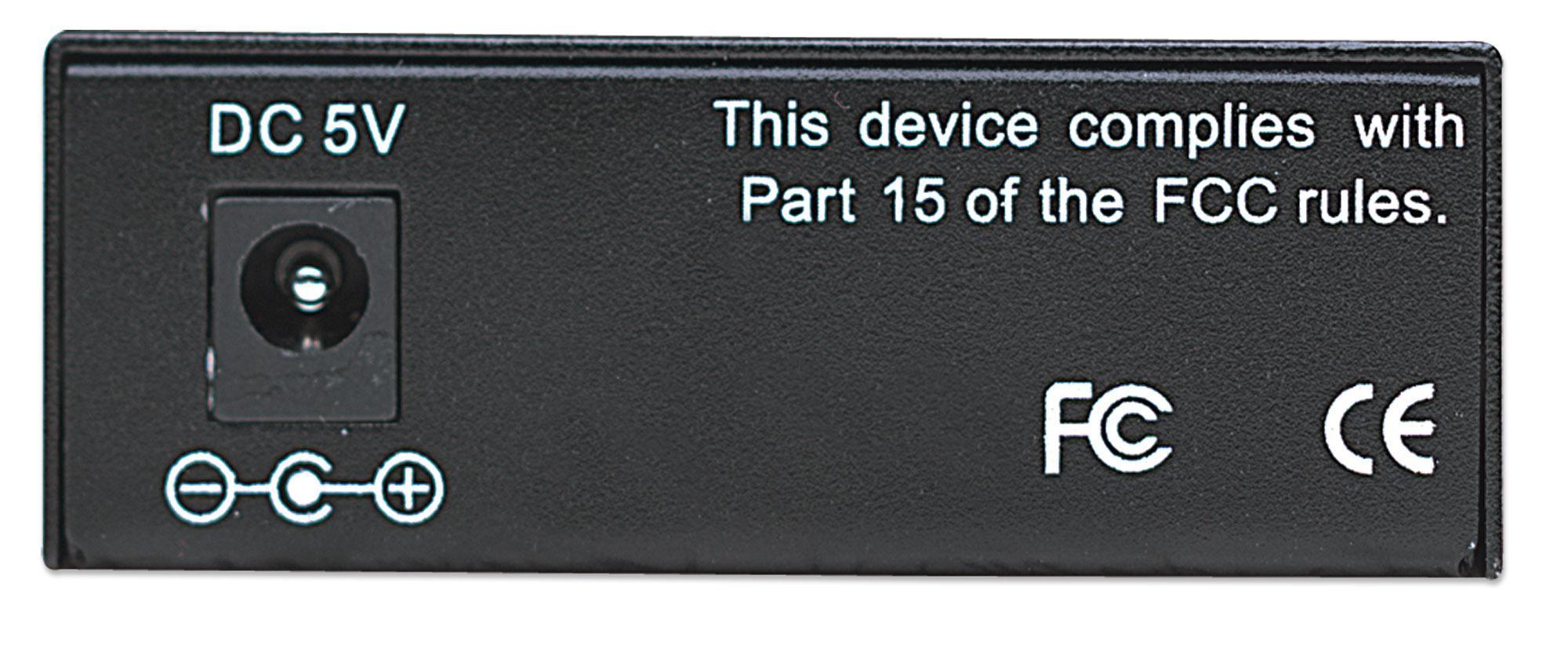

Power- External power supply, 5 V DC, 1 A
- Power consumption: 2.5 Watt (maximum)

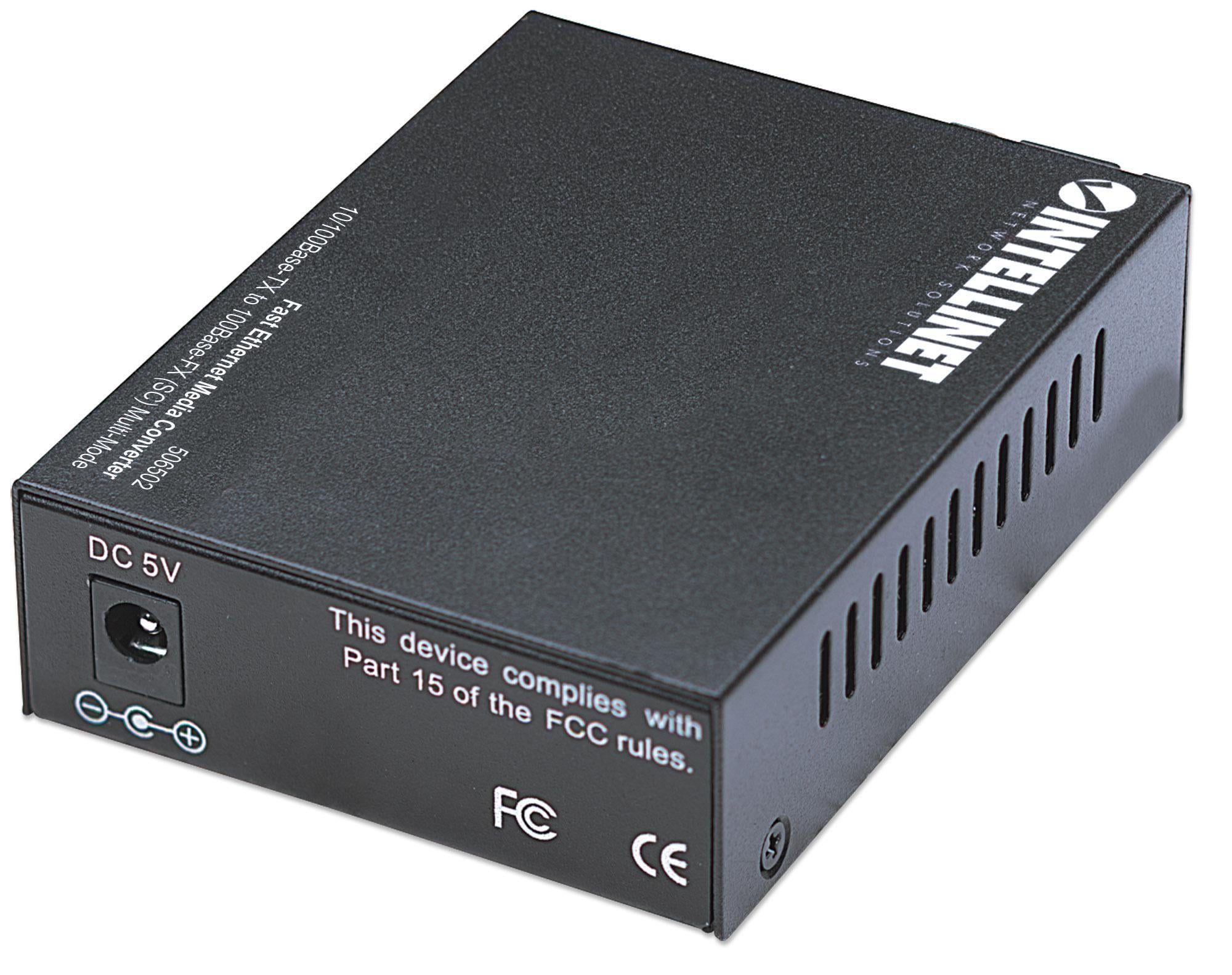

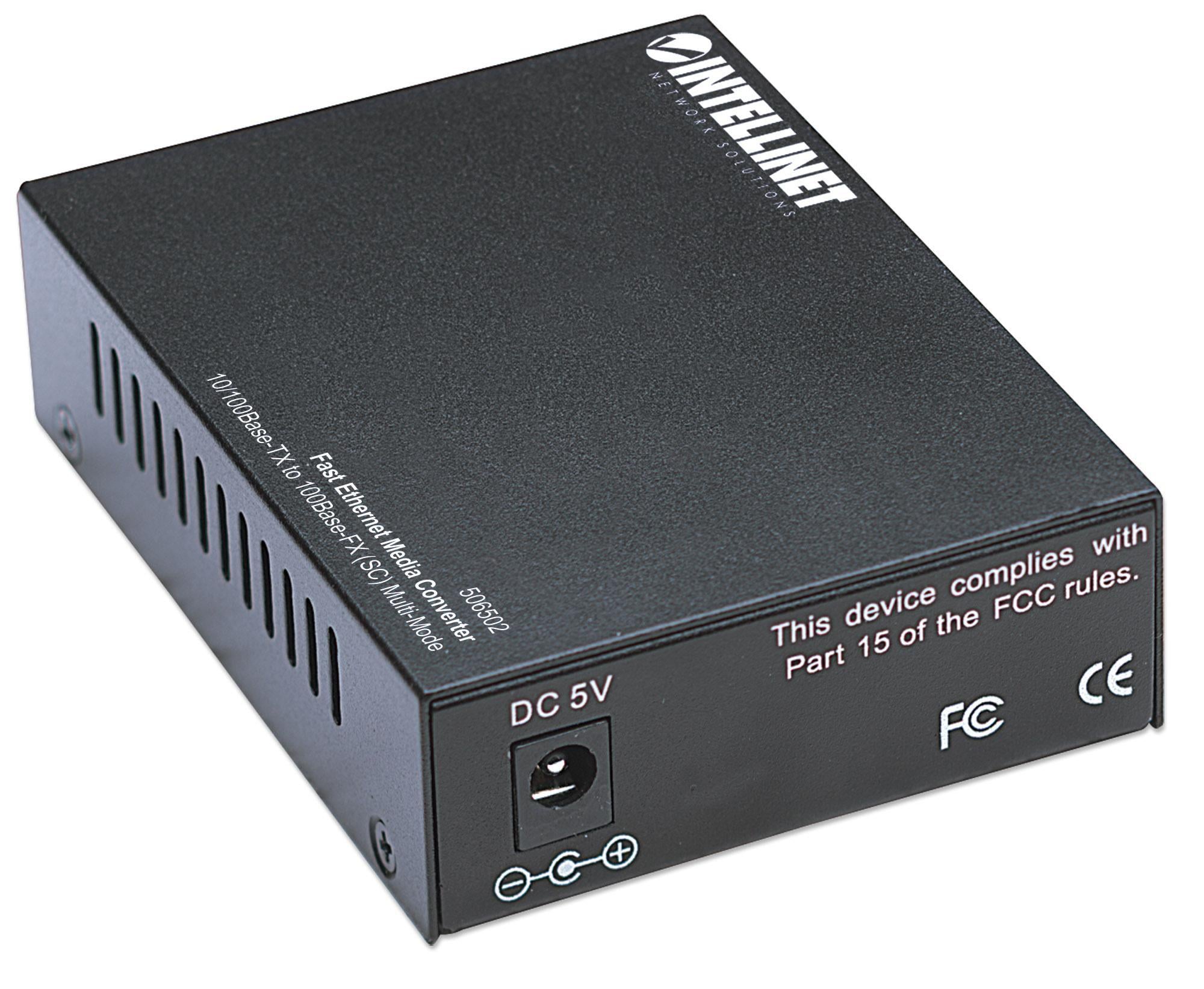

Physical information- Metal structure
- Dimensions: 107 (W) x 70 (D) x 26 (H) mm
- Weight: 500 g
- Operating temperature: 0 – 70°C (32 – 158°F)
- Operating humidity: 10 – 90% RH, non-condensing
- Storage temperature: -45 - 80°C
CertificationsPackage contents- Fast Ethernet Media Converter
- External power supply
- Manual
