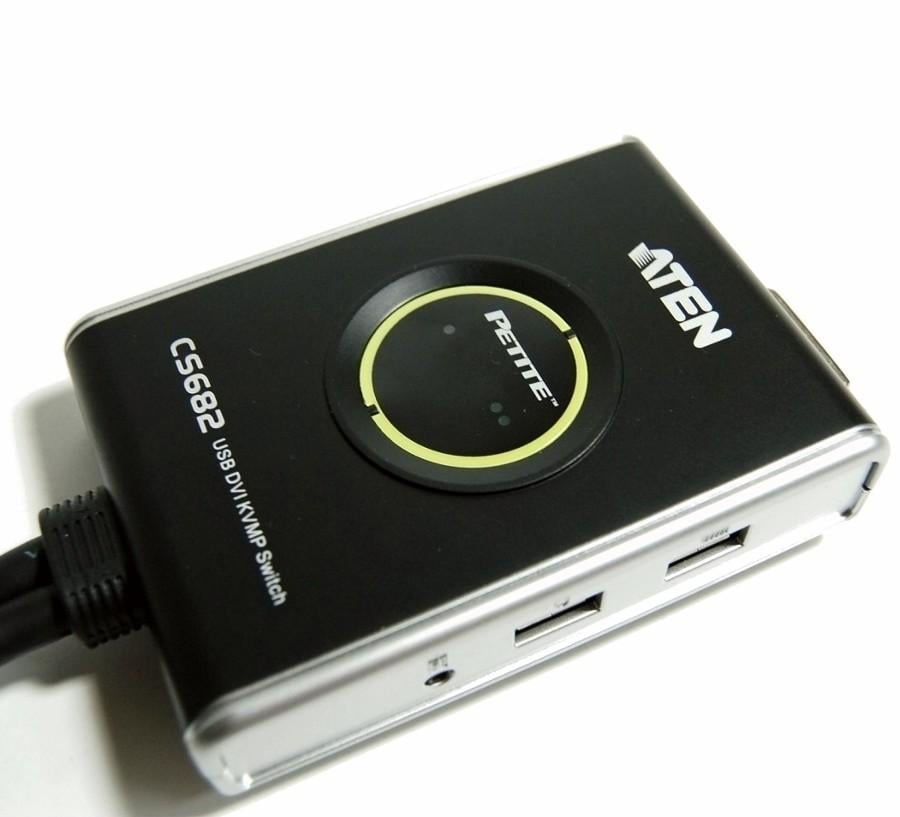

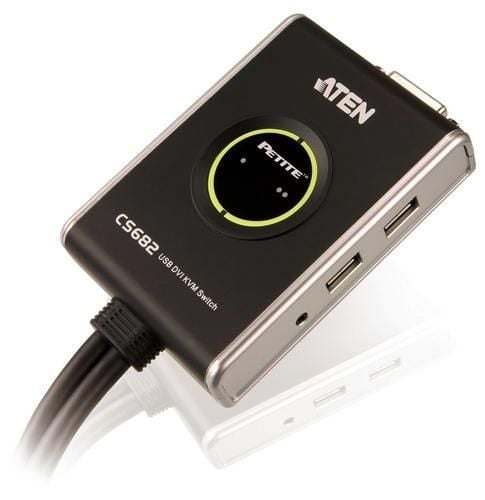

Mini Switch KVM USB Video DVI Audio and Microphone, CS 682 - Aten IDATA KVM-DVI 2 U

The CS 682 takes a huge step forward compared to the previous models of the Petite series, offering functionalityà DVI, USB 2,0 peripheral sharing, and a rich bass experience for surround 2.1 systems.

Another new feature of CS 682 è the creation of a remote port selector. This means that è can now control the port by going from the desktop, while the same switch can ò be placed in a convenient position at hand.

In addition, the CS 682 features Enhanced Video DynaSync, which stores the Extended Display Identification Data (EDID) monitor console to optimize screen resolution.

In addition to shortcut keys, the CS 682 also offers switching with the mouse, è just double-click the mouse wheel to change USB ports.

Finally, the new CS 682 with the new power detection function means that if one of the è computers is switched off, the switch automatically switches on to the other computer.

Characterized by an unbeatable combination of functionalityà DVI, USB 2,0 convenience peripheral sharing, and user-friendly enhancement operations, CS 682 allows users to keep up with the latest innovations in multimedia desktop applications.



Characteristics:

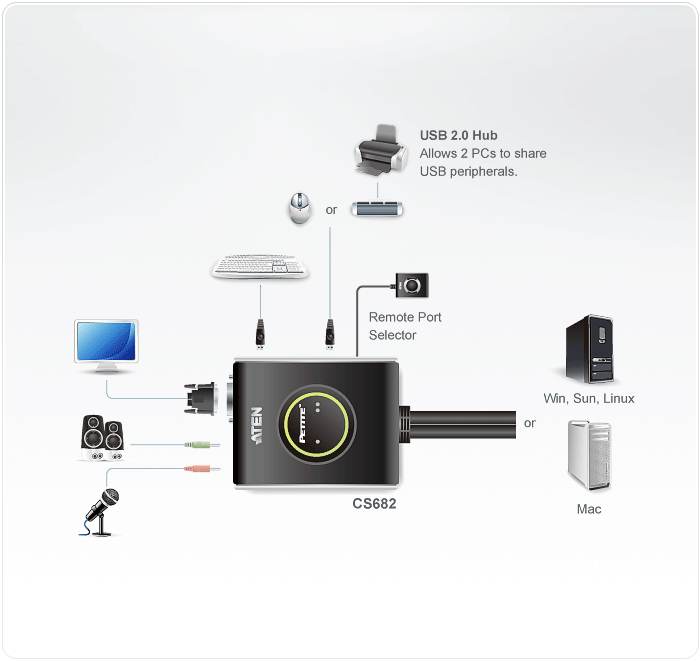

• A DVI video console controls two USB computers


• Fully compatible with DVI-Digital specifications


• USB 2.0 mouse port can ò be used for USB hubs and USB device sharing


• Selecting your computer via remote port selector, hotkeys, and USB mouse


• Audio-enabled - surround to 2.1 channels for audio systems with efficient bass response


• Multiplatform support - Windows, Linux, Mac and Sun


• Compact design, with cables included (2 x 1,2 m)


• Independent switching of KVM and Audio - a computer can & grave; have control on one PC while the other has its own audio


• Top quality videos - up to 1920 x 1200


• Compatible with widescreen LCD monitors


• DynaSync ™ Video - ATEN's exclusive technology eliminates visualization problems boot-up and optimizes resolution when switching between ports


• Automatically detect active ports - if one of the computers è shut down, CS 682 automatically switches to another computer


• Supports multimedia keyboards


• Supports wireless keyboards and mouse


• Mouse emulation port console/bypass functionalità supports most multifunction mouse and mouse drivers


• Keyboard support and Mac / Sun emulation


• HDCP Compliant


• No power required


• Updated Firmware



Specifications:

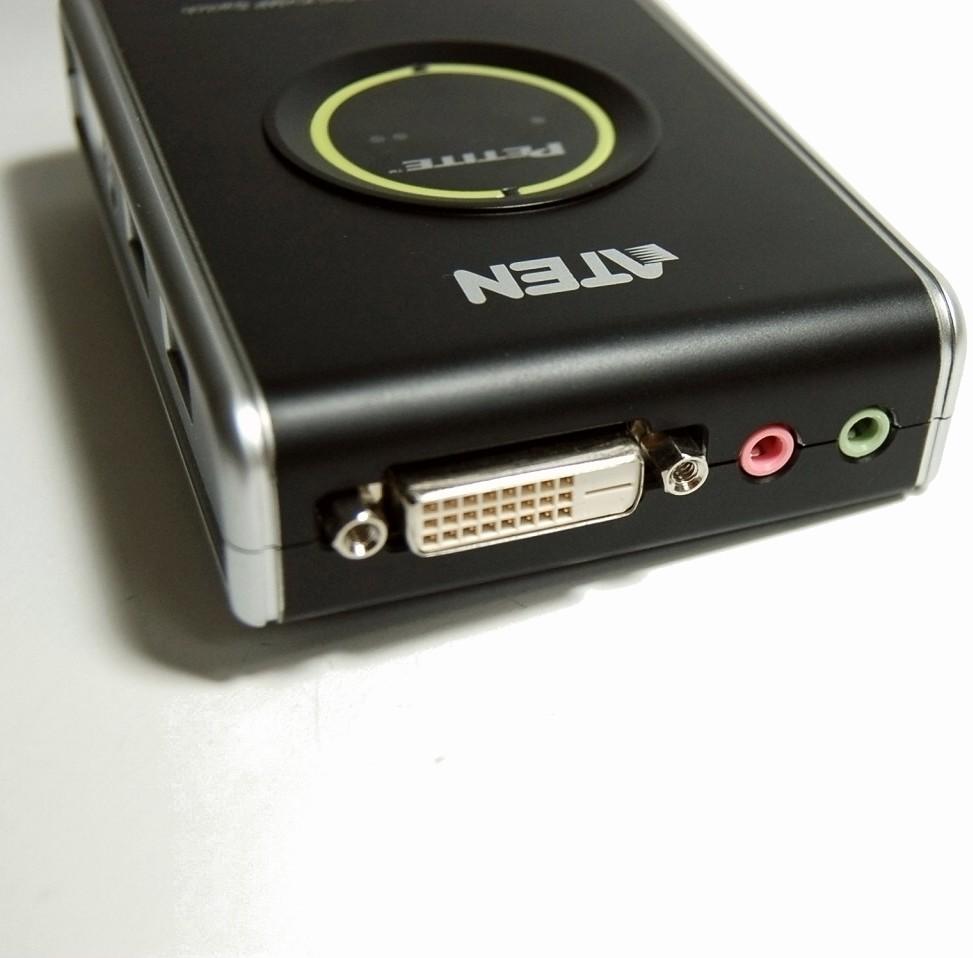

• Console:



1 USB female type A keypad (silver)

Video 1 DVI-D female (white)

Mouse 1 USB type A female (silver)

1 mini female stereo speakers (green)

Microphone 1 mini stereo female (pink)

• KVM Doors:



2 USB male type A keypad (purple)

Video 2 DVI-D male (black)

Type A male 2 USB mouse (black)

2 mini female stereo speakers (green)

Microphone 2 mini stereo female (pink)



LED:

• KVM 2 (green)


• Door selector 2 (green)



Length of cable:

• KVM 2 x 1,2 m


• Door selector 1.8 m



Technical specifications:

• Keyboard emulation / USB mouse


• Video 1920 x 1200


• Scan interval 3 , 5 , 10 , 20 sec. (default 5 sec.)


• Power Absorbit 5 V, 3.05 W


• Operating Environment Temp. 0 - 50 °


• Storage temperature. - 20 - 60 °


• Humidità 0 - 80 % RH, without condensation


• Proprietà physical plastic case


• Weight 0,50 kg


• Dimensions (L x W x H) 11.10 x 7,80 x 2,50 cm



Package contents

• 1 x CS 682 2 -Port USB 2.0 DVI KVM Switch


• 1 x Remote Port Selector


• 1 x User Manual


• 1 x Quick Start Guide
