Switch KVM VGA 2 USB/PS ports 2 with audio and OSD - Aten CS 1732 B

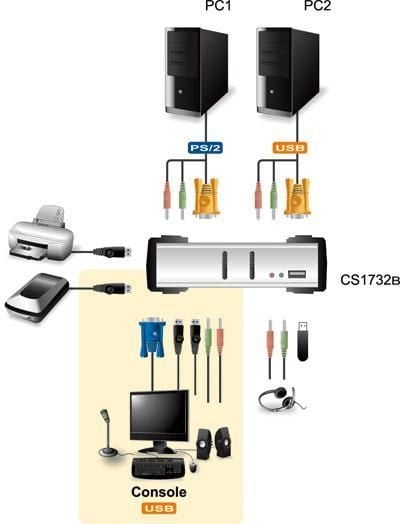

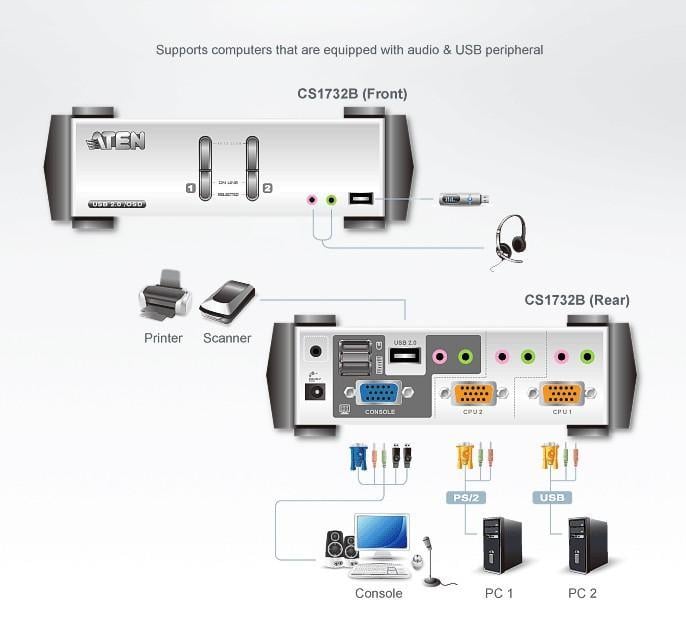

The CS 1732 B è a KVM 2 ports switch combined with a USB 2.0 hub to 2 ports. As a KVM switch, it allows you to access two computers from a single console with monitor, keyboard and mouse. It offers four methods to get instant access to any computer of installation: manual, shortcut key, OSD and mouse.



Characteristics:

• 2 port KVM switch with USB 2.0 and surround audio 2.1


• One console controls two computers and two other USB devices


• Hub with 2 USB ports 2.0 included


• USB 2.0 conform


• Double interface: supports computers with PS/ 2 or USB keyboard and mouse configurations


• With audio transmission: the full bass range offers a wonderful experience with surround audio systems at 2.1 channels


• Console audio ports on the front panel for easy access, ideal for VOIP


• Supports both USB and PS/ 2 keyboards and mouse - flexible configurations thanks to USB to PS/ 2 converter included: USB keyboard and mouse, or PS/ 2 keyboard and mouse or PS/ 2 keyboard and USB mouse


• Independent switching of KVM, USB and audio control


• Qualityà top video: 2048 x 1536 ; DDC 2 B


• Support widescreen resolutions

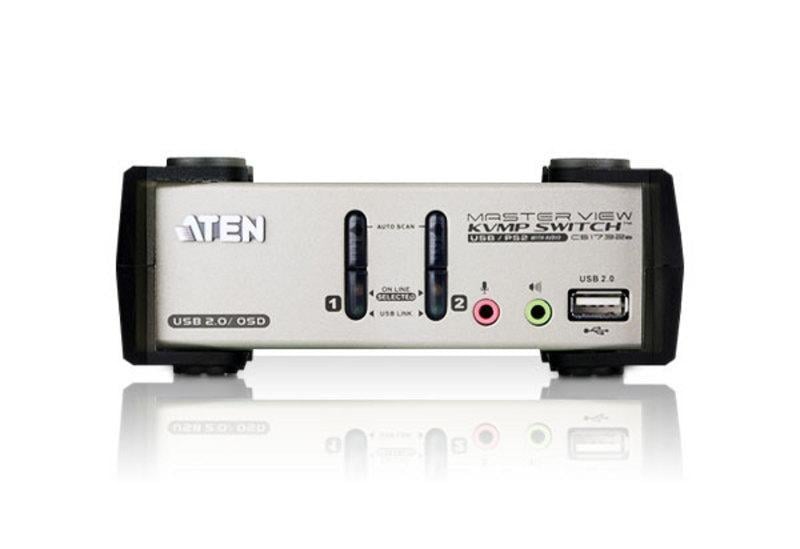

• Computer selection via front panel buttons, multilingual OSD and mouse


• Multiplatform support: Windows, Mac and Sun


• The emulation/bypass function of the console mouse port supports all mouse drivers and multifunction mouse


• DynaSync & trade; Video: Stores the Extended Display Identification Data (EDID) of console monitors to optimize screen resolution


• Full keyboard emulation for error-free startup


• Mac/Sun keyboard support and emulation*


• Modelità automatic switching for monitoring all computers


• LED to easily control device status


• Easy installation: no software required


• Updated Firmware



* 1.Sun/Mac keyboard emulation via PC keyboard key combinations.

2 . Sun/Mac keyboards only work with their respective computers.



Video resolution:

• 2048 x 1536 @ 60 Hz; DDC 2 B

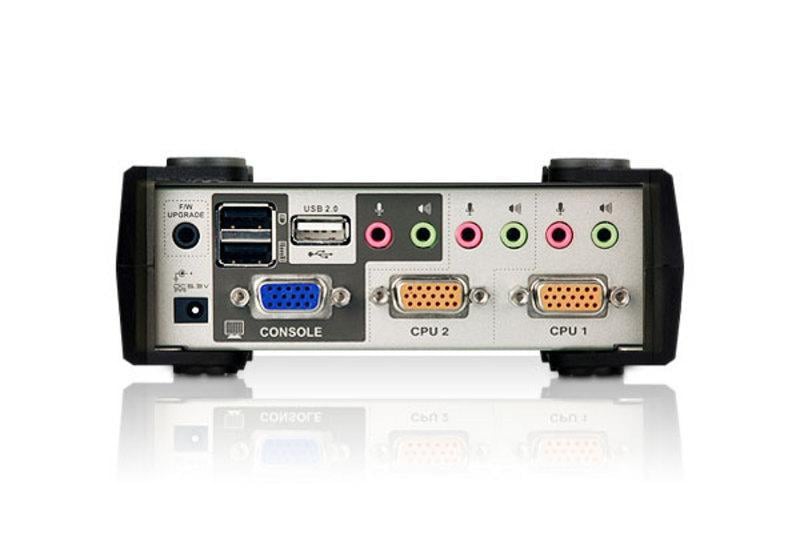

Connections:

• Connection port to the console:



- Keyboard: 1 USB type A female (black)

- Video: 1 HDB- 15 female (blue)

- Mouse: 1 USB type A female (black)

- Speaker: 2 mini stereo female (green)

- Mic: 2 mini stereo female (pink)

• KVM port:



- Keyboard, Video and Mouse: 2 female SPHD- 15 (yellow)

- Speaker: 2 mini stereo female (green)

- Mic: 2 mini stereo female (pink)



LED:

• Online/Selected: 2 (orange)


• USB connection: 2 (green)



Physical characteristics:

• Metal houses


• Weight 0,55 kg


• Dimensions (L x P x A): 14,0 x 8,7 x 5,50 cm



Package size:

• 1 switch KVMP™ USB 2.0 to 2 ports


• 2 cables KVM USB 2 L- 5301 U


• 1 USB to PS/ 2 converter UC 20 KMZ-A- 11


• 2 shortcut button self-adhesive/OSD


• 1 cable for firmware upgrade


• 1 power supply 0 AD 6 - 1605 - 24 EG


• 1 user guide
