Switch USB/PS KVM 2 VGA to 2 ports, CS 82 U - Aten IDATA CS- 82 U

The KVM USB-PS 2 IDATA CS- 82 U è a desk control unit à that allows users to access two computers from a single KVM console ( PS/ 2 keyboard and mouse or USB and VGA monitor). The CS 82 U also, è equipped with ATEN's new DynaSync Video technology, which eliminates all-time display problems and optimizes resolution.

Easy è quick installation: è sufficient to connect cables to their ports. There are no software to configure, installation procedures or problems of incompatibilityà. Since é IDATA CS- 82 U directly intercepts the keyboard input, it works with different platforms.



Features

• A PS/ 2 -USB VGA console controls two computers with VGA interface


• Double interface – supports computers with PS/ 2 or USB keyboards and mouse


• Selecting your computer via the buttons on the front panel, the shortcut keys and the mouse


• Multiplatform support: Windows, Linux, Mac and Sun


• Qualityà top video: 2048 x 1536 ; DDC 2 B


• DynaSync Video: ATEN's exclusive technology that eliminates all-time display problems and optimizes resolution when switching from door to door


• Console mouse port emulation/bypass function supports many multifunction mouse and mouse drivers


• Full keyboard emulation for error-free startup


• Mac/Sun keyboard support and emulation*


• Multilingual keyboard keymap: supports English, Japanese and French keyboards


• Support for the game keyboard


• Modelità automatic switching for monitoring all computers


• Updated Firmware


• No need for external power supply



* 1. Emulation of Mac/Sun keyboards via PC keyboard key combinations.

2 . Mac/Sun keyboards only work with their respective computers.



Technical specifications

• Computer connection: 2


• Port Selection: Front Panel Buttons; Quick Find Keys, USB Mouse

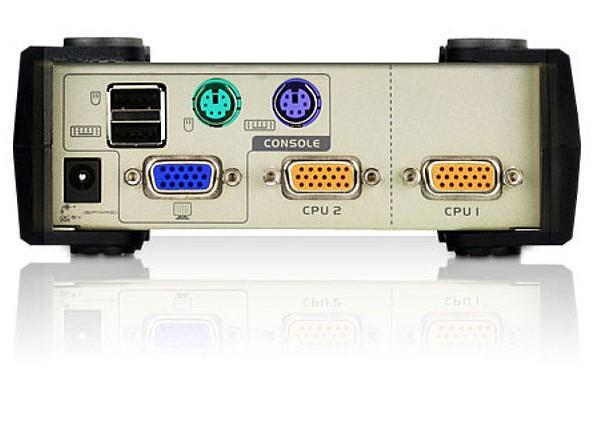

• Connector ports to the console:



- Keyboard: 1 USB type A female (black); 1 Mini-DIN to 6 pin female (purple)

- Video: 1 HDB- 15 female (blue)

- Mouse: 1 USB type A female (black); 1 Mini-DIN to 6 pin female (green)

• KVM port connectors:



- 2 female SPHD-18 (yellow)

• Power connector: 1 DC connector


• Mouse emulation and keyboard PS 2 /USB


• Video: 2048 x 1536 @ 60 Hz; DDC 2 B



Environmental features

• Operating temperature: 0 / 50 °C


• Storage temperature:- 20 / 60 °C


• Humidità: 0 - 80 %, without condensation



Dimensions

• Width: 13.98 cm


• Height: 5.55 cm


• Depthà: 8.80 cm



Certifications

• CE


• FCC


• RoHS


• RAEE



Package contents

• 1 switch KVM USB-PS 2 CS 82 U


• 1 cable KVM PS/ 2 USB 2 L- 5301 UP


• 1 cable KVM PS/ 2 USB 2 L- 5302 UP


• 1 user guide
