Switch USB KVM DVI to 2 Doors with Audio and USB Hub - Aten IDATA CS- 1762

The switch KVMP™ CubiQ™ USB 2.0 DVI IDATA CS- 1762 marks a new and revolutionary direction in the functionalityà KVM switches (Keyboard, Video, Mouse) combining a KVM switch to 2 ports with a USB 2.0 hub to 2 ports and at the same time offering a digital monitor interface (DVI).

The CS 1762 A è also equipped with ATEN's new DynaSync™ Video technology, which optimizes resolution, and ignition detection, which makes sì that if a computer is turned off, the CS 1762 A steps automatically to the next computer on.

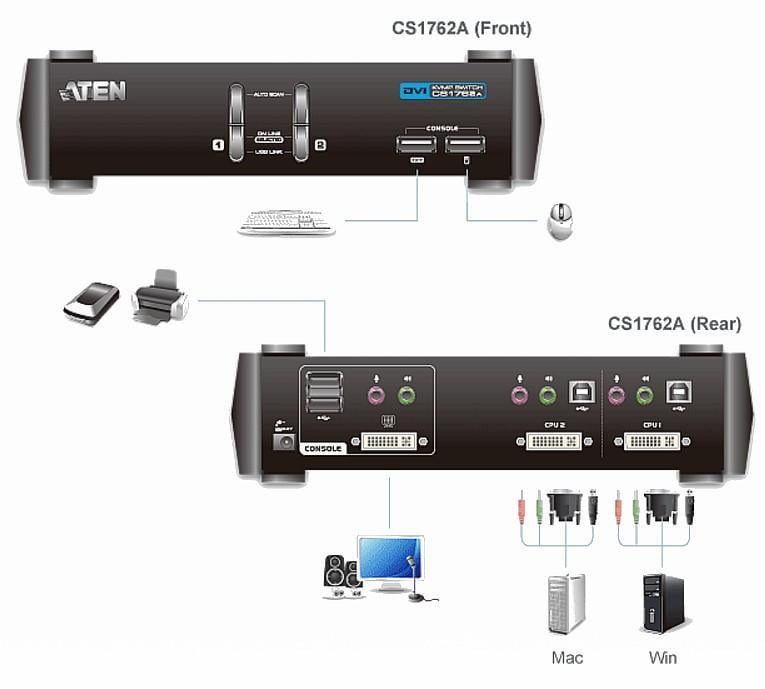

As a KVM switch, it allows you to access two computers from a single console with a monitor, keyboard and USB mouse. Thanks to the USB 2.0 hub, it allows each computer to access the connected peripherals in turn.



Features

• One console controls two DVI computers and two other USB devices


• Hub with 2 USB ports 2.0 included


• Fully compliant with USB 2.0 specifications


• Selecting your computer via the buttons on the front panel, the shortcut keys and the mouse


• With audio transmission: the full bass range offers a wonderful experience with surround audio systems at 2.1 channels


• Multiplatform support - Windows, Linux, Mac and Sun


• Support widescreen resolutions


• Superior video quality – 1920 x 1200


• Independent switching of KVM, USB and audio control


• Support for digital and analog – DVI monitors fully compliant with DVI specifications


• HDCP compatible


• DynaSync & trade; Video: ATEN's exclusive technology that eliminates all-time display problems and optimizes resolution


• Switching on detection: If a è computer is switched off, the switch automatically switches to the next computer on


• Console mouse port emulation/bypass function supports many multifunction mouse and mouse drivers


• Full keyboard emulation for error-free startup


• Mac/Sun keyboard support and emulation*


• Multilingual keyboard keymap: supports English, Japanese and French keyboards


• Modelità automatic switching for monitoring all computers


• Updated Firmware



* 1. Emulation of Mac/Sun keyboards via PC keyboard key combinations.

2 . Mac/Sun keyboards only work with their respective computers.



Technical specifications

• Computer connections: 2

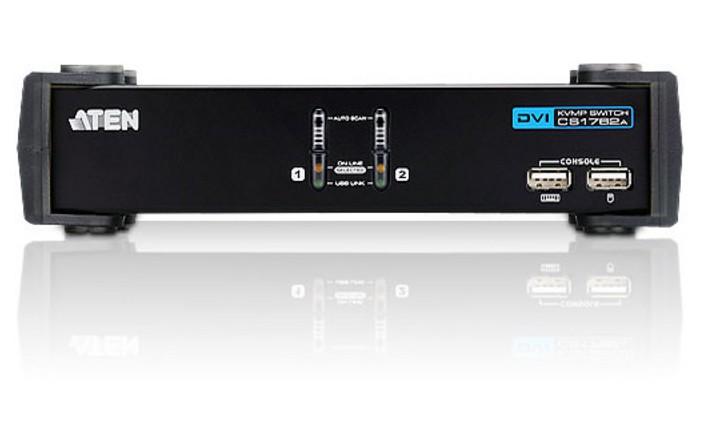

• Door Selection: Front Panel Buttons, Quick-Tick Button, Mouse


• Connector ports to the console:



- Keyboard: 1 female USB type A (white, front panel)

- Video: 1 DVI-I (white)

- Mouse: 1 female USB type A (white, front panel)

- Speakers: 1 mini stereo female (green, rear panel)

- Mic: 1 mini stereo female (pink, rear panel)

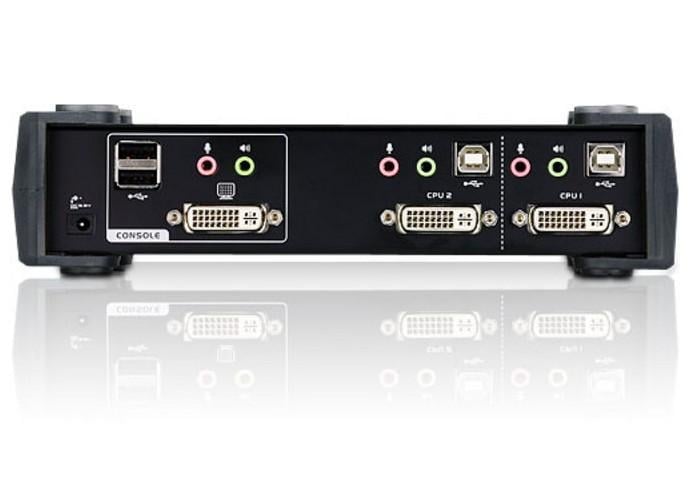

• KVM port connectors:



- Keyboard/Mouse: 2 USB type B female (white)

- Video: 2 DVI-I (white)

- Speakers: 2 mini stereo female (green)

- Mic: 2 mini stereo female (pink)

• Power connector: 1 DC connector


• USB Hub Connectors: 2 USB type A female (black, rear panel)


• 2 Select buttons


• LED:



- Online/Selected  2 (orange)

- USB connection   2 (green)

• Keyboard/mouse emulation: USB


• Video: 1920 x 1200


• Switching interval: 1 – 99 sec. (default 5 sec)


• Power consumption: DC 5,3 V, 9,0 W



Environmental features

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità relative from 0 to 80 %, without condensation



Dimensions

• Width: 21.00 cm


• Depthà: 8.80 cm


• Height: 5.55 cm



Package contents

• USB DVI KVM Switch


• Connection cables


• Power supply


• User Guide
