Switch USB KVM DVI to 4 Doors with Audio and USB Hub - Aten IDATA CS- 1764

The switch KVMP™ CubiQ™ USB 2.0 DVI IDATA CS- 1764 A marks a new and revolutionary direction in the functionalityà KVM switches (Keyboard, Video, Mouse) combining a KVM switch to 4 ports with a USB 2.0 hub to 2 ports and at the same time offering a digital monitor interface (DVI).

The CS 1764 A è also equipped with ATEN's new DynaSync™ Video technology, which optimizes resolution, and ignition detection, which makes sì that if a computer is turned off, the CS 1764 A steps automatically to the next computer on.

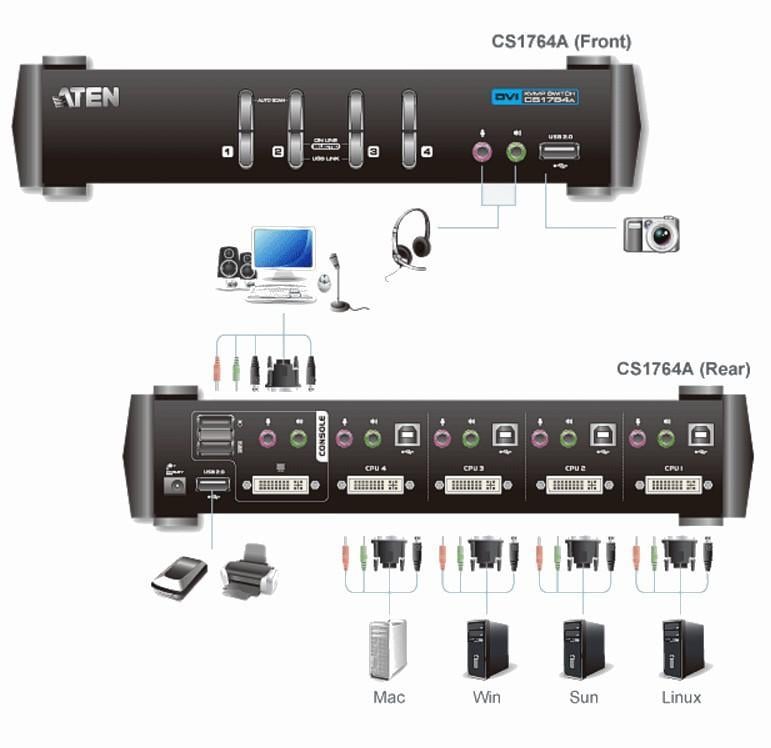

As a KVM switch, it allows you to access four computers from a single console with a monitor and keyboard and USB mouse. Thanks to the USB 2.0 hub, it allows each computer to access the connected peripherals in turn.



Features

• One console controls four computers.DVI and another two USB devices


• Hub with 2 USB ports 2.0 included


• Fully compliant with USB 2.0 specifications

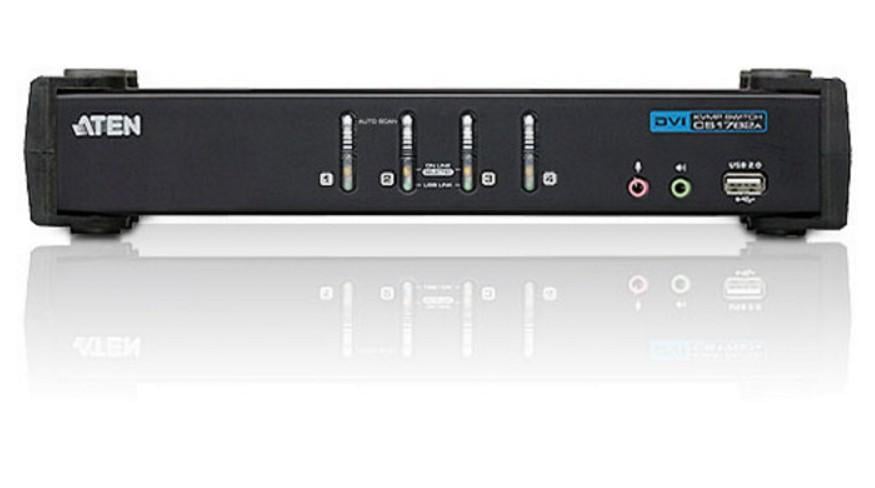

• Computer selection via front panel buttons and shortcut keys


• With audio transmission: the full bass range offers a wonderful experience with surround audio systems at 2.1 channels


• Multiplatform support (Windows, Linux, Mac and Sun)


• Quality à higher video: 1920 x 1200 , 60 Hz; DDC 2 B


• Independent switching of KVM, USB and audio control


• Support for digital and analog – DVI monitors fully compliant with DVI specifications


• HDCP Conforms


• DynaSync video ™ – stores the Extended Display Identification Data (EDID) of console monitors to optimize screen resolution


• Onset detection: If a computer è is switched off, CS 1764 A automatically switches to the next computer on


• Console mouse port emulation/bypass function supports many multifunction mouse and mouse drivers


• Mac/Sun keyboard support and emulation*


• Modelità automatic switching for monitoring all computers


• Firmware update option via USB



* 1 . Emulation of Sun/Mac keyboards via PC keyboard key combinations.

2 . Sun/Mac keyboards only work with their respective computers.



Technical specifications

• Computer connections: 4


• Door Selection: Front Panel Buttons, Shortcut Key


• Connector ports to the console:



- Keyboard: 1 USB type A female (black, rear panel)

- Video: 1 DVI-I (white)

- Mouse: 1 USB type A female (black, rear panel)

- Speakers: 2 mini stereo female (green, 1 on the front panel, 1 on the rear panel)

- Microphone: 2 mini stereo female (pink, 1 on the front panel, 1 on the rear panel)

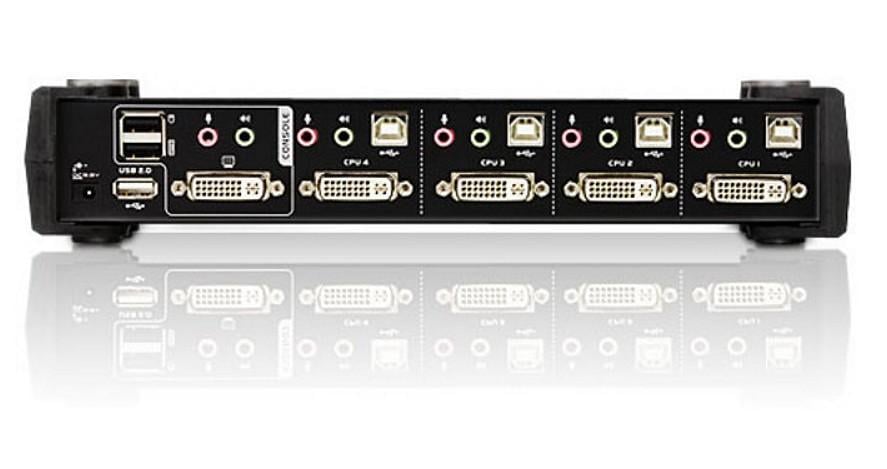

• KVM port connectors:



- Keyboard/Mouse: 4 USB type B female (white)

- Video: 4 DVI-I (white)

- Speakers: 4 mini stereo female (green)

- Microphone: 4 mini stereo female (pink)

• Power connector: 1 DC connector


• USB Hub Connectors: 4 USB type A female (black, rear panel)


• 4 Select buttons


• LED:



- Online/Selected  4 (orange)

- USB connection   4 (green)

• Keyboard/mouse emulation: USB


• Video: 1920 x 1200 @ 60 Hz; DDC 2 B


• Switching interval: 1 – 99 sec. (default 5 sec)


• Power consumption: DC 5,3 V, 10,7 W



Environmental conditions

• Operating temperature: 0 - 50 °C


• Storage temperature: - 20 - 60 °C


• Humidità relative from 0 to 80 %, without condensation



Dimensions

• Width: 27.00 cm


• Depthà: 8.80 cm


• Height: 5.55 cm



Package contents

• USB DVI KVM Switch


• Connection cables


• Power supply


• User Guide
