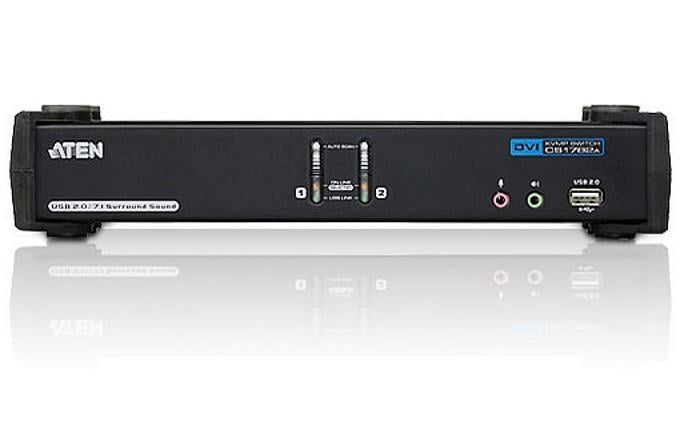

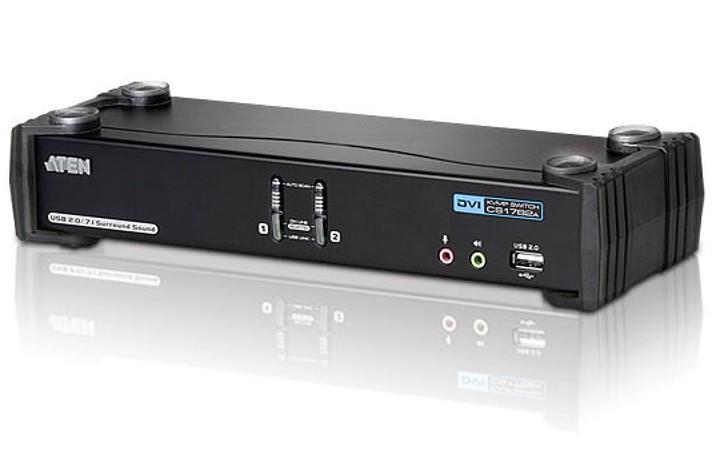

Switch KVM USB DVI Dual Link to 2 Doors with Audio and USB Hub - Aten IDATA CS- 1782

The KVMP USB DVI Dual Link IDATA CS- 1782 switch marks a revolutionary direction in the functionality à of the KVM switches. It combines the functionality à of a KVM switch to 2 ports with a USB hub to 2 ports and offers audio support and interface for DVI monitors. In addition, it has advanced functions such as nVidia 3 D Vision ready display support for 3 D to 120 Hz, compatibleà with the gaming keyboards, selection/commutation of the ports by mouse. All with the aim of offering the user flexibilityà, comodità and practicalità.



Features

• Switch KVMP DVI to 2 ports with USB 2.0 and audio surround 7.1


• One USB console controls two computers and two other USB devices


• 2.0 USB hub with built-in 2 ports, fully compatible with USB 2.0 specifications


• The full bass range for 7.1-channel surround sound systems


• Selecting your computer via the buttons on the front panel, the shortcut keys and the mouse


• Multiplatform support: Windows, Linux, Mac and Sun*


• Independent switching of KVM, USB and audio control


• Support for digital and analog – DVI monitors fully compliant with DVI specifications


• Qualità higher video: 1920 x 1200 @ 60 Hz (Single Link); 2560 x 1600 @ 60 Hz (Dual Link)


• nVidia 3 D Vision Ready: Works with 120 Hz LCD monitors and active shutter glasses to create a 3 D environment with 1900 x 1080 maximum resolution


• HDCP compatible


• Support widescreen resolutions


• DynaSync Video: ATEN's exclusive technology that eliminates all-time display problems and optimizes resolution when switching from door to door


• Switching on detection: If a è computer is switched off, the switch automatically switches to the next computer on


• Console/bypass mouse port emulation function supports many multifunction mouse and mouse drivers


• The emulation/bypass function of the console keyboard supports most multimedia and gaming keyboards


• Full keyboard emulation for error-free startup


• Mac/Sun keyboard support and emulation*


• Multilingual keyboard keymap: supports English, Japanese and French keyboards


• Modelità automatic switching for monitoring all computers


• Updated Firmware



* Emulation of Mac/Sun keyboards via PC keyboard key combinations.

Mac/Sun keyboards only work with their respective computers.



Technical specifications

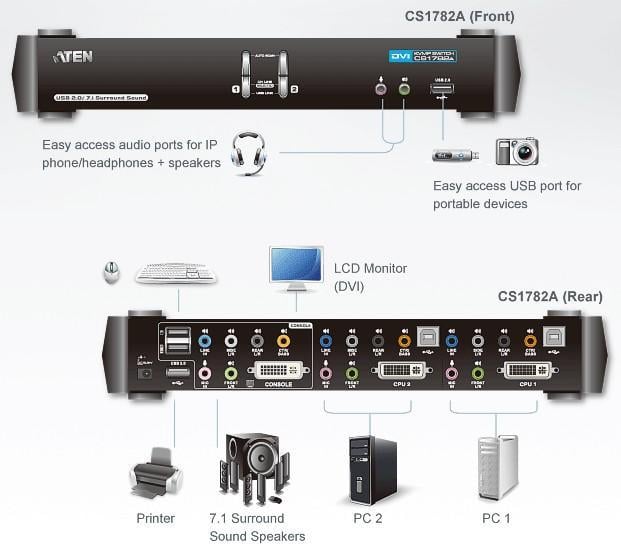

• Computer connections: 2


• Door Selection: Front Panel Buttons, Shortcut Keys, Mouse

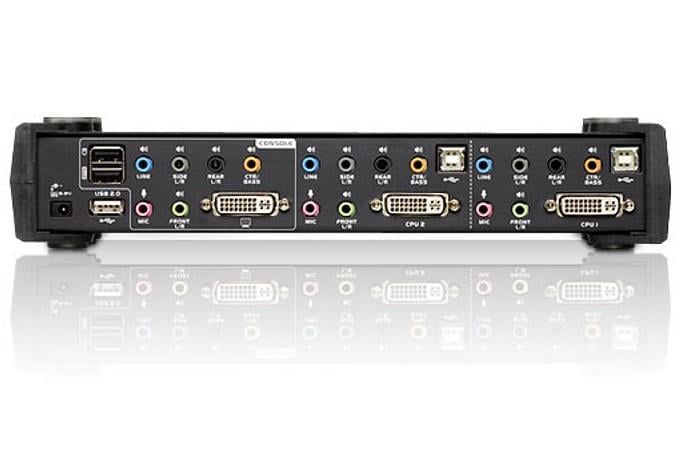

• Connector ports to the console:



- Keyboard: 1 USB type A female (black, rear panel)

- Video: 1 DVI-I (white)

- Mouse: 1 USB type A female (black, rear panel)

- Audio:

Line output: 2 mini stereo female (green, 1 on the front panel, 1 on the rear panel)

Line input: 1 mini stereo female (blue)

Side speakers output: 1 mini female stereo (grey)

Rear loudspeakers output: 1 mini female stereo (black)

Central/subwoofer: 1 mini stereo female (orange)

Microphone: 2 mini stereo female (pink, 1 on the front panel, 1 on the rear panel)

• KVM port connectors:



- Keyboard/Mouse: 2 USB type B female (white)

- Video: 2 DVI-I (white)

- Audio:

Exit line: 2 mini stereo female (green)

Line input: 2 mini stereo female (blue)

Side speakers output: 2 mini female stereo (grey)

Rear loudspeakers output: 2 mini female stereo (black)

Central/subwoofer: 2 mini stereo female (orange)

Microphone: 2 mini stereo female (pink)

• Power supply: 1 DC connector


• USB hub 2.0: 2 USB type A female (white, 1 on the front panel, 1 on the rear panel)


• Keyboard/Mouse emulation: USB



Environmental features

• Operating temperature: 0–50°C


• Storage temperature: - 20 – 60 °C


• Humidità relative from 0 to 80 %, without condensation



Dimensions

• Width: 27 cm


• Depthà: 8.80 cm


• Height: 5.55 cm



Certifications

• CE


• FCC


• RoHS


• RAEE



Package contents

• 1 x CS 1782 A switch KVMP USB DVI Dual Link


• 2 x 2 L- 7 D 02 UD cable set KVM DVI-D (1.8 m)


• 2 x LIN 5 - 12 N 1 -N 11 G cable set 7.1 Channel Surround Sound customized (1.8 m)


• 1 x 0 AD 6 - 1605 - 24 EG power supply


• 1 x User guide
