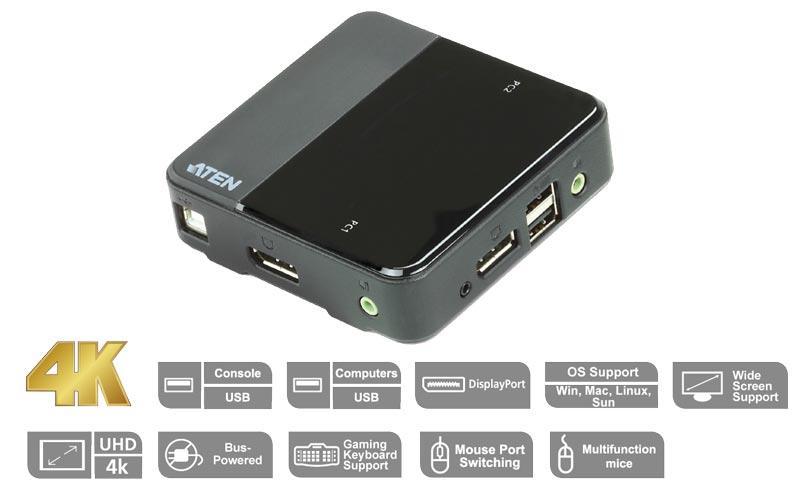

Switch KVM DisplayPort USB 2 ports 4 K UHD - Aten IDATA CS- 782 DP

With the increasing demand for higher quality à video and the evolution of DisplayPort technology, 4 K enabled computers and displays are now widely adopted in visual and commercial applications. With the offer up to 4 K UHD resolution, the ATEN CS 782 DP è comfortable between these demanding scenarios and technological advances.

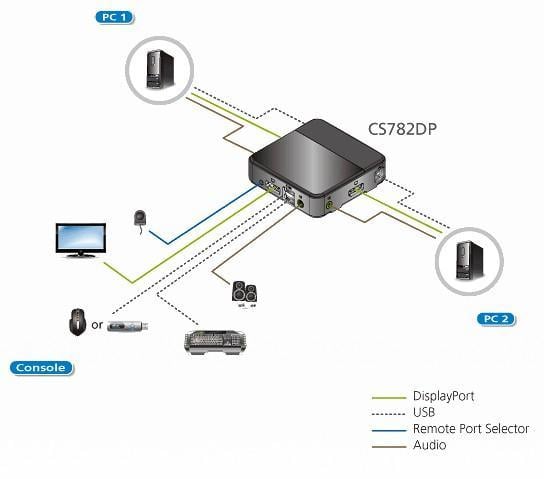

The KVM DisplayPort USB 2 ports ATEN CS 782 DP has 4 K UHD video resolution and allows users to access two 4 K enabled computers from a single USB keyboard, USB mouse and DisplayPort video console.

In a simple way, the CS 782 DP provides three convenient switching methods: using a remote door selector, mouse or shortcut keys for flexible access to any computer connected to the installation. The product also provides a sensational audio support for a complete multimedia solution. To complete the entire experience, the aerodynamic design and space-saving CS 782 DP also makes it ideal for any work environment.

With its rich set of functions, the CS 782 DP è has been designed to exceed all requirements in graphic design, animation and video editing.



Features

• A DisplayPort video console controls two USB computers


• DisplayPort 1.2 fully compliant


• Selecting your computer by remote port selector, shortcut keys and USB mouse*


• Superior video quality – up to 4 K UHD (3840 × 2160 at 60 Hz)


• Multiplatform support – Windows, Mac, Sun, Linux


• HDCP Conforms


• Supports MST (Multi-Stream Transport)**, which allows the use of various monitors via a single DisplayPort connector


• Supports dual DisplayPort (DP++)*** mode for direct HDMI and/or DVI single-connection signal output via a DisplayPort-HDMI/DVI DP+ adapter with external power supply


• Compatible with widescreen LCD monitors


• Detecting ignition: If a computer è is switched off, the CS 782 DP automatically switches to the other computer


• With audio transmission: the full bass range offers a wonderful experience with surround audio systems at 2.1 channels


• Supports HD Audio**** by playing DisplayPort


• The independent switching of KVM and Audio focus**** allows a convenient multitask


• Supports multimedia keyboards


• Supports wireless keyboards and mouse


• Console mouse port emulation/bypass function supports many multifunction mouse and mouse drivers


• Mac/Sun keyboard support and emulation*****


• The 2.0 USB port of the mouse can be used for USB hub and USB device sharing******


• Powered by bus


• Firmware Update



Note:

* Switching the è mouse port supported only in emulation mode à and via the mouse wheel to 3 USB keys.

** MST (Multi-Stream Transport) requires monitor with 1.2 DisplayPort interconnection or the use of MST DisplayPort hub with external power supply. The PC source must comply with DisplayPort 1.2. DP++ (Modalità dual DP) requires the use of a DP++ adapter with external power supply. The graphics source must be DP++ compliant.

*** The dual DisplayPort mode (DP++) requires the use of a DP++ adapter with external power supply. The graphics source must be DP++ compliant.

**** You can't switch HD audio independently via DisplayPort.

***** a. PC keyboard combinations emulate Mac/Sun keyboards. b. Mac/Sun keyboards only work with their computers.

****** You may need an additional power supply to connect like the USB hub and disable the modeà mouse emulation of the CS 782 DP.



Technical specifications

• Computer connections: 2


• Select Port: shortcut key, mouse, remote door selector


• Keyboard / Mouse: USB


• Video: 4 K UHD (3840 x 2160 at 60 Hz)


• Scan interval: 3 , 5 , 10 , 20 seconds (default: 5 seconds)


• Consumption: 5 V CC, 4 W

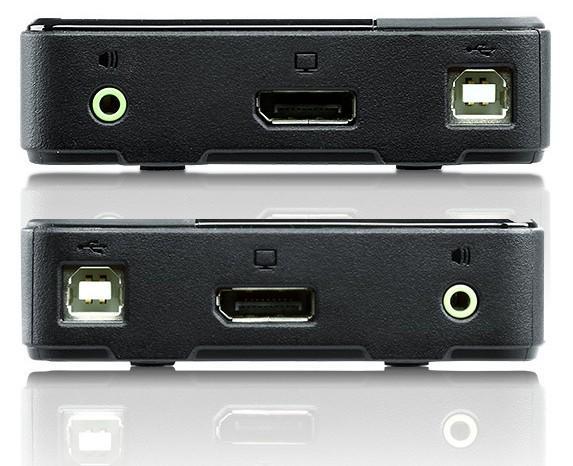

Connections

• Console ports  



- 2 x USB type A female (black)

- 1 x DisplayPort female (black)

- 1 x Female audio connector from 3,5 mm (green)

• KVM & Ports



- 2 x female type B USB (white)

- 2 x DisplayPort female (black)

- 2 x Female audio connector from 3,5 mm (green)



Environmental features

• Operating temperature: 0 – 50 °C


• Storage temperature: - 20 – 60 °C


• Humidità: 0 - 80 % relative humidity without condensation



Dimensions

• Width: 9,37 cm


• Depthà: 9,30 cm


• Height: 2,68 cm



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1 x CS 782 DP switch KVM DisplayPort USB to 2 ports


• 2 x LIN 5 - 20 K 1 -K 12 G cables DisplayPort


• 2 x LIN 6 - 04 U 1 -V 1 BG USB cables


• 2 x LIN 5 - 0205 - 21 CG audio cables


• 1 x Remote door selector


• 1x User manual
