Rack PDU power strip 24 Outlets, Measurement and Switching 30A/32A - ATEN I-CASE PE-8324G

I-CASE PE-8324G è an ecological power distribution unit (PSU) at 24 NRGence line AC sockets to increase power usage efficiency in data centers.

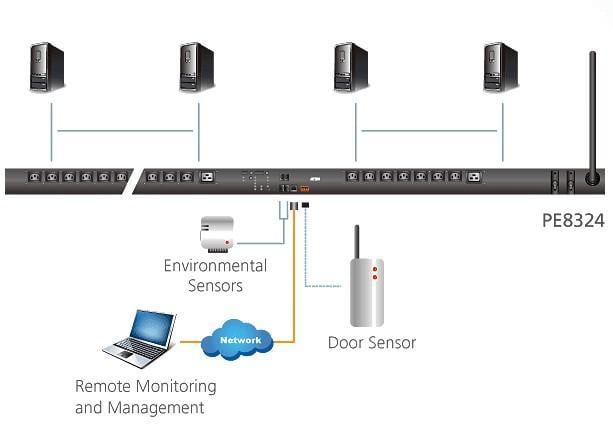

It provides centralized, secure, and intelligent power supply management with regard to powering, switching off and rebooting data center devices (servers, storage systems, KVM switches, network devices, serial devices, etc.). It also allows you to monitor the data center environment via sensors *.



The eco PDUs offer remote control of the power supply in addition to the measurement of the power supply in real time that allows you to control and monitor the power status of the device connected to the PDU, both at the PDU device level and of socket, from practically any position using a TCP/IP connection.



You can set the power supply status of each socket, allowing users to turn on or off each device. L'eco PDU also offers comprehensive analysis reports, providing accurate measurements of current, voltage, power and watt hour in real time.

The NRGENCE eco PDU supports any management software SNMP v 1 , v 2 and v 3 as well as eco Sensors (the ATEN software for the management of the PDU eco). The latter offers an easy way to manage more ù devices, thanks to a user-friendly graphical user interface that allows you to configure a PDU device and monitor the power status of the equipment connected to it.



Thanks to the advanced safety features and the simplest à operation, the PDU è eco-eco is the most convenient, convenient and reliable way to remotely manage the power supply of different computer installations and allocate power resources as efficiently as possible.



** The sensors are optional. To generate a graph and data with a higher level of completeness of energy efficiency è the sensors need to be installed.



Connections

• Support for interface 10/100Mbit Ethernet


• Support for TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, SNMP V 1 ,V 2 &V 3


• Support for account/password security at 2 layers, IP/MAC filters, SSL at 128 bit, RADIUS


• Support: eco Sensors, Browser (IE, Firefox, Chrome, Safari)



Measurement

• PDU level measurement and monitoring and grip


• Environmental monitoring — supports external temperature sensors and temperature and humidity sensors of the rack


• Measuring and setting thresholds for current, voltage, power, energy dissipation, temperature and humidity;


• Support for port sensors



Controlled switching of sockets

• Remote control of output power supply (ignition, shutdown, power cycle) for individual sockets and assembly of sockets


• PDU supports gripping groups


• Several power control methods — Wake on LAN, System after current return, Switch off power


• — ignition sequence Users can set the ignition sequence and delay time for each socket so that the equipment can be switched on in the right order


• Proactive overload protection (POP) — automatic shut-off of the last socket that caused the current overload



Technical specifications

• Nominal input voltage: 100 - 240V AC


• Maximum input current: 32 A maximum


• Input frequency: 50-60 Hz

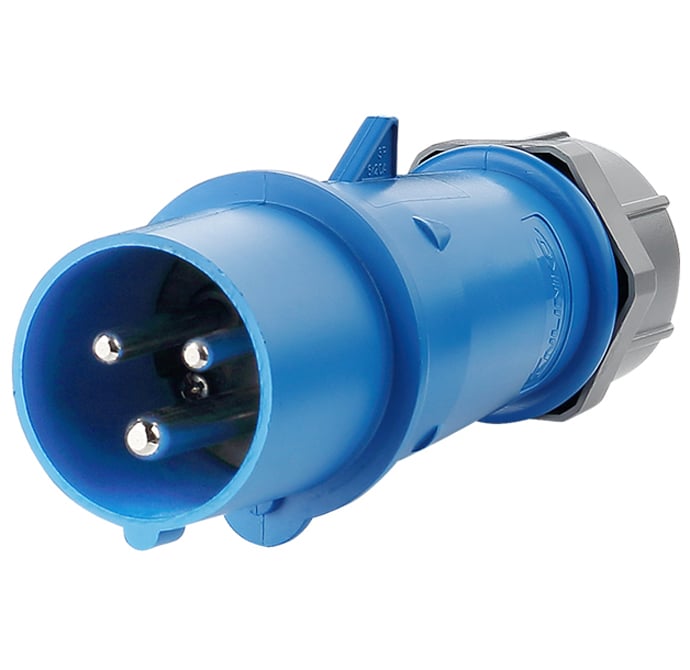

• Input connection: IEC 60309 32A


• Input power: 7360 VA (maximum)

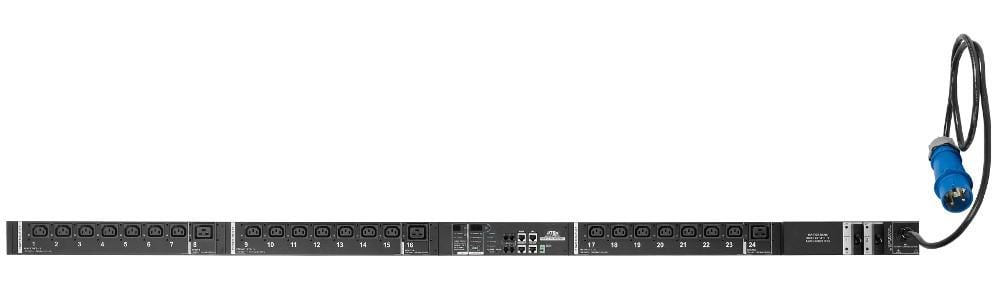

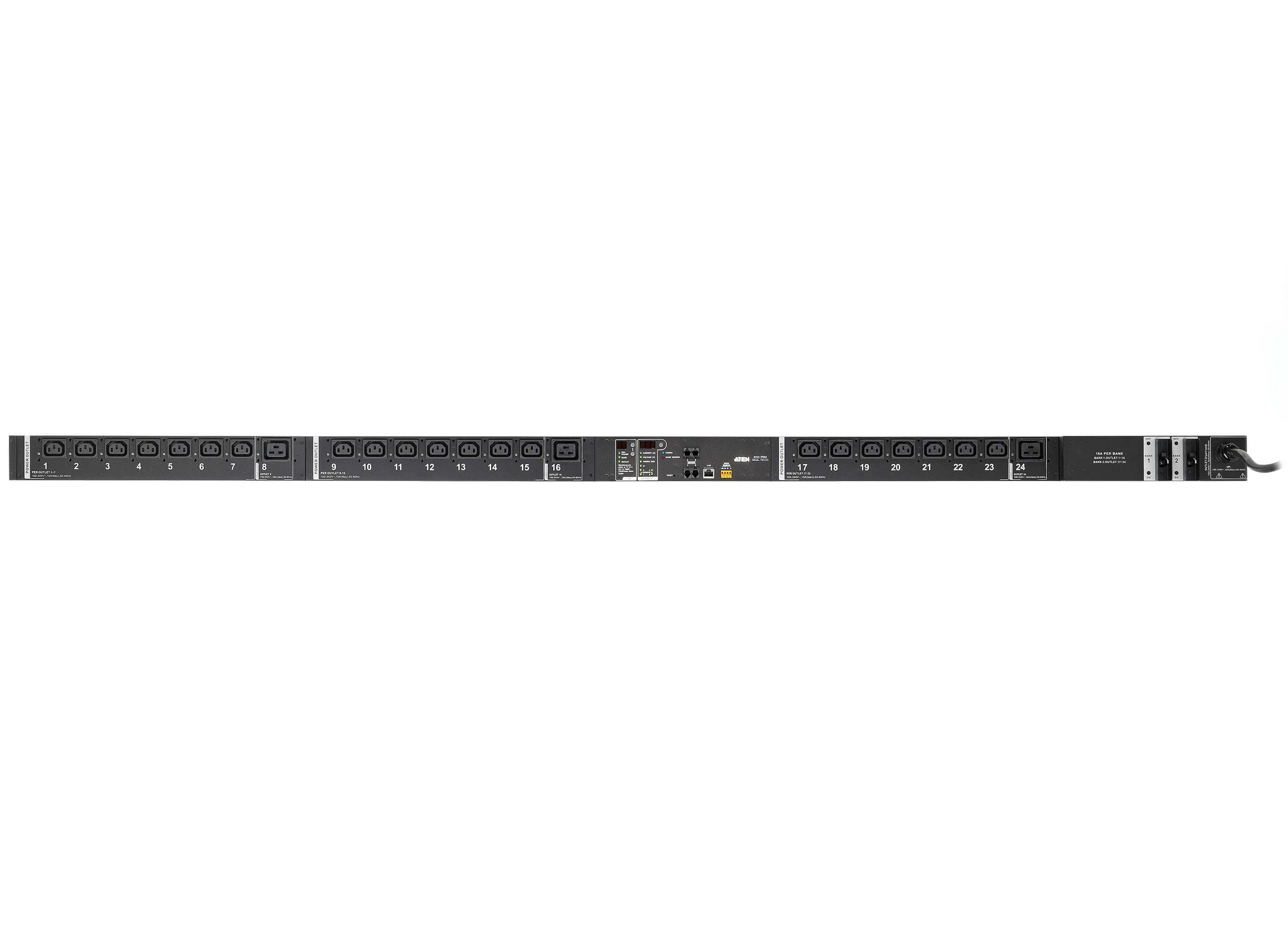

• Output type: 21 x IEC320 C13 + 3 x IEC320 C19



- Accumulator 1-1: Output 1 - 8; 7 x C13 + 1 x C19

- Accumulator 1-2: Output 9 – 16; 7 x C13 + 1 x C19

- Accumulator 2: Output 17 - 24; 7 x C13 + 1 x C19

• Rated output voltage & 100 - 240 V CA


• Maximum output current (output): C 13 : 10 A (maximum); C 19 : 16 A (maximum) downgraded TUV 15 A


• Maximum output current (accumulator): 16A maximum, downgraded TUV 15A


• Maximum output current (total): 32A maximum, downgraded TUV 30A


• Lifesaving: 2 x Lifesaving UL489 16A


• Measurement: Current level monitoring, Voltage, VA, PF and KWh of accumulator


• Output Switching


• Ambient sensor doors: 4


• Measurement accuracy:



- Voltage range: 100 V CA – 250 V CA +/- 1 %

- Power range: 100 W ~ Capacityà maximum +/- 2%

- Power range: 0,1 A ~ 1 A +/- 0,1 A, 1 A ~ 20 A +/- 1 %



Environmental features

• Operating temperature: 0–40°C


• Storage temperature: - 20 – 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 177.50 cm


• Depthà: 6.60 cm


• Height: 4.40 cm


• Cable length: 1.6m


• Weight: 6.12 kg



Certifications

• CE


• RoHS


• RAEE



Package contents

• 1x Eco PDU PE8324


• 1x rack mounting kit


• 1x CD ROM (Manual, Eco Sensors software)


• 1x User guide
