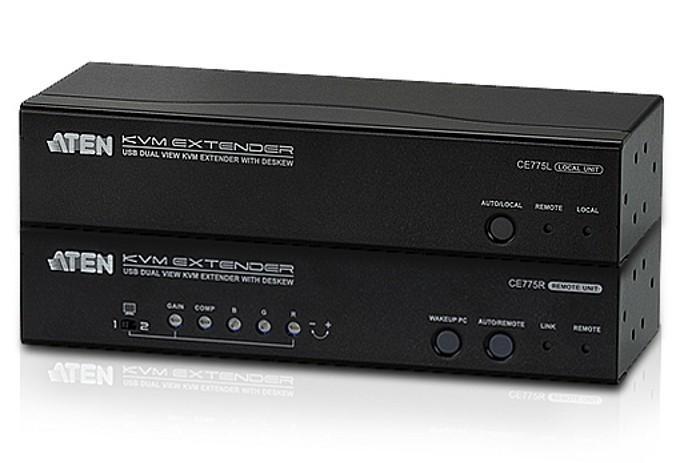

Extender KVM USB VGA Dual View with Deskew 300 m - Aten IDATA CE- 775

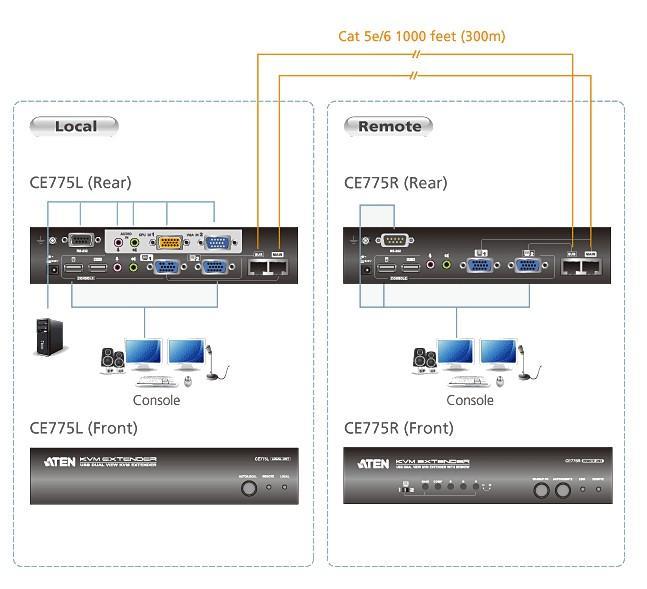

The ATEN CE 775 KVM Dual View extenders with Deskew allow you to access a computer from a remote Dual View console even 300 m away. The Dual View feature provides support for two screens, allowing you to transmit the video output on two monitors. The advanced PC Wake-Up feature allows you to use a simple button from the remote Dual View console to wake up a PC locally via RS- 232 without having to physically travel from your PC. Eliminates the need to go back and forth between the local computer and the remote, efficient and flexible console.

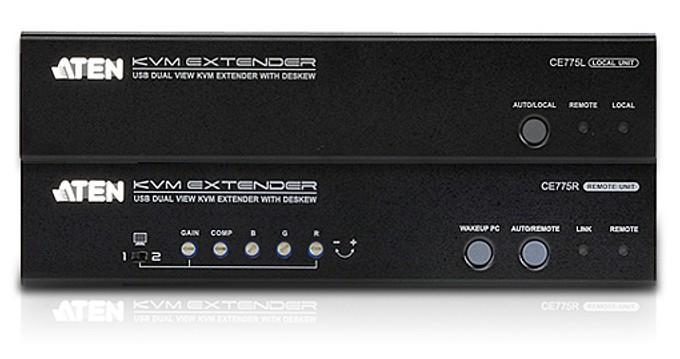

Use the new knobs on the front panel to adjust the image quality. In addition, è can synchronize the delay time of RGB signals to compensate for the distance, easier and faster than ever.



Features

• Dual View support: two screens can be connected to transmit two video output signals up to 300 meters via simple and cheap Cat 5 and/ 6 cables


• Operation with double console: both local and remote system control from keyboard console, USB mouse and monitor


• Deskew function: automatically synchronizes RGB signal delay to compensate for distance


• PC activation support: è can activate a PC at local location via RS- 232 by pressing a button from the remote console


• Qualityà higher video: 1920 x 1200 @ 60 Hz( 150 m), 1280 x 1024 @ 60 Hz( 300 m)


• Gain/Compensation control: adjusts the signal power to compensate for the distance.


• On Screen Display: adjust the qualityà video with the intuitive OSD menu


• RS- 232 channel: allows connection of serial devices such as touchscreen and barcode scanners


• Protection 8 KV/ 15 KV ESD built-in (contact voltage 8 KV; aerial voltage 15 KV)


• Mac/Sun keyboard support and emulation*


• Support widescreen formats **



* 1 . Emulation of Sun/Mac keyboards via PC keyboard key combinations

2 . Sun/Mac keyboards only work with their respective computers



** EDID data for widescreen format is sent from the local video output port. For widescreen modes and screens, connect the monitor to the local video output port or use an ATEN EDID emulator.

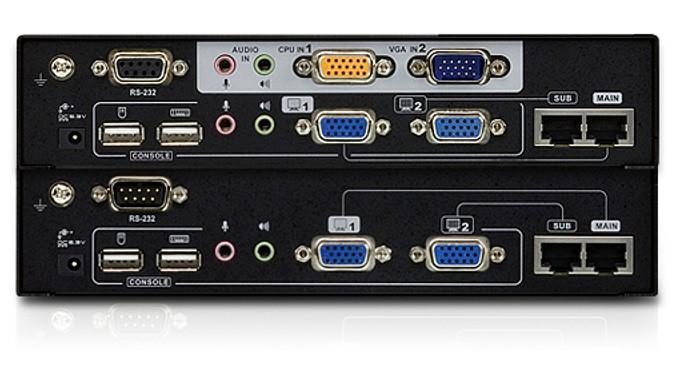

Connectors

• Console doors



L: 

2 x USB type A female (white)

2 x HDB- 15 female (blue)

2 x RJ- 45 female (black)

1 x Mini female stereo connector (green)

1 x Mini female stereo connector (pink) 

A:

2 x USB type A female (white)

2 x HDB- 15 female (blue)

2 x RJ- 45 female (black)

1 x Mini female stereo connector (green)

1 x Mini female stereo connector (pink)

• KVM & Ports



1 x SPHD- 17 female (yellow)

1 x Mini stereo connector (green)

1 x Mini stereo connector (pink)

1 x HDB- 15 male (blue)

• RS- 232  



L: 1 x DB- 9 female (black) 

R: 1 x DB- 9 male (black)

• Feeding  



L: 1 x CC connector (black) 

A: 1 x CC connector (black)



Environmental features

• Operating temperature: 0 – 50 °C


• Storage temperature: - 20 – 60 °C


• Humidità: 0 - 80% relative humidityà without condensation



Dimensions

• Width: 20.00 cm


• Depthà: 7.62 cm


• Height: 4.20 cm



Package contents

• 1 x KVM USB CE 775 L (unità local)


• 1 x KVM USB CE 775 R Extensor (unità remote)


• 1 x LIN cable 5 - 15 X 1 -X 2 BG VGA


• 1 x Cable set KVM USB 2 L- 5302 U


• 2 x Power supplies 0 AD 6 - 1605 - 03 EG


• 1 x Mounting kit


• 1x User guide
